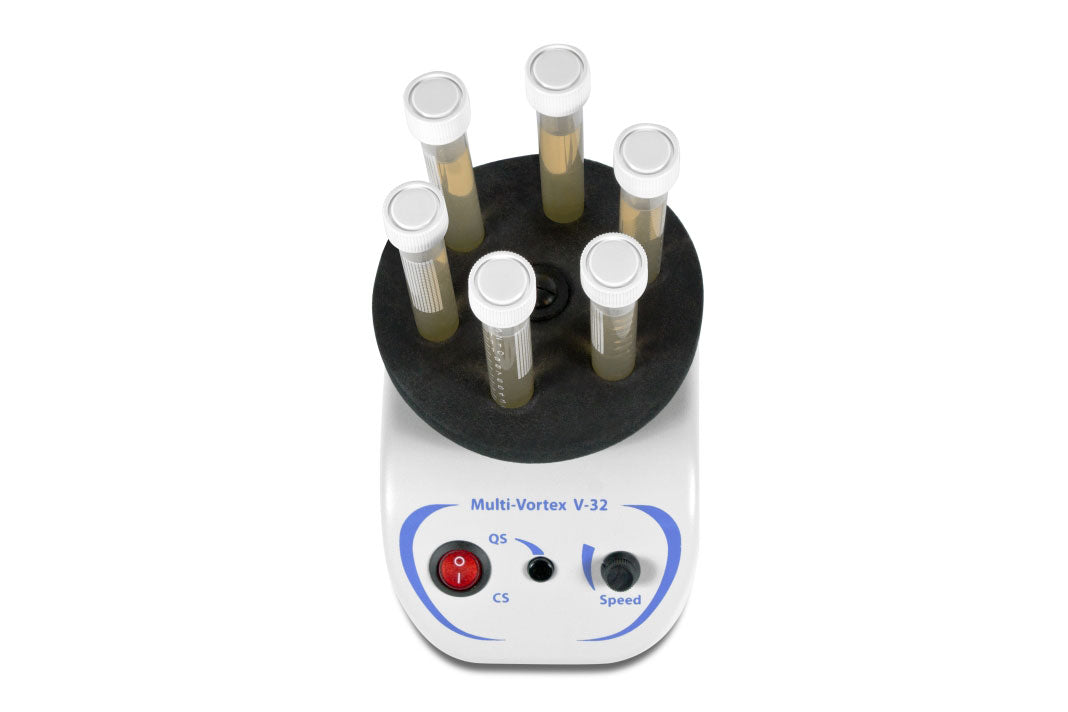

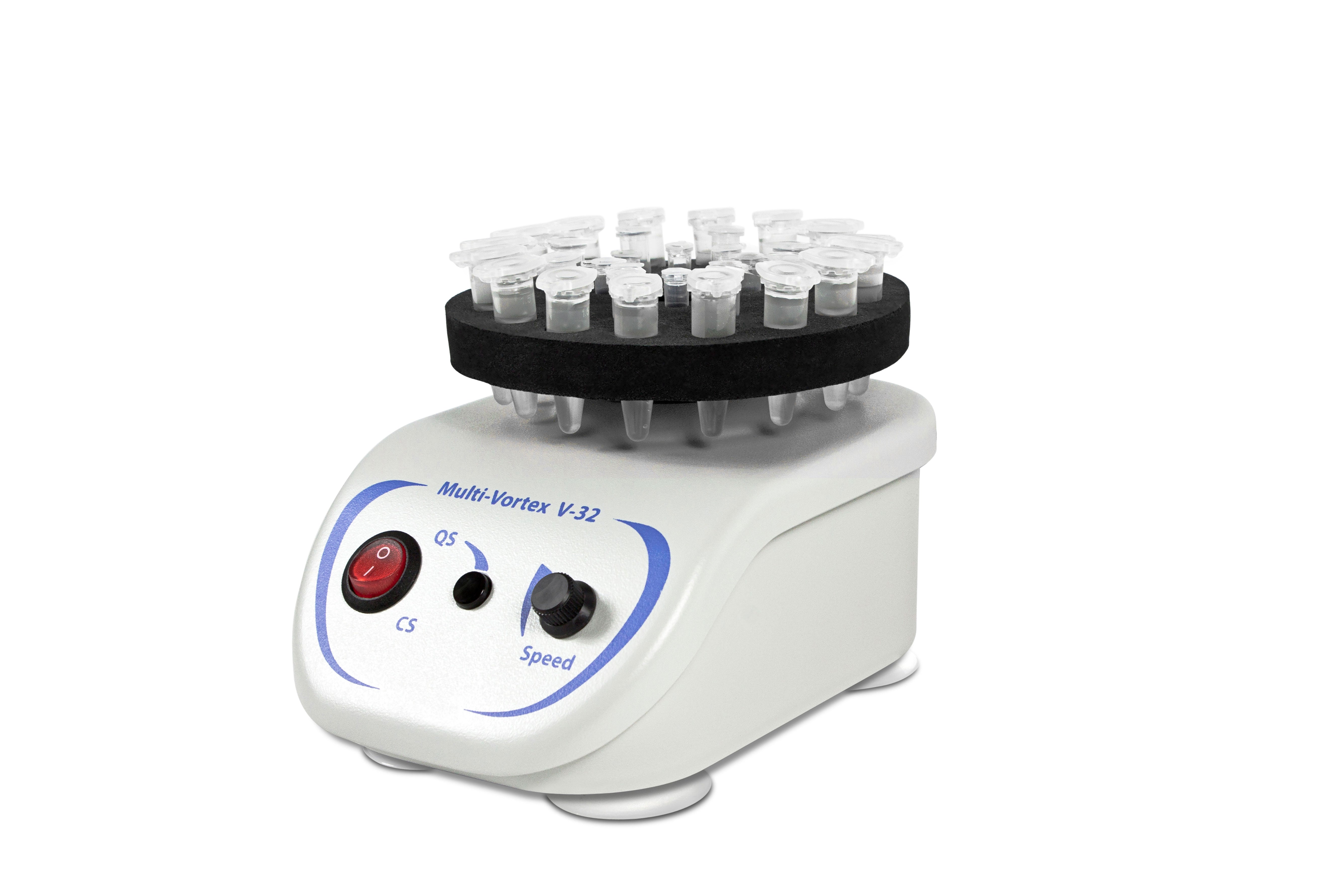

PV-1 / V-32 vortex mixers are intended for intensive mixing of samples in tubes using an eccentric mechanism.
The Grant bio V-32 is a versatile multi vortex mixer for vigorous re-suspension of cells or chemical pellets in tubes up to 1.5 ml, with the facility to mix individual tubes up to 15 ml.
Adjustable speed control: 500 to 3000 rpm
'Continuous' or 'impulse' operation
Handles up to 32 tubes in three different sizes/combinations

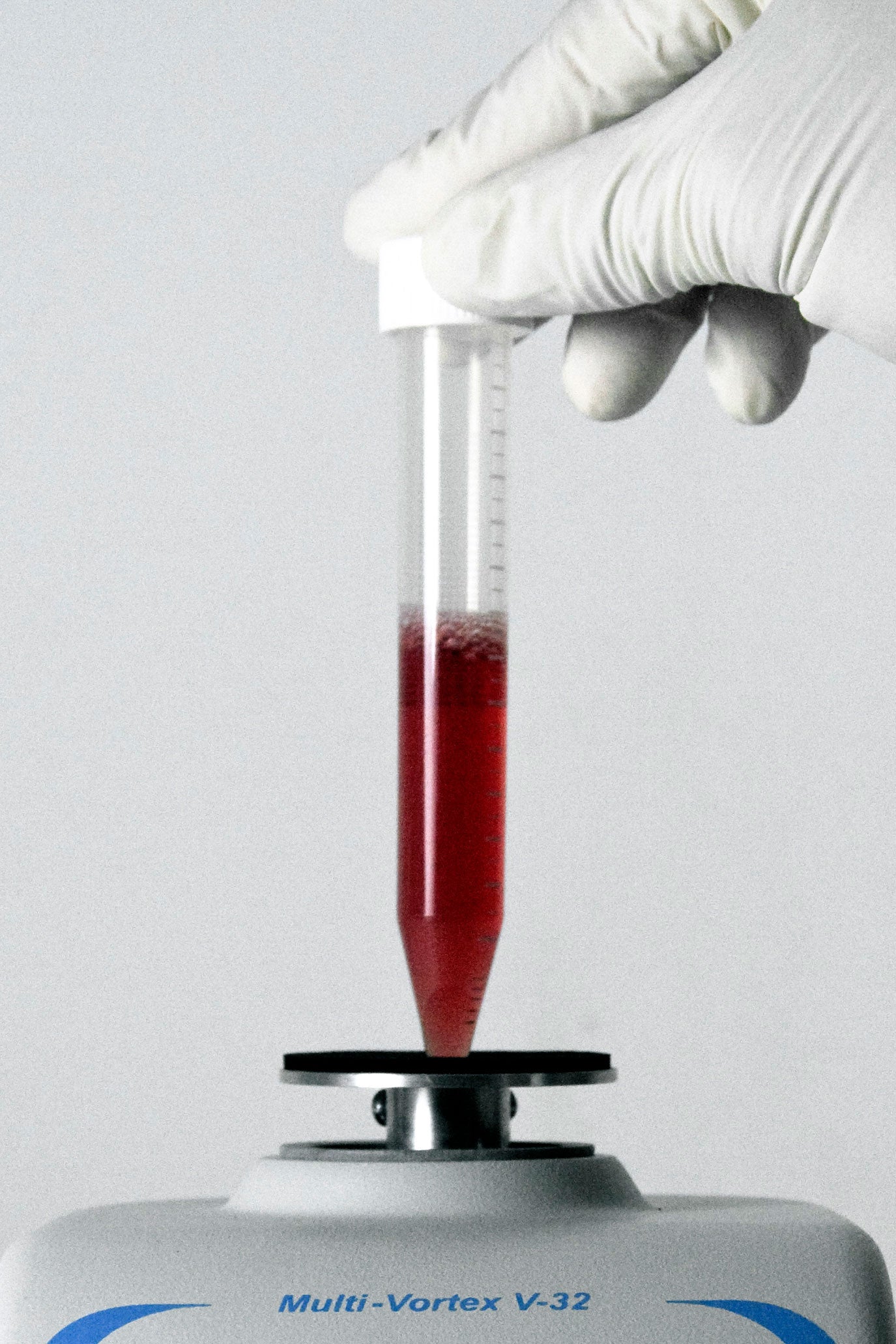

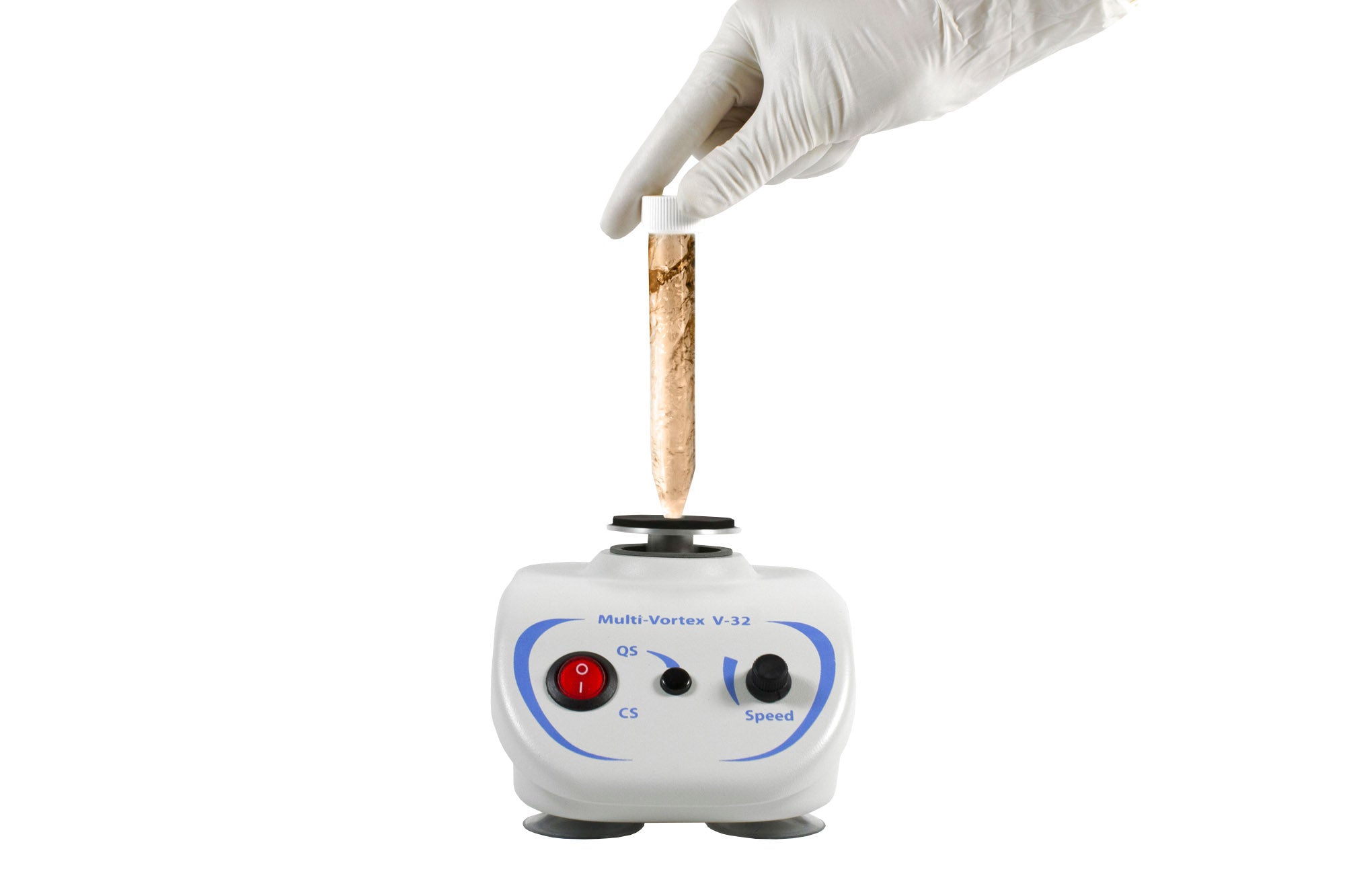

Additional VP-1 flat head for single tube mixing supplied with unit
Compact rugged design plus powerful motor delivering consistent performance and quiet operation - fits neatly and unobtrusively into the workspace
Rubber suction pads hold tight to the work surface and prevent the unit from 'walking' - they also absorb vibration and prevent its transmission to the workbench
Extremely easy to operate - select either 'continuous' or 'touch' operation and turn the knob to adjust the speed from 500 rpm to 3000 rpm

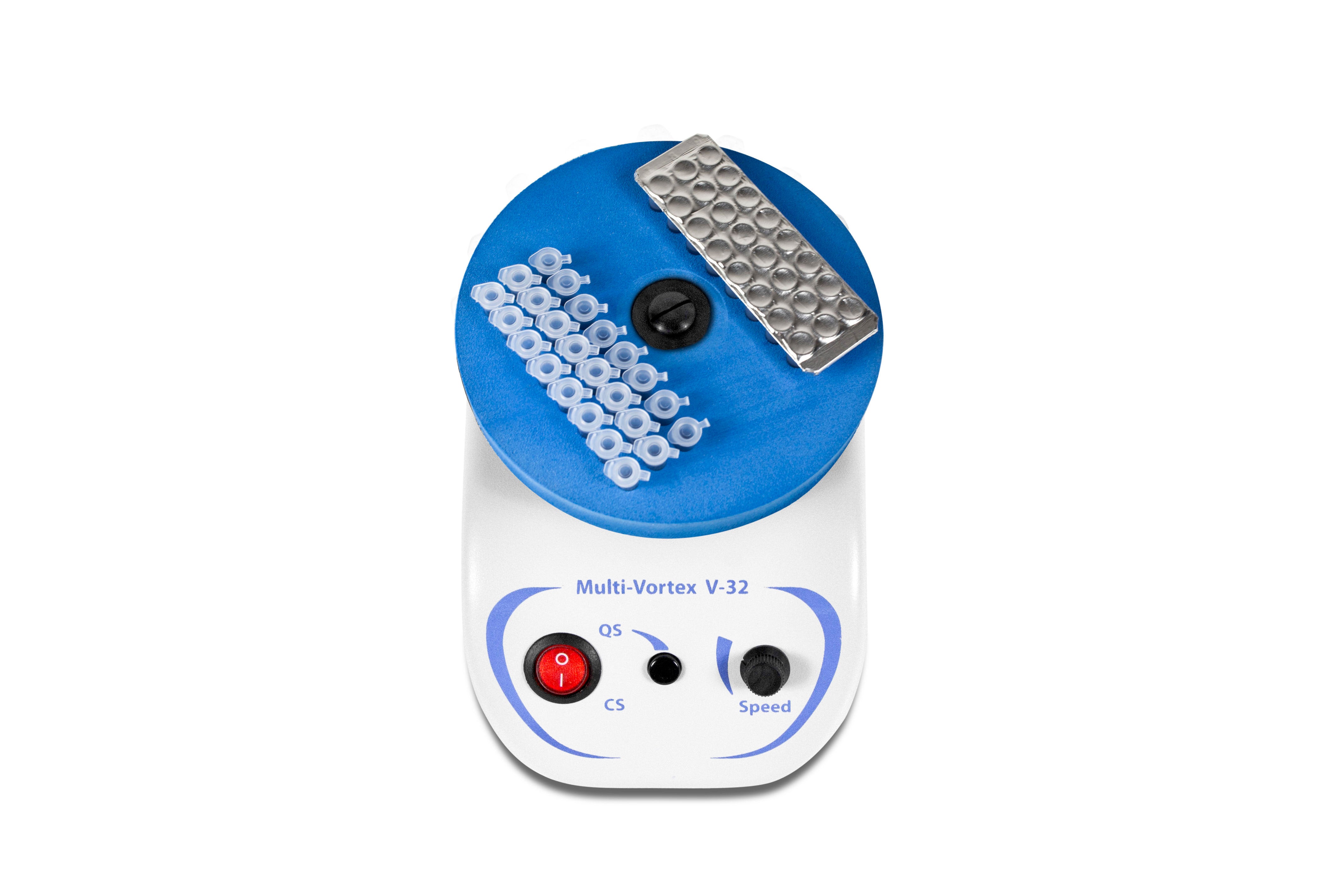

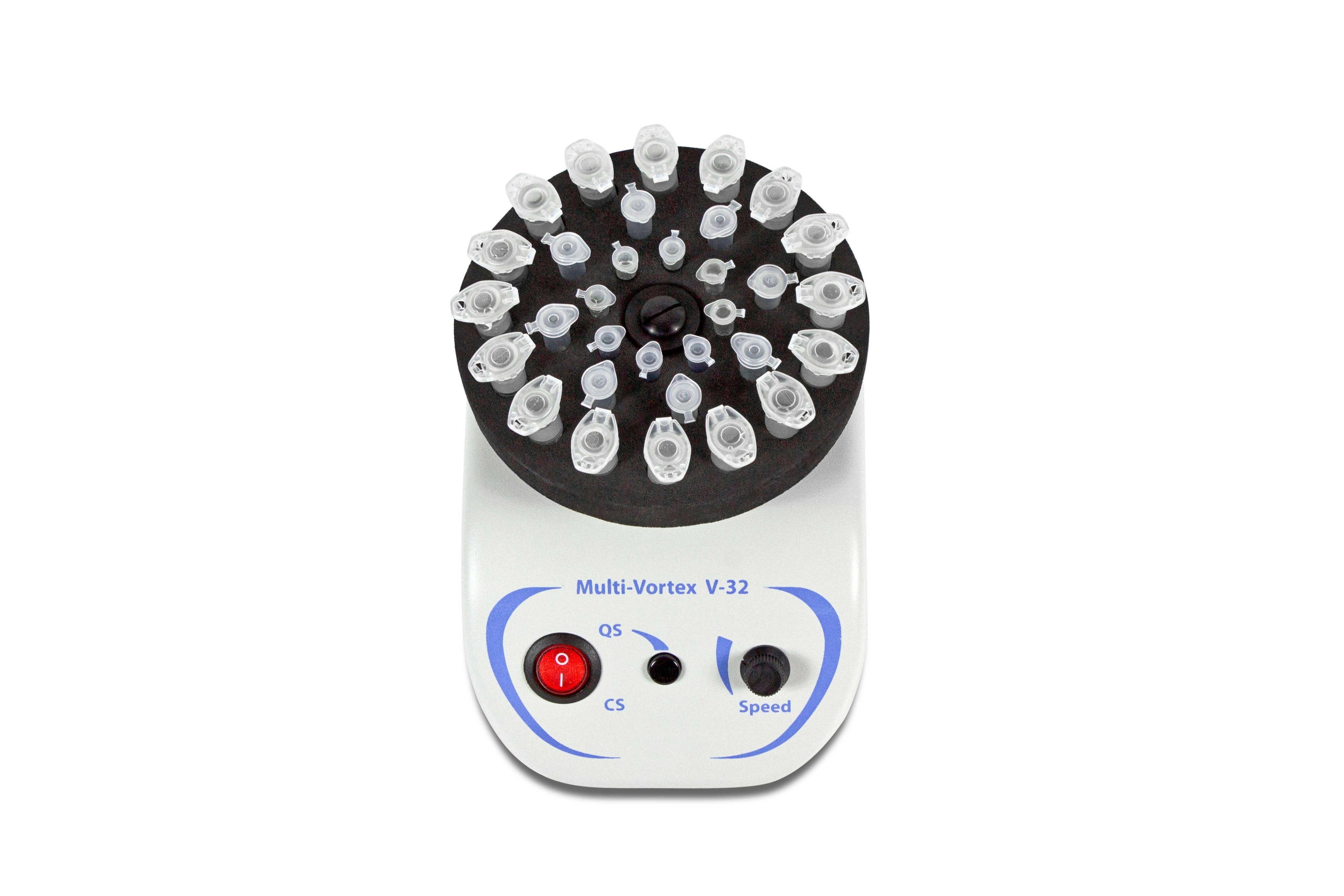

The 32-socket universal platform for three tubes sizes (16 x 1.5ml, 8 x 0.5 ml, 8 x 0.2ml) and a tip for mixing individual tubes up to 15ml provide maximum flexibility for different applications.
Operating temperature range: + 4°C to 40°C
Specification
Details
Dimensions (h x d x w)
100 x 180 x 120mm
Ambient temperature range
+4 to 40ºC
Orbit ø
2
Speed
500 to 3000rpm
Capacity
16 x 1.5, 8 x 0.5 and 8 x 0.2ml tube
Maximum tube diameter
15mm
External power supply
Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption
3.8W (0.32A)
Input voltage
12V dc
Weight
1.5kg
Typical applications include intensive stirring of bacterial and yeast cells, extraction of metabolites and enzymes from cells and cell cultures, and various DNA operations such as deproteinisation of DNA/protein complexes and purification of low molecular weight DNA/RNA fragments in PCR diagnostics.
