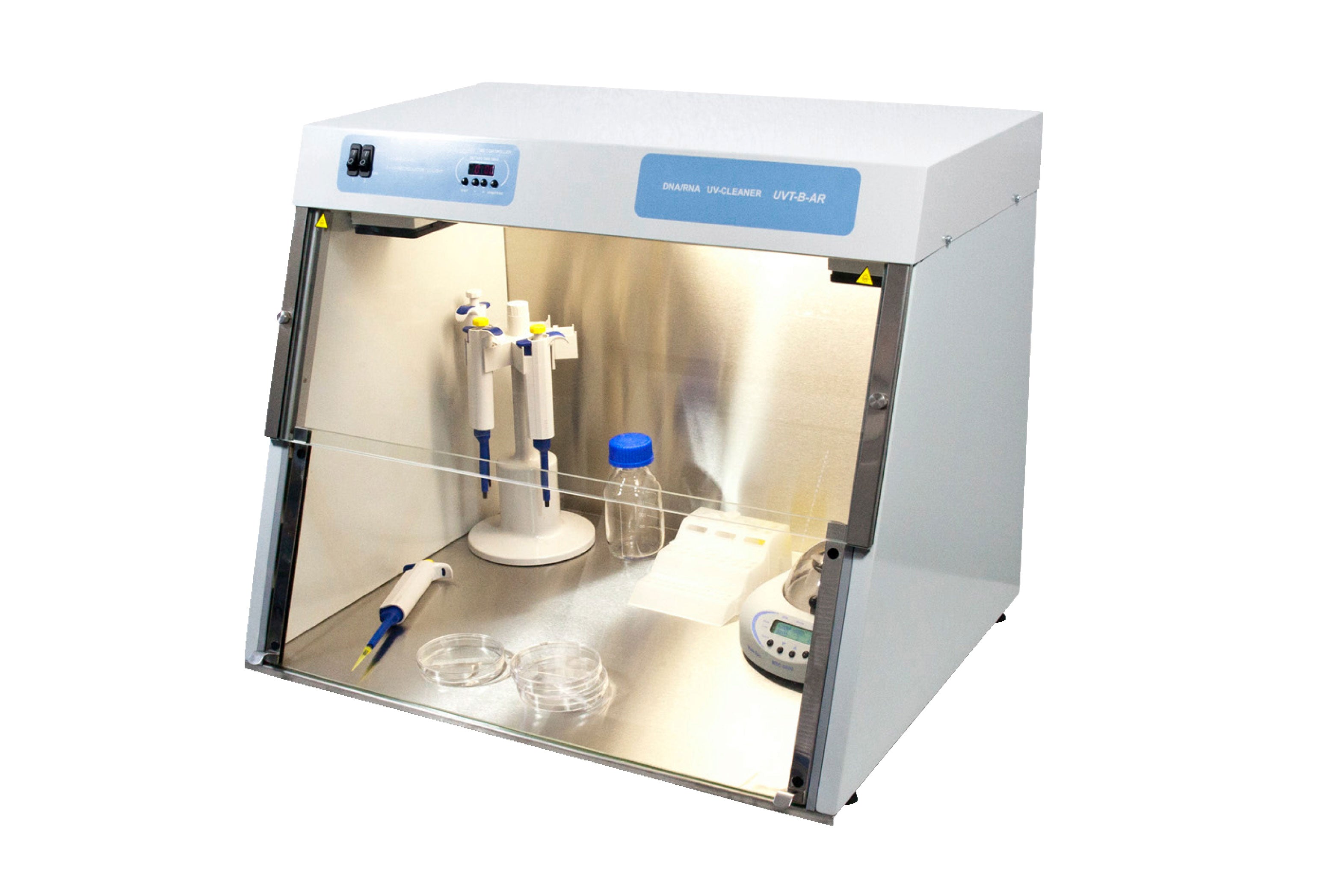

UVT-B-AR Economy PCR UV Cabinet

$4,138.00
$4,138.00
Shipping calculated at checkout.

The Grant bio UVT-B-AR is an economical general purpose PCR UV cabinet in for carrying out short-term procedures.

Need more information?

Need more information?

Please fill out the form below and we will get back to you.

The UVT-B-AR cabinets are equipped with an open UV lamp installed in the upper part of the hood. UV-radiation from these lamps effectively disinfects the working area chamber, inactivating DNA / RNA fragments during 15-30 minutes of exposure. The UV light switches off automatically when door is opened. The model has a stainless steel work surface, metal framework and shock proof glass panels.

The built-in UV cleaner-recirculator both increases the maximum density of UV light and generates 25 m³/h air flow exchange - prevents unwanted contamination and protects the user from direct UV light during manipulation.  The UV cleaner-recirculator consists of UV lamp, dust filters and a fan. The recirculation effect increases the maximum density of the UV light making it sufficiently effective for DNA / RNA inactivation. The recirculator processes 360 UV-cabinet volumes per hour, creating permanently aseptic conditions within the cabinet.

The digital timer controls the duration of the direct UV irradiation. An additional daylight lamp provides a bright, clear working area.

  • 1 x 25W 254 nm open UV lamp
  • High intensity UV cleaner - 25m³/hour cleaner-recirculator continuous air flow with 1cm UV irradiation distance
  • UV exposure controlled by 24h digital timer
  • Convenient, easy to use digital timer for accurate control of UV exposure
  • White lamp provides local illumination of the workplace to optimise visual control during operations
  • Automatic switch-off of irradiated UV light when door opened
  • Supplied with 1 access port and internal power socket

‍

Specification Details
Weight 32 kg
Construction Stainless steel frame and working area
Panels Glass with UV-protective film
Front opening with three adjustable positions •
Open UV lamp, 25W bactericidal, 254nm, ozone free 1
Open UV lamp, 30W bactericidal, ozone free –
Bactericidal air recirculator, 25m³/h air flow exchange •
UV recirculator, 25W (efficiency >99% per 1 cycle) 1
UV recirculator, 30W (efficiency >99% per 1 cycle) –
White lamp for workplace illumination 15W 1
White lamp for workplace illumination 30W –
Digital timer (non-stop) 0 to 24 hours
Internal power outlets 1
Internal working area 645 x 490mm
Flow rate 7 m³/h
Nominal operating voltage 120 or 230V (50/60Hz)
Power consumption 67W (0.3A)

  • Life science - germicidal and virucidal, inhibition of DNA and RNA contamination, applications requiring no residual decontaminants such as disinfectants, operations with DNA/RNA amplicons, microbial research
