TS-DW - Deep well plate Thermoshaker
- Regular price
- $2,902.00
- Sale price
- $2,902.00
- Regular price
-
- Unit price
- / per

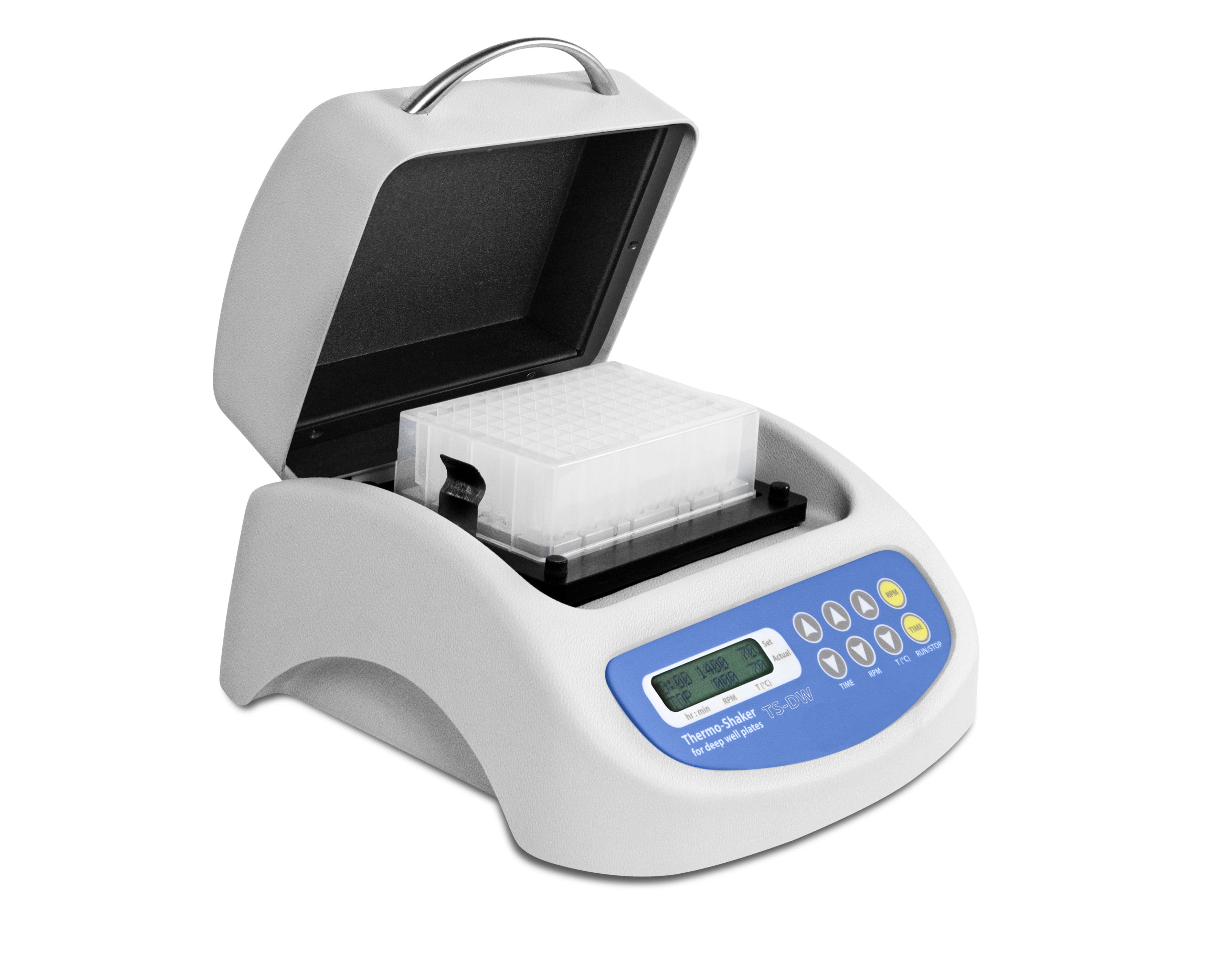

A thermoshaker designed for shaking and heating of deep well plates.
A multisystem principle, used in design of the thermoshaker allows it to operate as 3 independent devices:
- Incubator
- Plate shaker
- Thermoshaker
| Specification | Details |
|---|---|
| Model | TS-DW |
| Mixing speed control range | 250 to 1400 rpm |
| Temperature control range | Ambient +5 to 100ºC |
| Temperature setting range | +25 to 100ºC |
| Orbit (diameter) | 2 mm |
| Temperature uniformity | ±0.1ºC |
| Temperature accuracy | ±0.5ºC |
| Timer with sound alarm | 1 min to 96 hrs |
| Heated lid | Yes |
| Capacity | 1 deep well plate (Eppendorf®, Sarstedt®, Axygen®, Starlab®, custom*) |
| External power supply | Input AC 120-230V, 50/60Hz; Output DC 12V |
| Input voltage | 12V dc |
| Power consumption | 58W (4.8A) |
- Life science applications, molecular biology, cell biology lab, cell lysis, DNA isolation and purification, sample preparation for PCR, pellet re-suspension, or any other method where you have many samples that need mixing in deep well plates.
Product Manuals
- TS-DW Operating Manual - ES
- TS-DW Operating Manual - IT
- TS-DW Operating Manual - DE
- TS-DW Operating Manual - FR
- TS-DW Operating Manual - EN
Technical Datasheets
No downloads available
Further Information
B-2A
Interchangeable block for one deep-well plate Axygen® 96/2200 µl
B-2E
Interchangeable block for one deep-well plate Eppendorf® 96/1000 µl
B-2S
Interchangeable block for one deep-well plate Sarstedt® 96/2200 µl
B-2SL
Interchangeable block for one deep-well plate Starlab® 96/1200 µl
B-2SD
Interchangeable block heating for AB Gene DW Plate AB-0932
B-2M
Interchangeable block heating for Thermo Scientific Kingfisher™ Flex™
B-05E
Interchangeable block for EPPENDORF® 96/500 μl
B-05PO
Interchangeable block for PlateOne, 96/0.5 ml
B-06A
Interchangeable block for Corning Axygen® 96/600μl
B-08AB
Interchangeable block for Abgene 96-well, 800 μl.
B-12AB
Interchangeable block for Abgene™ 96 Well 1.2mL plate
B-1B
Interchangeable block for Brand 1.1 ml deep well plate
B-1R
Interchangeable block for Riplate® 96/1000 μl
B-2BBI
Interchangeable block for SSI Bio
B-2KF
Interchangeable block for PowerMag Glass Bead Plate 96
B-2N
Interchangeable block for Nunc® 96/2000 μl
B-2PO
Interchangeable block for PlateOne, 96/2 ml
B-2R
Interchangeable block for Riplate® 96/2000 μl
B-PCR
Interchangeable block for one PCR plate (unskirted, semiskirted, skirted)
