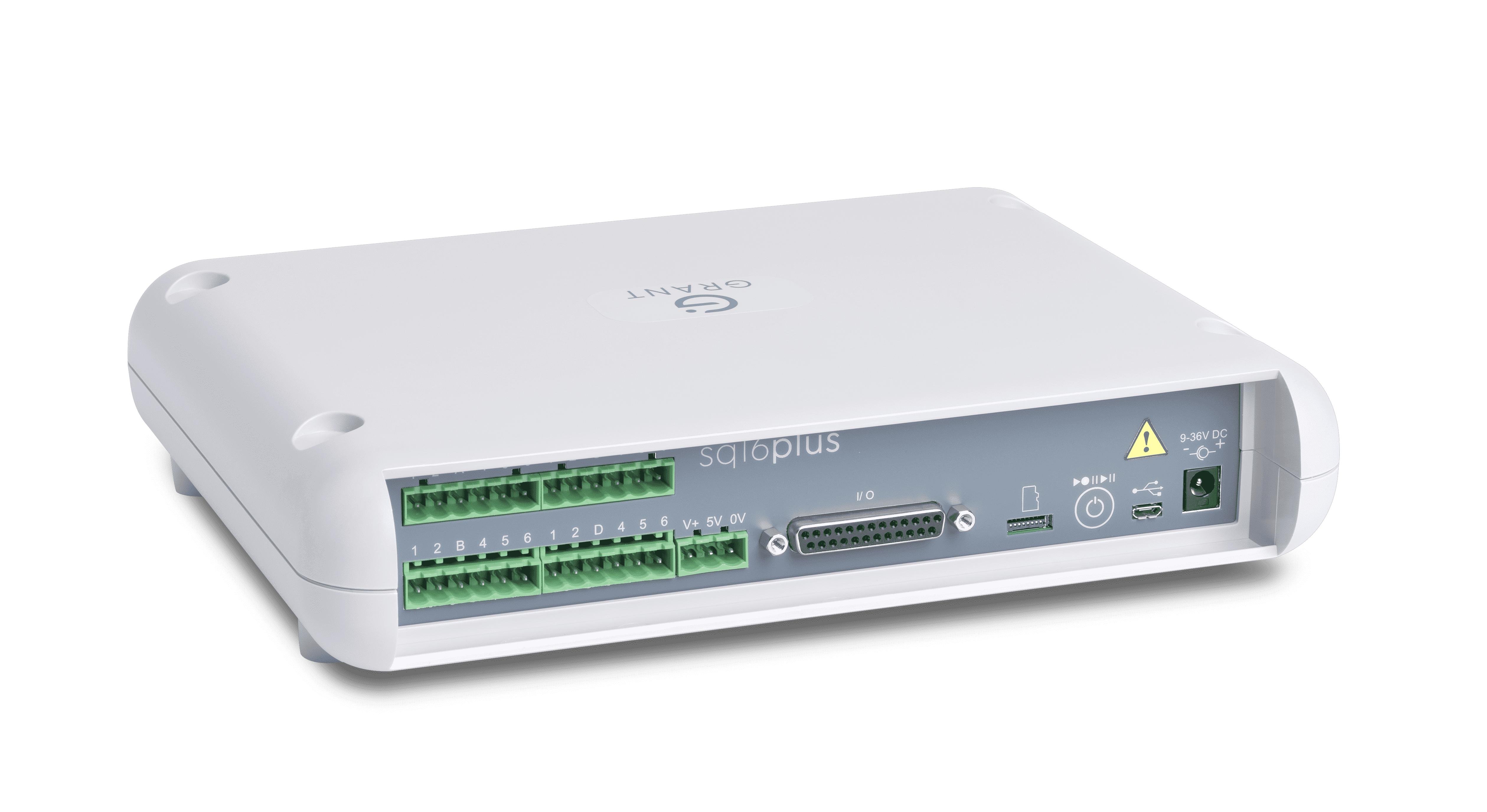

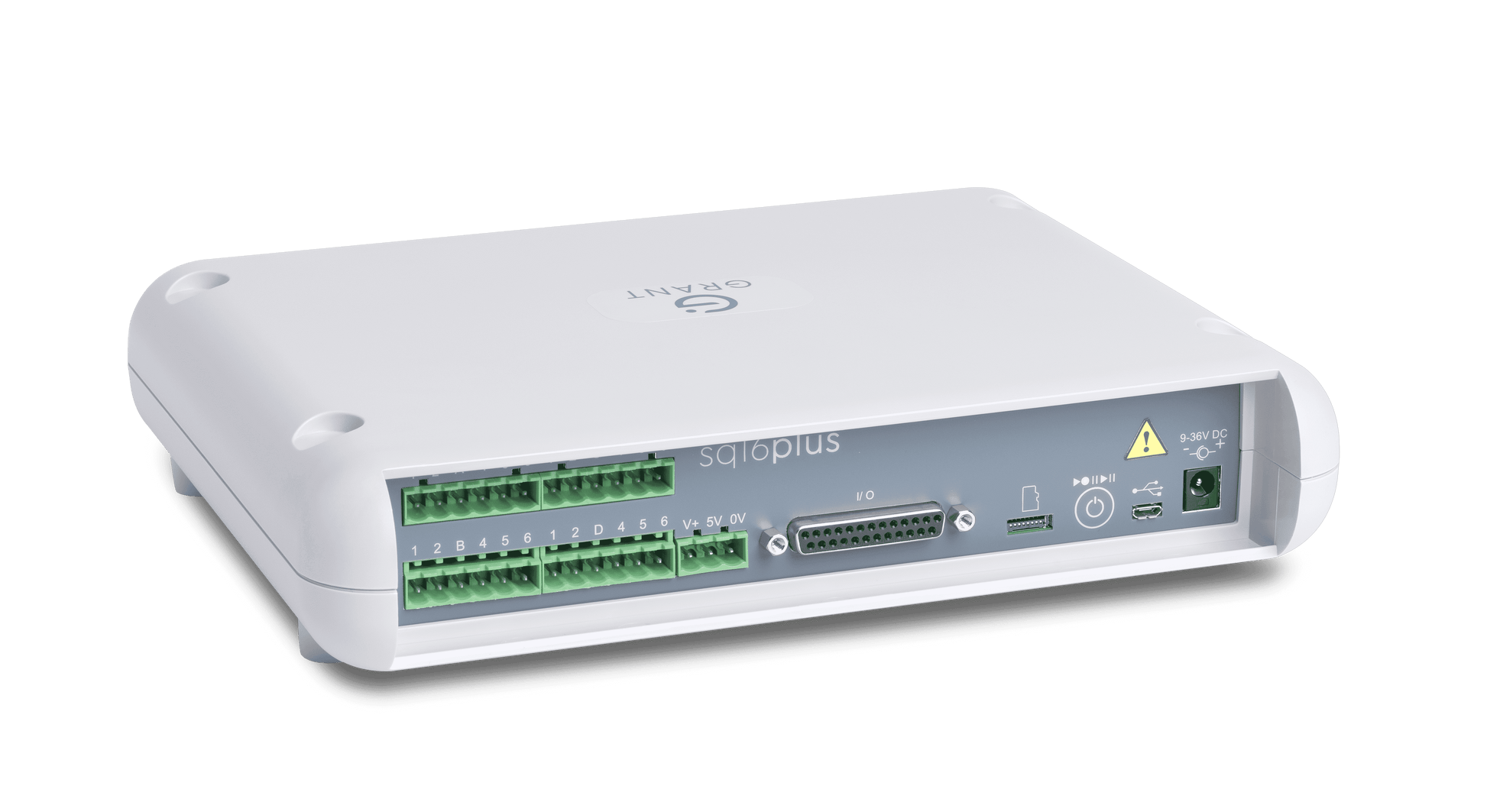

sq16plus
- Regular price
- $3,440.00
- Sale price
- $3,440.00
- Regular price
-
Shipping calculated at checkout.
Low-power data-logger designed for indoor use by, or supervised by, a professional user.
| Specification | Details |
|---|---|
| No. of channels (single ended) | 16 single ended or 8 differential inputs |
| Universal input | Yes, including 2, 3 and 4 wire resistance |
| Voltage ranges (differential and single ended) | -0.3 to 0.3V, -1.5 to 2.5V, -6 to 10V, -40 to 60V |
| Common mode | 60V |
| Current ranges (differential, requires external 10Ω shunt) | 4 to 20mA, -30 to +30mA |
| Thermocouple ranges (differential and single) | K-type: -200 to 1372°C R-type: -50 to 1768°C B-type: 250 to 1820°C T-type: -200 to 400°C S-type: -50 to 1768°C C-type: 0 to 2320°C N-type: -200 to 1300°C J-type: -200 to 1200°C D-type: 0 to 2320°C |
| Resistance ranges (2,3 & 4 wire) | 0–2000Ω and 0–300000Ω (2-wire); 0–4000Ω (3-wire); 0–4000Ω (4-wire) |
| Thermistor ranges | U, UU, Y & S type – 50 to +150°C & customer-specific thermistors |
| Pt100/1000, 2-wire | -200 to 850°C |
| Internal reference temperature | -55 to 150°C |
| Pulse count ranges | 0 to 100Hz (2 input); 0 to 64kHz (2 input) |
| Digital state/event ranges | 0 to 34,360,000,000 count; 8 state inputs or 1 × 8-bit binary |
| Digital/alarm outputs | 4 open drain FETs, 40V, 0.1A |
| A/D resolution | 32 bit |
| Accuracy | Refer to operating manual |
| Clock resolution/accuracy | 1s / 10ppm |
| Sampling rates | Up to 100 readings per second on 2 channels |
| Data statistics | Yes, from within new SquirrelView Plus PC software |
| Calculated channels | Yes, up to 16 |
| Memory internal | 16GB, approximately 800 million readings |
| Multi-function button | LED status indication and start/stop |
| Internal battery | 6 × AA cells |
| Battery life | Up to 6 months (all channels logging every 15 minutes) |
| External power | Yes, 8 to 38V DC or via USB |
| Sensor power output | 8–38V at 150mA when connected to external power supply |
| Networking | Via USB or OpenThread |
| Modem support | Via USB hub |
| Actions & triggers (PC setup) | Four alarm outputs; fully configurable actions and triggers |
| Front panel setup | Yes, SquirrelView compatible. Via smartphone app. All essential functionality available via app (e.g., channel configuration, start/stop logging). Advanced functions (e.g., calculated channels and descriptions) available via PC with SquirrelView. |
| Stored setups | 6 |
| Operating temperature | -20 to 65°C |
| Dimensions (W × D × H) / Weight | 257 × 206 × 57.3 mm, 1.5 kg |
| Working environment | –30 to 65°C, RH up to 95% (non-condensing) |
