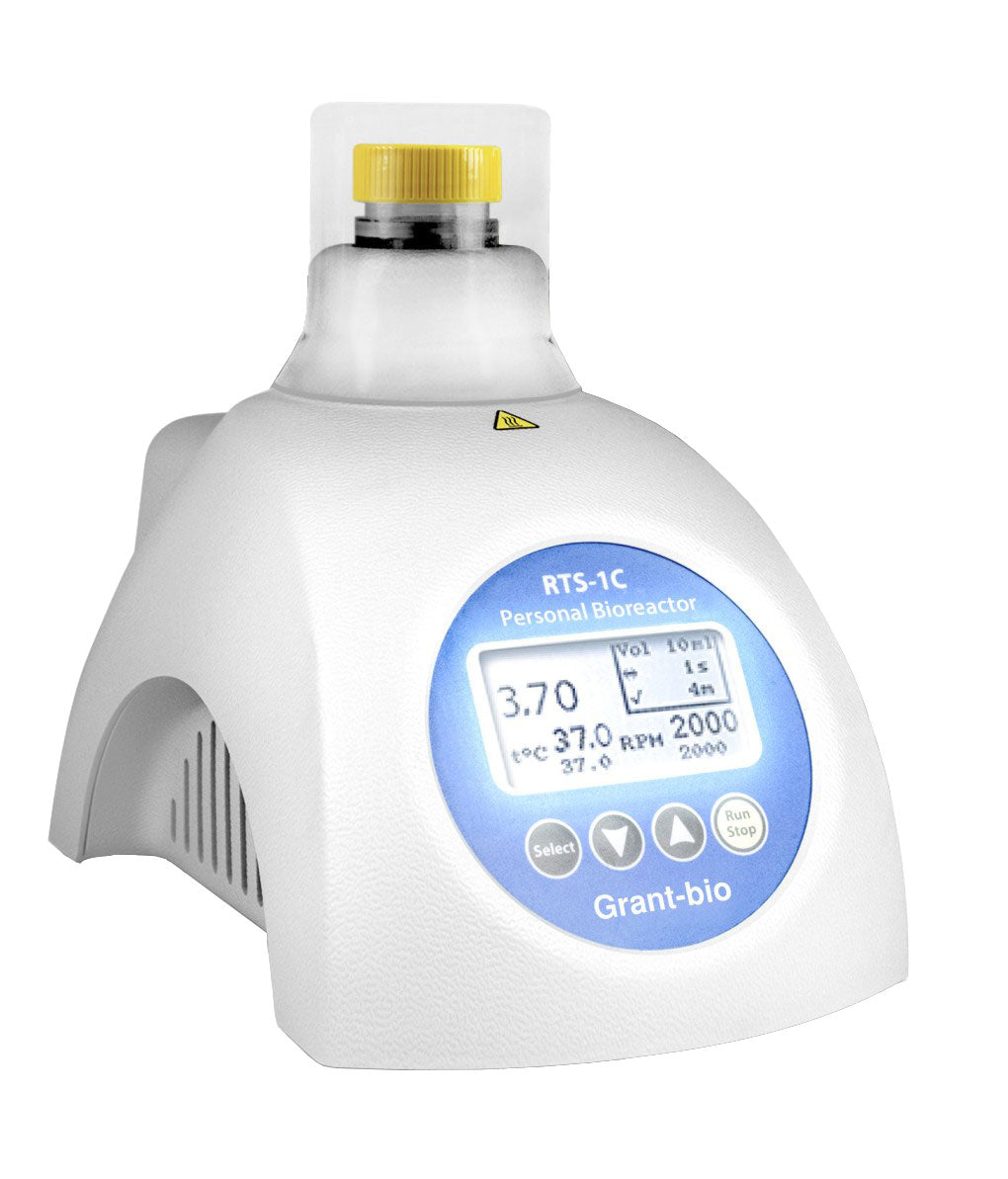

RTS-1C Personal Bioreactor with Cooling (Inquire only)

$4,927.00
$4,927.00
Shipping calculated at checkout.
Inquire at -

orderenquiries@usa.grantinstruments.com


Please note: 8-week waiting time.

Pack of 300 polypropylene spheres. Packs per bath: 1 x 5/12L, 2 x 18/26L, 3 x 38L

RTS-1C including TubeSpin® Bioreactor 50, TPP®, 20 pcs.

Features
  • Innovative mixing due to reverse spinning of the sample around its own axis
  • Due to innovative mixing technology it is possible to measure optical density of the probe in real time
  • Software has been developed to store, display and analyse the data in real time
  • Compact device with low profile and small footprint for personal application
  • Temperature control allows use as an incubator, e.g. for cell growth
  • Active cooling and temperature profiling via software
  • The ability to change parameters such as temperature, RPM and “Reverse-Spin” frequency, allows to achieve consistency and reproducibility of results
  • Programmable Cycling/profiling of cultivation parameters such as temperature, RPM, “Reverse-Spin” frequency
  • The ability to remotely monitor the process of cultivation while home or using a mobile phone
Software features
  • Real–Time cell growth logging
  • 3D graphical representation of OD or growth rate over time over unit
  • Pause option
  • Save/Load option
  • Report option: PDF and Excel
  • Connect up to 12 units simultaneously to 1 computer
  • Remote monitoring option (requires internet connection)
  • Cycling/Profiling options
  • User calibration options for any microorganism

‍

Specification Details
Dimensions (h x d x w) 200 x 212 x 130 mm
Theoretical measurement range (OD850, 10 ml, Rod-shaped bacteria) 0–25 (0–45.6 OD600 equivalent)
Theoretical measurement range (OD850, 10 ml, Yeast) 0–50 (0–75 OD600 equivalent)
Factory calibration measurement range (OD850, E. coli BL21, 10–20 ml) 0–10 OD (0–19 OD600 equivalent)
Factory calibration measurement range (OD850, E. coli BL21, 20–30 ml) 0–8 OD (0–15.2 OD600 equivalent)
Measurement wavelength (λ) 850 ± 15 nm
Factory calibration measurement precision ±0.3 OD850
Mass transfer coefficient kLa Up to 350 ± 26 h⁻¹ at 5 ml
Light source LED (NIR light diode)
Real-time measurement 1–60 minutes
Temperature setting range +4 to +70°C (increment 0.1°C)
Bottom control range point Ambient –15°C
Top control range point 70°C
Temperature stability ±0.1°C
Sample temperature accuracy 20–45°C: ±2°C; <20°C: ±2°C; >45°C: ±3°C
Heating/cooling rate 0.7°C/min
Sample volume 5–30 ml
Speed control range 50–2,000 rpm (increment 10 rpm)
Speed control precision ±15 rpm
Reverse spin time 1–60 seconds (increment 1s)
Display LCD
Minimum PC requirements Intel/AMD Processor, 1 GB RAM, Windows XP/Vista/7/8/8.1/10, USB 2.0
Optimal PC requirements Intel/AMD Processor, 3 GB RAM, Windows 7/8/8.1/10, USB 2.0
Power consumption 60 W (5 A)
Input voltage 12 V DC
Nominal operating voltage 120–230 V (50/60 Hz)
Weight 2.2 kg

  • Bacterial cultivation with real time growth kinetics
  • Strain screening
  • Temperature stress and fluctuation experiments
  • Media screening and optimization
  • Synthetic and systems biology
  • Inhibition and toxicity tests
  • Strain quality control

‍
