R4R Series Refrigerated Circulating Bath (Inquire only)

$0.00
$0.00
Shipping calculated at checkout.
Inquire at -

orderenquiries@usa.grantinstruments.com


Please note: 8-week waiting time.

Pack of 300 polypropylene spheres. Packs per bath: 1 x 5/12L, 2 x 18/26L, 3 x 38L

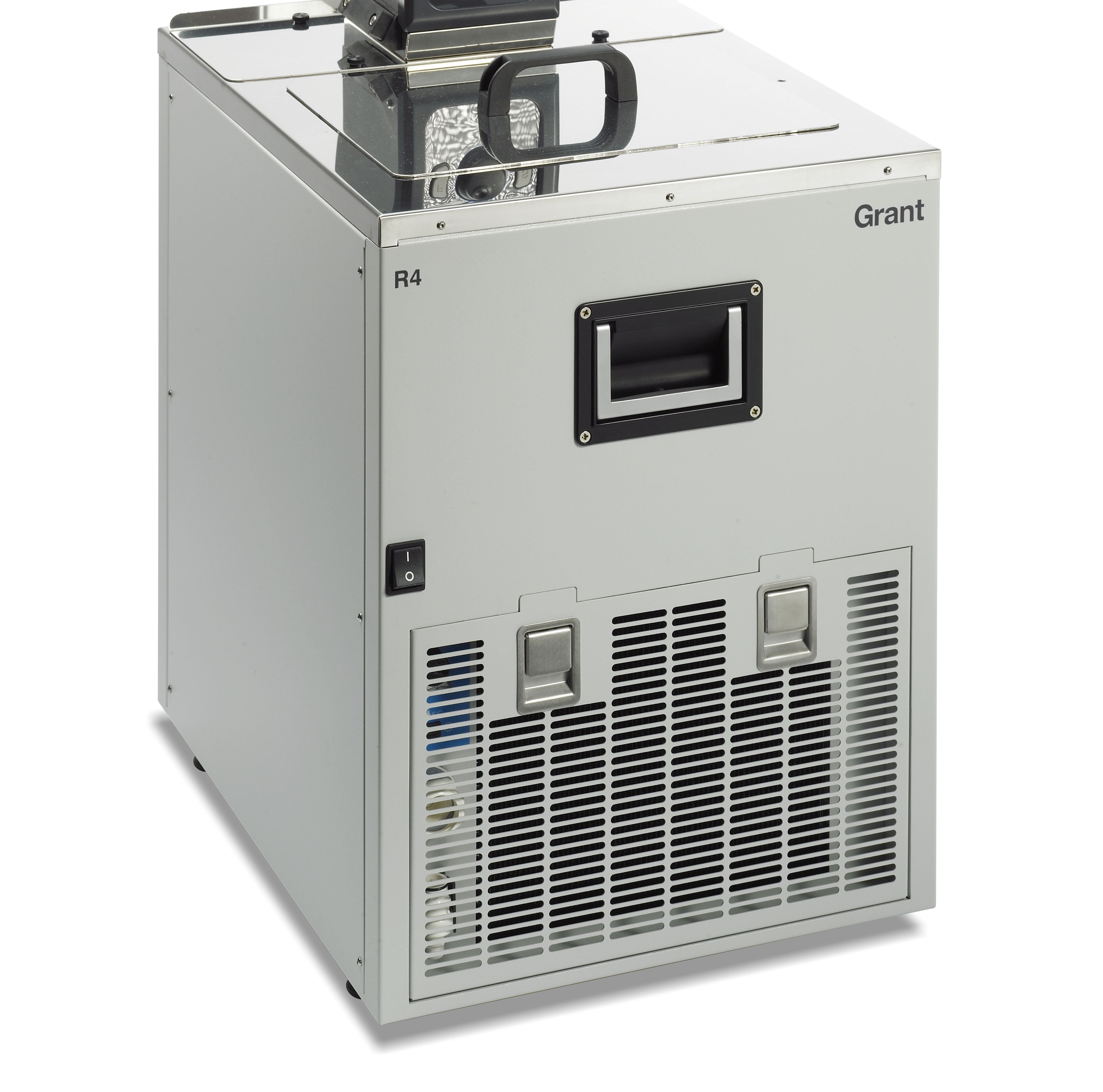

A choice of 4 heating circulators combined with a powerful R4R refrigeration unit offers a cost-effective and efficient solution for low temperature applications down to -30°C.

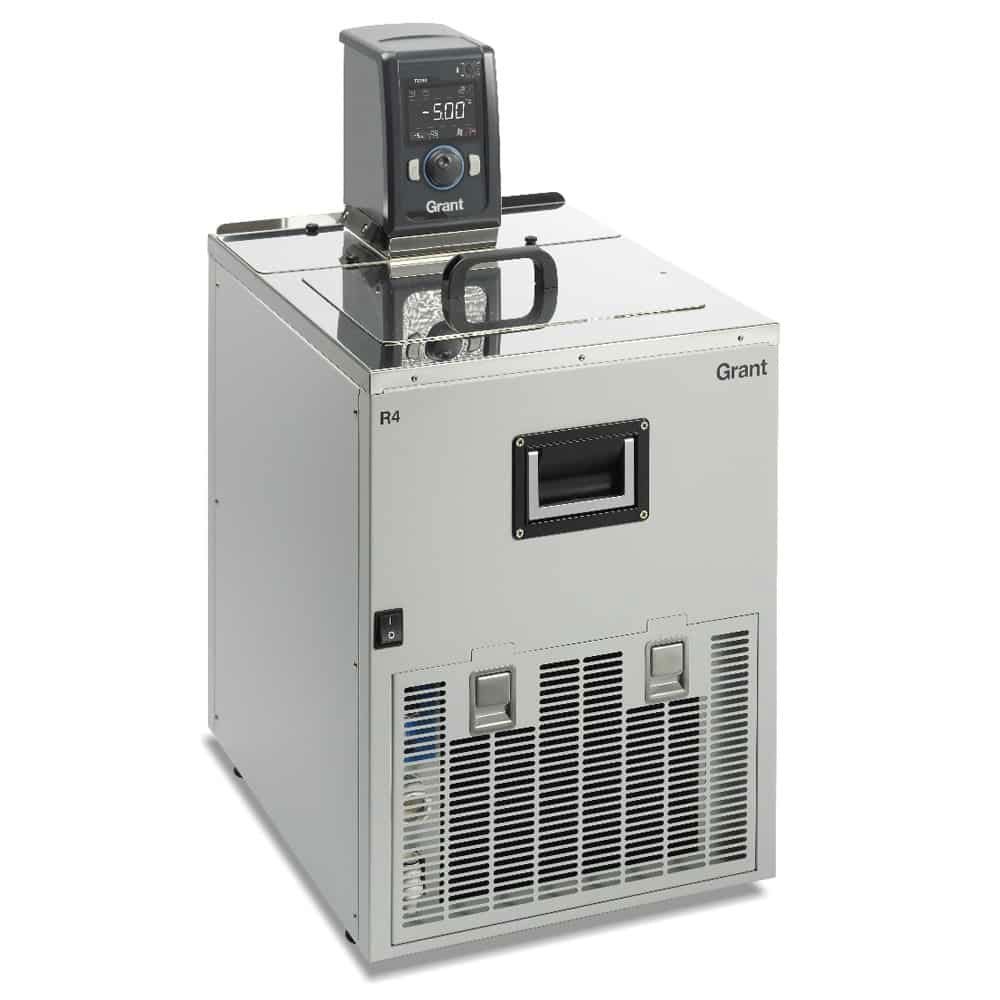

Additionally, Grant also offers the LTC4R kit, which is available as a ready assembled system including TX150 heating circulator mounted on the R4R refrigeration unit and comes supplied with insulated tubing and clips.

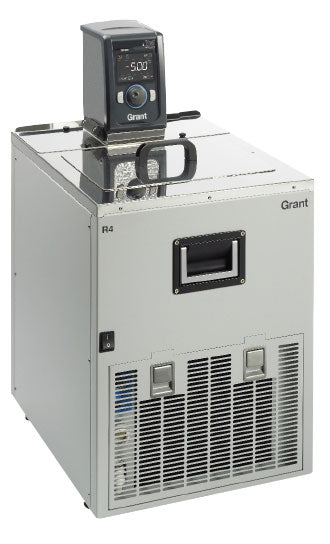

The Grant R4R range, which can be combined with our TX150 or TXF200 heating circulators, offer a number of features:

  • Stability of up to ±0.1°C
  • Up to 3 years warranty
  • No spill valved front drain
  • 3 preset programs
  • Large 20 litre tank and accessible bath for immersion of samples
  • Environmentally friendly refrigerant
  • Robust construction
  • 900W of cooling power
  • Quiet
  • UK designed and manufactured
  • Range of accessory hosing, connectors, software, additional pump and temperature probes available

Note: The refrigeration unit can be switched off independently of the heating circulator to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.

‍

Input to enable switching of the cooling system by an external device (typically a Grant Advance Optima).

Specification Value
Dimensions (h × d × w) 550 × 515 × 393 mm
Capacity 20 L
Temperature range (T100) 0–100 ºC

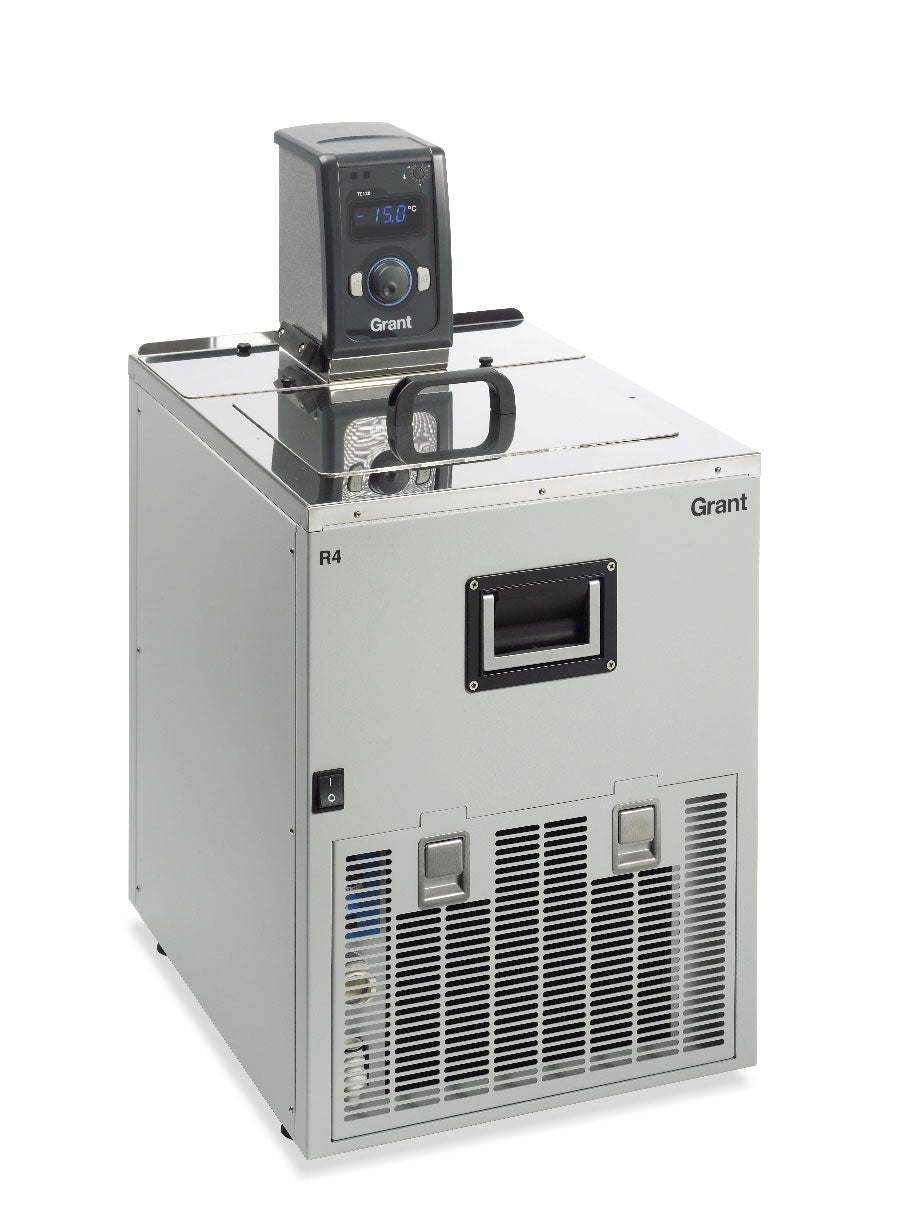

Temperature range (TC120) −25 to 100 ºC
Temperature range (TX150) −30 to 100 ºC
Temperature range (TXF200) −30 to 100 ºC
Refrigerant R290
Tank opening 120 × 150 mm
Min/Max liquid level 85 / 140 mm
Cooling power (typical) @ 20 ºC 900 W
Cooling power (typical) @ 0 ºC 500 W
Cooling power (typical) @ −10 ºC 300 W
Cooling power (typical) @ −20 ºC 180 W
Cooling power (typical) @ −30 ºC 40 W
Cooling power (typical) @ −40 ºC –
Cooling power (typical) @ −47 ºC –
Electrical power (max) 230 V 850 W (50 Hz)
Relay control* •
Weight 40.6 kg

  • University research/teaching - temperature control of external equipment including: spectrophotometers & refractometers. Circulation of temperature control fluid to jacketed vessels, cooling crystallisation vessels
  • Industrial laboratories - temperature probe calibration, product testing, product QC, temperature control of external equipment.

‍

Product Manuals
Technical Datasheets

No downloads available

Further Information
Hosing
HOSE100

General purpose hose kit, includes 2 x 2m general purpose insulated hosing -40 to 100˚C, assembled with ecocool/OptimaTM pump outlet plate and simple hose clips, no tools required

HOSE200

High temperature hose kit, includes 2 x 2m high temperature insulated hosing -50 to 200˚C, assembled with ecocool/OptimaTM pump outlet plate and simple hose clips, no tools required

Heat Exchanger
CW5

Temperature range: 2ºC above the temperature of the coolant (Attach to a supply of cooling tap water or a refrigerated circulator)

VTP1-PLR4

Maximum pressure 1000 mbar, Maximum flow 9 L/min

VTP2-PLR4

Maximum pressure 1650 mbar, Maximum flow 12 L/min
