PTR-35 and PTR-60 360Â° Vertical Multi-function

Shipping calculated at checkout.

The PTR Series are compact variable-speed, variable-angle vertical rotators providing vertical rotation, reciprocation and vibration.

Model:

Product variants:

Features include:

360° vertical rotation - creates long wave motion for mixing large particles
Reciprocation - creates long and medium wave motion for medium and large particles
Vibration - creates short wave motion for mixing for small particles
Pause

All actions may be set for continuous or timed operation, and individual phases may be linked together for absolute flexibility.

360° vertical rotation, reciprocation and vibration can be set for continuous or timed operation, or linked together in different combinations to ensure optimum mixing conditions for your application

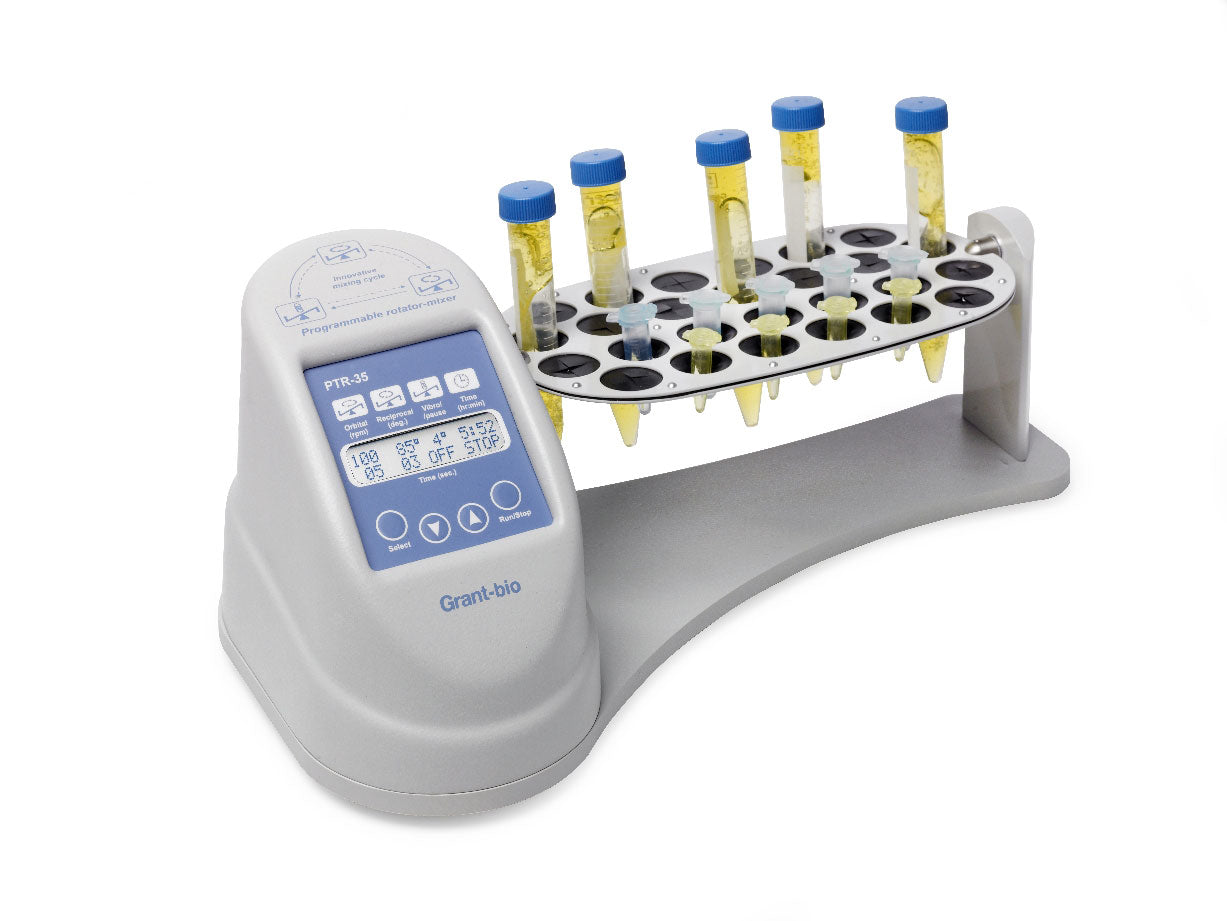

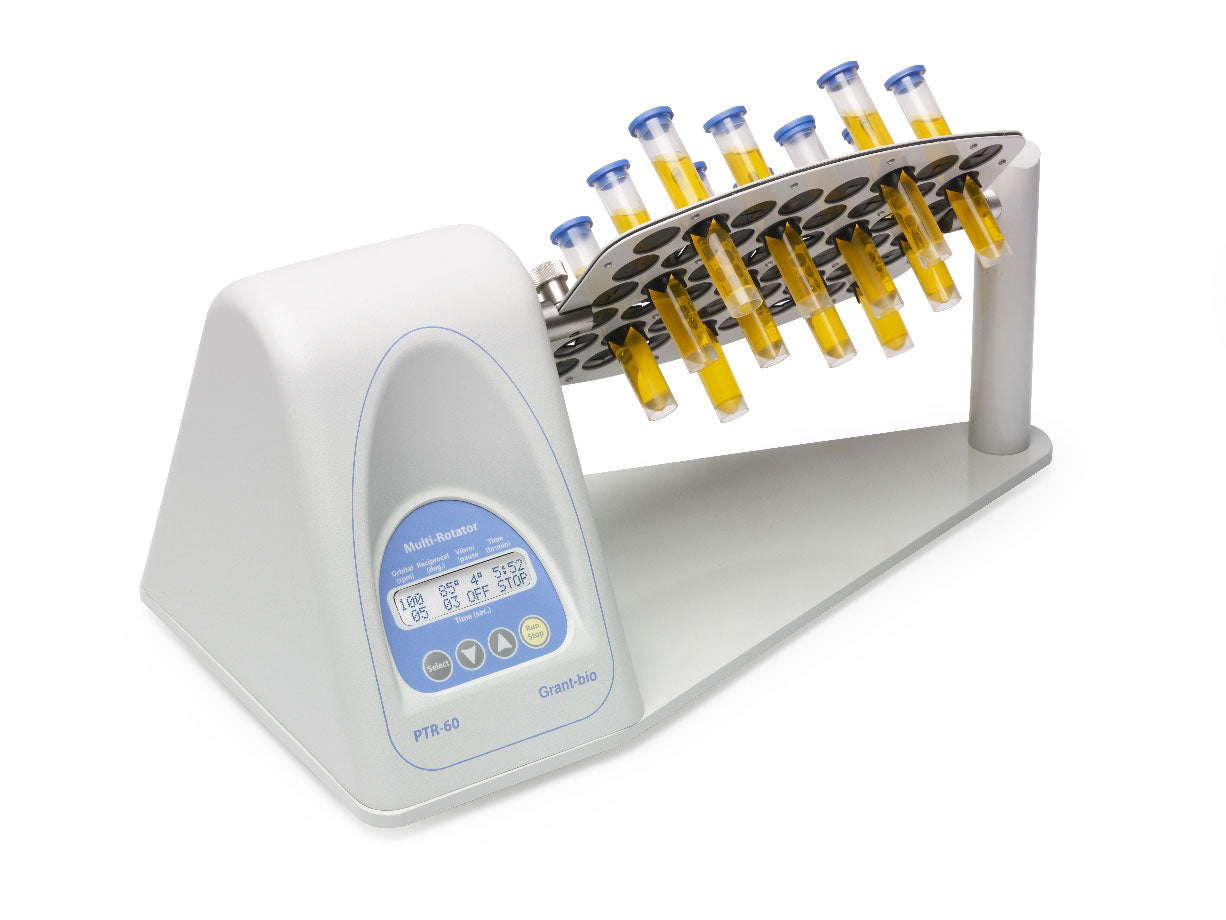

Choice of two models - PTR-35 or PTR-60 - with different speeds and microtube capacities
Vertical rotation speed: 1 to 100 rpm
Reciprocal rotation: 1 to 90° turning angle
Vibration: programmable in a burst of 1 to 5 seconds
Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display, fully programmable sequence of functions, including pause
Capacity of up to 26 (PTR-35), 48 (PTR-60) microtubes and a maximum rotating speed of up to 100 rpm.
Optional accessory platform for accommodating tubes of different diameters
Reliable and extremely quiet motor produces regulated and reproducible rotation throughout the speed range
Compact with a low profile and small footprint - fits neatly into the workspace
Suitable to be used in cold rooms and incubators

‍

Specification	PTR-35	PTR-60
Dimensions (h x d x w)	155 x 195 x 365 mm	230 x 230 x 430 mm
Temperature range	4 to 40ºC	4 to 40ºC
Maximum load	0.5 kg	0.8 kg
Speed	1 to 100 oscil/min (increment 1 rpm)	1 to 100 oscil/min (increment 1 rpm)
Tilt angle (reciprocation mode)	1 to 90º	1 to 90º
Turning angle (reciprocation mode)	1 to 5º	1 to 5º
Display	2 x 16 character LCD	2 x 16 character LCD
Timer, with automatic switch-off	1 minute to 24 hours	1 minute to 24 hours
Timer setting range	1 to 250 sec	1 to 250 sec
Timer (vibration mode)	1 to 5 sec	1 to 5 sec
Pause	1 to 5 sec	1 to 5 sec
External power supply	Input AC 120-230V, 50/60Hz Output DC 12V	Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption	8 W (0.66 A)	18 W (0.75 A)
Input voltage	12V DC	24V DC
Weight	1.8 kg	3.8 kg

Suitable for 360° vertical mixing applications including immuno precipitations and other affinity matrix applications, prevention of blood coagulation, latex diagnostics. Used in a variety of applications, from hybridisation reactions, cell growth, soft extraction and homogenisation of biological components in solution as well as reactions for binding and washing magnetic particles.
