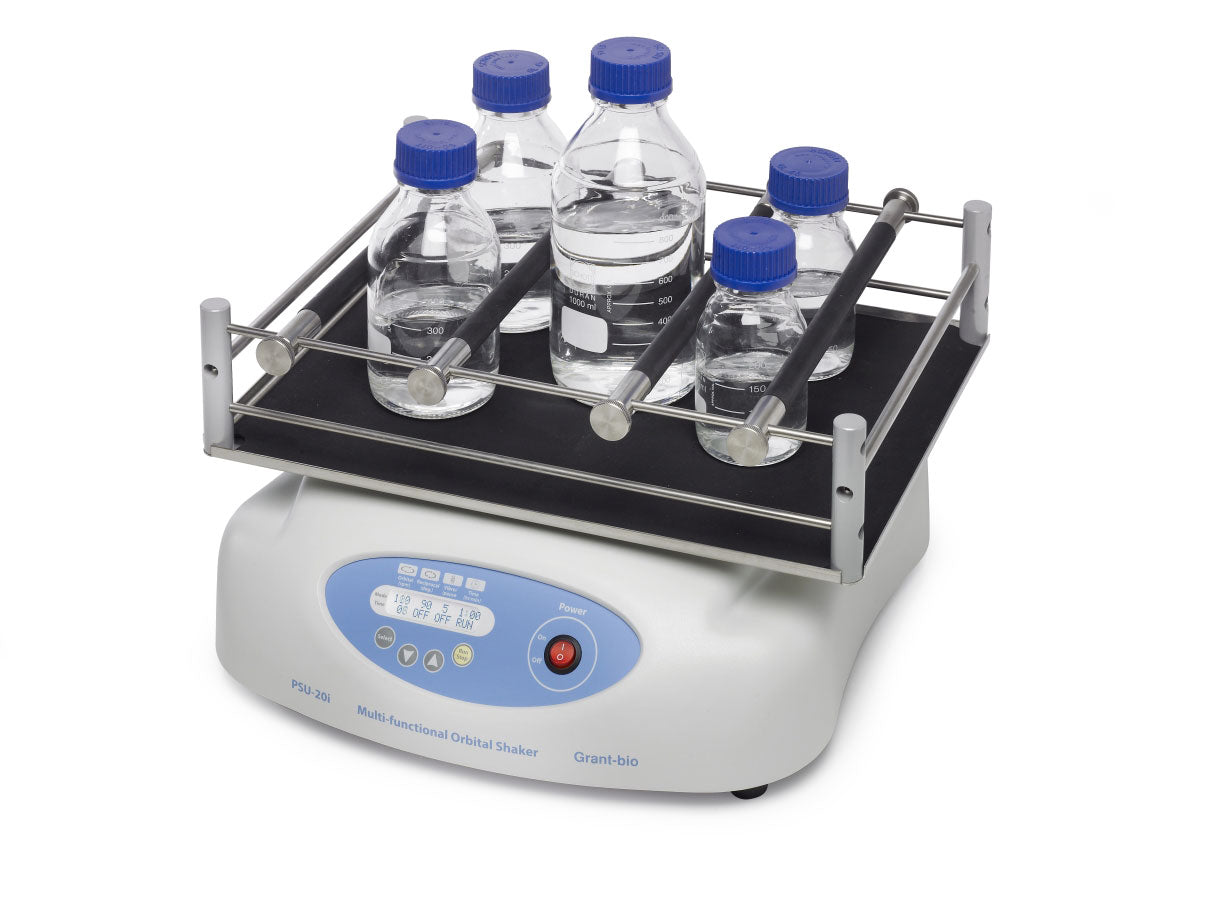

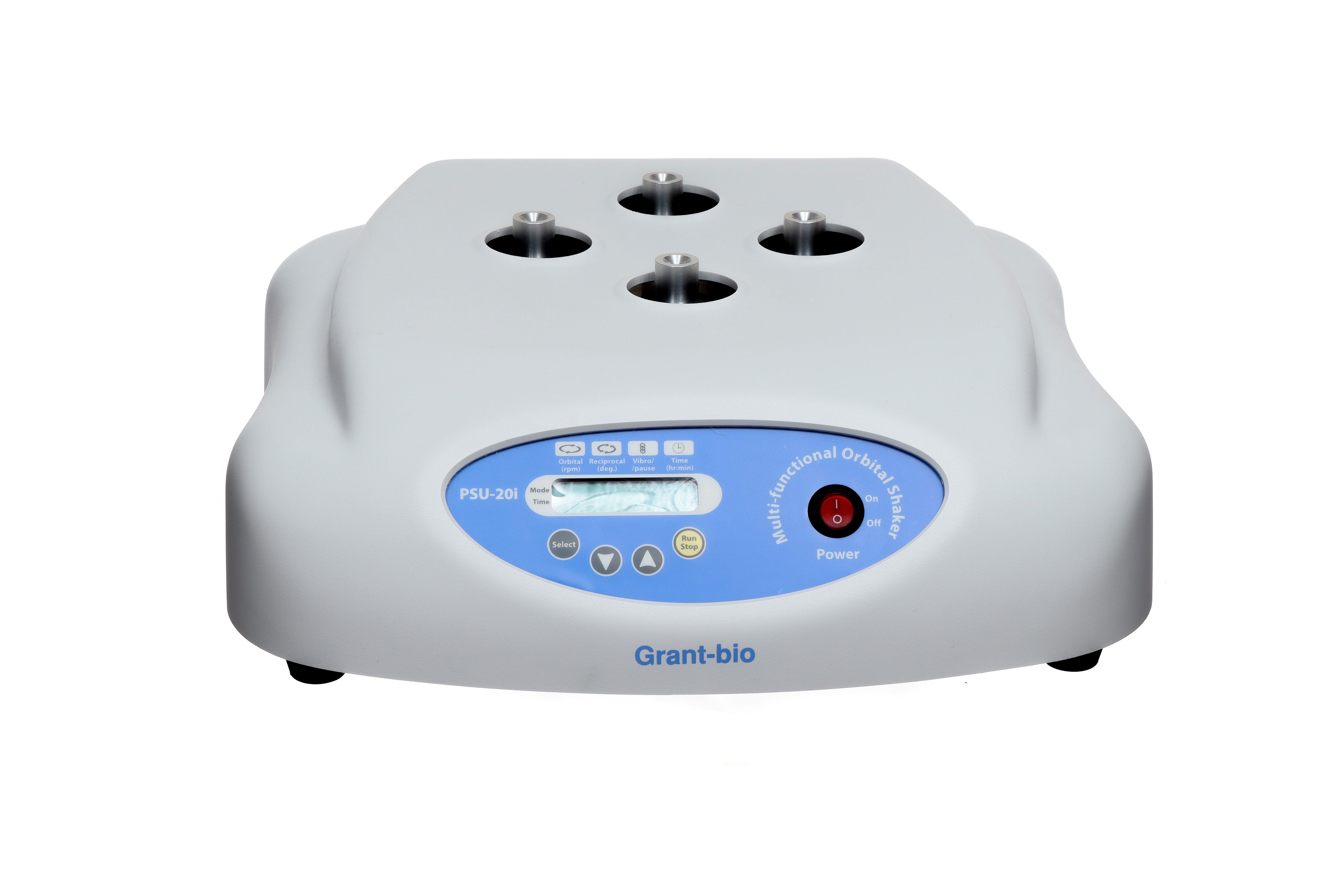

Orbital platform shaker PSU-20i is a benchtop multifunctional shaking unit.
The Grant bio PSU-20i is a powerful and efficient microprocessor controlled multi-functional orbital shaker providing all that is required – rotation, reciprocation and vibration – for thorough mixing in flasks, beakers, Petri dishes and other laboratory vessels.
Orbital motion, reciprocation and vibration functions all in one product
Reliable direct drive system
Fully programmable sequence of functions
Simple to set up and easy to operate
Interchangeable platforms, including multi-level platform option
Loads up to 8 kg
Orbital and reciprocating speed: 20 to 250 rpm
Reciprocal rotation: 30 to 360º turning angle
Vibration: 0 to 5º turning angle, programmable in a burst of 0 to 5 seconds
All mixing functions – orbital motion, reciprocation and vibration – can be set for continuous or timed operation, or be linked together in different combinations to ensure optimum and accurately repeatable mixing conditions for your application
Direct drive system
Brushless motor for longetivity
Powerful, reliable and exceptionally quiet motor – combines 8 kg loading capacity with consistent even motion and quiet operation
Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display. Microprocessor controls for making corrections without stopping the program.
Universal detachable platform can accommodate vessels of different shapes and sizes for maximum flexibility.
Optional flat platform PP-20 with non-slip mat accommodates low profile containers. Can be extended to create up to four levels to maximise the throughput per cycle.
Specification
Details
Dimensions (h x d x w)
130 x 410 x 410mm
Temperature range
4 to 40ºC
Maximum load
8kg
Orbit ø
20mm
Speed (load dependent)
20 to 250rpm
Angle (reciprocal mode)
0 to 360º
Angle (vibration mode)
0 to 5º
Display
2-line 16 character LCD
Timer, with automatic switch-off
1 minute to 96 hours
Motion timer (orbital/reciprocal modes)
0 to 250sec
Motion timer (vibration mode)
0 to 5sec
External power supply
Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption
40W (3.2A)
Input voltage
12V dc
Weight
11.7kg
Suitable for use in different laboratories in microbiology, chemistry, immunology, biochemistry and molecular biology.
