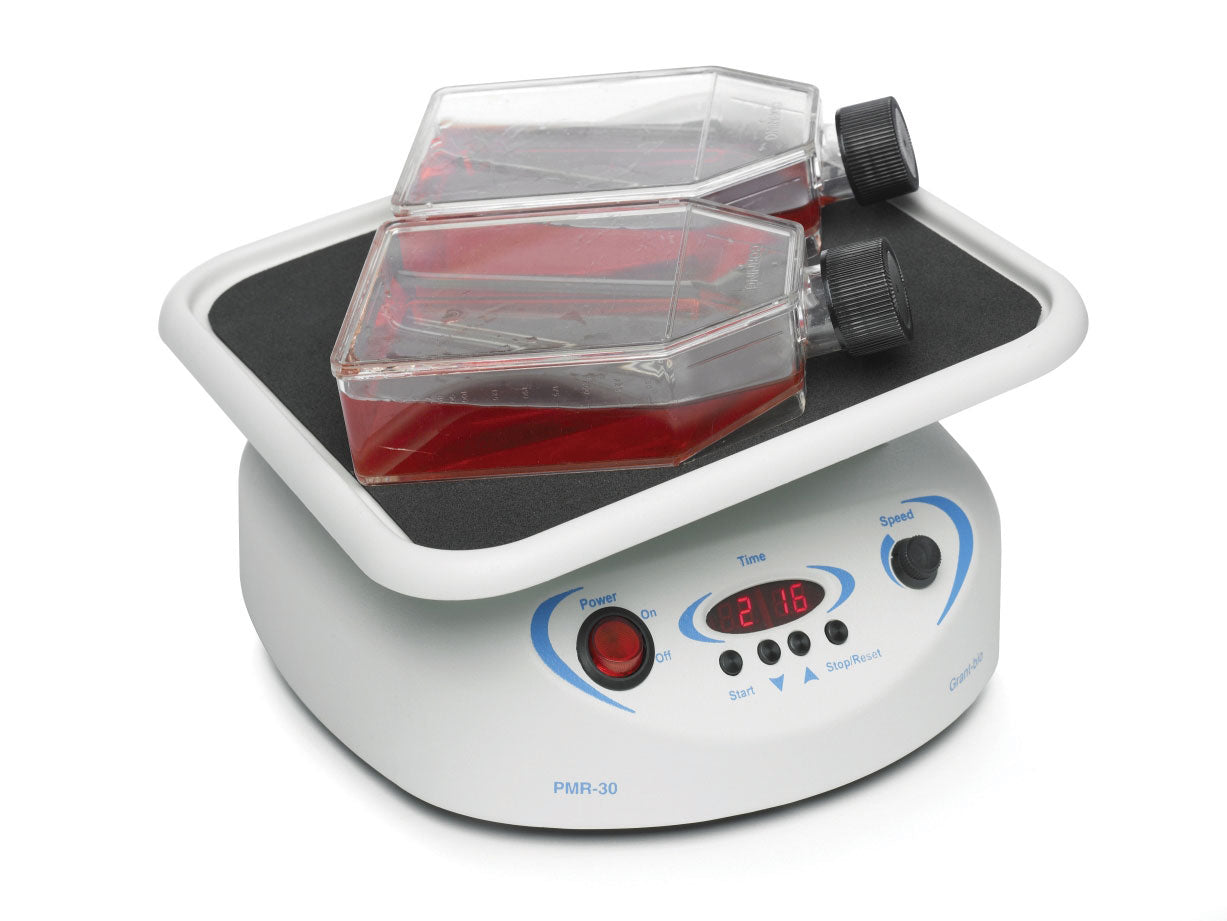

PMR-30 Platform 2D Rocker – Fixed Tilt

$987.00
$987.00
Shipping calculated at checkout.

Small but highly functional, the Grant bio PMR-30 fixed angle platform rocker provides a smooth rocking motion for gentle sample agitation.

The Rocker PMR-30 has been designed to enable up to 7 days reliable continuous operation. Designed to meet the challenge of workspace restrictions, the PMR-30 rocker is compact, with a low profile and small footprint, fitting neatly into the smallest workspace.

The reliable motor produces regulated and reproducible rocking throughout the speed range and, combined with the sturdy construction, will guarantee years of consistent operation. It is also extremely quiet.

  • Simple speed setting - from 5 to 30 oscil/min - with a graduated dial
  • Fixed 7° tilt angle
  • Load up to 1kg
  • Continuous or timed operation, with automatic switch-off
  • Reliable and extremely quiet motor produces regulated and reproducible rocking throughout the speed range
  • Compact, sturdy construction with a low profile and small footprint - fits neatly into the smallest workspace.
  • Simple timer setting, with large easy-to-read LED display indicating clearly the time remaining
  • Smooth, non-slip mat supplied as standard - prevents vessels from slipping
  • Select either continuous or timed operation - the integral electronic timer ensures accurate count-down for repeatability of time-sensitive incubation

‍

Specification Details
Dimensions (h x d x w) 120 x 205 x 220 mm
Temperature range 4 to 40ºC
Maximum load 1 kg
Speed 5 to 30 oscil/min
Fixed tilt angle 7º
Display 4 digit LED
Maximum continuous operation time 168 hours
Timer with automatic switch-off 1 minute to 24 hours
Platform dimensions (working area) 215 x 215 mm
External power supply Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 3.8 W (0.32 A)
Input voltage 12V DC
Weight 2.1 kg

  • The unit is applicable in all the areas of biomedicine, biotechnology and microbiology laboratory research.
  • Suitable for mixing applications in many different fields, with specific applications including: gel staining and destaining, antibody staining, washes, hybridisations, immuno precipitations, Southern blots, Western blots, in situs.
Product Manuals
Technical Datasheets

No downloads available

Further Information

No downloads available

PDM

Prevents different size tubes from rolling around the platform
