PHMT Thermoshaker

$2,963.00
$2,963.00
Shipping calculated at checkout.

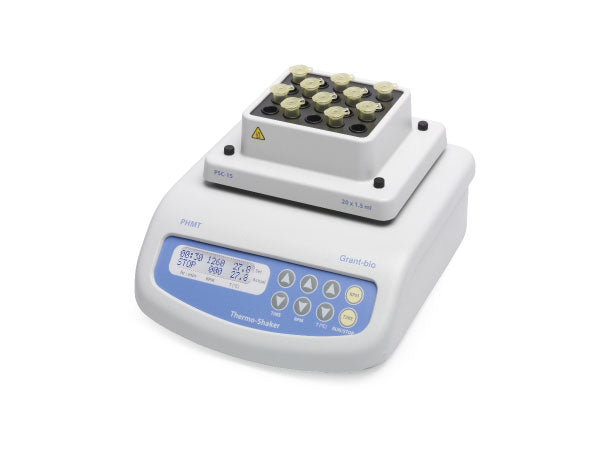

The PHMT Series are compact, efficient and highly versatile thermoshakers.

Our PHMT Thermoshaker for Microtubes and Microplates is ideal for applications requiring microtube and microplate heating and shaking and suitable for use in cold rooms and incubators (operating temperature range 4 to 40ºC). It is effectively three instruments in one:

  • a microtube and microplate thermoshaker
  • a compact benchtop incubator without shaking
  • a microtube shaker without temperature control
Features

By combining the mixing operation with the incubation phase, reaction process times and operator workload are reduced and efficiency of many procedures is increased, resulting in a higher throughput.

Available with blocks accommodating;

  • PSC18 (20 x 0.5 ml plus 12 x 1.5 ml microtubes)
  • PSC24N (24x 1.5 ml microtubes)
  • PSC24 (24x 2.0 ml microtubes)
  • PSC32 (20x 0.2 ml microtubes and 12 x 1.5 ml microtubes)
  • PSC96 (96-well PCR plates) - only compatible with unskirted and semi skirted plates
  • PSC8-5 (Block for heating  8 x 5ml conical tubes)
  • PSC4-50 (Block for heating 4 x 50ml conical tubes)
  • PSC8-15 (Block for heating 8 x 15ml conical tubes)
  • PSC32-05 (Block for heating 32 x 0.5ml microtubes)
  • PSC20-CUV (Block for heating 20x 10mm cuvettes)
  • PSC24-CRYO-L (Block for heating 24 × 3.6 – 4.5 ml cryotubes)
  • PSC24-CRYO-S (Block for heating 24 × 1 - 1.8 ml cryotubes)
  • PSC20-12 (Block for heating 20 x 12mm diameter round bottom tubes)

‍

  • Temperature setting range: ambient + 25 to 100ºC
  • Temperature control range: ambient + 5 above ambient to 100ºC
  • Temperature stability ±0.1°C
  • Shaking speed: 250 to 1400 rpm
  • Continuous or timed operation, with alarm buzzer and automatic switch-off facility
  • Convenient interchangeable blocks
  • 2-line LCD display clearly indicates both set and actual values for temperature, shaking speed and time
  • Compact and sturdy, with a low profile and small footprint - fits neatly into the workspace and provides years of reliable service
  • The powerful motor operates extremely smoothly, quietly and consistently. Its 'soft' start prevents possible damage to samples from jolting

‍

Specification PHMT-PSC18 PHMT-PSC24N PHMT-PSC24 PHMT-PSC32 PHMT-PSC96
Dimensions (h x d x w) 130 x 230 x 205mm 130 x 230 x 205mm 130 x 230 x 205mm 130 x 230 x 205mm 130 x 230 x 205mm
Temperature range +25 to 100ºC +25 to 100ºC +25 to 100ºC +25 to 100ºC +25 to 100ºC
Temperature control range +5 ambient to 100ºC +5 ambient to 100ºC +5 ambient to 100ºC +5 ambient to 100ºC +5 ambient to 100ºC
Uniformity @+37ºC ±0.1ºC ±0.1ºC ±0.1ºC ±0.1ºC ±0.1ºC
Uniformity @+60ºC ±0.2ºC ±0.2ºC ±0.2ºC ±0.2ºC ±0.2ºC
Uniformity @+100ºC ±0.2ºC ±0.2ºC ±0.2ºC ±0.2ºC ±0.2ºC
Shaking speed 250 to 1400rpm (increments 10rpm) 250 to 1400rpm (increments 10rpm) 250 to 1400rpm (increments 10rpm) 250 to 1400rpm (increments 10rpm) 250 to 1400rpm (increments 10rpm)
Heat up speed to 100ºC 4°C per minute 4°C per minute 4°C per minute 4°C per minute 4°C per minute
Display (temperature) 2 line x 16 character LCD 2 line x 16 character LCD 2 line x 16 character LCD 2 line x 16 character LCD 2 line x 16 character LCD
Capacity - microtubes 20 x 0.5 & 12 x 1.5 ml 24 x 1.5 ml 24 x 2.0 ml 20 x 0.2 & 12 x 1.5 ml —
Capacity - PCR plates — — — — 96 well PCR plate
Orbit diameter 2mm 2mm 2mm 2mm 2mm
Timer 1 minute to 96 hours (1 min increment) 1 minute to 96 hours (1 min increment) 1 minute to 96 hours (1 min increment) 1 minute to 96 hours (1 min increment) 1 minute to 96 hours (1 min increment)
Maximum noise 54.7dba 54.7dba 54.7dba 54.7dba 54.7dba
Heating power 42W 42W 42W 42W 42W
External power supply Input AC 120-230V, 50/60Hz Output DC 12V Input AC 120-230V, 50/60Hz Output DC 12V Input AC 120-230V, 50/60Hz Output DC 12V Input AC 120-230V, 50/60Hz Output DC 12V Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 42W (3.5A) 42W (3.5A) 42W (3.5A) 42W (3.5A) 42W (3.5A)
Input voltage 12V dc 12V dc 12V dc 12V dc 12V dc
Weight 3.2kg 3.2kg 3.2kg 3.2kg 3.2kg
Weight (with block) 4kg 4kg 4kg 4kg 4kg

  • The PHMT is ideal for DNA extraction, enzymic reactions and cellular biology techniques
Product Manuals
Technical Datasheets

No downloads available

Further Information

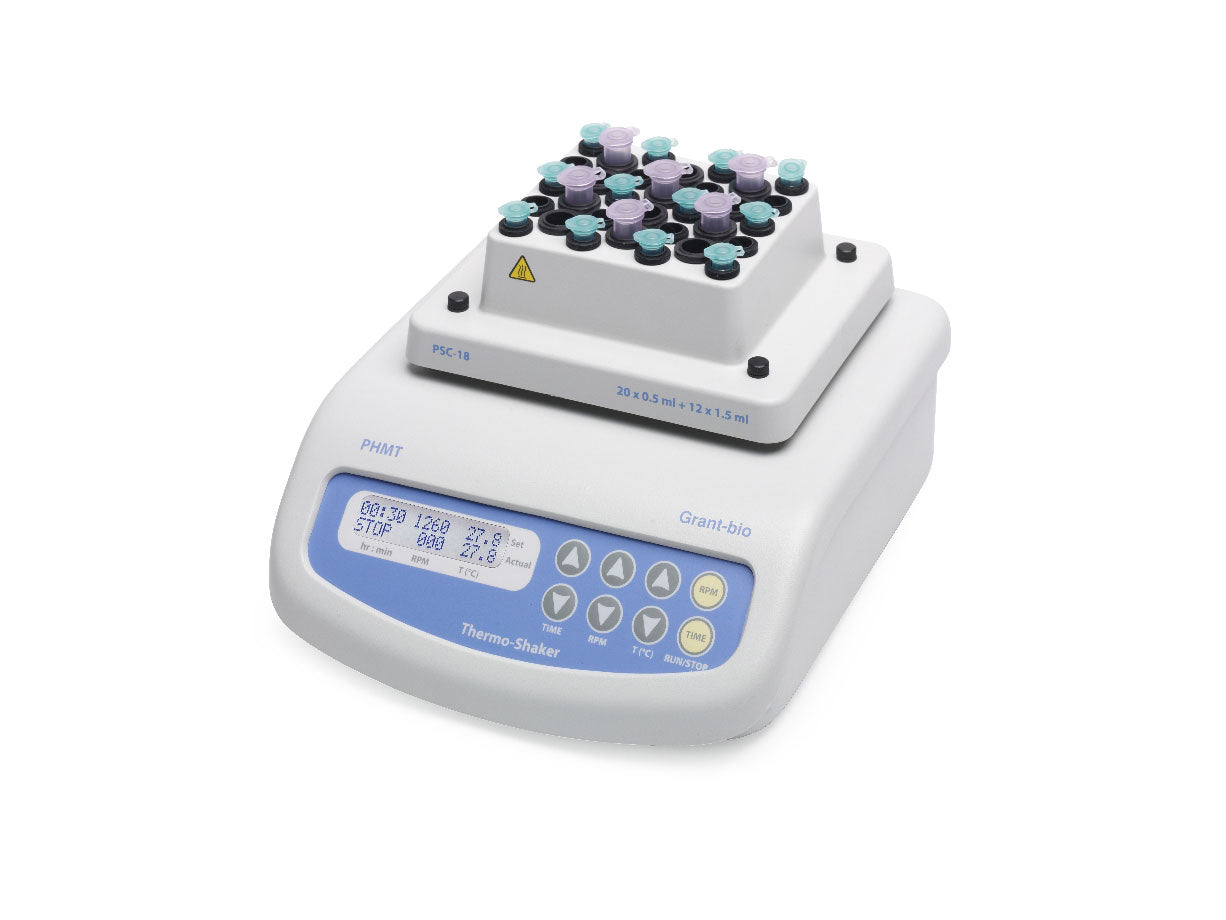

PSC18

Interchangeable block for: 20 x 0.5ml microtubes plus 12 x 1.5ml microtubes

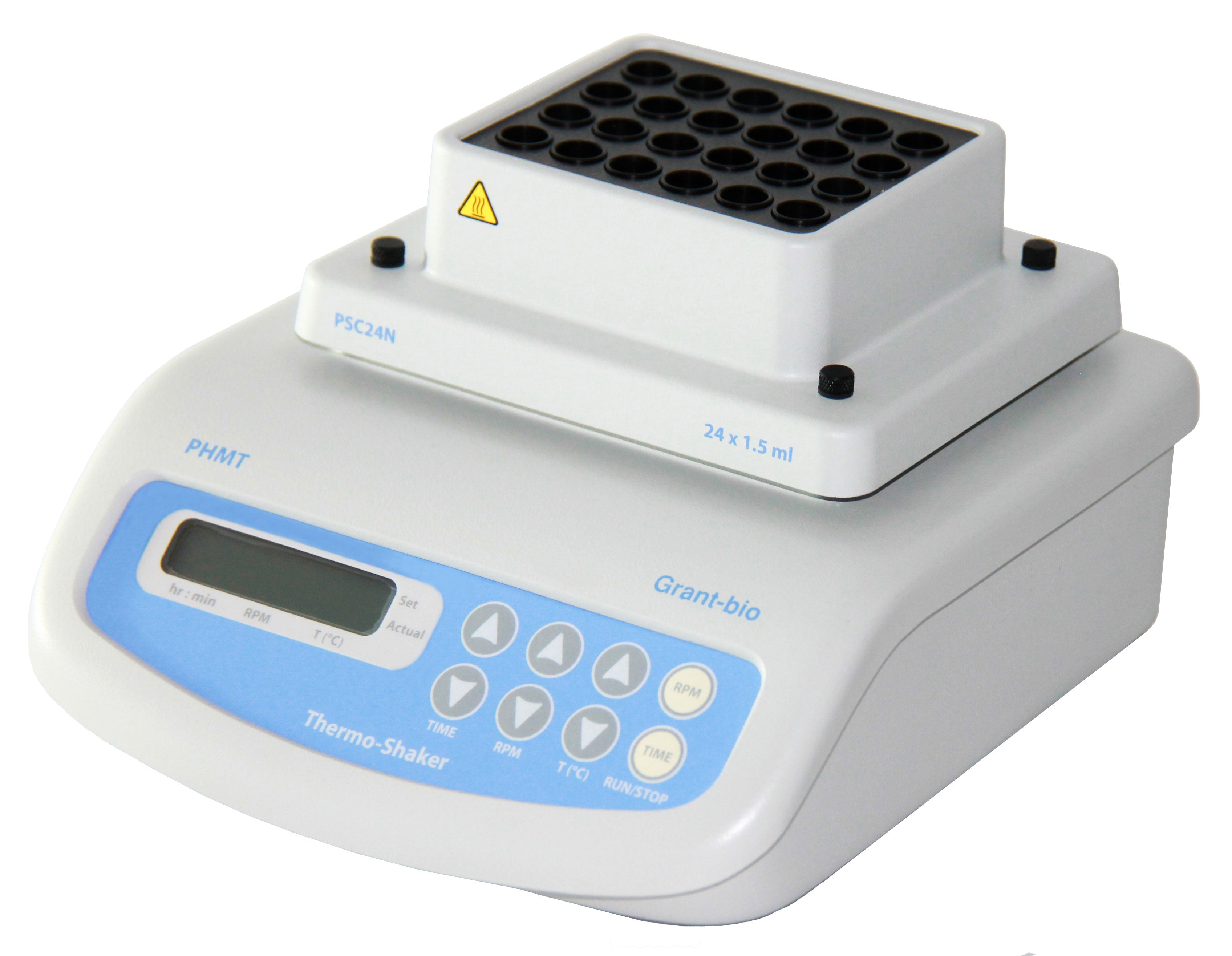

PSC24N

Interchangeable block for: 24 x 1.5ml microtubes

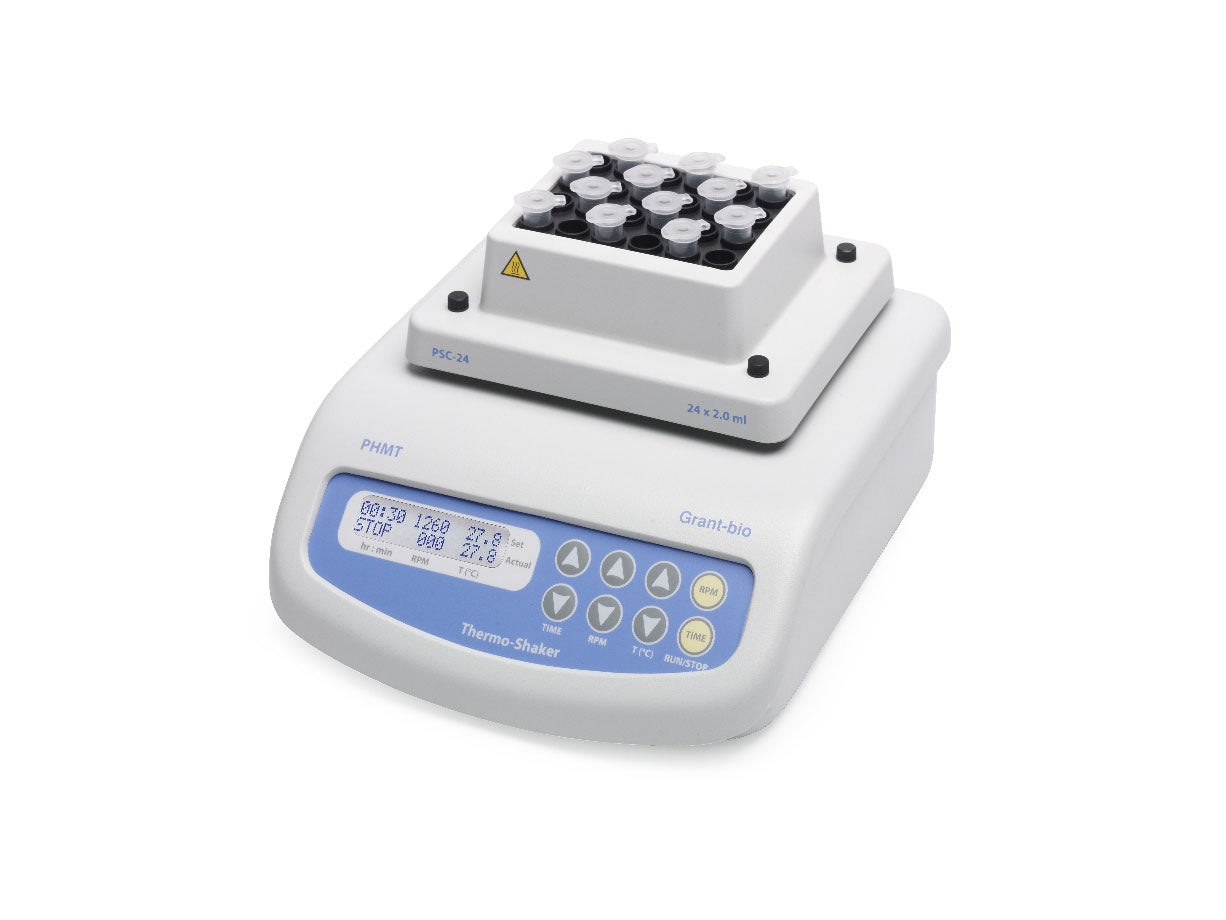

PSC24

Interchangeable block for: 24 x 2.0ml microtubes

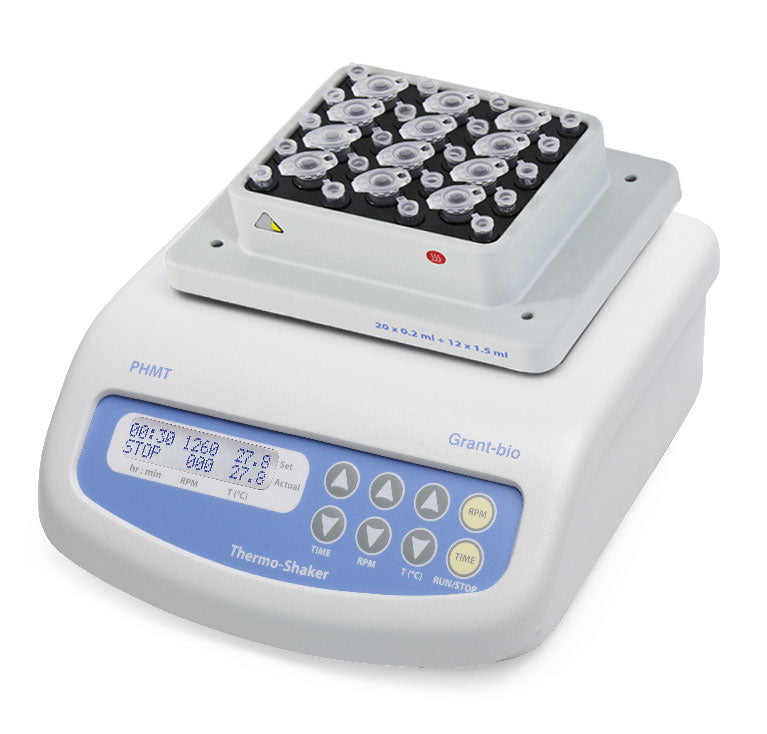

PSC32

Interchangeable block for: 20 x 0.2ml microtubes plus 12 x 1.5ml microtubes

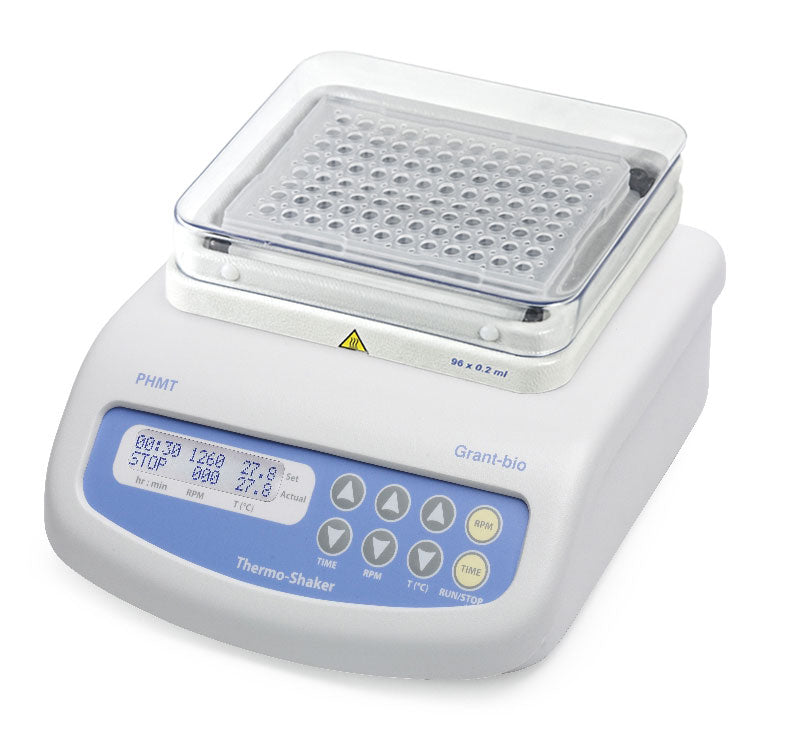

PSC96

Interchangeable block for: 96-well microplates (0.2ml) - only compatible with unskirted and semi skirted plates

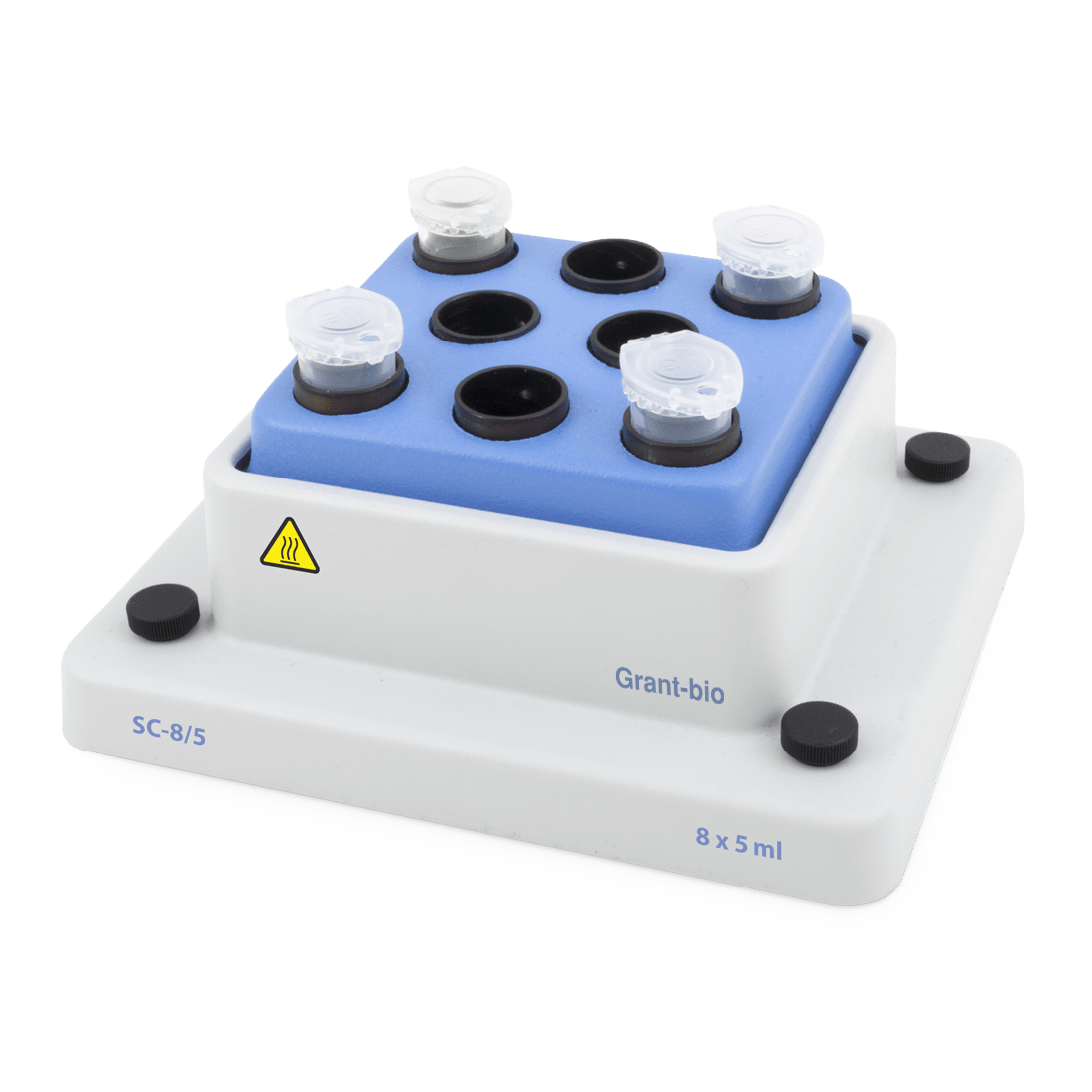

PSC8-5

Interchangeable block for 8 x  5ml conical tubes

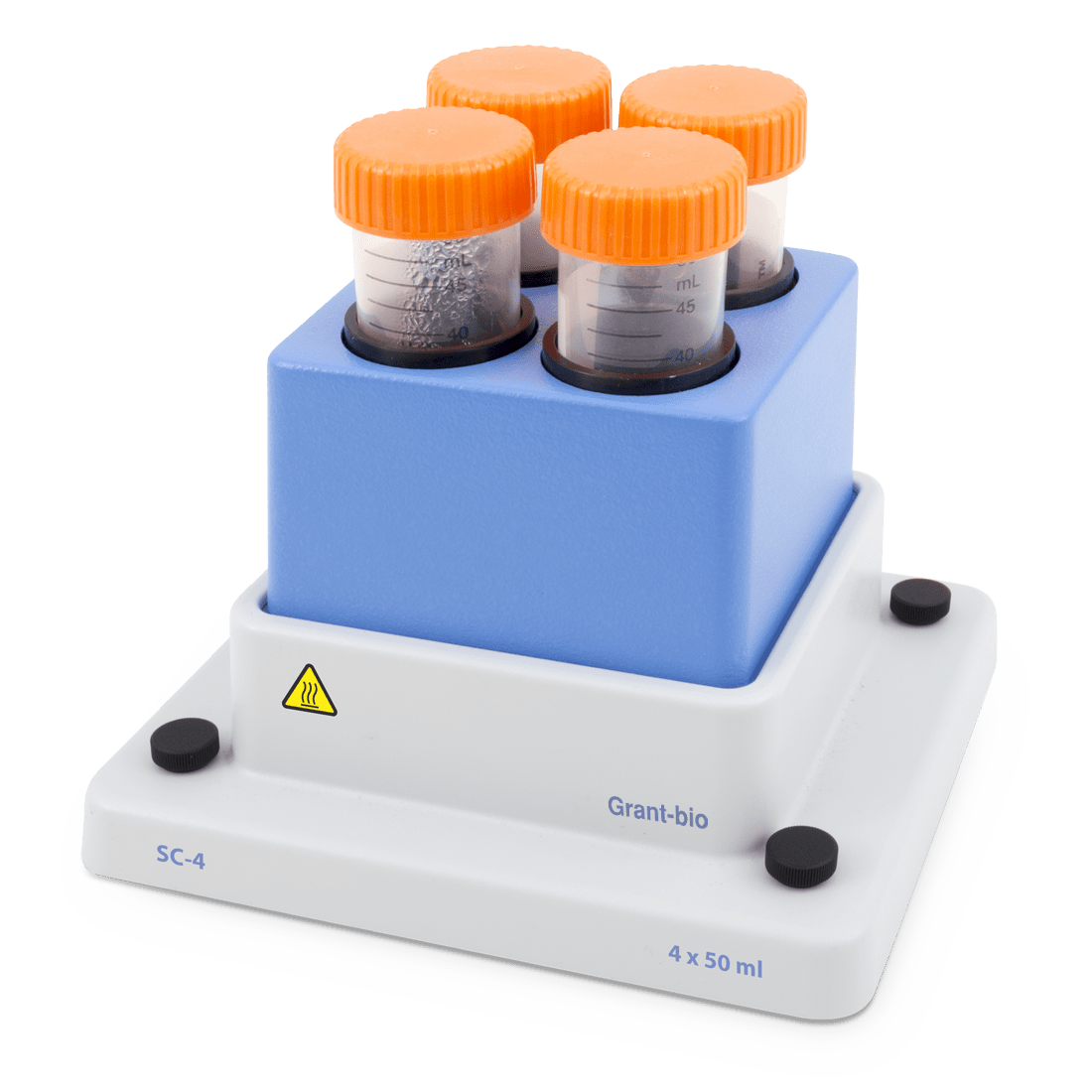

PSC4-50

Interchangeable block for 4 x 50ml conical tubes

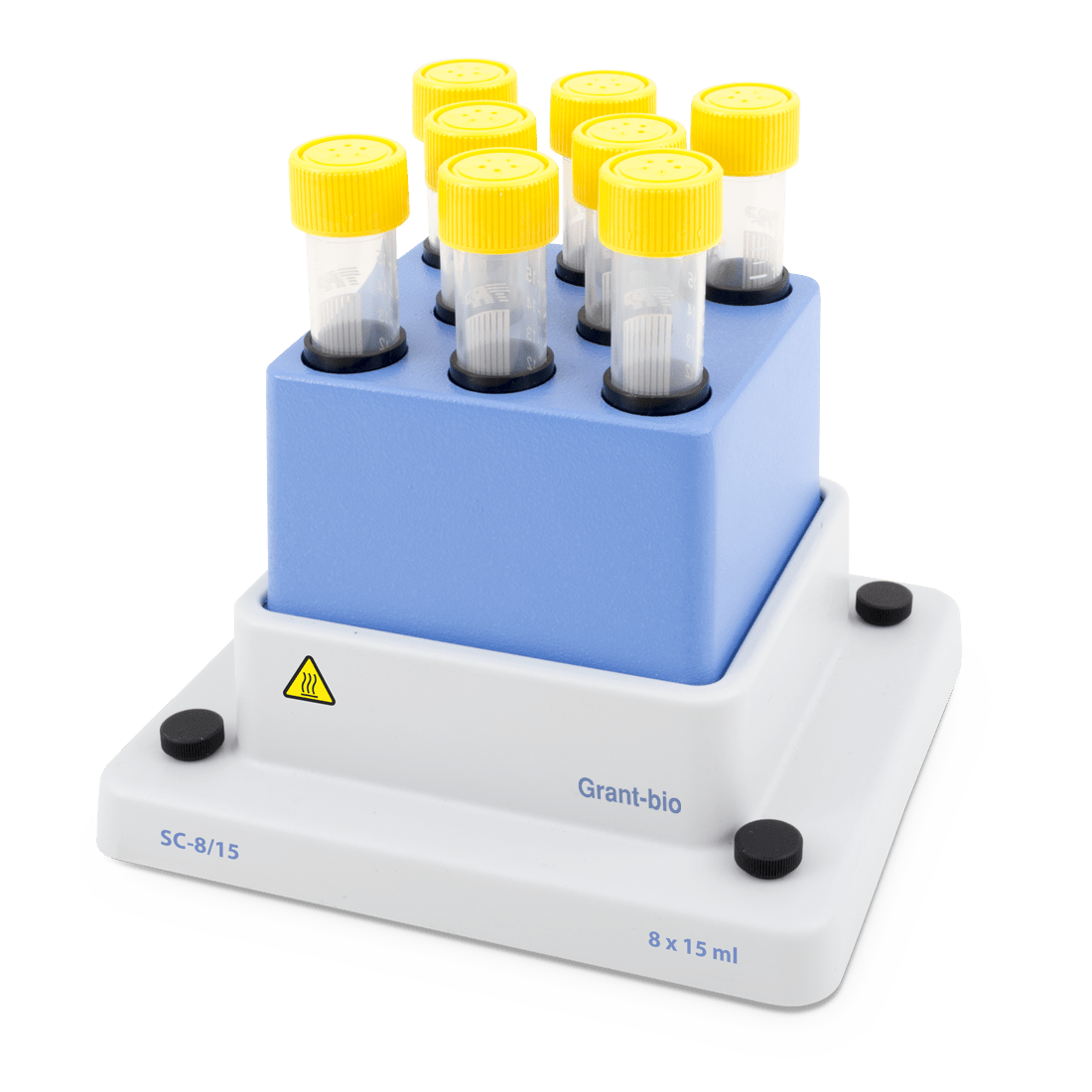

PSC8-15

Interchangeable block for 8 x 15ml conical tubes

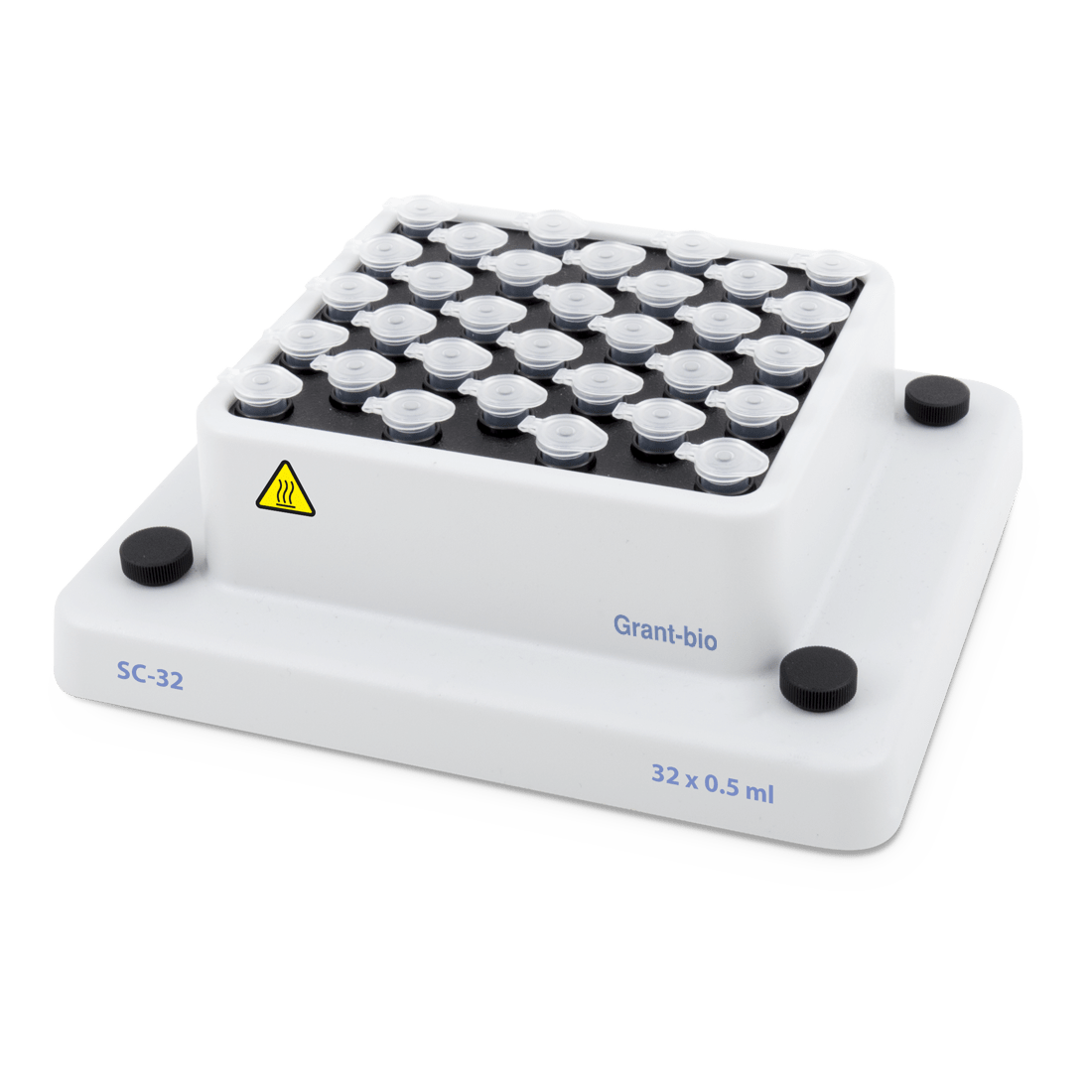

PSC32-05

Interchangeable block for 32 x 0.5ml microtubes

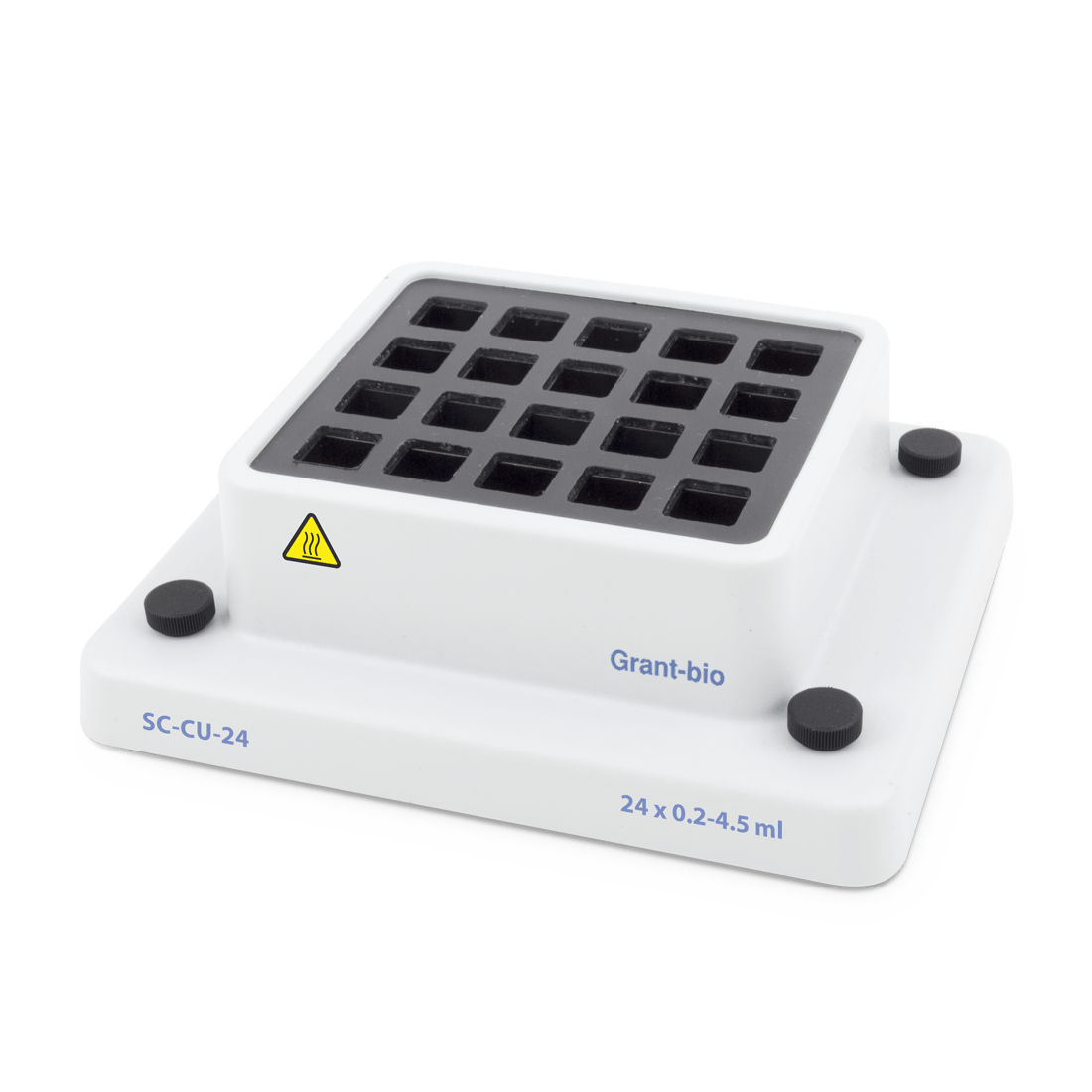

PSC20-CUV

Interchangeable block for 20x 10mm cuvettes

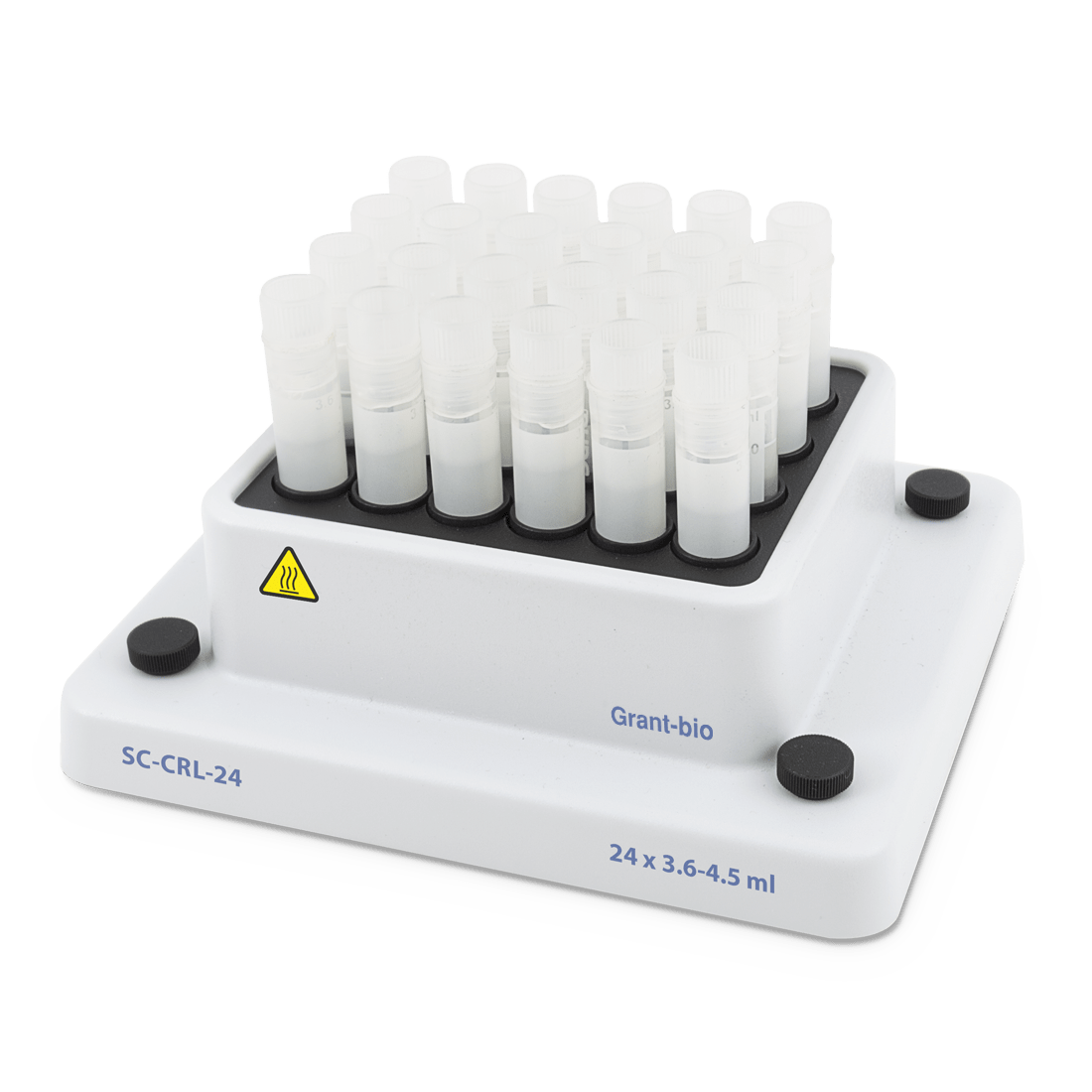

PSC24-CRYO-L

Interchangeable block for 24 × 3.6 – 4.5 ml cryotubes

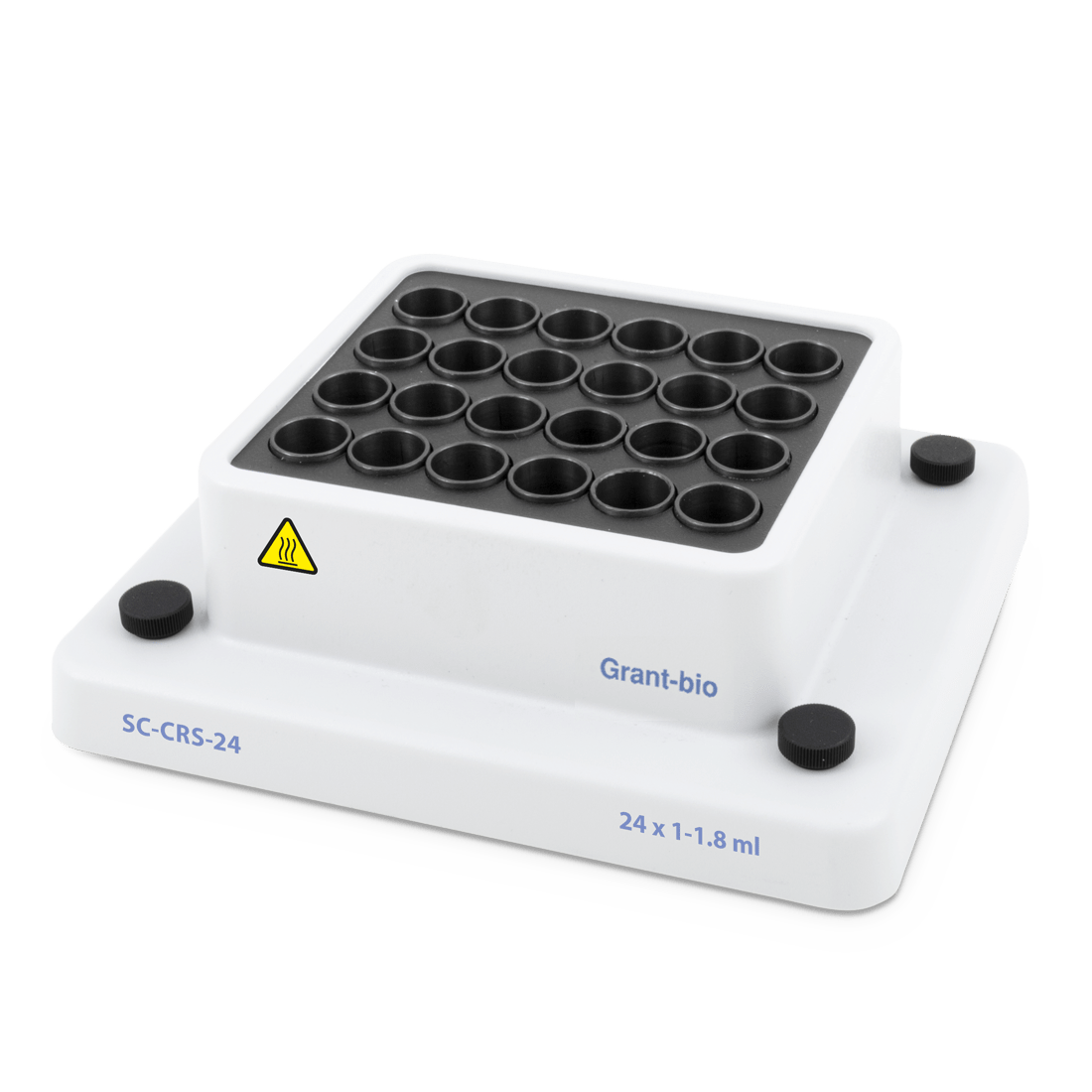

PSC24-CRYO-S

Interchangeable block for 24 × 1 - 1.8 ml cryotubes

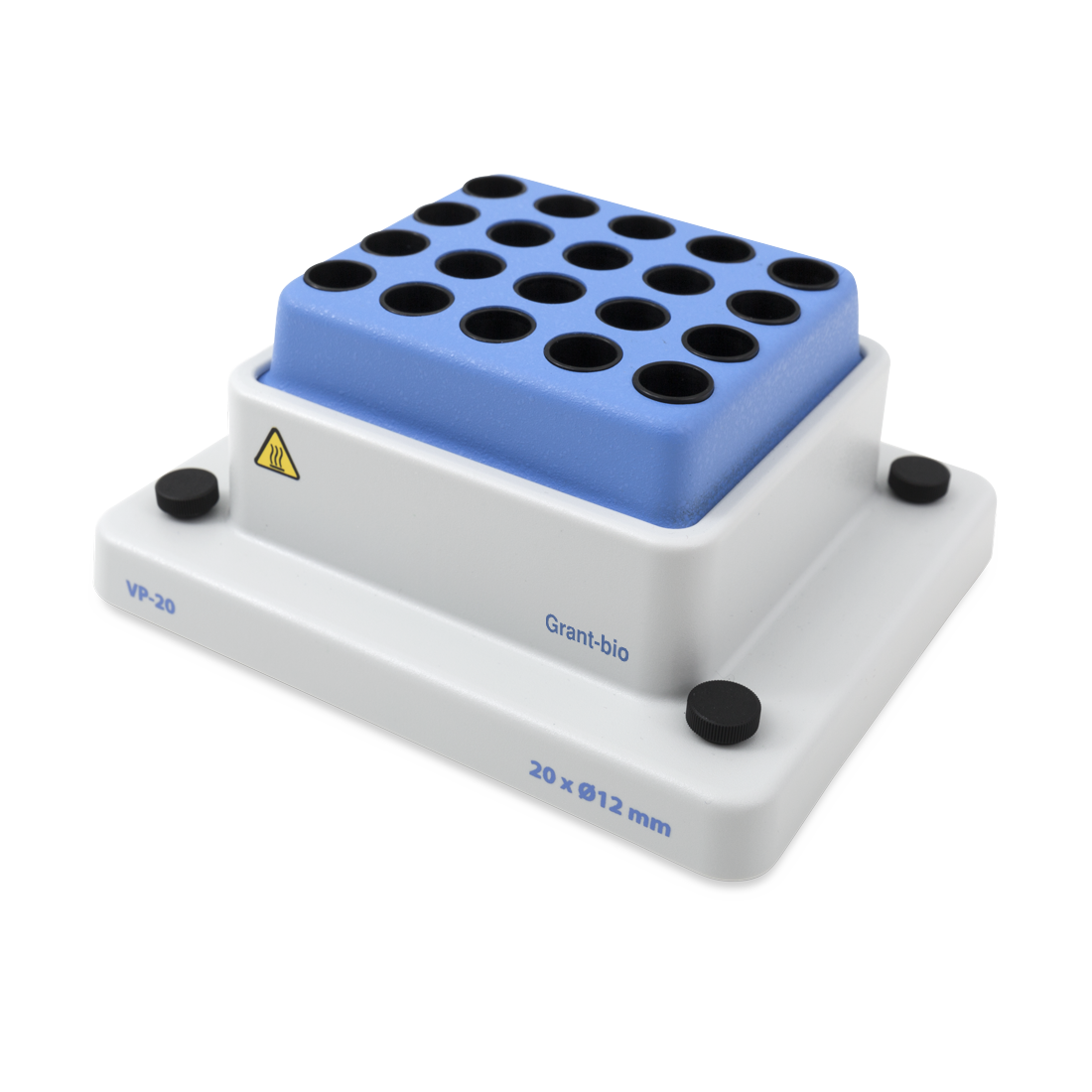

PSC20-12

Interchangeable block for 20 x 12mm diameter round bottom  tubes
