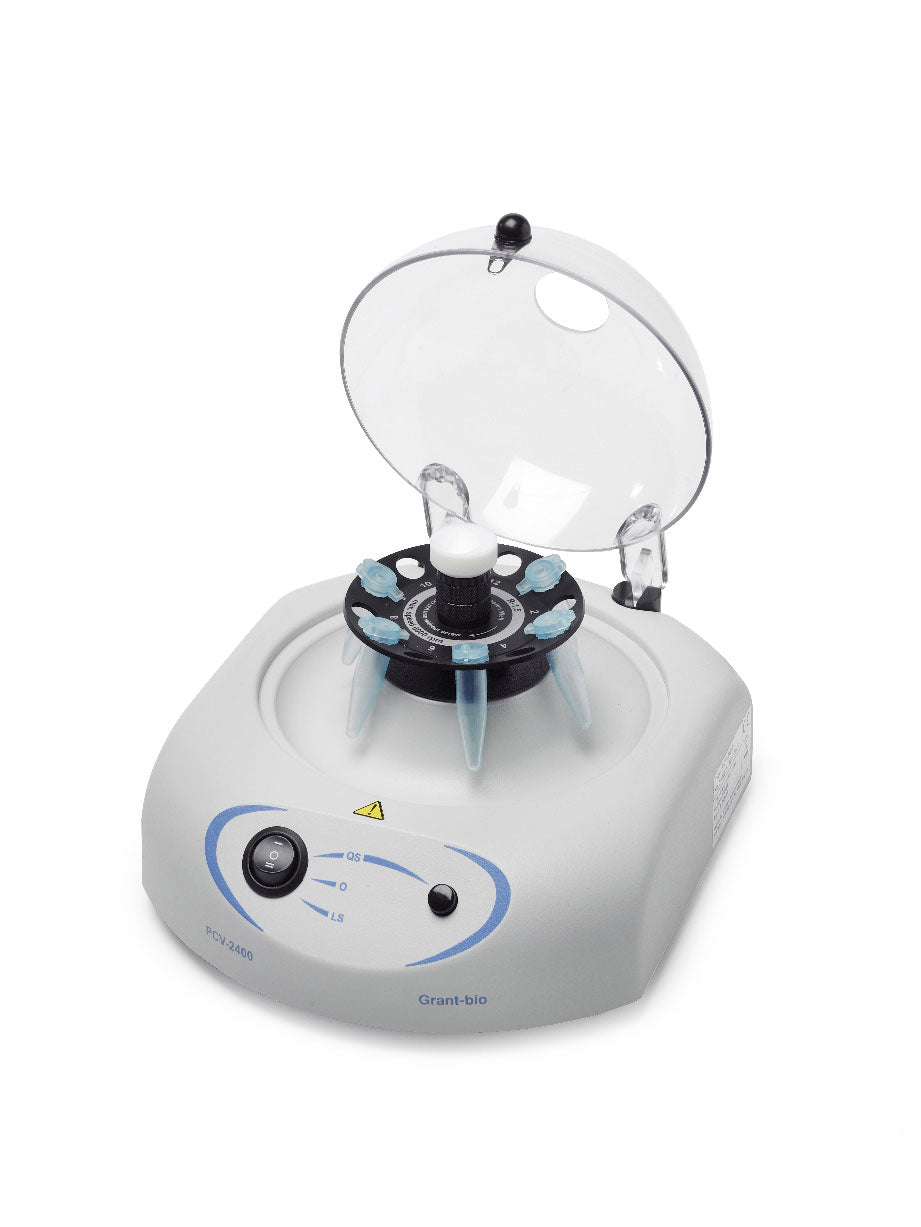

PCV-2400 Combined CentrifugeVortex Mixer

$993.00
$993.00
Shipping calculated at checkout.

The Centrifuge/Vortexer Combi-spin PCV-2400 is specially designed for life science research. It can be used in biochemical, microbiological and industrial biotechnology laboratories.

A cost-effective fixed-speed combined centrifuge/vortex mixer for combined or independent centrifuge and mixing applications of microtubes and 0.2 ml microtube strips in low volume applications.

  • Centrifugation 2800rpm at 50Hz and 3500rpm at 60Hz
  • The vortex cup emerges through an opening in the closed lid, enabling individual tubes to be mixed while a full load of tubes is spinning.
  • Very simple to operate - use the left-hand button to select continuous or short spin. A safety interlock stops the rotor when the lid is opened to ensure you and your workplace remain safe.
  • The Combi-spin is supplied as standard with two interchangeable rotors for 12x1.5ml and 12x0.5ml + 12x0.2ml microtubes.
  • Optional accessory rotors - for 16 and 18 microtubes and for two 8-well 0.2.ml strips - allow for quick and easy changes of application.

‍

Specification Details
Dimensions (h x d x w) 125 x 235 x 190 mm
Temperature range –
Max RCF (bottom of tube) 700 × g
Speed control range (centrifuge tubes) 2800 rpm at 50 Hz / 3500 rpm at 60 Hz
Number of tubes vortexing 1 individual
Time for completing spin-mix-spin 12 microtubes 5–6 minutes
Time for completing spin-mix-spin 100 microtubes 60 minutes
Capacity 12 x 1.5 ml microtubes –
Capacity 12 x 0.5 ml plus 12 x 0.2 ml microtubes –
Maximum noise 50 dBA
External power supply Input AC 120-230V, 50/60Hz | Output DC 12V
Power consumption - 230V 30 W (0.9 A)
Power consumption - 120V 110 W (0.5 A)
Weight 1.7 kg

  • Life-sciences - genetic engineering research (for PCR-diagnostics experiments). Units can be used in microbiological, biochemical, clinical laboratories and industrial biotechnological laboratories.
Product Manuals
Technical Datasheets

No downloads available

Further Information
PR2-05

Interchangeable centrifuge rotor for 8 x 1.5/2.0ml plus 8 x 0.5ml microtubes (optional)

PR2-05-02

Interchangeable centrifuge rotor for 6 x 1.5/2.0ml plus 6 x 0.2ml microtubes (optional)

PSR-16

Interchangeable centrifuge rotor for 2 x 8-well 0.2ml microtube strips (optional)

R-15

Replacement rotor for 12 x 1.5ml microtubes (included)

R-05-02

Replacement rotor for 12 x 0.5ml and 12 x 0.2ml microtubes (included)
