PCMT Thermoshaker

$2,616.00
$2,616.00
Shipping calculated at checkout.

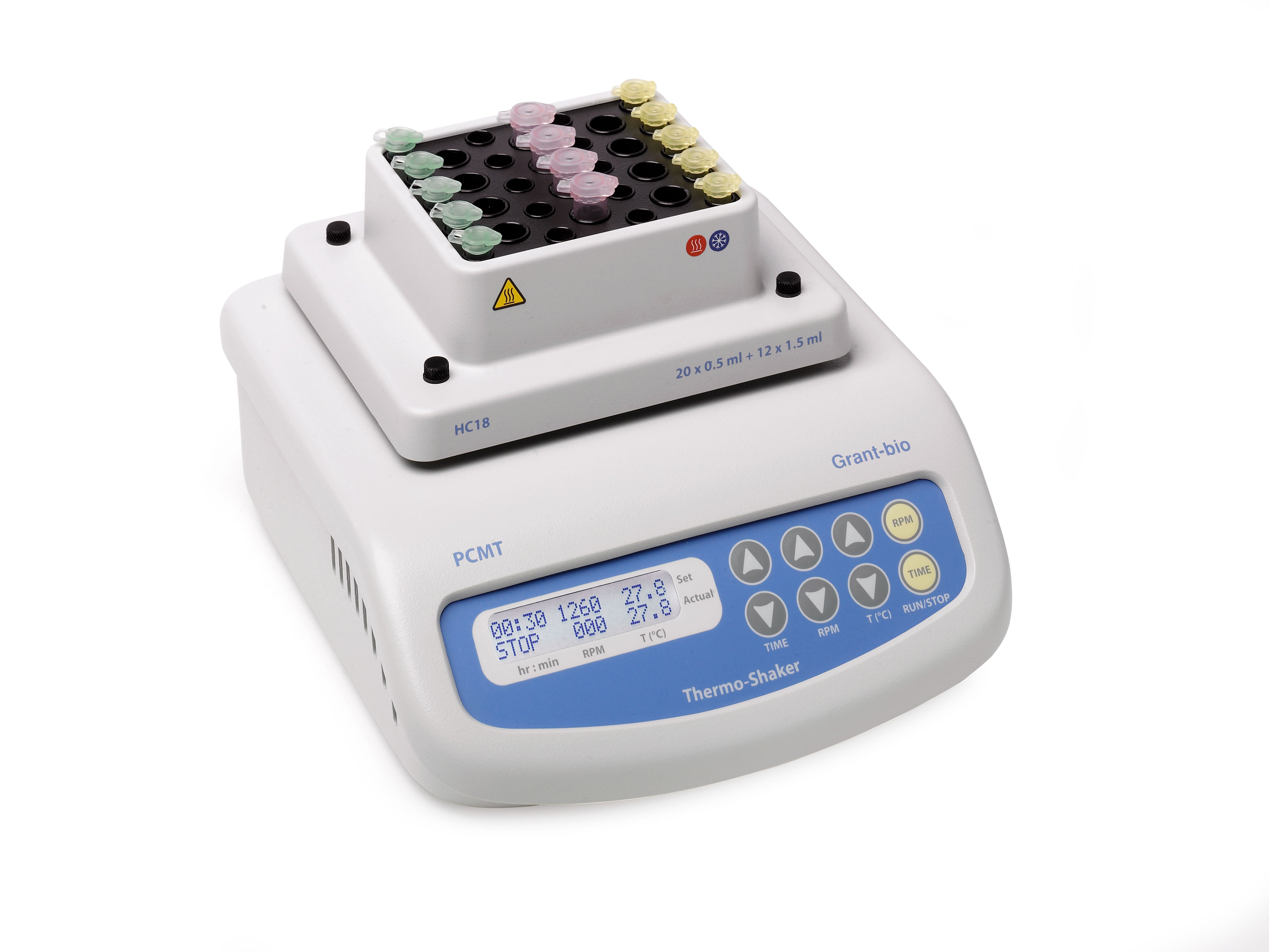

Our PCMT Thermoshaker with Cooling for Microtubes and Microplates is an ideal instrument for intensive mixing of samples with heating or cooling.

Variable speed, variable temperature thermoshaker with cooling with a choice of blocks for microtubes and microplates.

  • Fast heat-up and cooling times
  • Temperature setting range +4˚C to +100˚C
  • Temperature control range 15˚C below ambient to +100˚C
  • Shaking speed: 250 to 1400 rpm
  • Temperature uniformity ±0.1˚C
  • Even mixing across the thermoshaker block
  • Excellent uniformity across the block
  • Clear 16 x 2 character LCD display indicates the set and actual time of operation, mixing speed and temperature
  • Digital timer with sound alarm 1 min to 96 hours
  • Simultaneous or independent heating and mixing functions
  • Choice of interchangeable blocks:HC18 20 (20 x 0.5 ml and 12 x 1.5 ml microtubes)HC32 (20 x 0.2 ml and 12 x 1.5 ml microtubesHC24N (24 x 1.5 ml microtubes)HC24 (24 x 2 ml microtubes)HC96 (96-well microplate for PCR, 0.2 ml) - only compatible with unskirted and semi skirted platesHC8-5 (8 x 5ml conical tubes)HC4-50 (4 x 50ml conical tubes)HC8-15 (8 x 15ml conical tubes)HC32-05 (32 x 0.5ml microtubes)HC20-CUV (20x 10mm cuvettes)HC24-CRYO-L (24 × 3.6 – 4.5 ml cryotubes)HC24-CRYO-S (24 × 1 - 1.8 ml cryotubes)HC20-12 (20 x 12mm diameter round bottom tubes)

Block not included, please order separately.

Specification Details
Dimensions (h x d x w) 130 x 230 x 205mm
Temperature range +4 to 100ºC
Temperature control range 15 below ambient to +100ºC
Uniformity @4ºC ±0.6ºC
Uniformity @37ºC ±0.1ºC
Uniformity @100ºC ±0.3ºC
Speed (average cool down) HC18 block from 100ºC to 25ºC 5ºC/min (~15 minutes)
Speed (average cool down) HC18 block from 25ºC to 4ºC 1.8ºC/min (~12 minutes)
Shaking speed 250 to 1400rpm
Display (temperature) 2 line x 16 character LCD
Capacity See accessories
Capacity 1 microplate
Orbit diameter 2mm
Timer (with auto-off and audible alarm) 1 minute to 96 hours (1 minute increment)
Maximum noise 53.8 dba
Heating/cooling power 60W
External power supply Input AC 120-230V, 50/60Hz Output DC 12V
Power consumption 60W (4.9A)
Input voltage 12V dc
Weight 3.7kg

  • Genetic analyses - extraction of DNA, RNA and further sample preparation
  • Biochemical studies of enzymatic reactions and processes
  • Extraction of metabolites from cellular material
Product Manuals
Technical Datasheets

No downloads available

Further Information

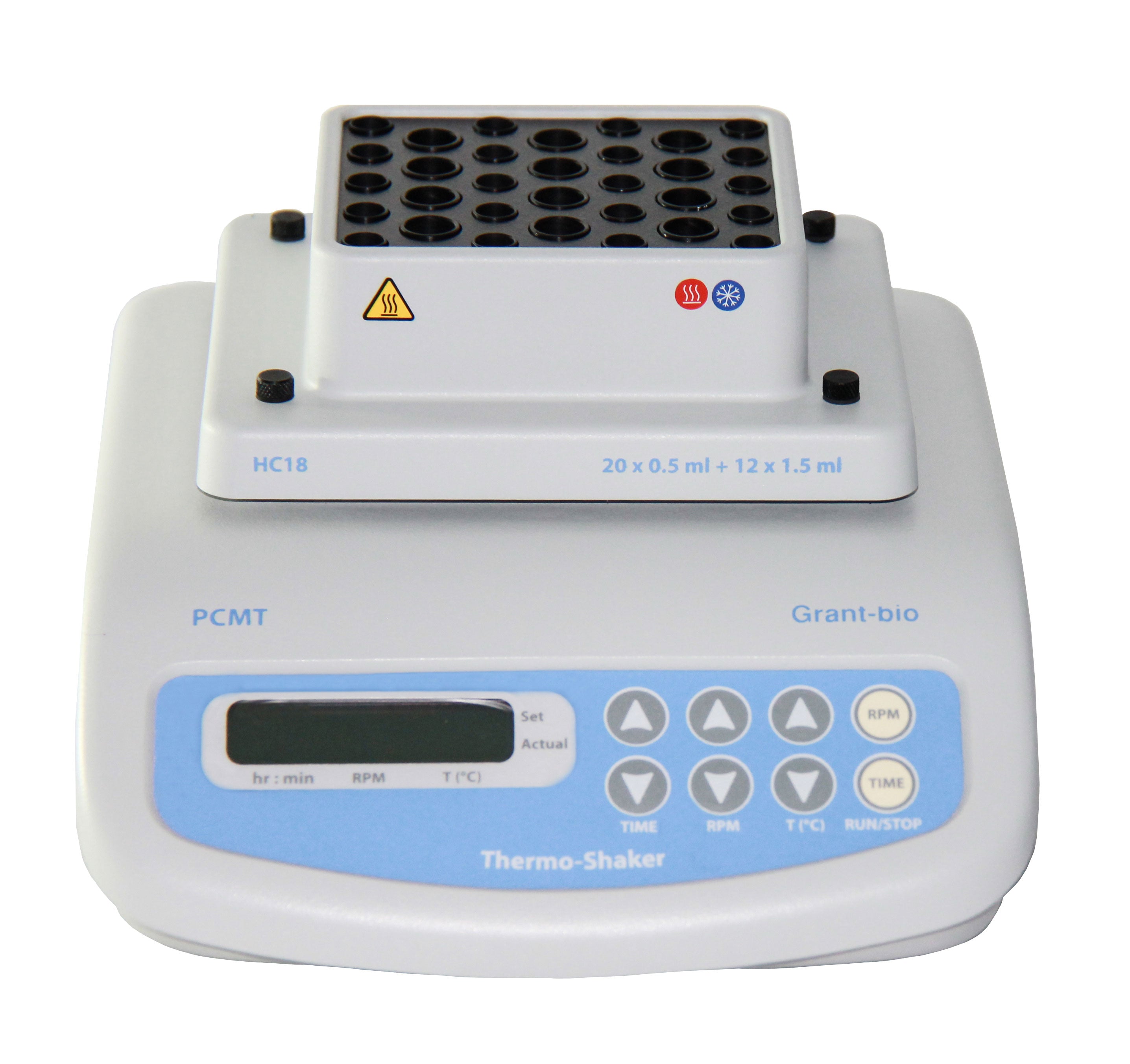

HC18

Interchangeable block for: 20 x 0.5ml microtubes plus 12 x 1.5ml microtubes

HC24N

Interchangeable block for: 24 x 1.5ml microtubes

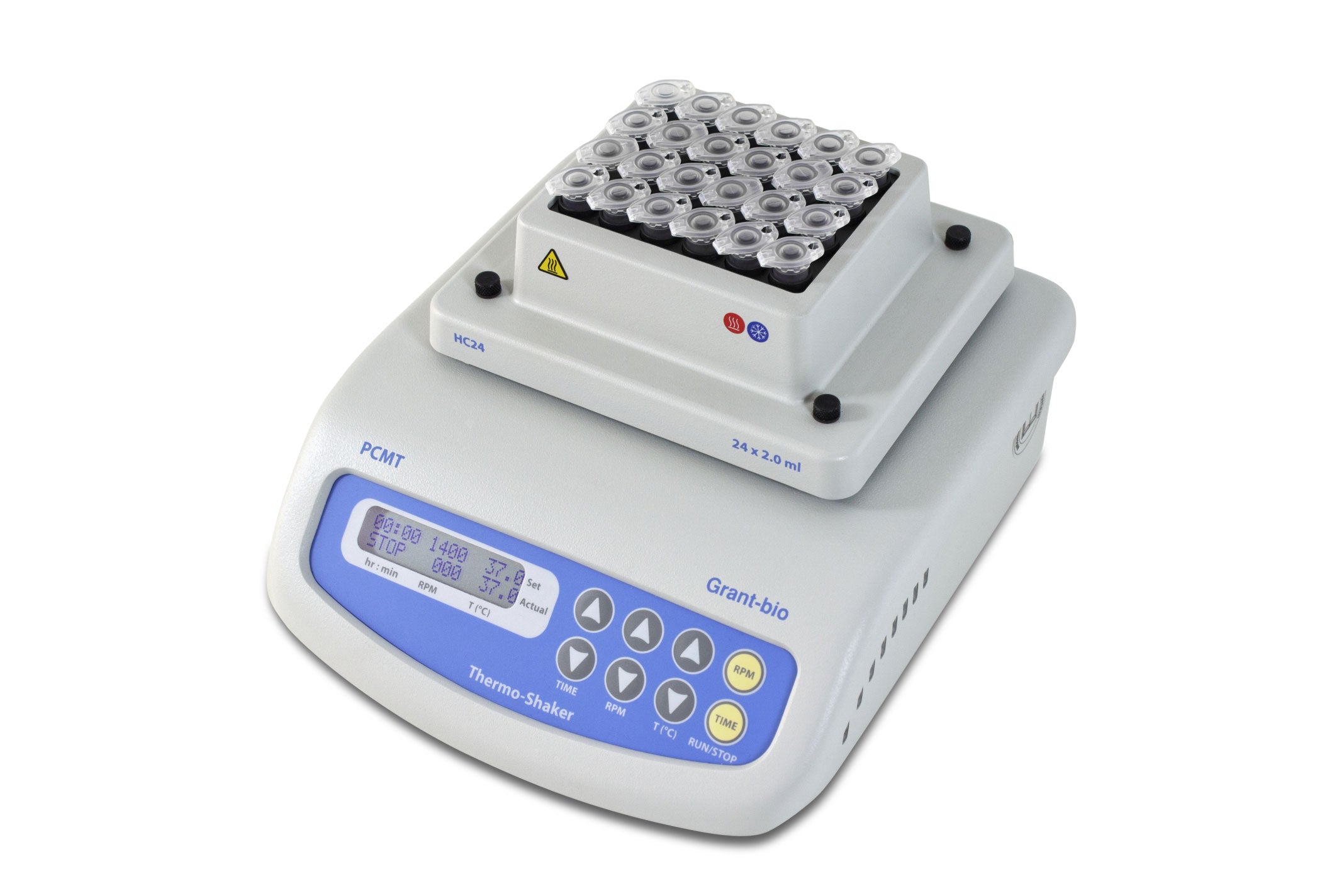

HC24

Interchangeable block for: 24 x 2.0ml microtubes

HC32

Interchangeable block for: 20 x 0.2ml microtubes plus 12 x 1.5ml microtubes

HC96

Interchangeable block for: 96-well microplates (0.2ml) - only compatible with unskirted and semi skirted plates

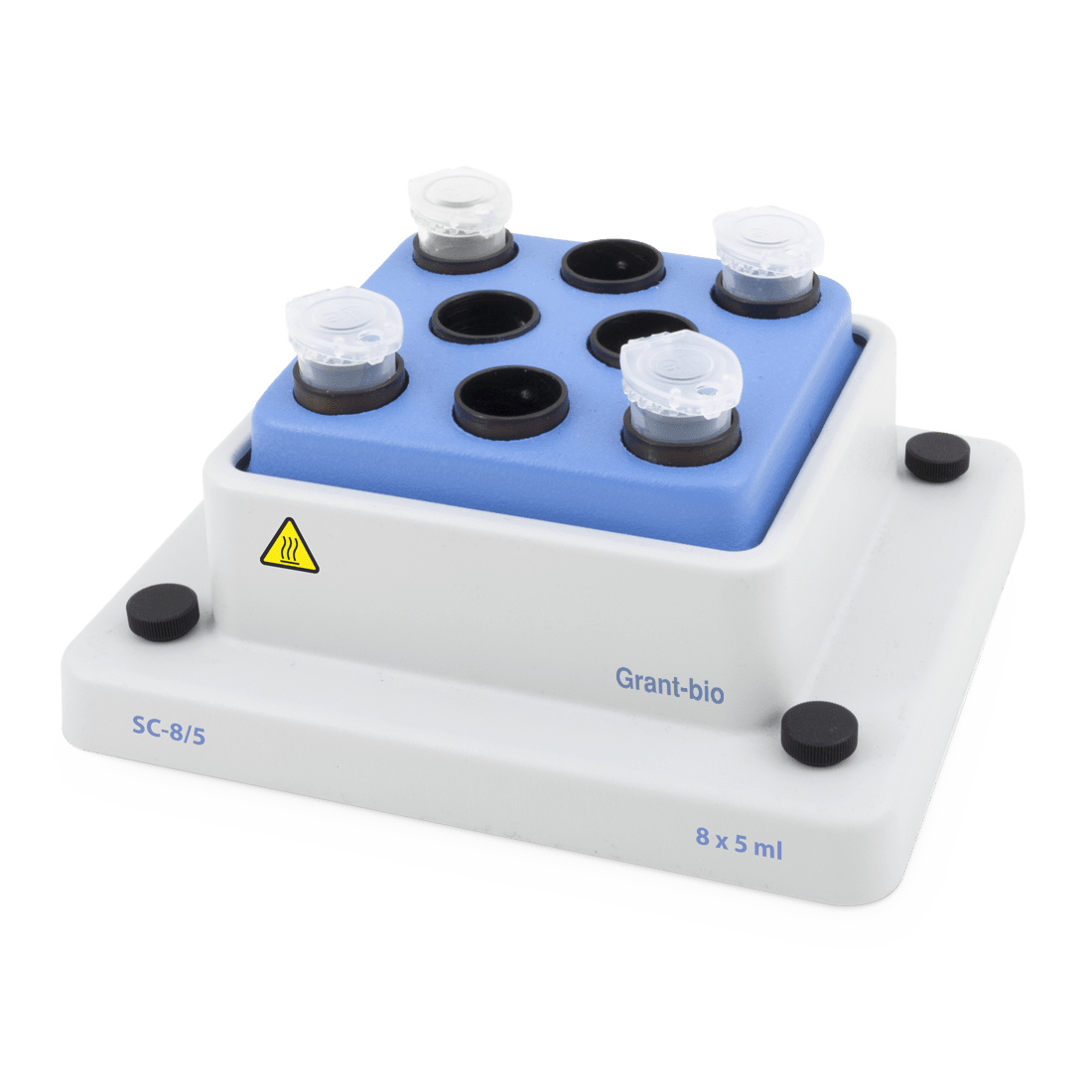

HC8-5

Interchangeable block for 8 x  5ml conical tubes

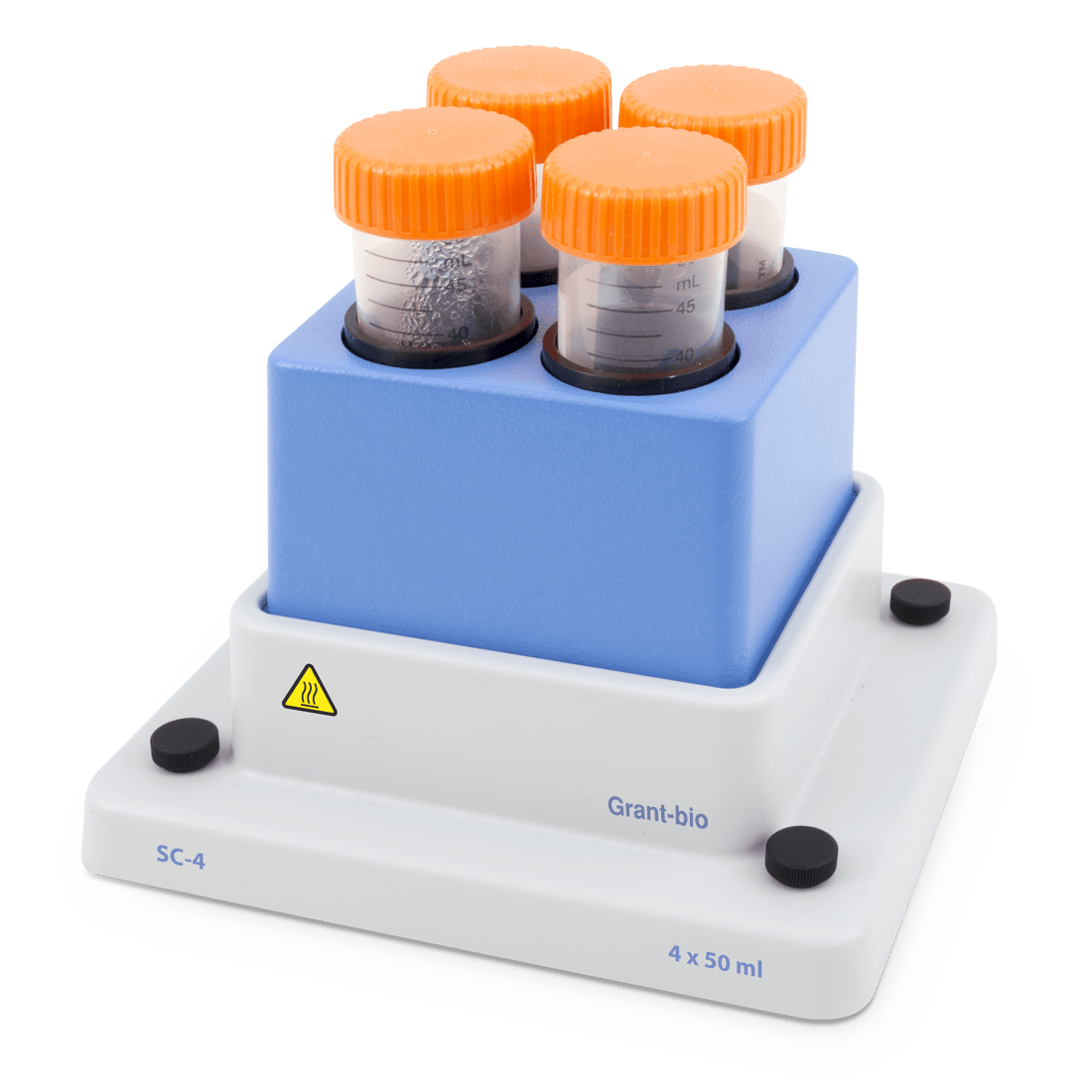

HC4-50

Interchangeable block for 4 x 50ml conical tubes

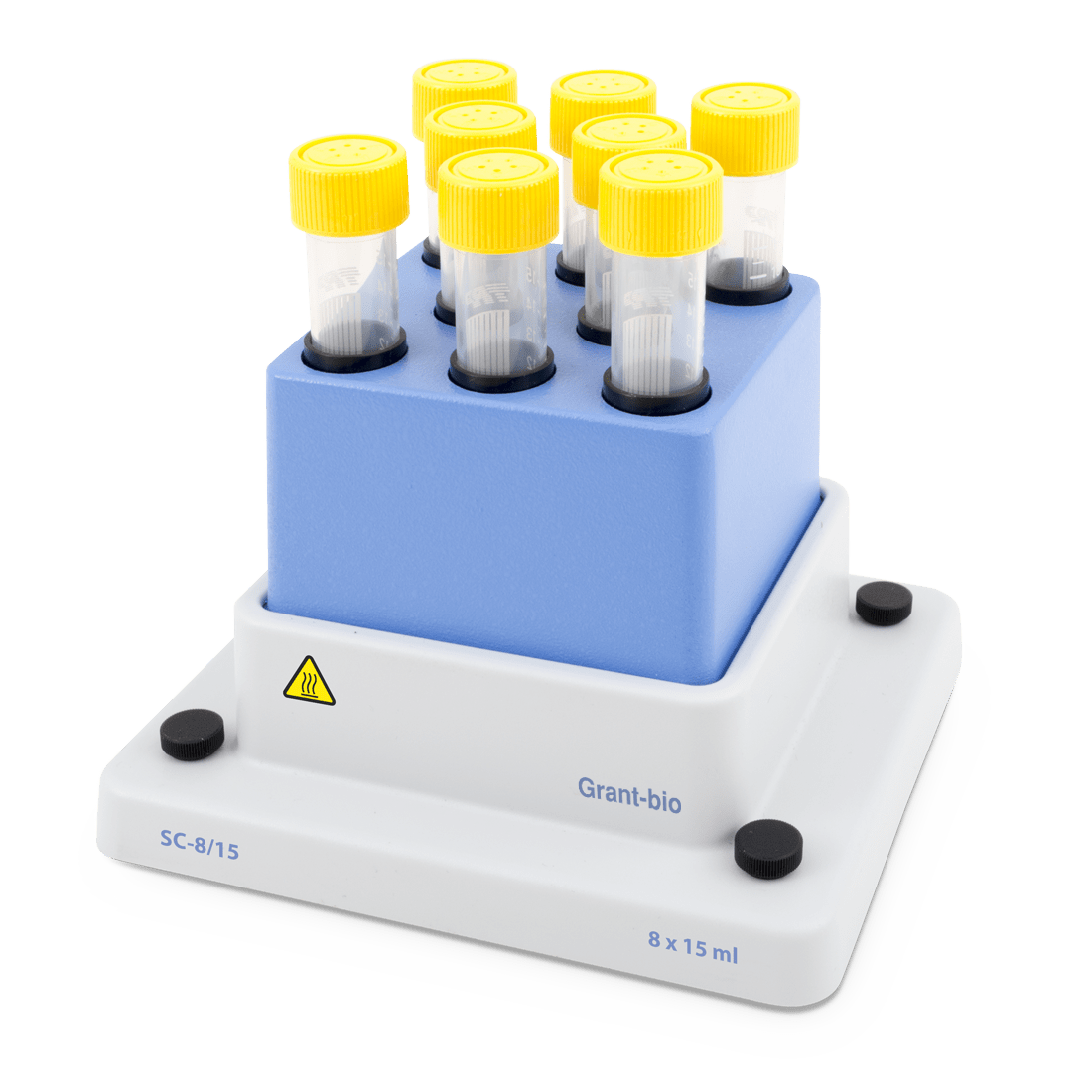

HC8-15

Interchangeable block for 8 x 15ml conical tubes

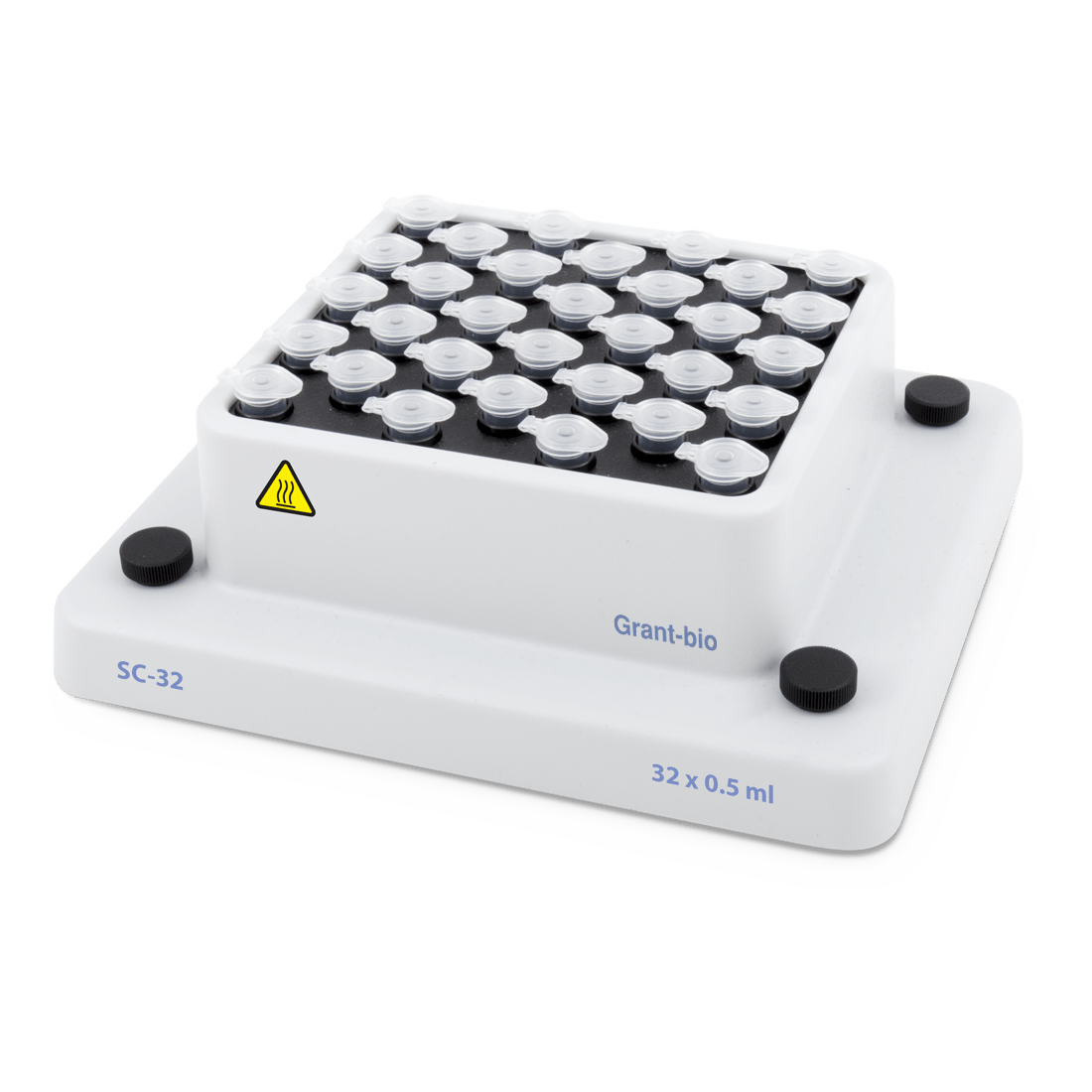

HC32-05

Interchangeable block for 32 x 0.5ml microtubes

HC20-CUV

Interchangeable block for 20x 10mm cuvettes

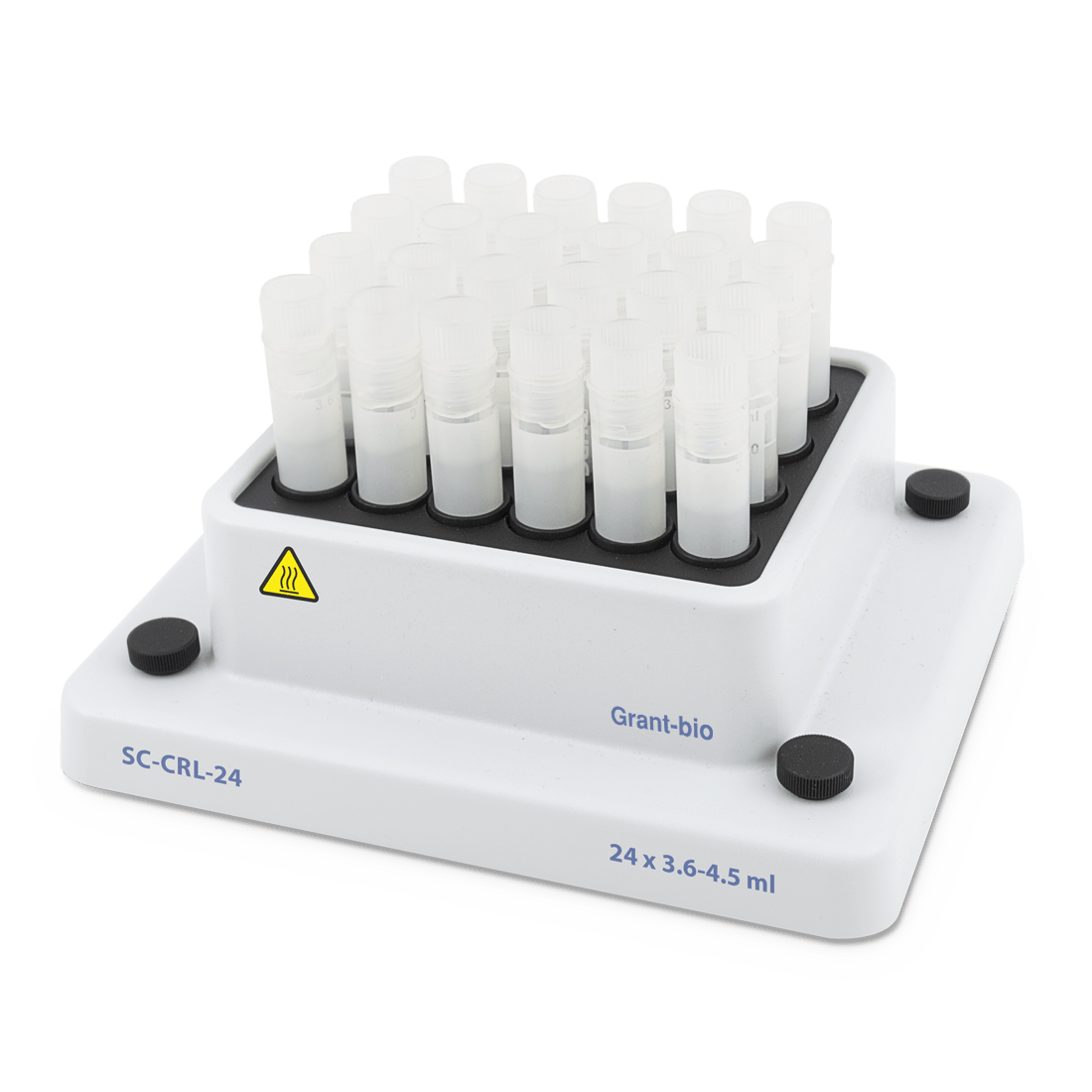

HC24-CRYO-L

Interchangeable block for 24 × 3.6 – 4.5 ml cryotubes

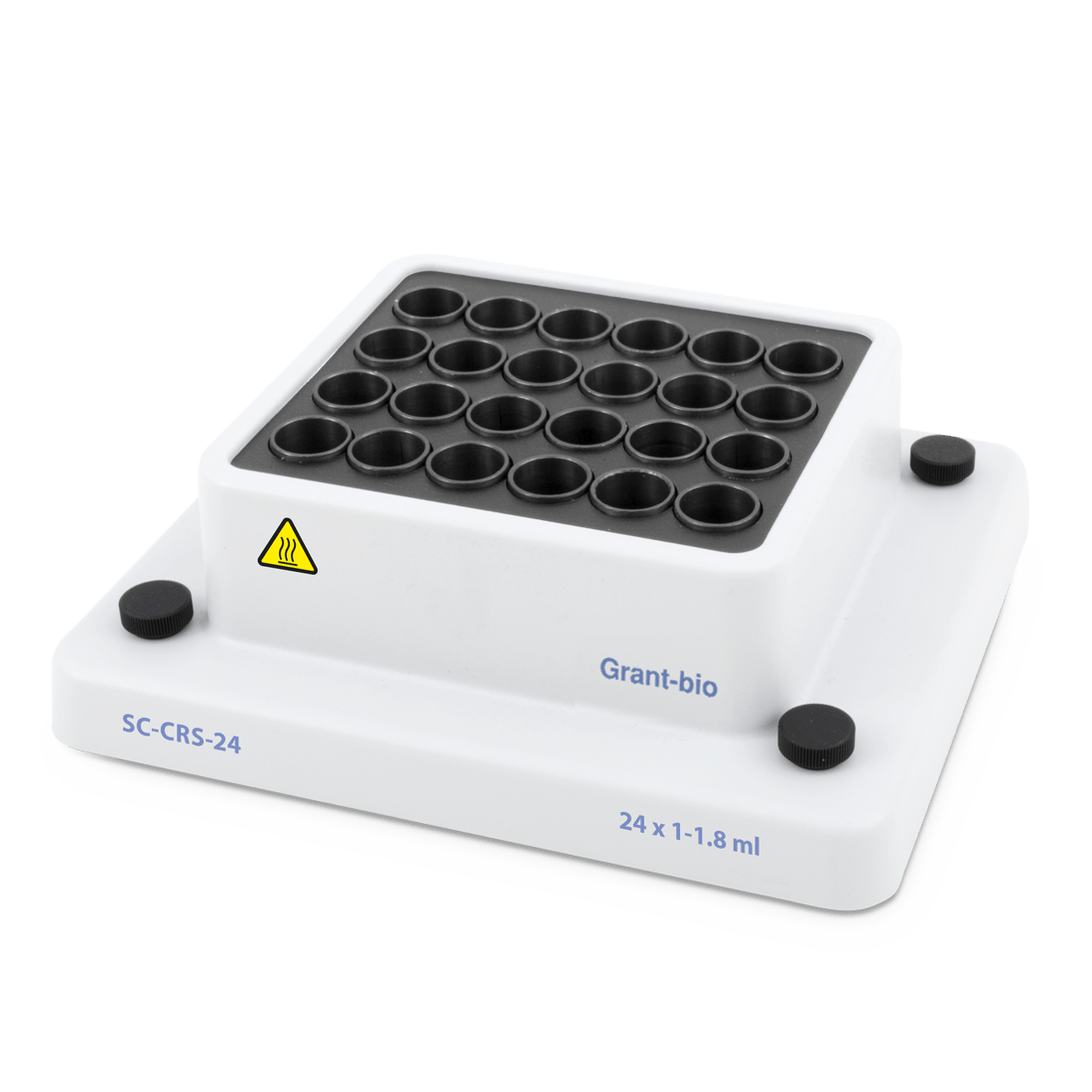

HC24-CRYO-S

Interchangeable block for 24 × 1-1.8 ml cryotubes

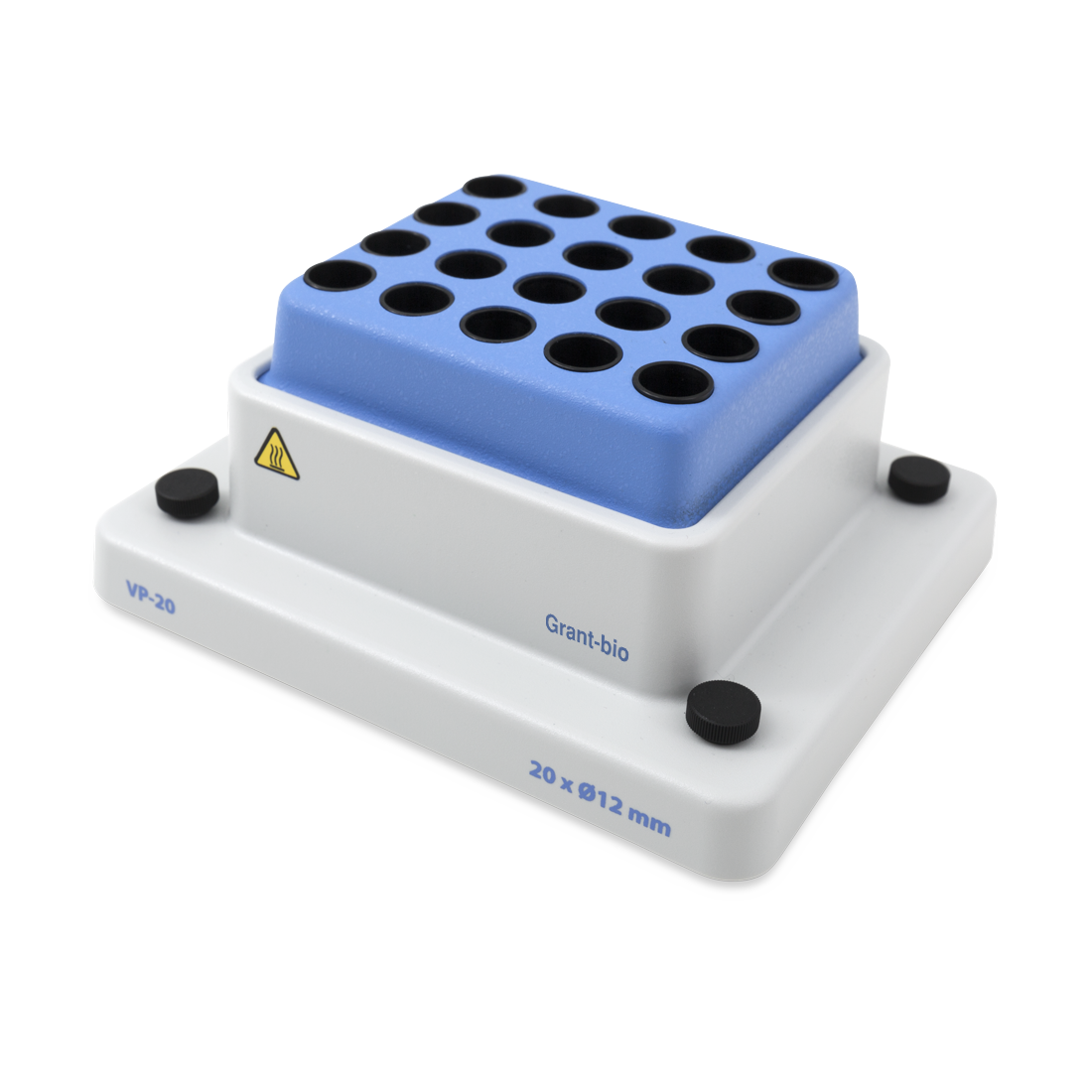

HC20-12

Interchangeable block for 20 x 12mm diameter round bottom tubes
