PCMT PLUS Thermo-Shaker

$2,863.00
$2,863.00
Shipping calculated at checkout.

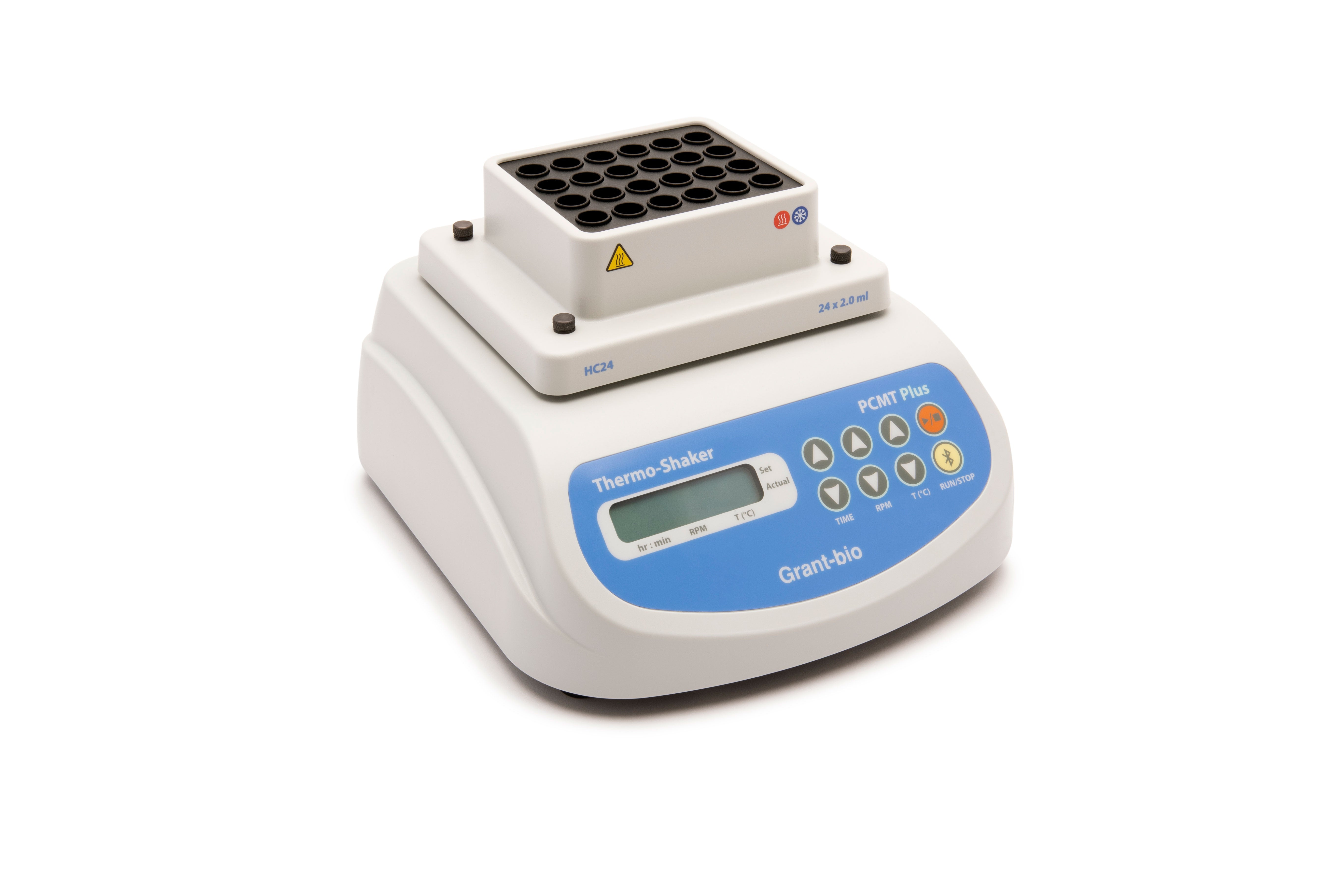

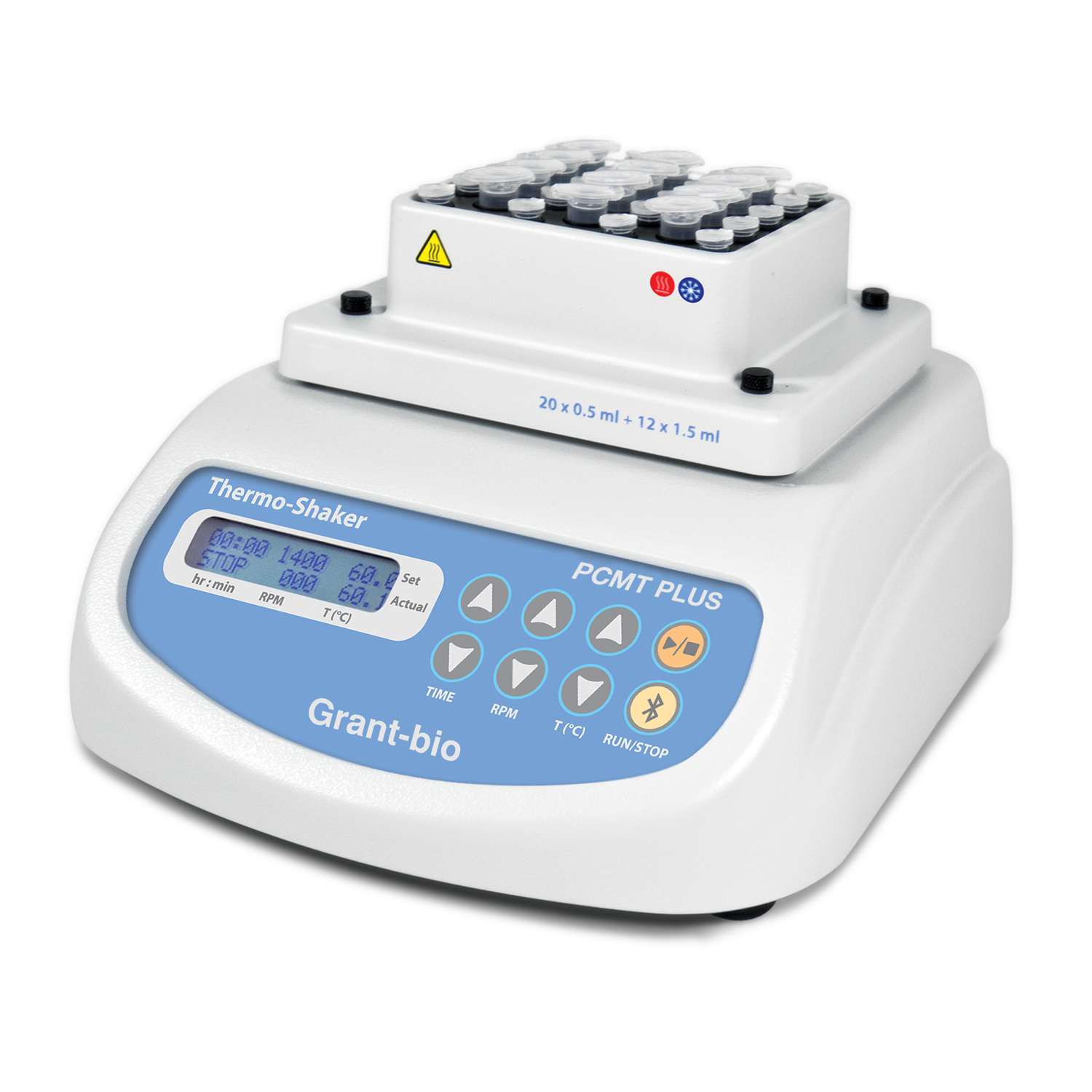

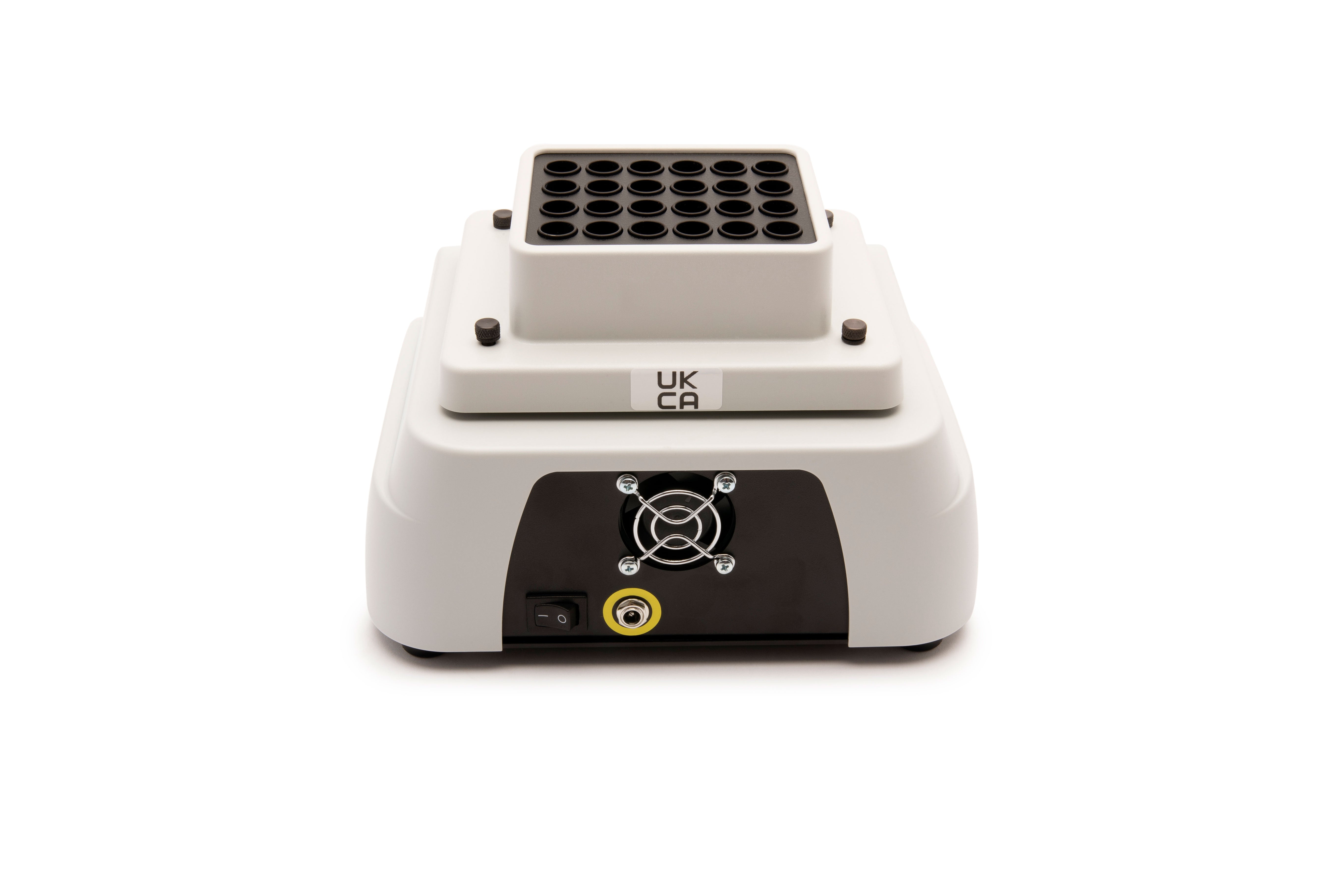

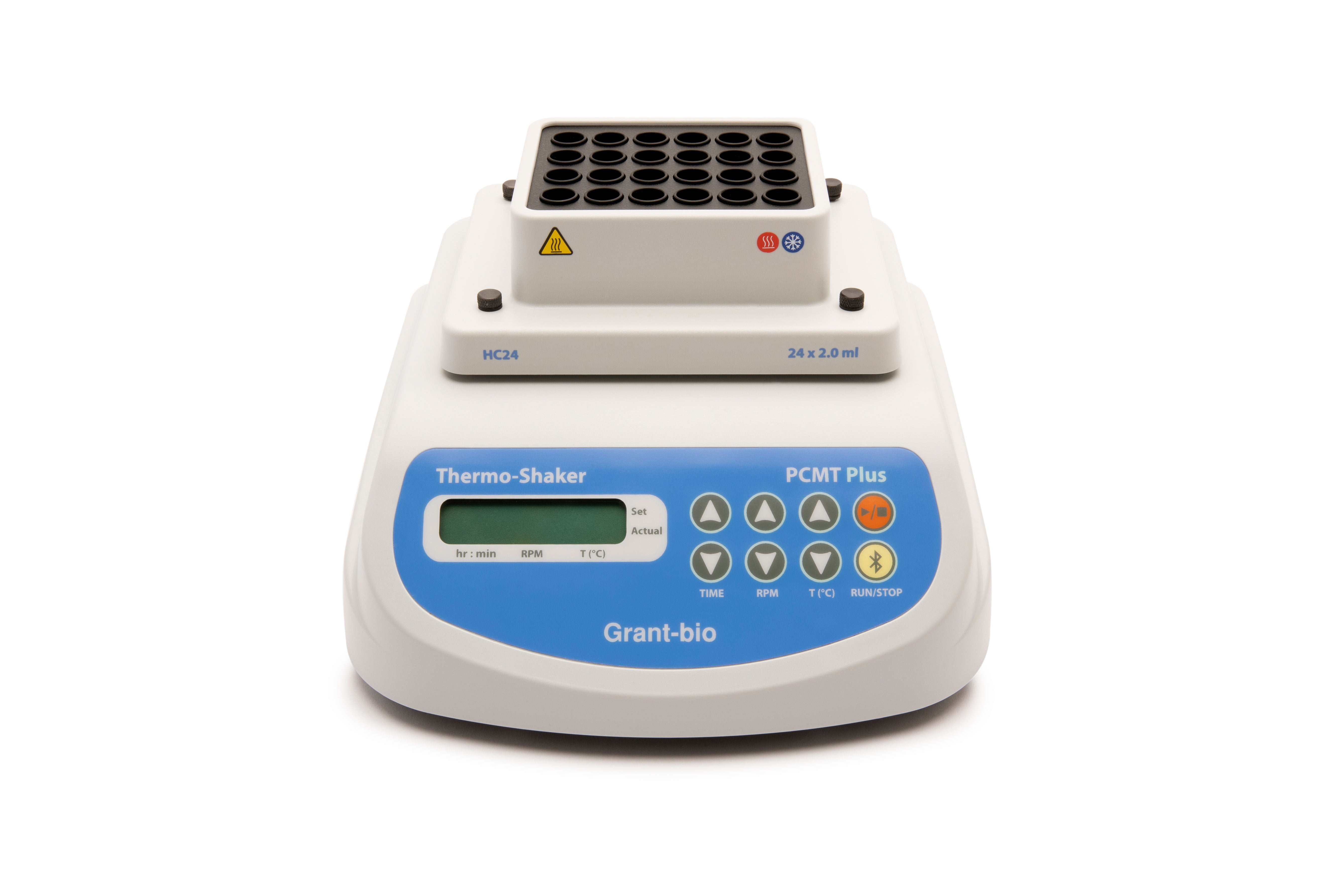

PCMT Plus thermo-shaker with cooling for microtubes and PCR plates is designed for intensive mixing of samples in microtest tubes or PCR plates in a temperature controlled environment.

The PCMT PLUS provides intensive mixing and temperature control of samples in microtubes or PCR plates. This model differs from the PCMT and PHMT with features including cooling and the ability to control 7 units to a PC via Bluetooth®.

Functions of heating and mixing can be performed both simultaneously and independently.

There are heating and cooling blocks available. All blocks are mutually interchangeable and can be easily installed.

  • HC18 20 (20 x 0.5 ml and 12 x 1.5 ml microtubes)
  • HC32 (20 x 0.2 ml and 12 x 1.5 ml microtubes
  • HC24N (24 x 1.5 ml microtubes)
  • HC24 (24 x 2 ml microtubes)
  • HC96 (96-well microplate for PCR, 0.2 ml) - only compatible with unskirted and semi skirted plates
  • HC8-5 (8 x 5ml conical tubes)
  • HC4-50 (4 x 50ml conical tubes)
  • HC8-15 (8 x 15ml conical tubes)
  • HC32-05 (32 x 0.5ml microtubes)
  • HC20-CUV (20x 10mm cuvettes)
  • HC24-CRYO-L (24 × 3.6 – 4.5 ml cryotubes)
  • HC24-CRYO-S (24 × 1 - 1.8 ml cryotubes)
  • HC20-12 (20 x 12mm diameter round bottom tubes)

‍

Software features include the control of rotation speed, temperature, time, alarm, program profiling, visualization of temperature vs time and speed vs time graphs, data export to Excel and CSV formats and error messages/ fault diagnostics.

Block not included, please order separately.

‍

Specification Details
Temperature setting range 4°C to +100°C
Temperature control range 15°C below ambient to +100°C
Average heating speed from +25°C to +100°C 5°C/min
Average cooling speed from +100°C to +25°C 5°C/min
Average cooling speed from +25°C to +4°C 1.8°C/min
Temperature uniformity over the block at +4°C ±0.6°C
Temperature uniformity over the block at +37°C ±0.1°C
Temperature uniformity over the block at +100°C ±0.3°C
Temperature calibration coefficient range 0.936 to 1.063 (±0.063)
Speed control range 250-1500 rpm
Digital time setting 1 min – 96 hrs (1 min increment)
Timer sound signal +
Orbit 2 mm
Display LCD, 16 x 2 signs
Microprocessor controlled temperature, mixing speed and operation time +
Maximum continuous operation time 168 h
PC system requirements Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/8.1/10, USB, Bluetooth
Overall dimensions (WxDxH) 220 x 240 x 90 mm
Weight 3.7 kg
Input current / power consumption 12 V, 4.9 A / 60 W
External power supply Input AC 100-240 V; 50/60 Hz; Output DC 12 V

  • Genetic analysis — in extraction of DNA, RNA and further sample preparation
  • Biochemical study of enzymatic reactions and processes
  • Extraction of metabolites from cellular material

‍

Product Manuals
Technical Datasheets

No downloads available

Further Information
HC18

Interchangeable block for: 20 x 0.5ml microtubes plus 12 x 1.5ml microtubes

HC24N

Interchangeable block for: 24 x 1.5ml microtubes

HC24

Interchangeable block for: 24 x 2.0ml microtubes

HC32

Interchangeable block for: 20 x 0.2ml microtubes plus 12 x 1.5ml microtubes

HC96

Interchangeable block for: 96-well microplates (0.2ml)

HC8-5

Interchangeable block for 8 x  5ml conical tubes

HC4-50

Interchangeable block for 4 x 50ml conical tubes

HC8-15

Interchangeable block for 8 x 15ml conical tubes

HC32-05

Interchangeable block for 32 x 0.5ml microtubes

HC20-CUV

Interchangeable block for 20x 10mm cuvettes

HC24-CRYO-L

Interchangeable block for 24 × 3.6 – 4.5 ml cryotubes

HC24-CRYO-S

Interchangeable block for 24 × 1-1.8 ml cryotubes

HC20-12

Interchangeable block for 20 x 12mm diameter round bottom tubes

‍
