OQ610

Name: OQ610
Brand: Grant Instruments
Price: 1775.00 USD
Availability: InStock

Shipping calculated at checkout.

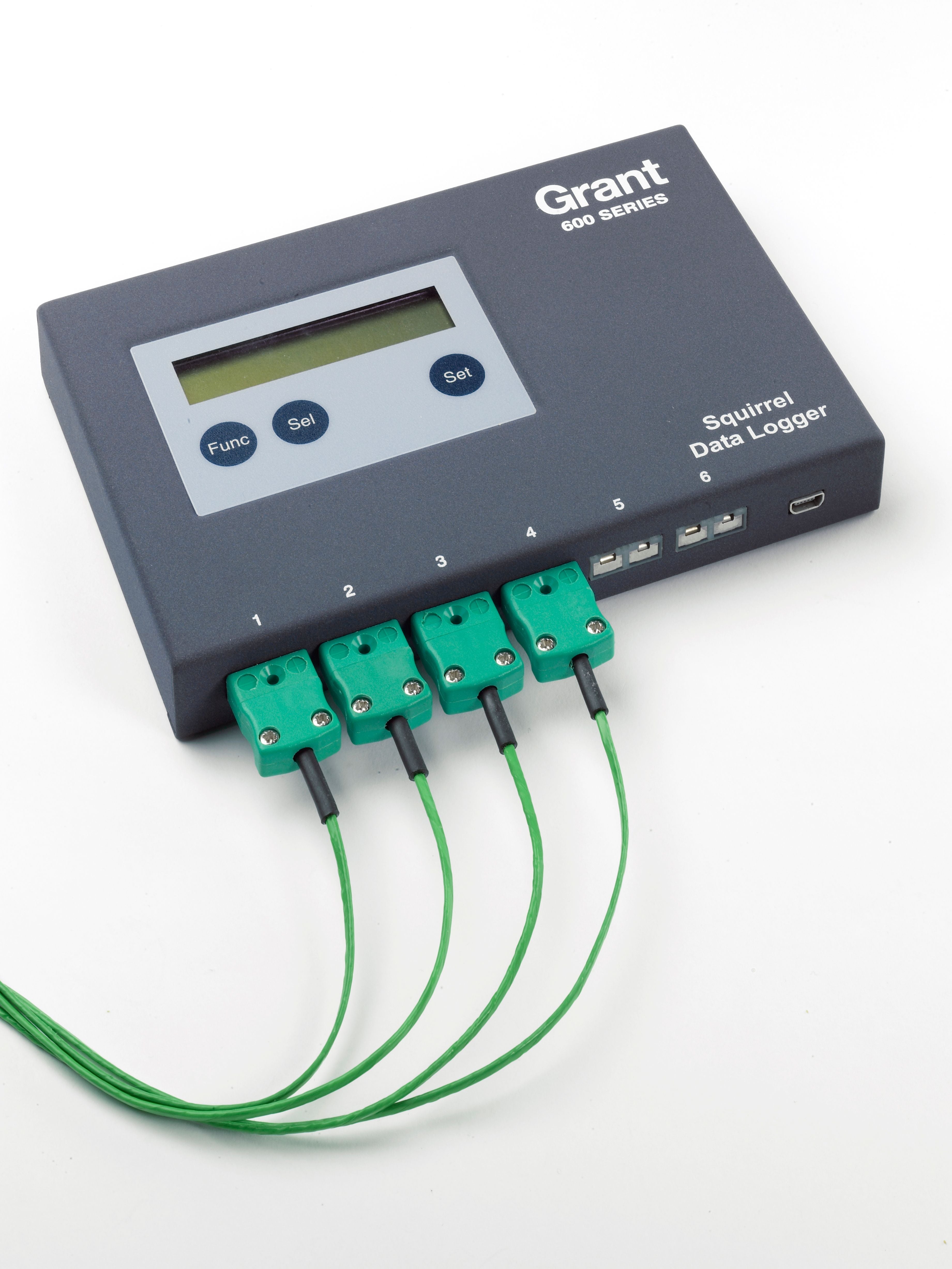

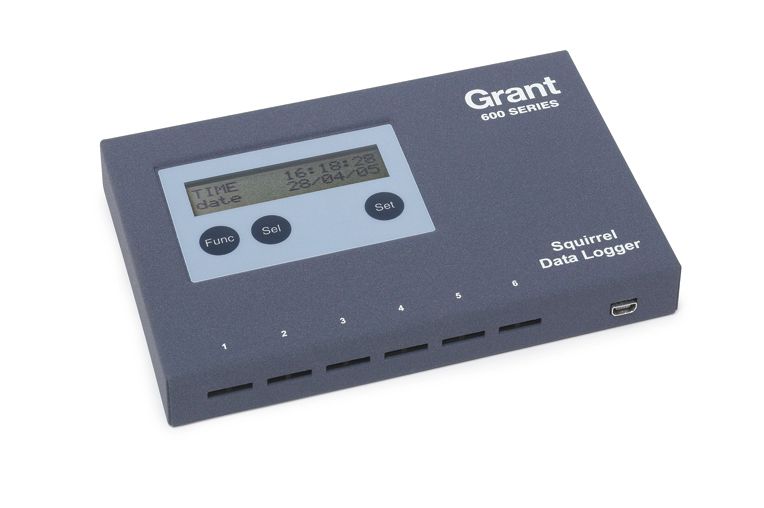

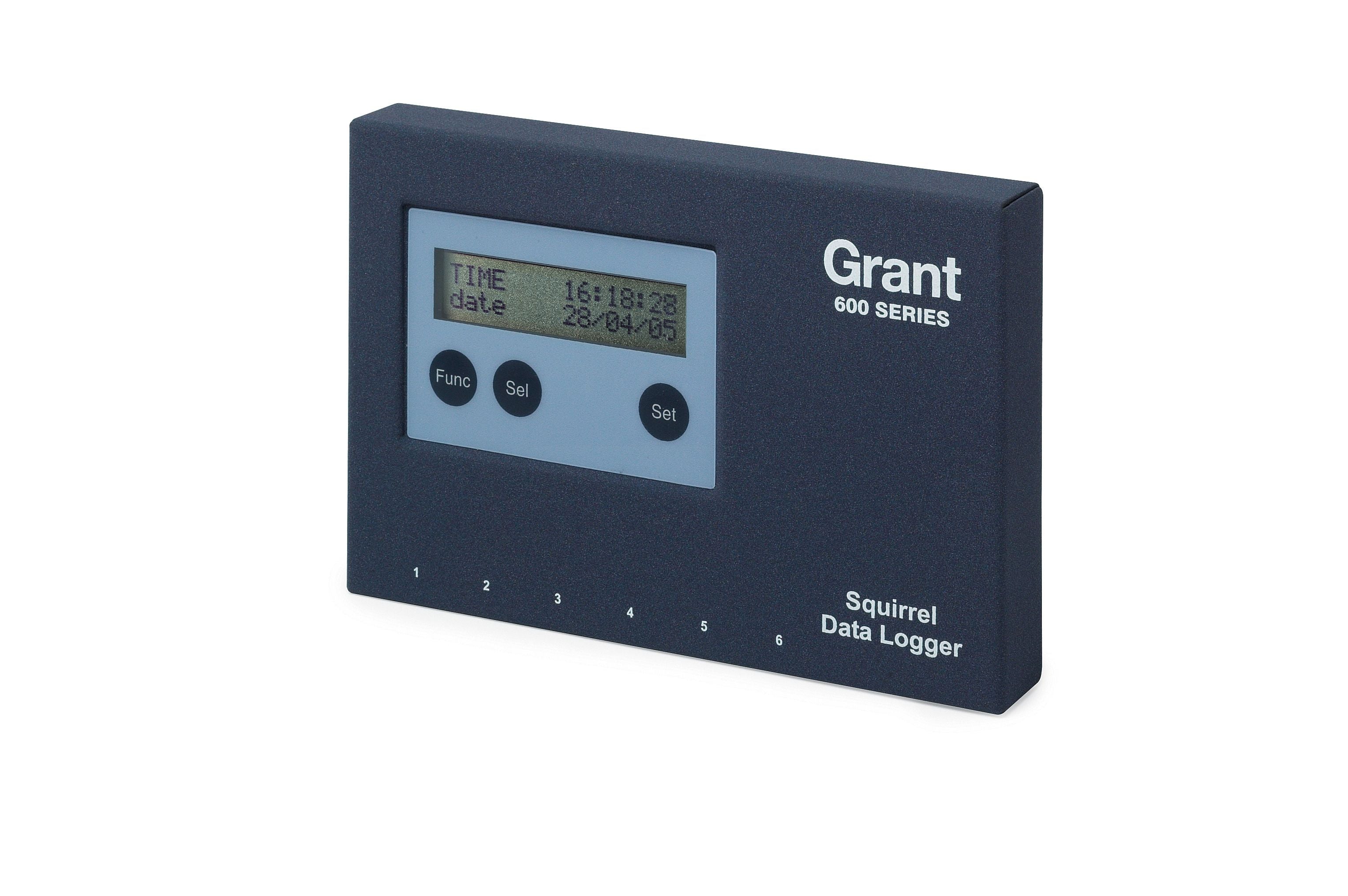

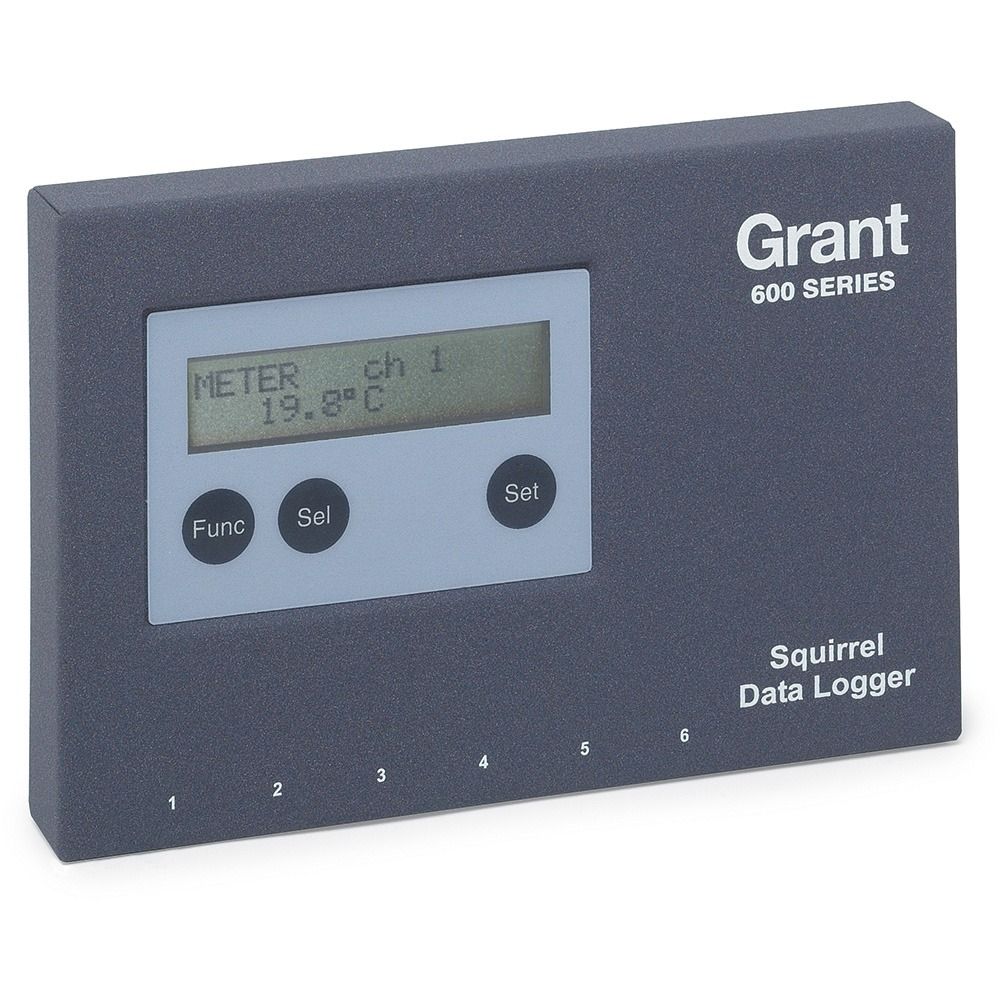

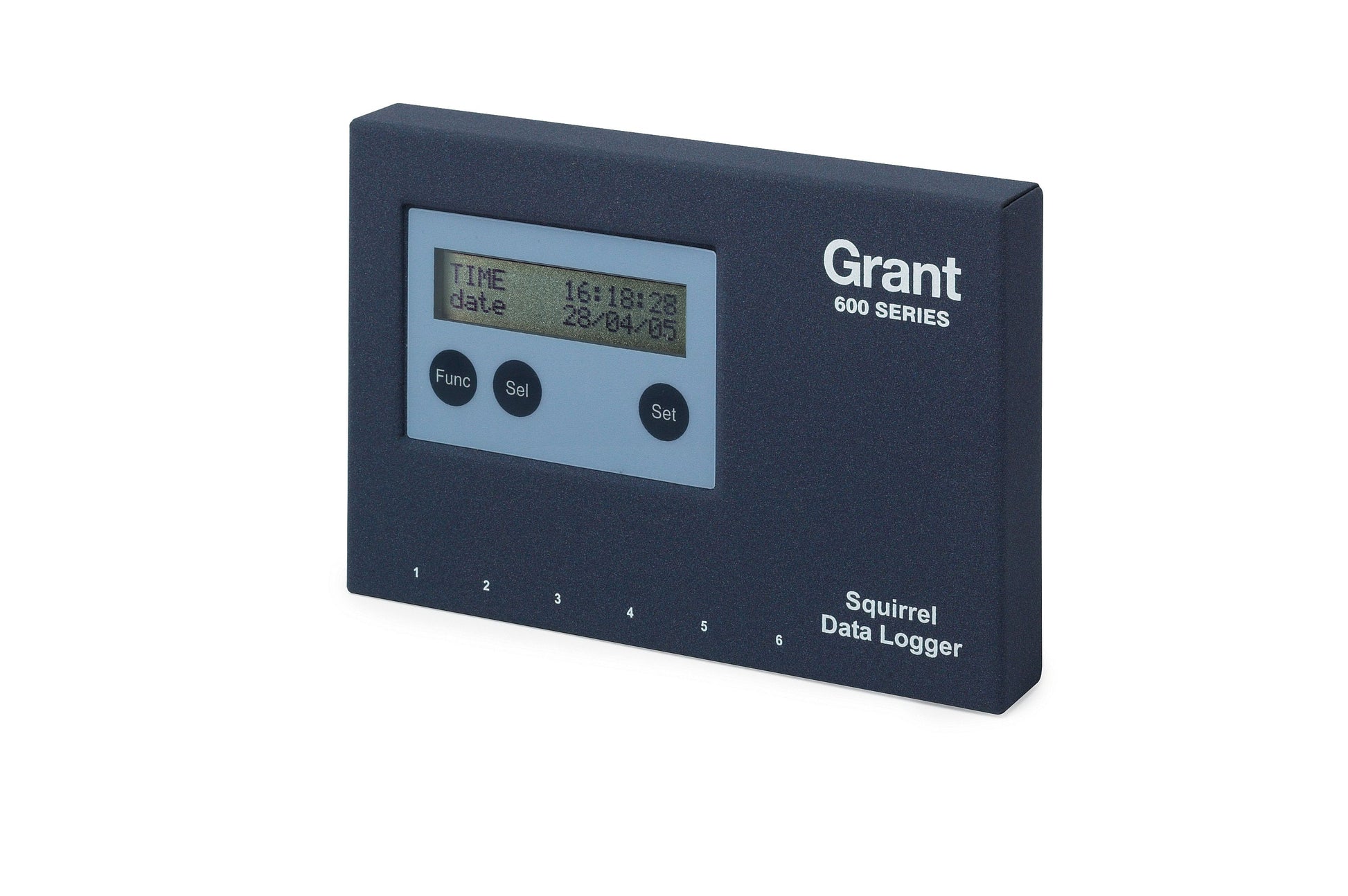

The OQ610 temperature logger is suitable for a wide range of temperature recording applications in industry, research, and development.

It is available as a standalone temperature logger or as part of a complete system for through process monitoring in the food and paint industries

Small, lightweight, battery operated and easily portable.
Quick and easy to program via three push buttons and display, or via PC
Automatically detects when sensors are present – easy set-up of up to 6 channels for use with a wide range of K or T type thermocouple probes
Start and stop logging at specific times or at certain temperature levels
Fast ample rates for fast process times: up to 8 samples/second
Can provide automatic cure calculation in through process applications
Non-volatile memory provides up to 250,000 readings of secure data
Time and date reported with each reading

‍

Specification	Details
Accuracy	-50 to 500ºC, ±0.5ºC (-58ºF to 932ºF, ±0.9ºF). -200 to 1300ºC, ±1.0ºC (-328 to 2372ºF, ±1.8ºF)
Resolution	0.1ºC (0.18ºF)
Sampling rate	Fastest: eight times per second per channel. Slowest: once every two hours per channel
Channels	6 K or T type thermocouple
Temperature measuring range	-200ºC to 1300ºC (-328 to 2372ºF) (K type). -200ºC to 400ºC (-328 to 752ºF) (T type)
Operating environment	Temperature range -30 to 65ºC. Humidity 95%
Memory	Flash memory of 260,000 readings
Maximum no. runs stored	8
USB communication	1.1 and 2.0 compatible
Display	Alphanumeric display of 2 x 16 characters shows cure pass/fail, battery status, probes connected, real-time readings, and communication to PC
Power supply	Two AA cells give 200 hours operation at default settings (not included)
Dimensions and weight (l × w × h)	153 × 101 × 23 mm, 450 g
