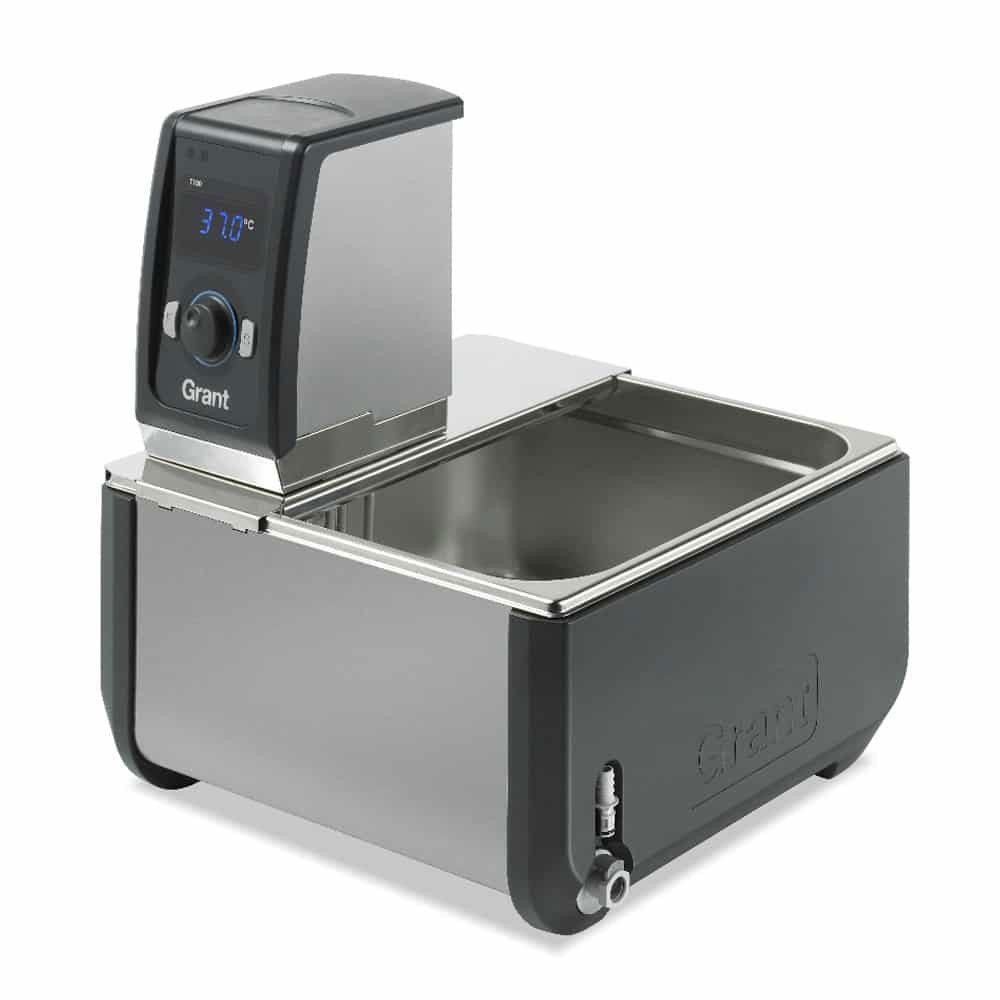

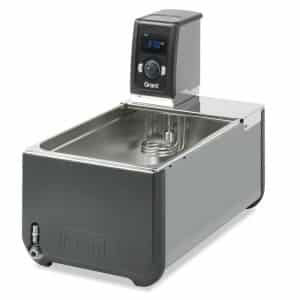

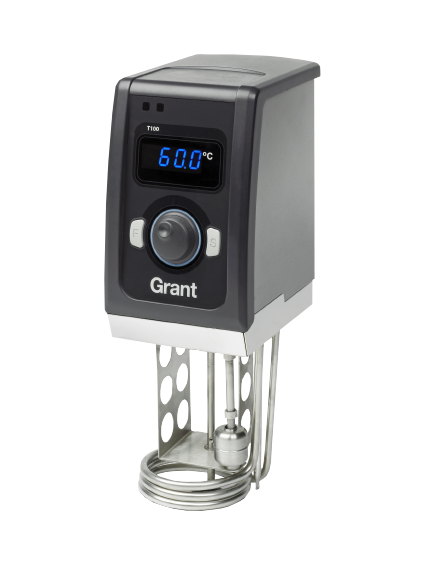

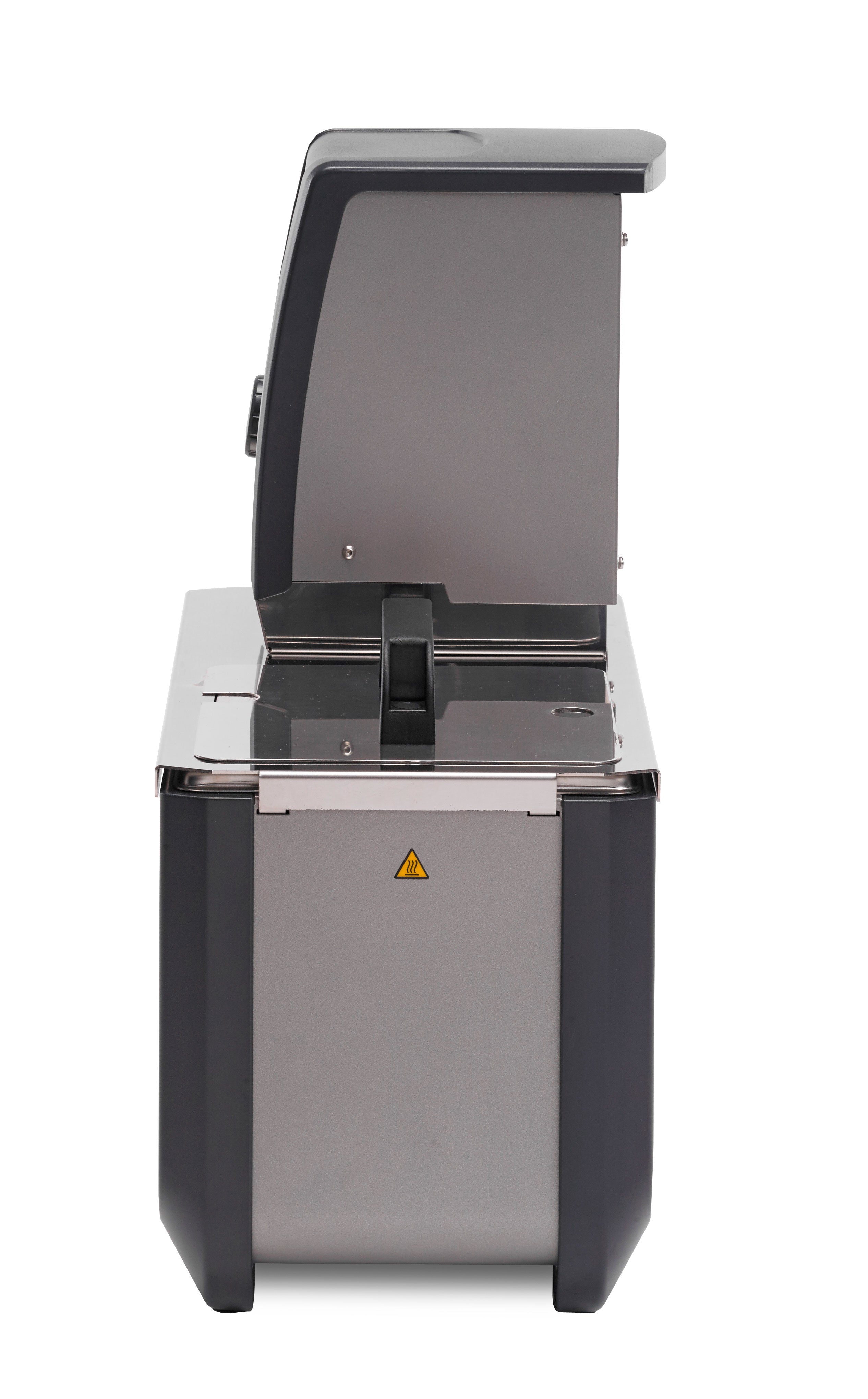

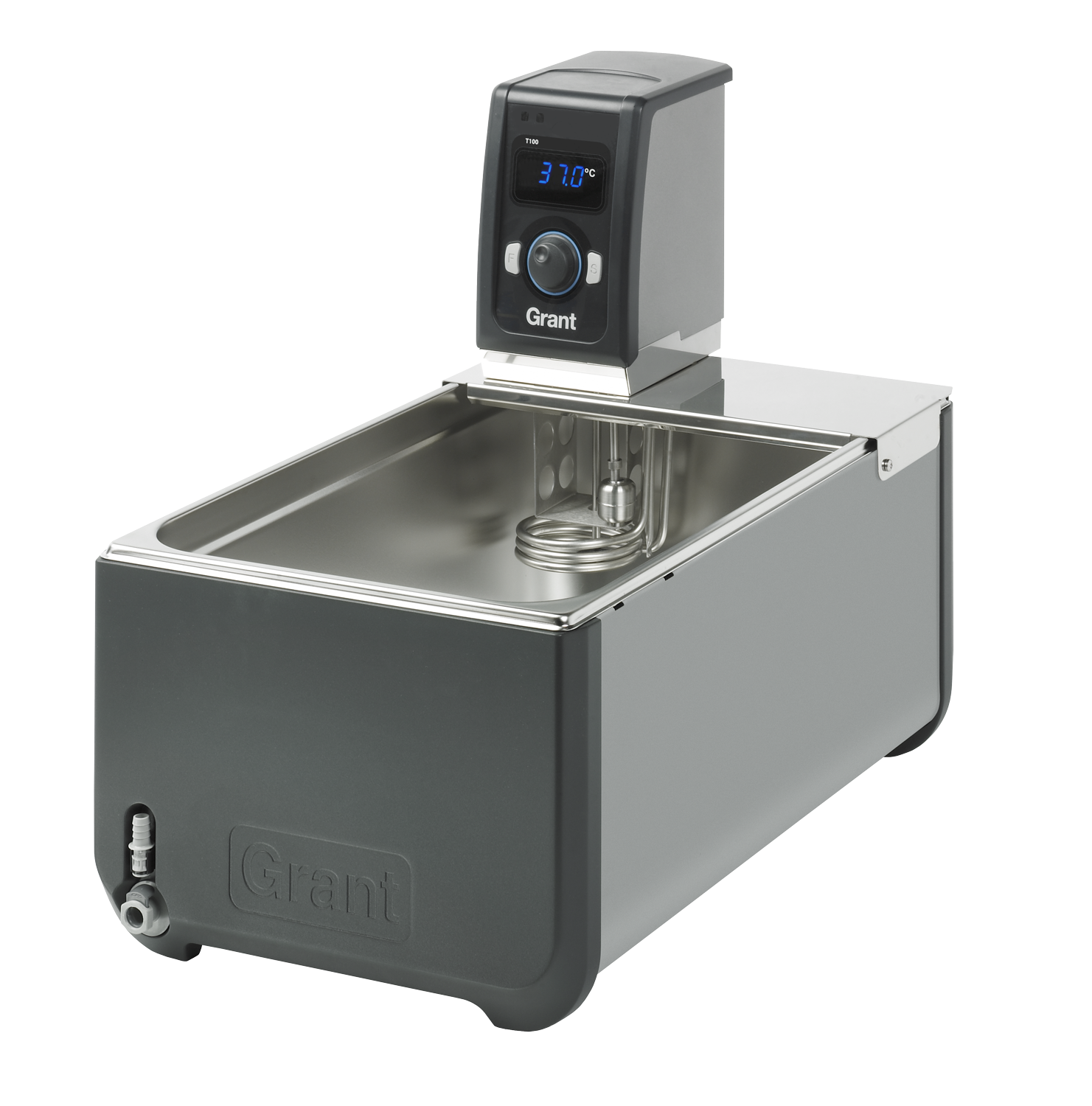

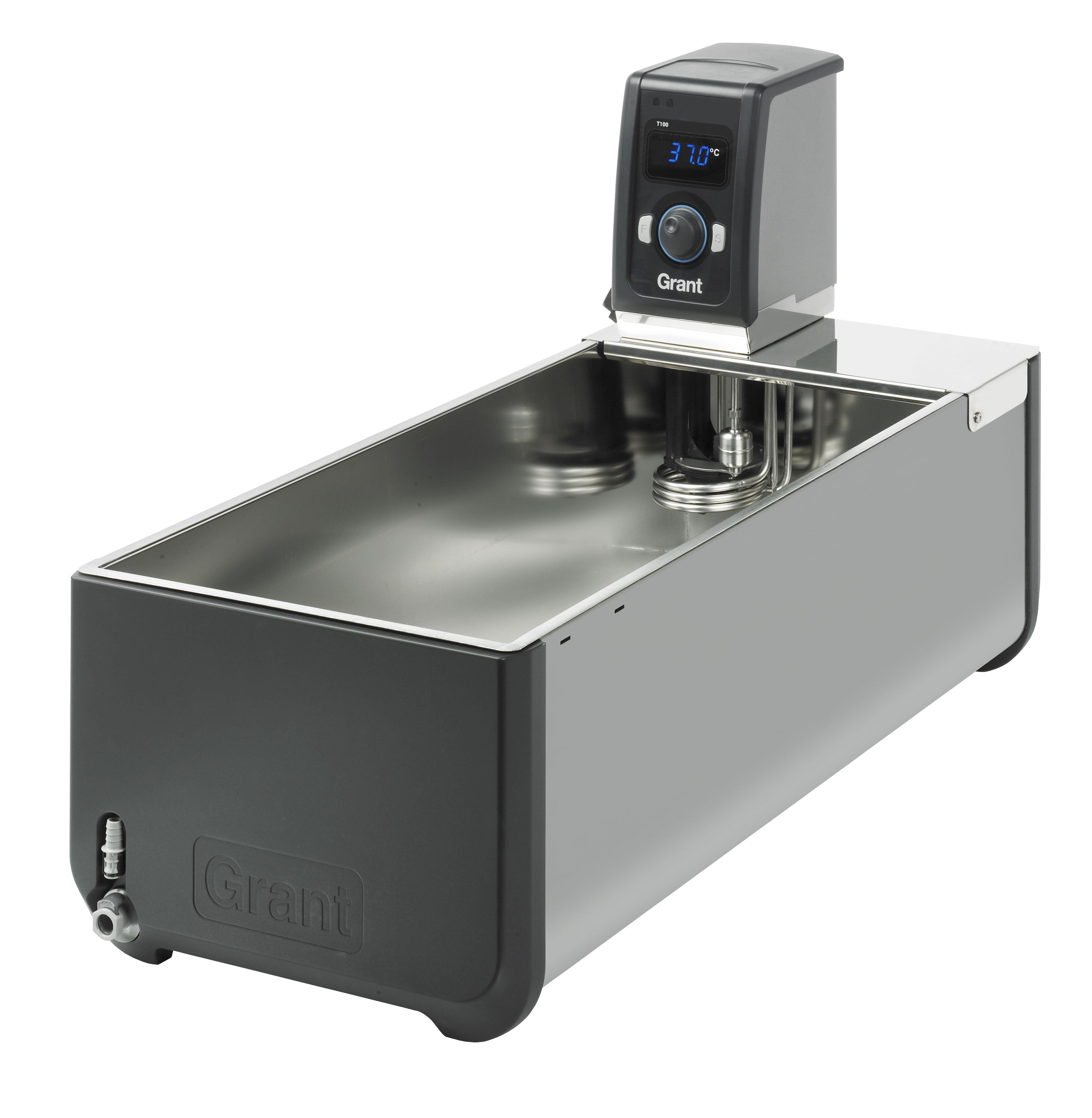

Optima T100 Heated Circulating Bath
- Regular price
- $2,067.00
- Sale price
- $2,067.00
- Regular price
-
Shipping calculated at checkout.
Please note: 8-week waiting time depending on model.
The Grant T100 series of general purpose heating circulating baths offer accurate temperate control for straightforward applications in the range of 0°C to 100°C.
Temperatures below ambient require the addition of an immersion cooler.
| Specification | Details |
|---|---|
| Dimensions (h x d x w) | 333 x 172 x 120 mm |
| Temperature range | 0–100 ºC (below ambient requires immersion cooler) |
| Stability (DIN 12876) @70ºC | ±0.05 ºC |
| Uniformity (DIN 12876) @70ºC | ±0.1 ºC |
| Setting resolution | 0.1 ºC |
| Display | 4 digit LED |
| Timer function | – |
| No. of temperature presets | 3 |
| Re-calibration points | 2 |
| Socket for external probe (TXPEP, TXSEP) | – |
| Communications interface | – |
| Programmable | – |
| Relays | – |
| Safety – over temperature | Fixed |
| Fluid level – float | • |
| Language options | – |
| Alarms (can be configured to switch a relay) | – |
| Heater power – 230V | 1290 W |
| Heater power – 120V | 1440 W |
| Electrical power – 230V | 1400 W (50–60 Hz) |
| Electrical power – 120V | 1500 W (50–60 Hz) |
| Height above tank rim | 200 mm |
| Depth below tank rim | 135 mm |
| Weight | 2.1 kg |
