MSV-3500 multi speed vortex

Regular price: $707.00
Sale price: $707.00
Regular price

Shipping calculated at checkout.

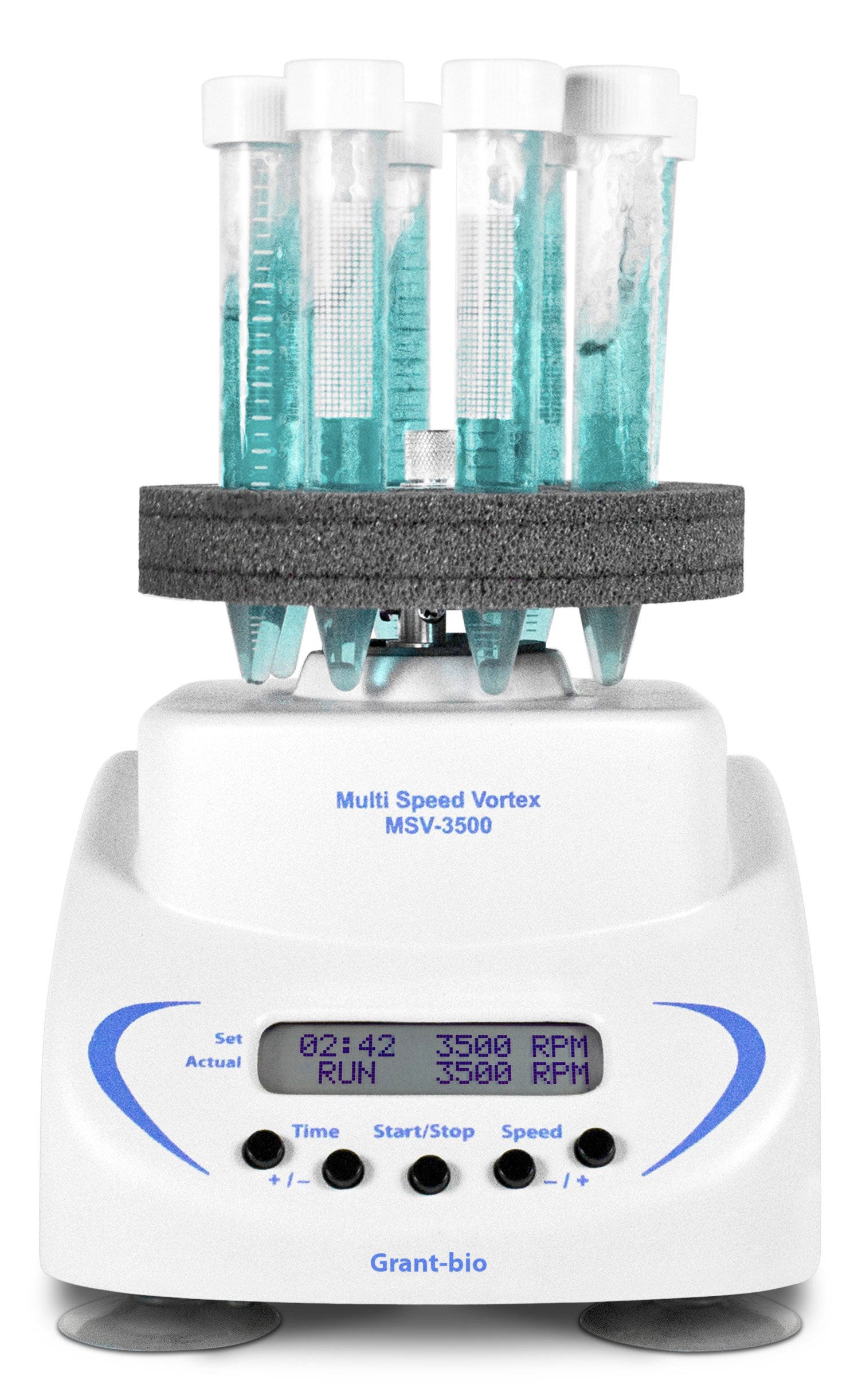

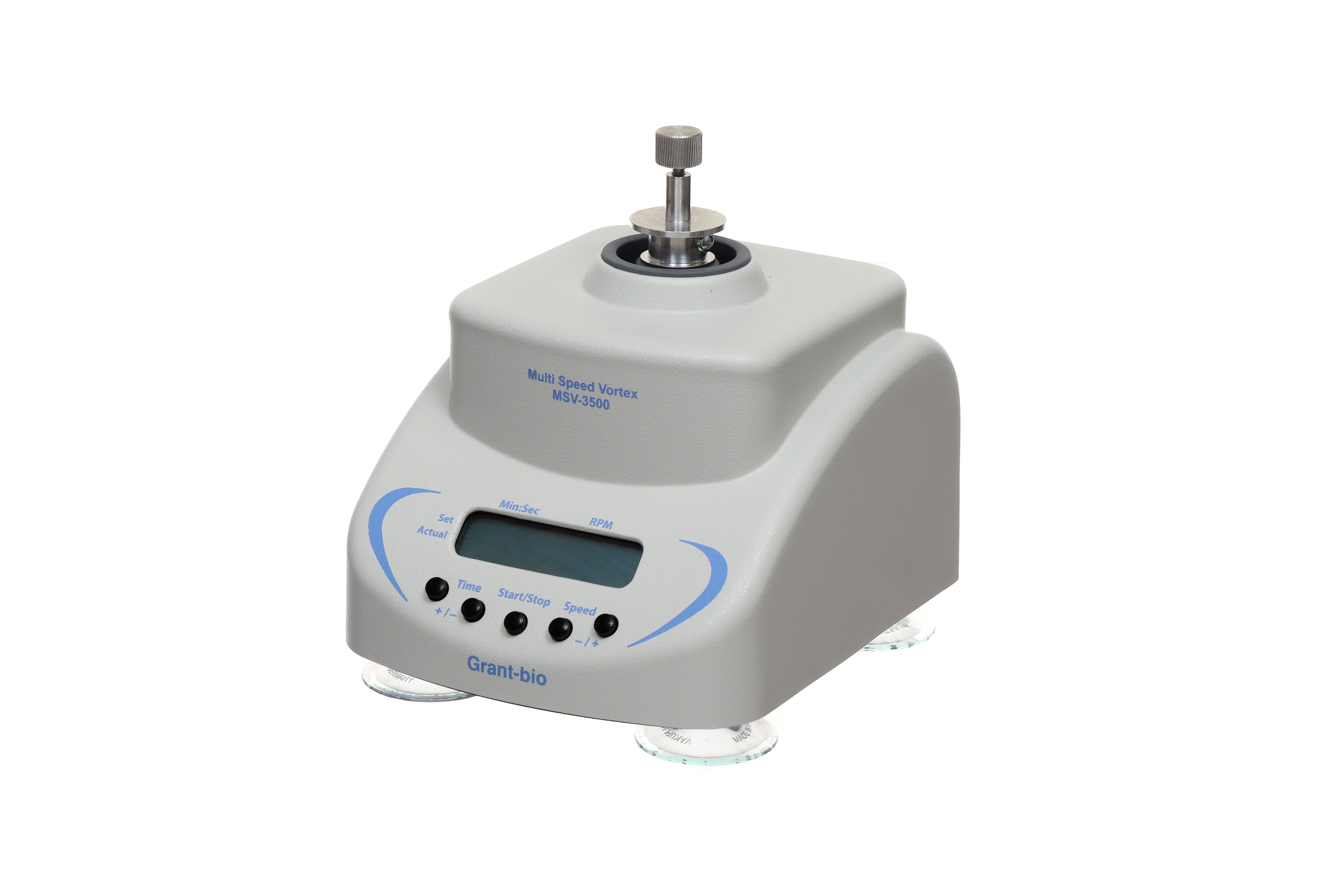

The Grant bio MSV-3500 is a versatile multi speed vortex mixer designed for soft or intensive mixing of reagents in different size and type plastic tubes (0.2 to 50ml).

Adjustable speed control: 300 to 3500rpm
4mm orbit
Set and actual values of time and speed displayed
Acceleration time to max speed: 15 seconds
Speed and time under microprocessor control
LCD display indicates two lines of values: the set and actual values of speed and time

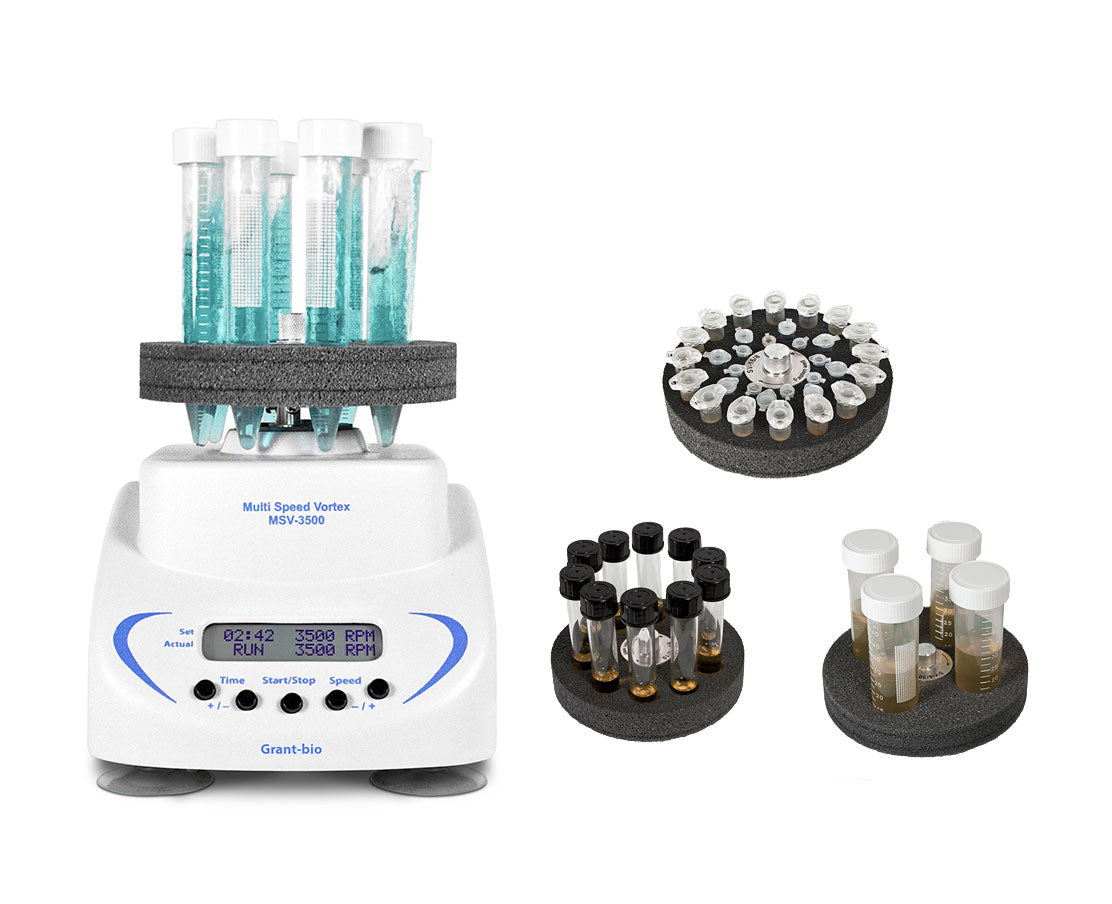

The MSV-3500 has four interchangeable platforms available:

SV-4/30 for 4 x 50ml (30mm) tubes

SV-10/10 for 10 x 10ml (12mm) tubes

SV-16/8 with 16/8/8 sockets for 1.5/0.5/0.2ml micro tubes

SV-8/15 for 8 x 15ml (16mm) tubes

Platforms are sold separately or available as part of a kit (MSV-3500 4P).

Specification	Details
Dimensions (h x d x w)	145 x 170 x 180 mm
Ambient temperature range	+4 to 40 ºC
Orbit ø	4 mm
Speed (max speed depends on load)	300 to 3500 rpm
Acceleration time to max speed	15 seconds
Timer	0–60 min / non-stop (increment 1 min)
Capacity	0.2 up to 50 ml
Maximum tube diameter	30 mm
External power supply	Input AC 120–230 V, 50/60 Hz; Output DC 12 V
Power consumption	12 W (1 A)
Input voltage	12 V DC
Weight	2.6 kg

Designed for operation in life science laboratories working in the fields of biochemistry, cello and molecular biology.

Intensive stirring of bacterial and yeast cells, extraction of metabolites and enzymes from cells and cell cultures, and various DNA operations such as deproteinization of DNA/protein complexes and purification of low molecular weight DNA/RNA fragments in PCR diagnostics.
