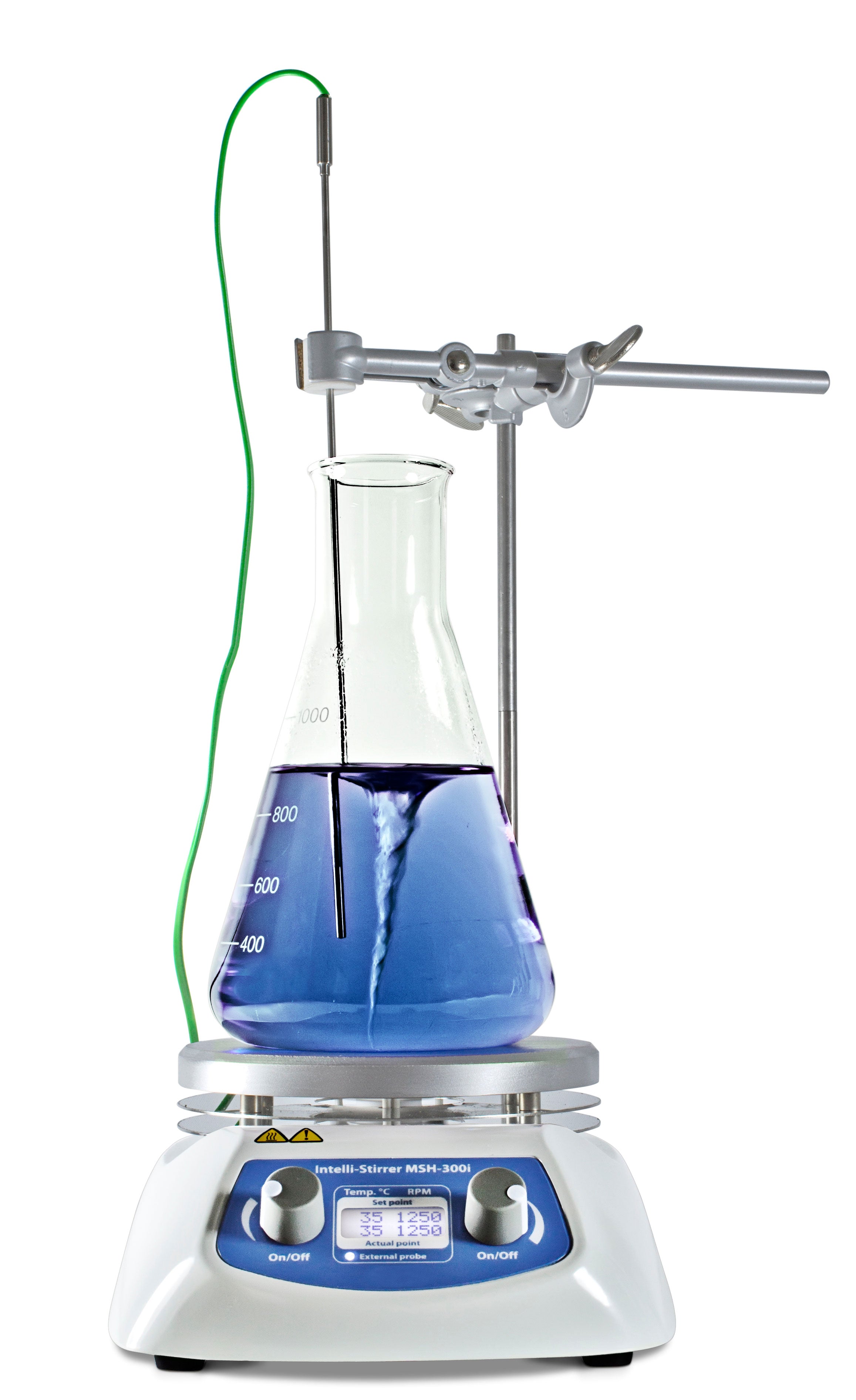

MSH-300i Digital Magnetic Hotplate Stirrer

$1,344.00
$1,344.00
Shipping calculated at checkout.

Digital magnetic stirrer with heating; the MSH-300i Intelli-stirrer is designed for laboratories with higher requirements.

It offers digital setting and control of temperature and rotation speed. A powerful magnet allows mixing solutions with glycerine viscosity level. Maximum volume of stirred liquid is 20 litres.

  • Adjustable speed control: 100 to 1250rpm
  • Maximum stirring volume: 20 litres
  • Overheat protection
  • Aluminum alloy plate
  • Stirrer bar and retort stand included as standard

‍

Specification Details
Dimensions (h x d x w) 100 x 270 x 190 mm
Ambient temperature range +30 to 330 °C
Uniformity ±3 °C
Speed 100 to 1250 rpm (10 rpm increment)
Capacity (stirring volume) 20 L
Liquid stirring viscosity Up to 1170 mPa
Working plate heating time to 330 ºC 11 minutes
Working plate size ø 160 mm
Retort stand height 320 mm
Plate material Aluminium alloy
Length of magnetic stirring element 20–70 mm
Heating power 550 W
External power supply Input AC 120–230 V, 50/60 Hz; Output DC 12 V
Power consumption 8.5 W (stirring), 550 W (heating)
Weight 3.2 kg

  • Clinical/Healthcare - thawing/heating/stirring samples
  • Pharmaceutical - Heating and stirring samples
  • Science education in schools/universities - practical science demonstration and experimentation
  • Industrial - QC testing, sample preparation

‍
