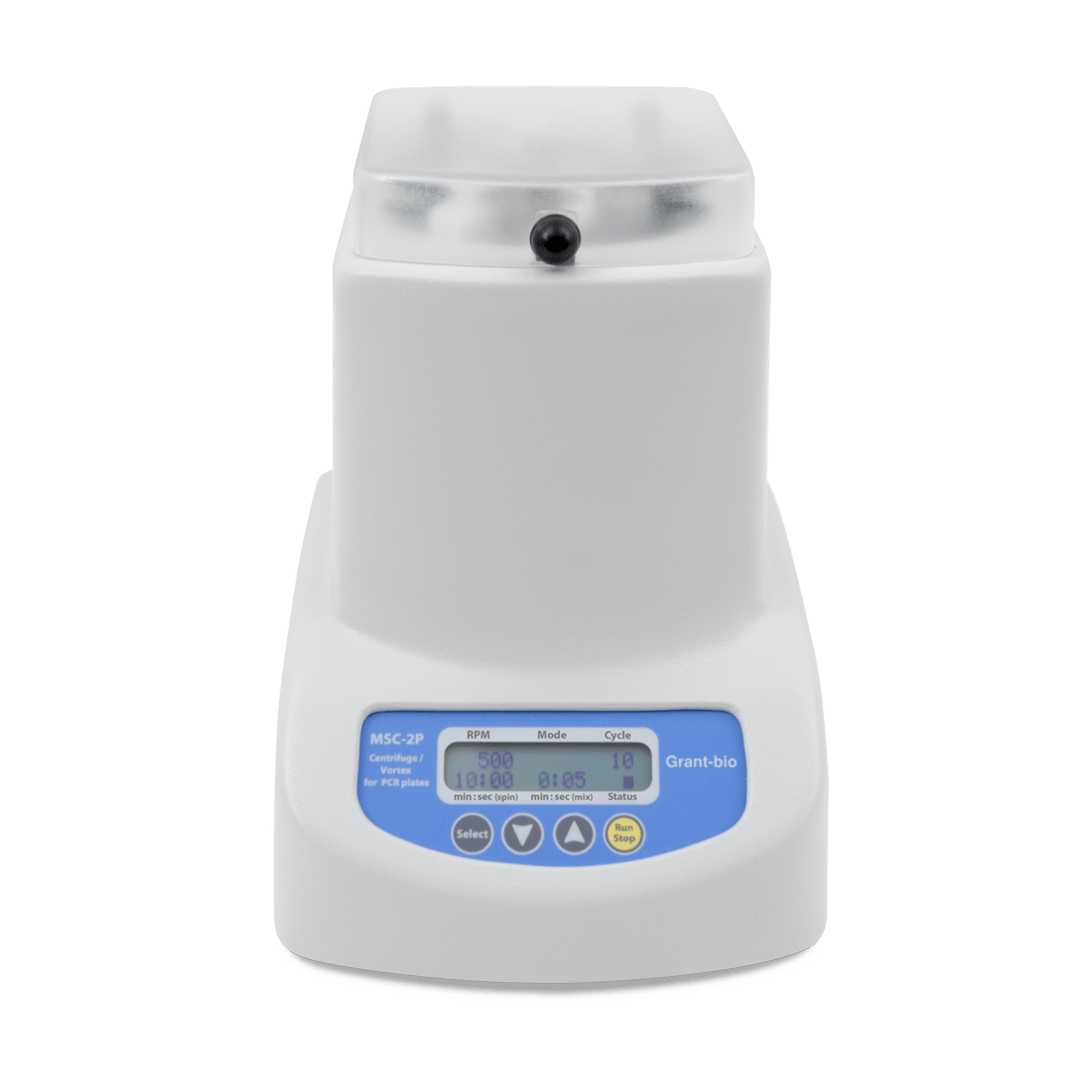

MSC-2P Centrifuge/Vortex for PCR Plates

$1,024.00
$1,024.00
Shipping calculated at checkout.

MSC-2P is a compact, benchtop digital centrifuge and vortex mixer for unskirted or semi-skirted PCR plates

MSC-2P is a benchtop centrifuge intended to collect droplets, mix reagents and collect once more for improved PCR yield in subsequent analysis. The combination of spin-mix functionality ensures fast operation, thorough mixing and repeatable results. The rotor can accommodate 2 unskirted or semi-skirted PCR plates.

The MSC-2P has 4 independent modes:

  • Centrifuge — Max. 3500 RPM
  • Vortex — up to 5 min.
  • Centrifuge/Vortex — combined two motion types
  • Spin-mix-spin algorithm — up to 10 cycles

The spin-mix-spin algorithm (SMS-algorithm) is designed to collect (or reset) micro volumes of reagents to the bottom of the PCR plate tubes (the first centrifugation or spin), then vortexing (mix) and re-collecting reagents (repeated spin) from the walls and cover. We call this this repetitive algorithm of operations, aimed at reducing sample preparation errors, the SMS algorithm.

‍

Specification Details
Overall dimensions (W×D×H) 165 × 220 × 230 mm
Compatibility Unskirted or semi-skirted PCR plates
SMS-cycle regulation 1 - 10 cycles
Speed regulation range 500–3500 rpm
Max. RCF 610 × g
Setting resolution 100 rpm
Display LCD, 2 × 16 signs
Centrifugation mode time range 0–10 min (increment 1 s; after 1 min - 1 min)
Vortex mode time range 0–5 min (increment 1 s; after 1 min - 1 min)
Weight 2.7 kg
Input current/power consumption 12 V, 2 A / 24 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V

  • Life science applications
  • Molecular biology
  • Cell biology lab
  • Cell lysis
  • DNA isolation and purification
  • Sample preparation for PCR
  • Pellet re-suspension, mixing viscous liquids, or any other method where you need tube vortexing and centrifugation and have many samples, particularly in very small volumes.

‍

‍
