MPS-1 High Speed Shaker Vortex Mixer

$1,922.00
$1,922.00
Shipping calculated at checkout.

The MPS-1 High-Speed Multi Plate Shaker mixes small volumes of reagents in microplates, PCR plates, deepwell plates and microtubes. The MPS-1 is compact, user friendly and ideal for personal use.

An economical solution that takes up very little bench space, for all high-speed shaking and vortex mixing of plates and tubes from 0.2ml through to 50ml. Efficient mixing of difficult samples - compact pellets, small or viscous samples.

  • Very competitive market price vs. specification
  • Shaker / vortex mixer combined
  • Safe in humid environments
  • LCD 2 line display of set and actual values
  • Can be used in cold rooms and incubators
  • Grant renowned technical and service support
  • Very small footprint
  • Quiet < 50dB
  • Timer with alarm
  • Adjustable rpm or 4 presets
  • 2 year Warranty

Available as unit only, MPS-1, or unit plus inserts, MPS-1K.

For product specifications and more info, please view or download the operating manual below.

‍

Specification Details
Dimensions (h x d x w) 150 x 215 x 225 mm
Temperature range +4 to 40 °C
Mixing speed control range 300 - 3200 rpm
Speed control increment 100 rpm
Mixing presets - VORTEX 3200 rpm
Mixing presets - HARD 2600 rpm
Mixing presets - MEDIUM 1800 rpm
Mixing presets - SOFT 1000 rpm
Mixing presets - CUSTOM Adjustable
Mixing presets - PULSE MODE Saw tooth profile of ramp speed cycles
Mixing orbit 3 mm
Acceleration time 5 seconds
Timer, with audible alarm 1 to 60 minutes (15 sec increment) or non-stop

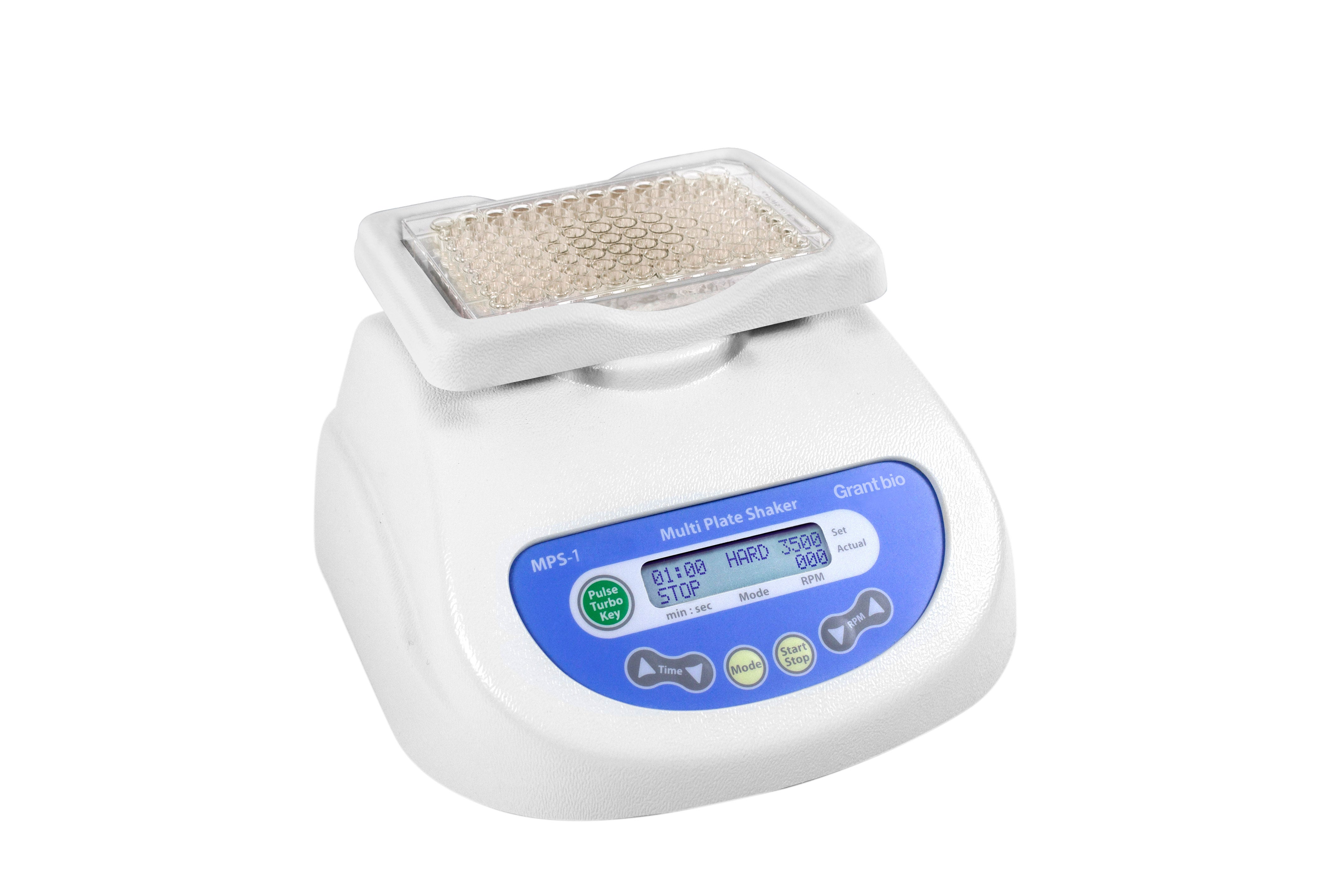

Types of vessels accommodated (may require accessory insert) Microplate U, V or flat bottom
PCR plate 96 or 384 well fully/semi/unskirted

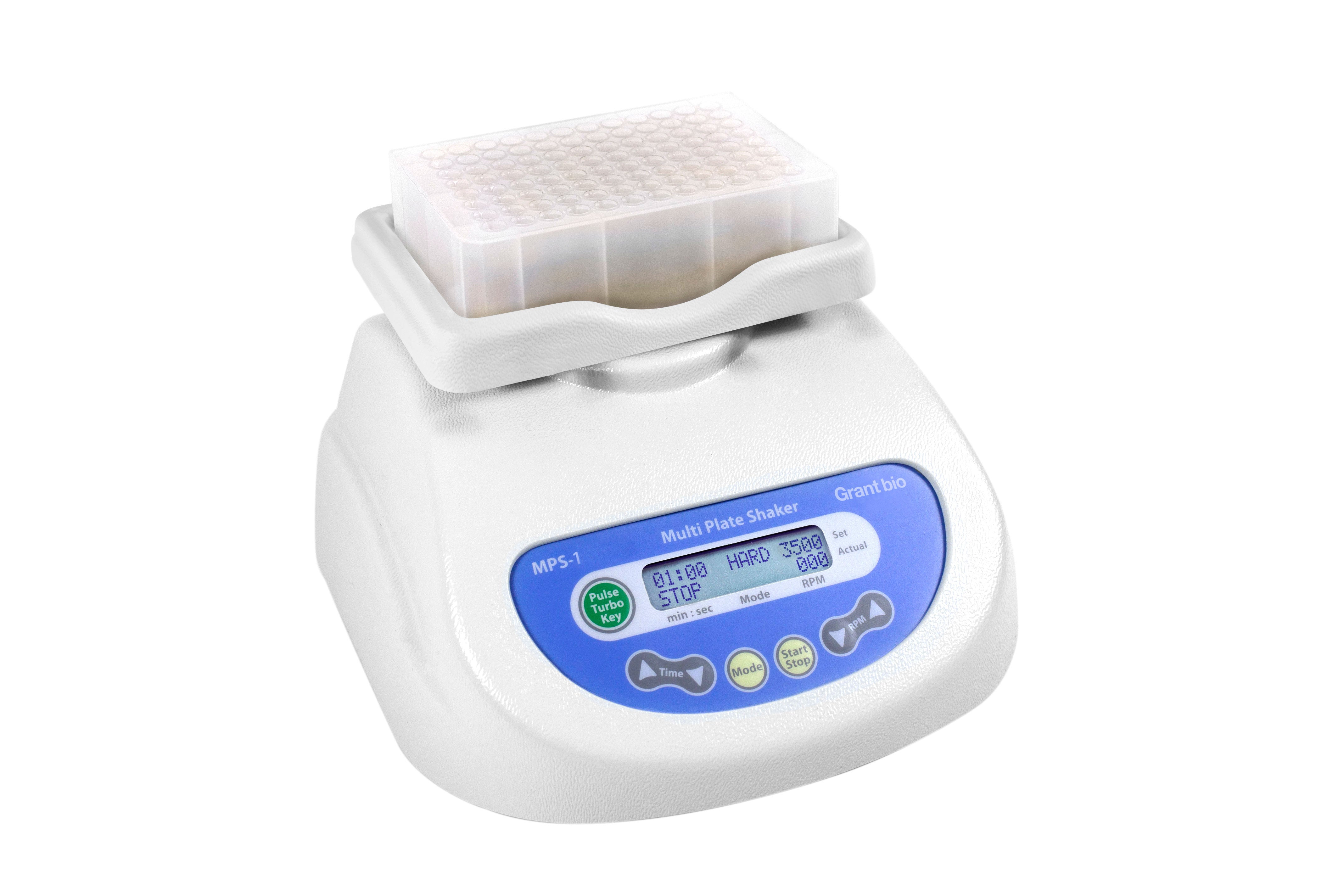

Deepwell plate 250µl to 2000µl
Microtubes 0.2, 0.5, 1.5, 2.0 ml
0.2 ml strips

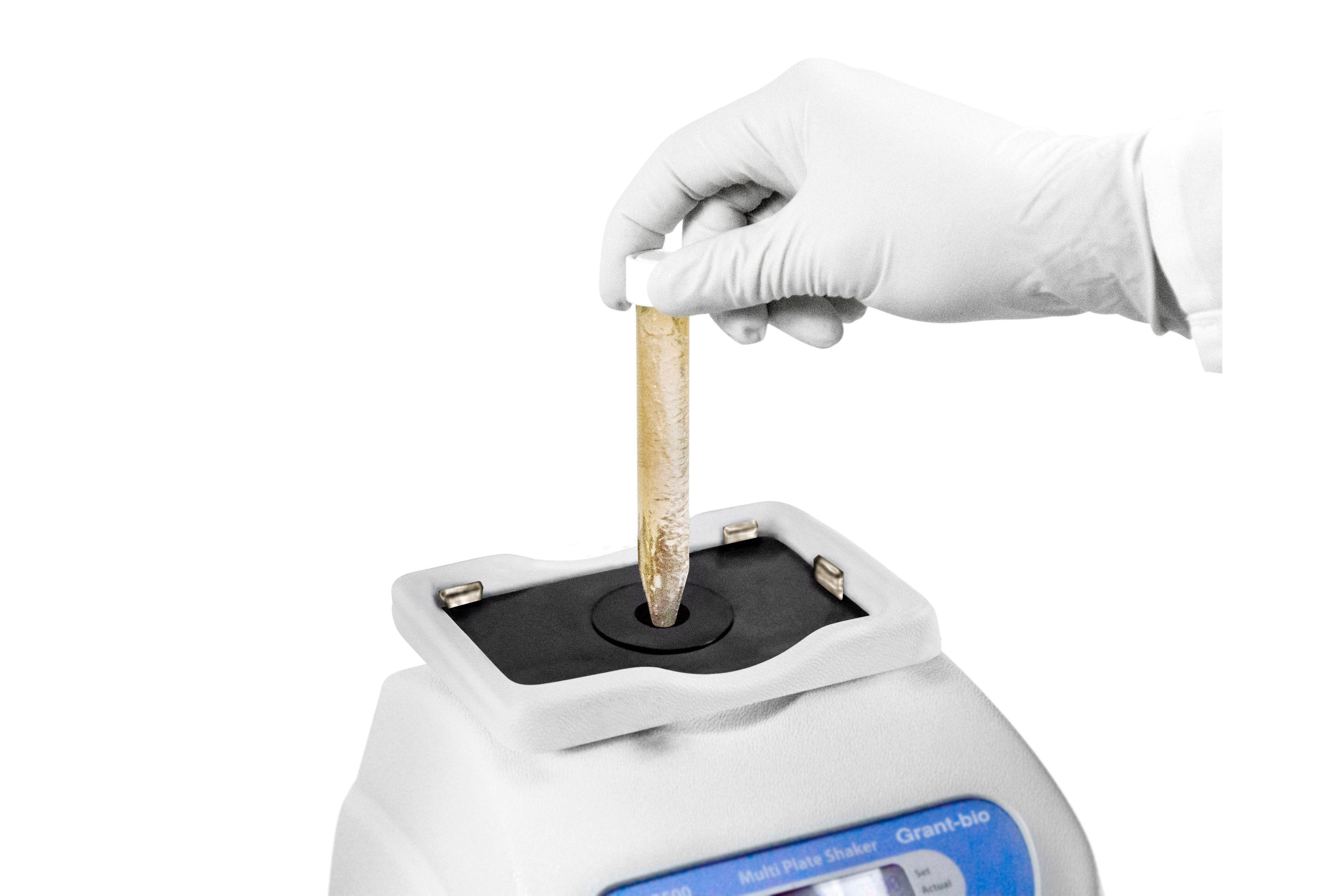

Tubes 2 to 50 ml
External power supply Input AC 120–230 V, 50/60 Hz; Output DC 12 V
Power consumption 10 W (0.8 A)
Input voltage 12 V DC
Weight 5.1 kg

It can be used in a wide range of applications including DNA/RNAisolation, pellet resuspension and ELISA.

  • Clinical/Healthcare – thawing/mixing samples
  • Pharmaceutical – heating and mixing samples
  • Science education in schools/universities – practical science demonstration and experimentation
  • Industrial – QC testing, sample preparation
Product Manuals
Technical Datasheets

No downloads available

Further Information

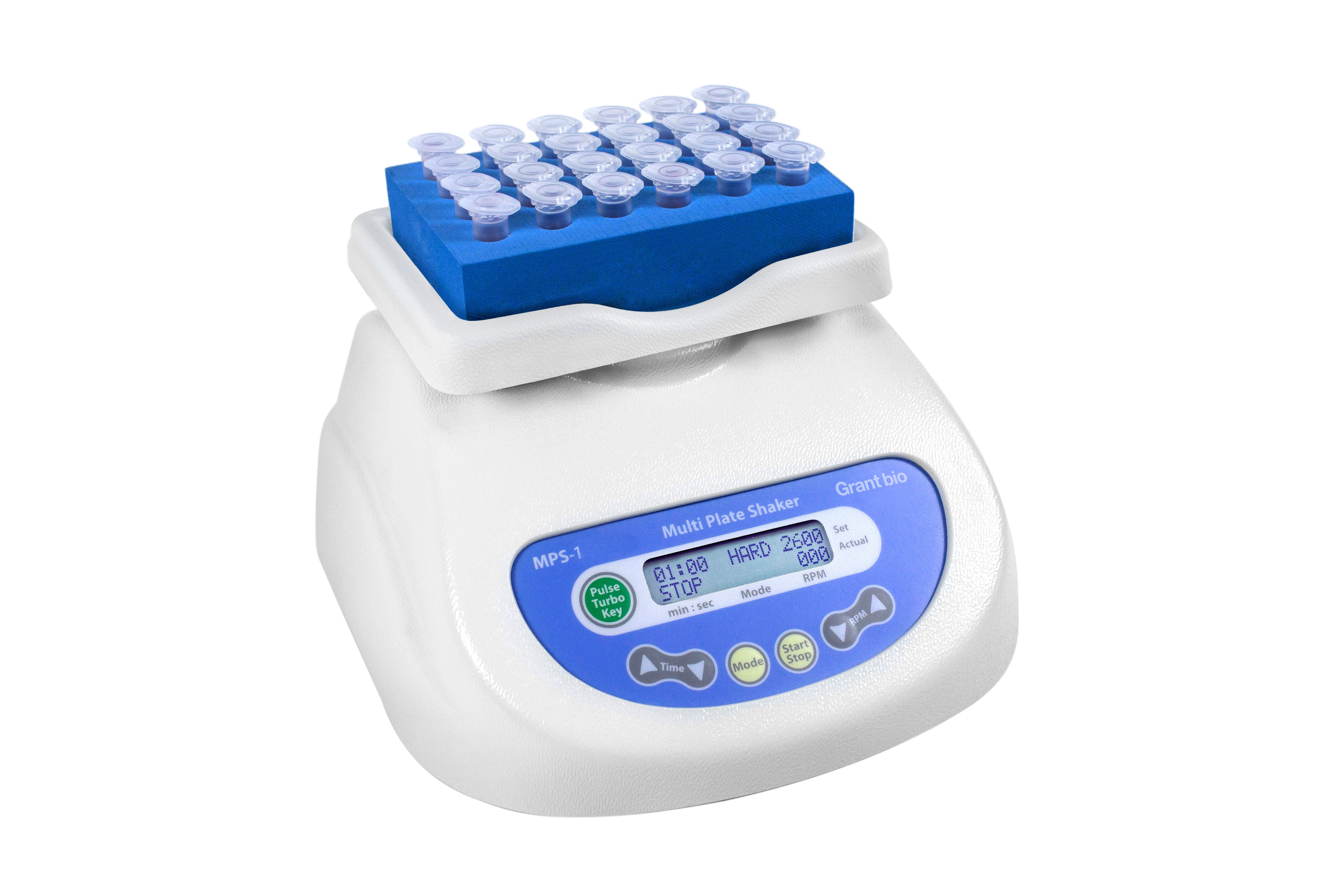

P-2-24

Microtube insert for 24 x 1.5/2.0ml  tubes

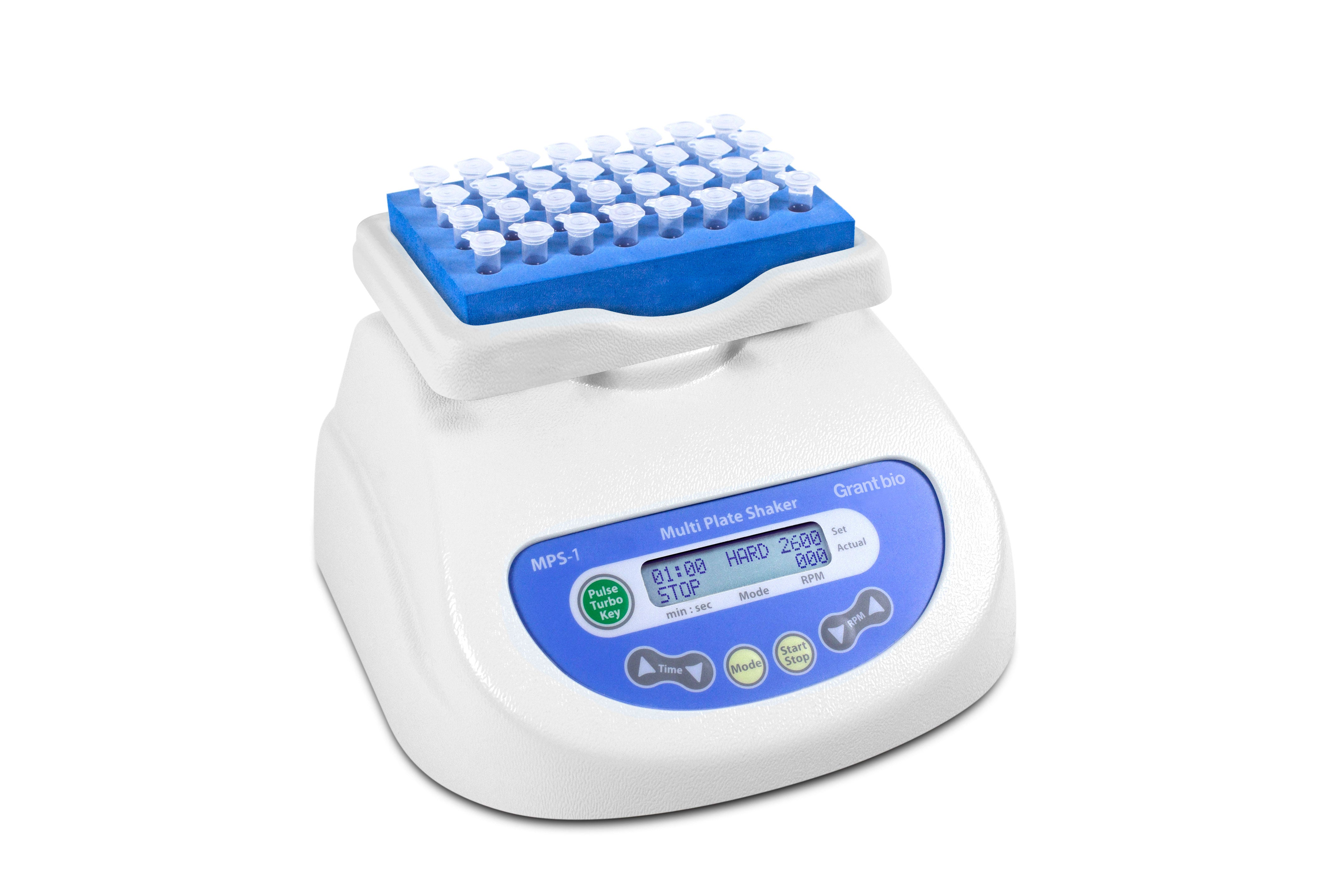

P-05-32

Microtube insert 32 x 0.5ml tubes

P-02-05

Microtube insert for 24 x 0.5ml PLUS 48 x 0.2ml tubes  or 8 x 0.2ml strips

P-02-96

Microtube insert for 96 x 0.2ml tubes or 12 x 0.2ml  strips or 96 well semi/unskirted PCR plates

MPS-1K kit

Contains: MPS-1 with 4 additional inserts- P-2-24, P-05-32, P-02-05, P-02-96
