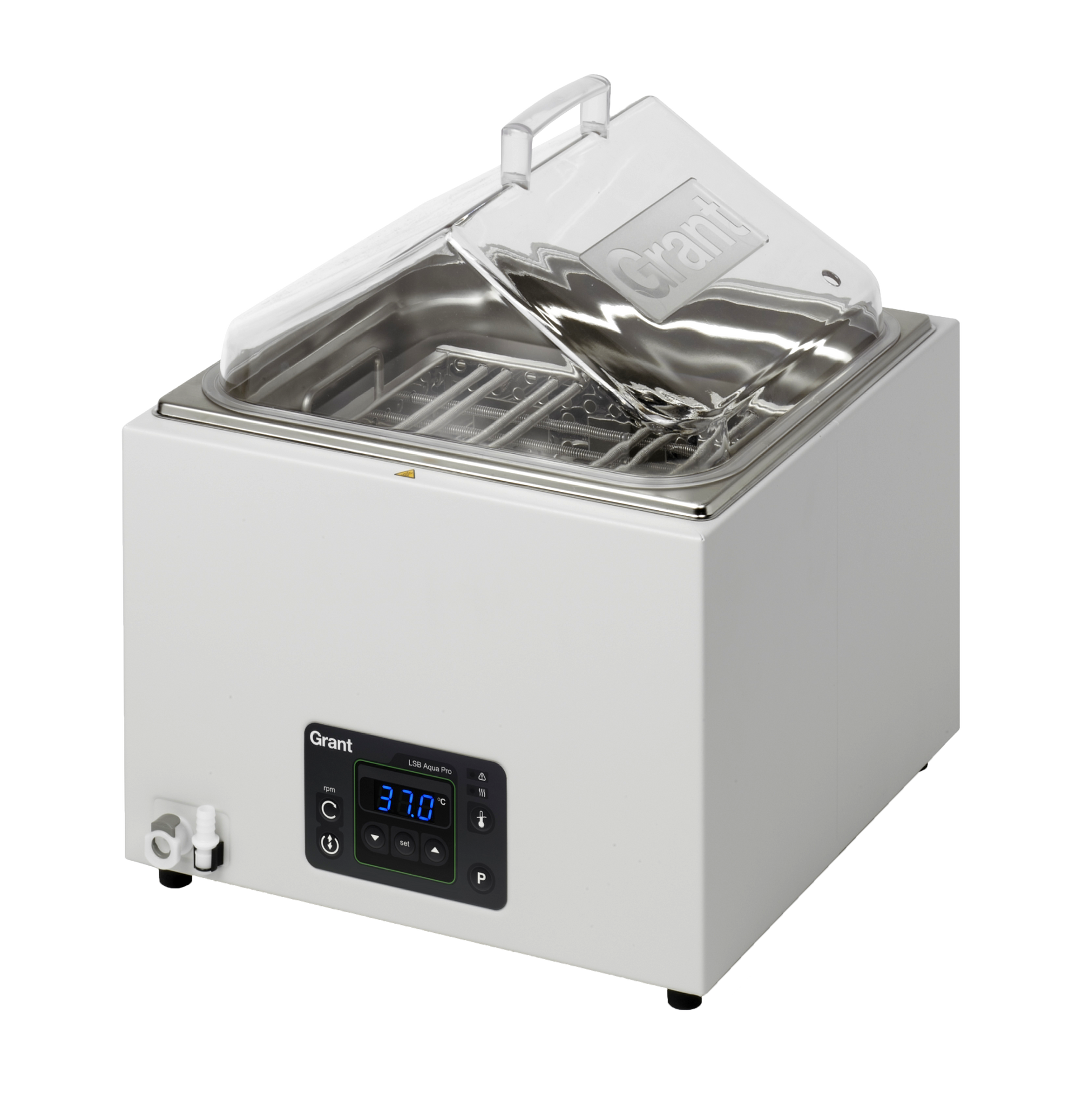

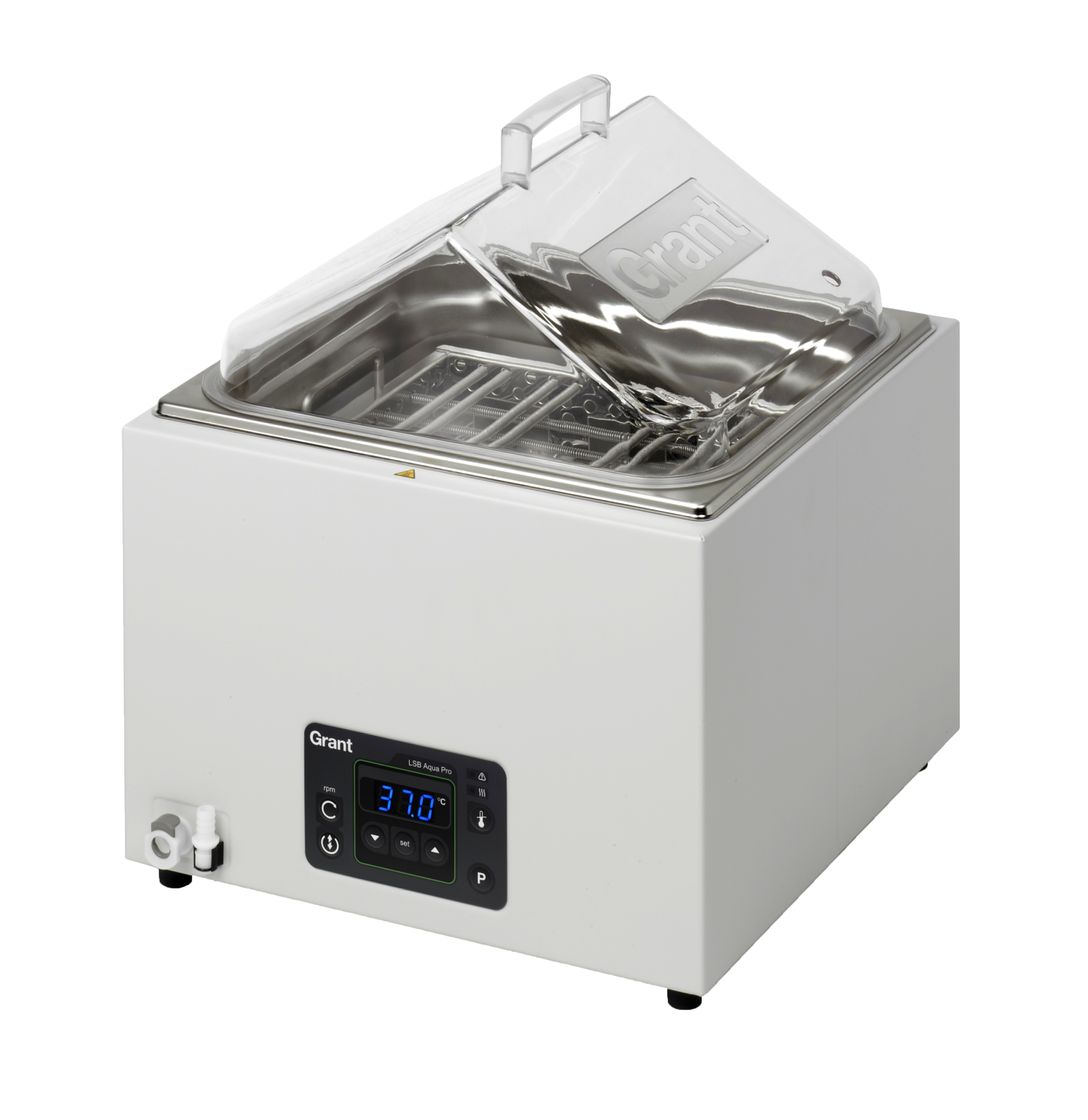

LSB Aqua Pro Linear Shaking Water Bath Range

$4,821.00
$4,821.00
Shipping calculated at checkout.

A linear shaking bath with great temperature stability and intuitive digital controls, for ultimate flexibility and usability. Available ready-to-use in two sizes to suit a variety of applications including sample preparation, mixing and thawing.
Grant quality and design combined with the temperature stability and functions you need in a linear shaking bath for your laboratory.
  • Temperature range ambient +5ºC to 99ºC operation
  • Stability: ±0.1ºC
  • Choice of two models - 12 and 18 litres
  • Universal tray and polycarbonate lid included as standard
  • Robust magnetically coupled shaking mechanism
  • Two programmable temperature and shaking presets
  • Drain tap for convenient emptying

‍

Specification LSB12 LSB18
Dimensions (h x d x w) 425 x 385 x 360 mm 425 x 565 x 335 mm
Capacity 12 L 18 L
Temperature range Ambient +5 to 99 ºC Ambient +5 to 99 ºC
Stability (DIN 12876-3) @70ºC 0.1 ºC 0.1 ºC
Uniformity (DIN 12876-3) @70ºC ±0.1 ºC ±0.1 ºC
Working area (d x w) 240 x 235 mm 420 x 235 mm
Min/Max liquid level 60 / 93 mm 60 / 93 mm
Linear shaking speed 20 to 200 rpm (depending on load) 20 to 200 rpm (depending on load)
Shaking speed display resolution 1 rpm 1 rpm
Linear shaking stroke length 20 mm 20 mm
Display LED LED
Timer 1 to 999 minutes 1 to 999 minutes
Drain tap • •
Safety Over temperature protection / low liquid level cut-out Over temperature protection / low liquid level cut-out
Heater power – 230V 800 W 1400 W
Heater power – 120V 800 W 1050 W
Supply voltage 120 or 230 V 120 or 230 V
Weight 8.9 kg 11.2 kg

  • Clinical/healthcare - thawing/mixing samples
  • Pharmaceutical - heating and mixing samples
  • Science education in schools/universities - practical science demonstration and experimentation
  • Industrial - QC testing, sample preparation
Product Manuals
Technical Datasheets
Further Information
Flask Tray and Clamps
TF12

Stainless steel flask/plate tray for the LSB12. Tray with threaded holes to accept flask clamps or holder for deep well plates

TF18

Stainless steel flask/plate tray for the LSB18. Tray with threaded holes to accept flask clamps or holder for deep well plates

SC-25

For 25ml flasks. LSB12 capacity: 20, LSB18 capacity: 35. For
use with TF12 and TF18 flask and plate tray

SC-50

For 50ml flasks. LSB12 capacity: 16; LSB18 capacity:
28. For use with TF12 and TF18 flask and plate tray

SC-100

For 100ml flasks. LSB12 capacity: 16; LSB18 capacity: 28.
For use with TF12 and TF18 flask and plate tray

SC-250

For 250ml flasks. LSB12 capacity: 9; LSB18 capacity: 15.
For use with TF12 and TF18 flask and plate tray

SC-500

For 500ml flasks. LSB12 capacity: 6; LSB18 capacity: 8.
For use with TF12 and TF18 flask and plate tray

SC-1000

For 1000ml flasks. LSB12 capacity: 4; LSB18 capacity: 6.
For use with TF12 and TF18 flask and plate tray

Test Tube Tray and Racks
TS12

Test tube tray for the LSB12. Holds up to 3 SR racks

TS18

Test tube tray for the LSB18. Holds up to 5 SR racks

SR-10

Test tube rack for 48x10mm

SR-13

Test tube rack for 44x13mm

SR-16

Test tube rack for 24x16mm

SR-19

Test tube rack for 21x19mm

SR-25

Test tube rack for 12x25mm

SR-30

Test tube rack for 10x30mm

SR-SE

Test tube rack for 119x0.5ml (microtube)

SR-LE

Test tube rack for 48x1.5ml (microtube)

Base Tray
SBT12

Replacement stainless steel perforated base tray for the LSB12. Allows bath to be used as an unstirred bath

SBT26

Replacement stainless steel perforated base tray for the
LSB18.  Allows bath to be used as an unstirred bath
