LMC-56 Benchtop Centrifuge (Inquire only)

$3,210.00
$3,210.00
Shipping calculated at checkout.
Inquire at -

orderenquiries@usa.grantinstruments.com


Please note: 8-week waiting time.

Pack of 300 polypropylene spheres. Packs per bath: 1 x 5/12L, 2 x 18/26L, 3 x 38L

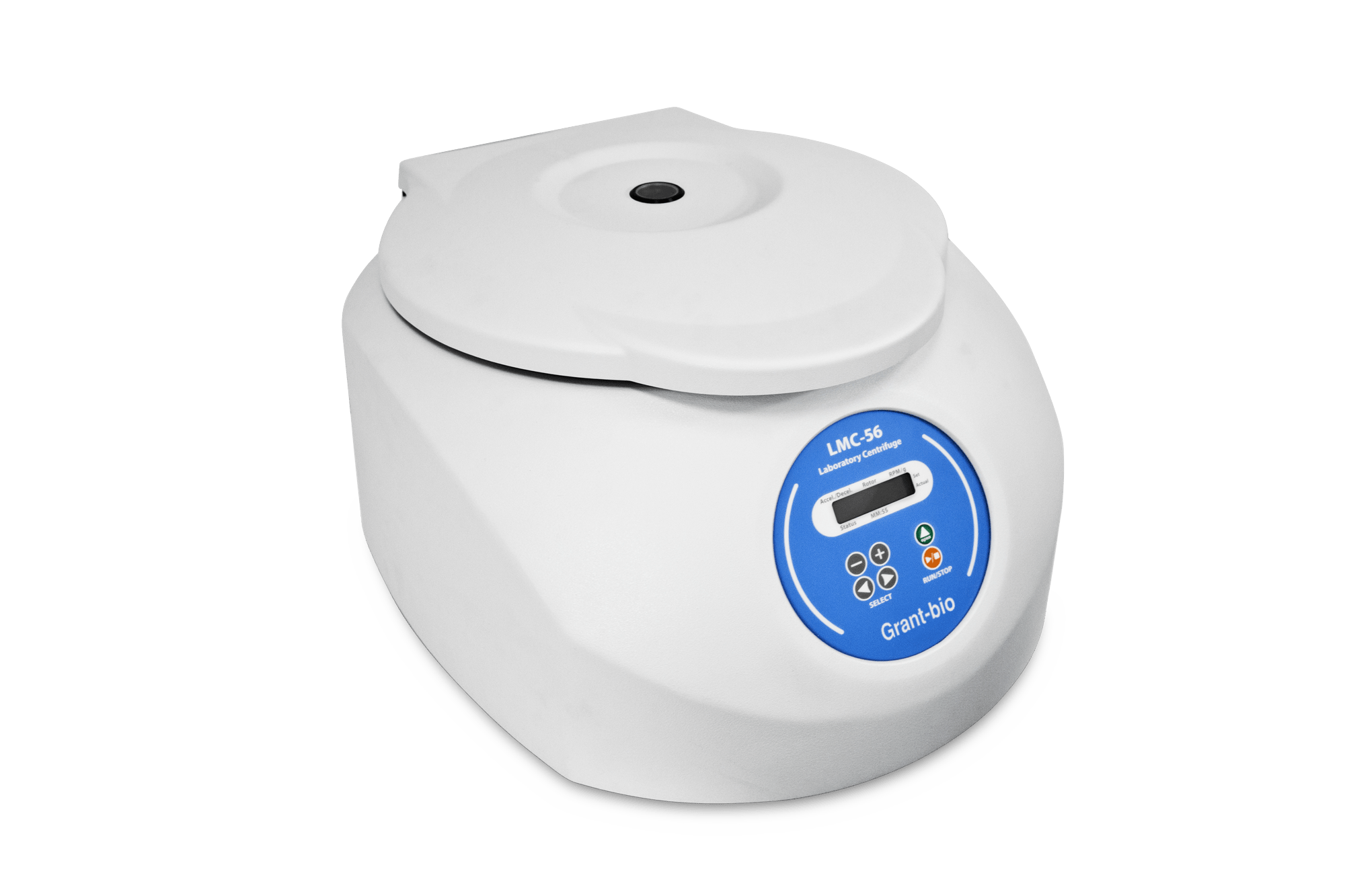

The LMC-56 is a benchtop, laboratory centrifuge designed for convenient sedimentation, centrifugation and collection of necessary samples. It provides operation with tubes, blood collection systems, gel cards, microtest and ELISA plates.

Our centrifuges are designed to be simple to use, safe, easy to maintain and offers a wide range of accessories for multiple applications.

Features include:

  • User-friendly centrifugation parameter input and simultaneous display of the set and actual parameter values.
  • Safe assay performance: metal protective housing and metal lid, automatic imbal-ance switch-off, lid lock during the centrifuge operation provide safe operation at all speeds.
  • Relatively high speed – maximum 6,000 rpm or 3,750 g.
  • Wide choice of accessory rotors and adapters.
  • Improved chamber to reduce sample heating during centrifugation.
  • Different modes of acceleration and deceleration, including deceleration mode with switched off forced braking.
  • Possibility to set the speed both in revolutions per minute and by relative centrifugal force.

‍

Specification Details
Overall dimensions (W × D × H) 560 × 480 × 315 mm
Speed regulation range for centrifuge tubes 100–6000 rpm (3750 × g)
Speed regulation range for microtitre plates 100–2000 rpm (560 × g)
Speed setting resolution 100 rpm
Digital time setting 1–90 min / non–stop (increment 1 min)
Display LCD, 2 × 16 signs
Chamber diameter 355 mm
Timer sound signal Yes
Rotor imbalance diagnostics (automatic stop, “IMBALANCE” warning) Yes
Rotor detection Yes
Nominal operating voltage 230 V, 50/60 Hz or 120 V, 50/60 Hz
Power consumption (230 V / 120 V) 320 W / 330 W
Weight 16.5 kg

Wide application range within medical, biochemical, chemical and industrial.

‍

Product Manuals
Technical Datasheets

No downloads available

Further Information

No downloads available

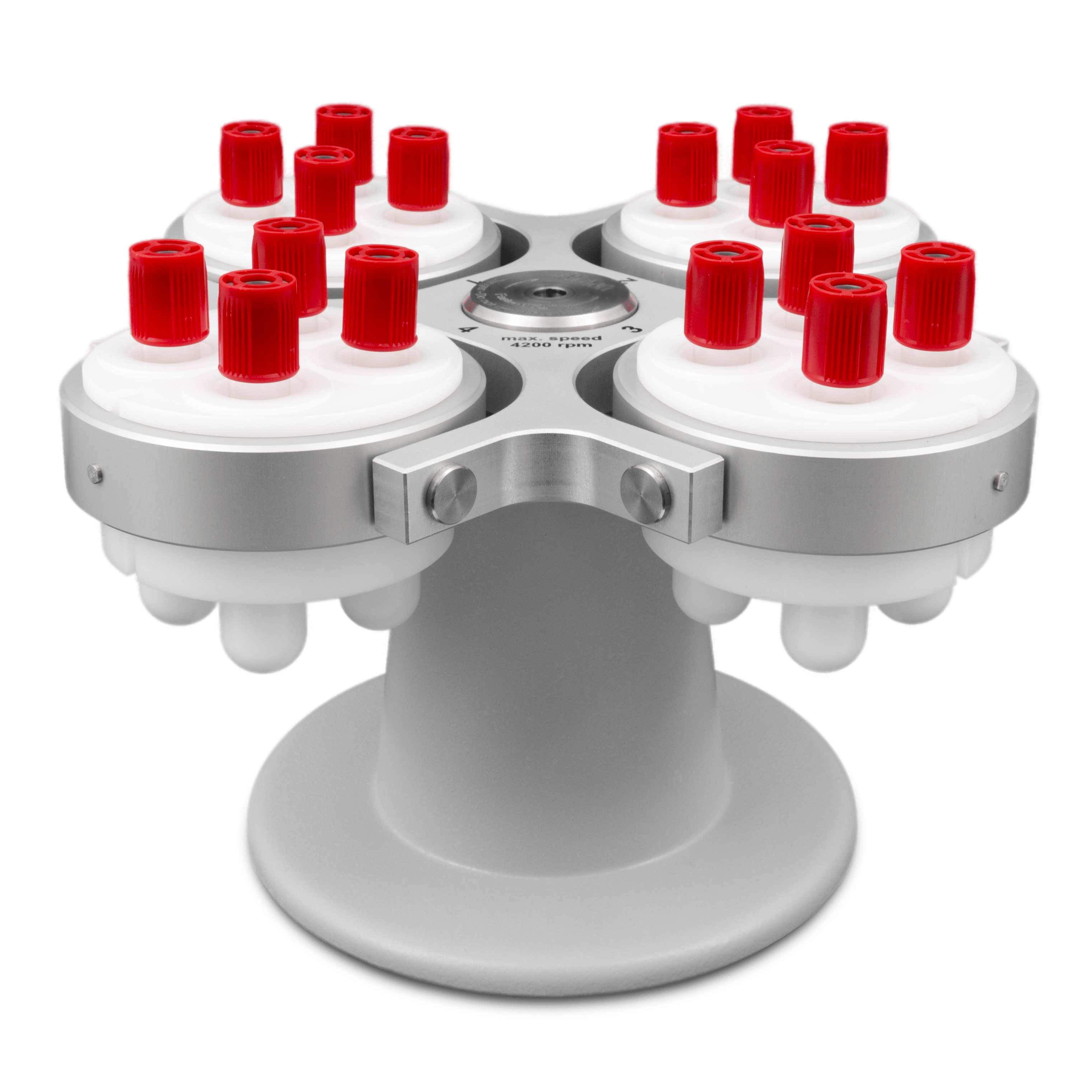

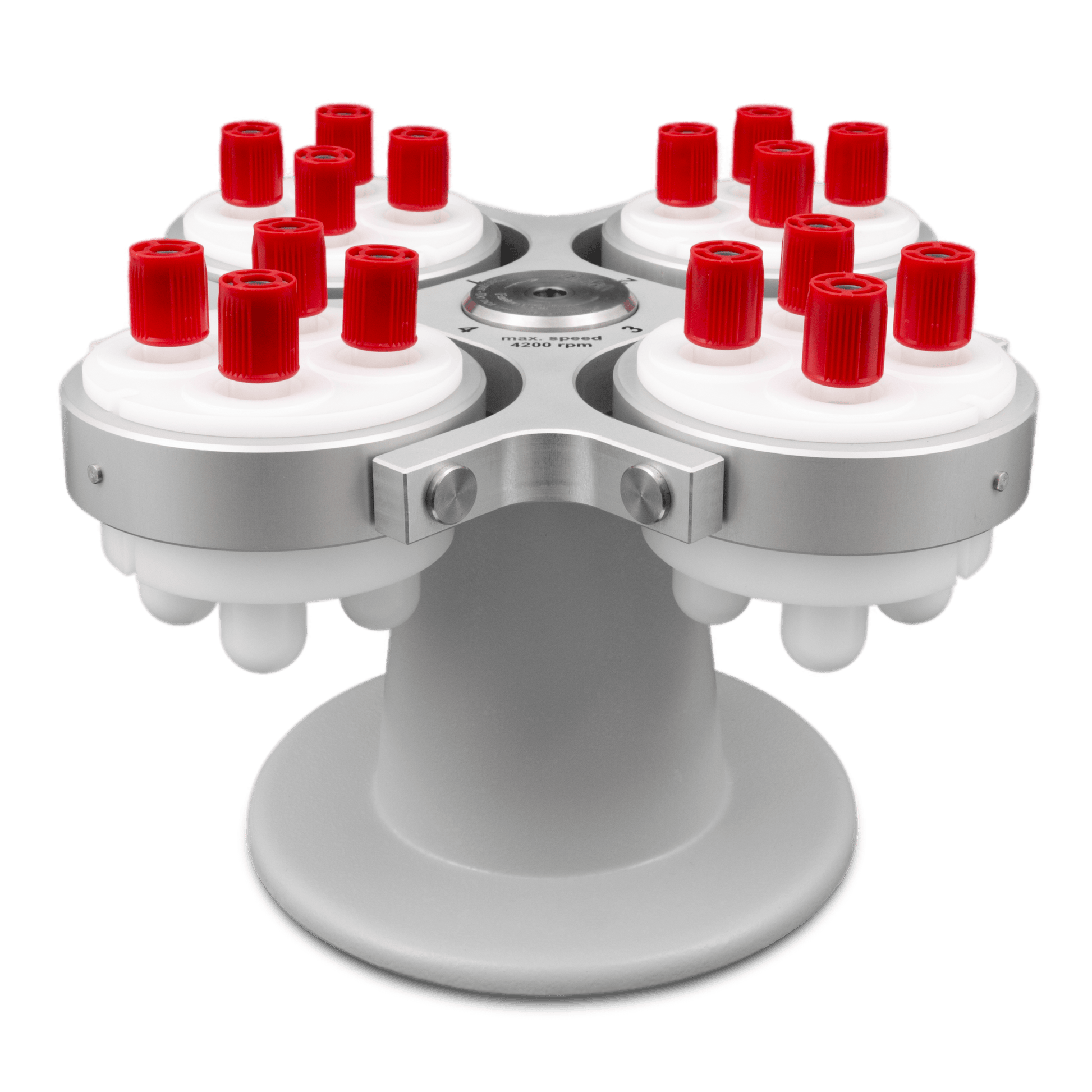

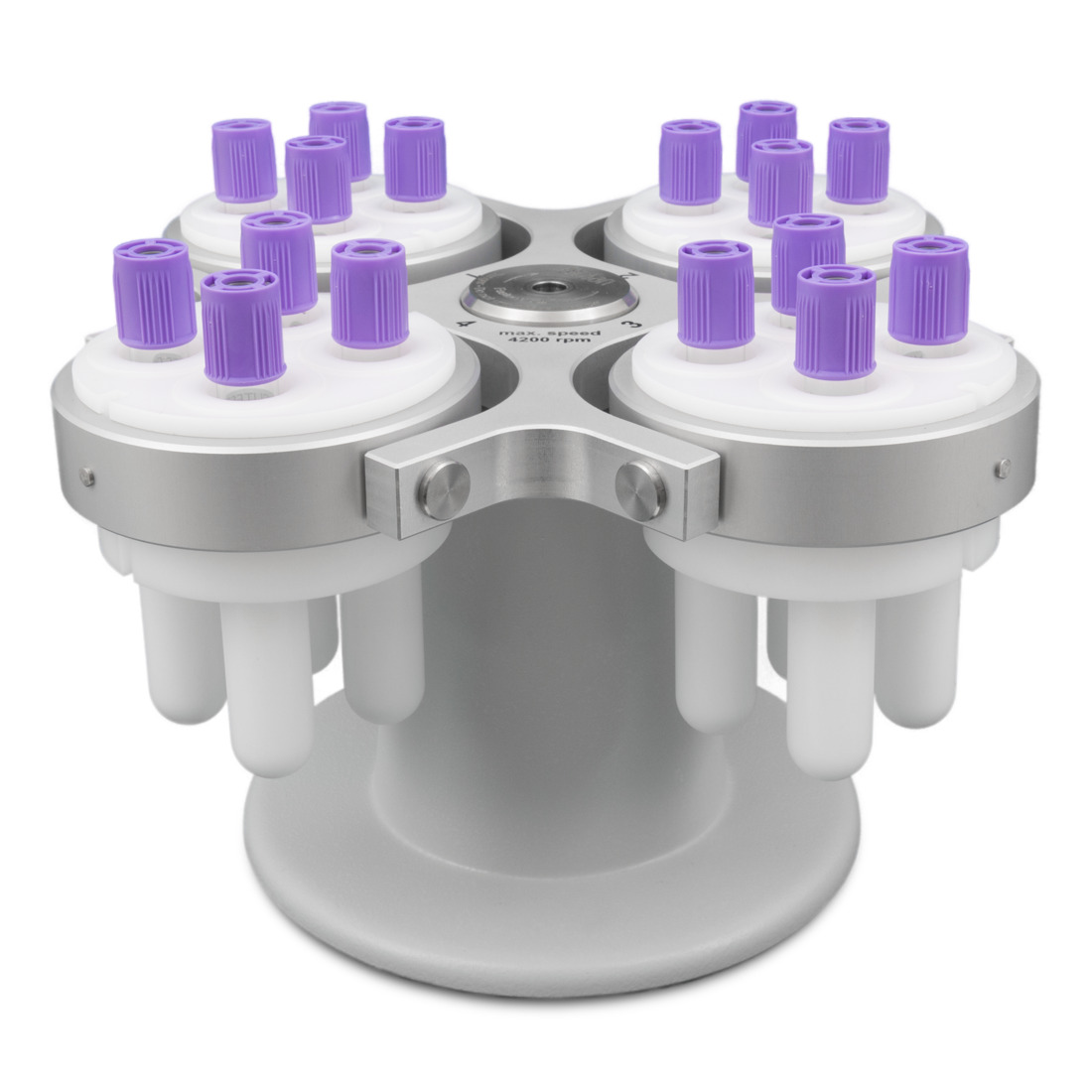

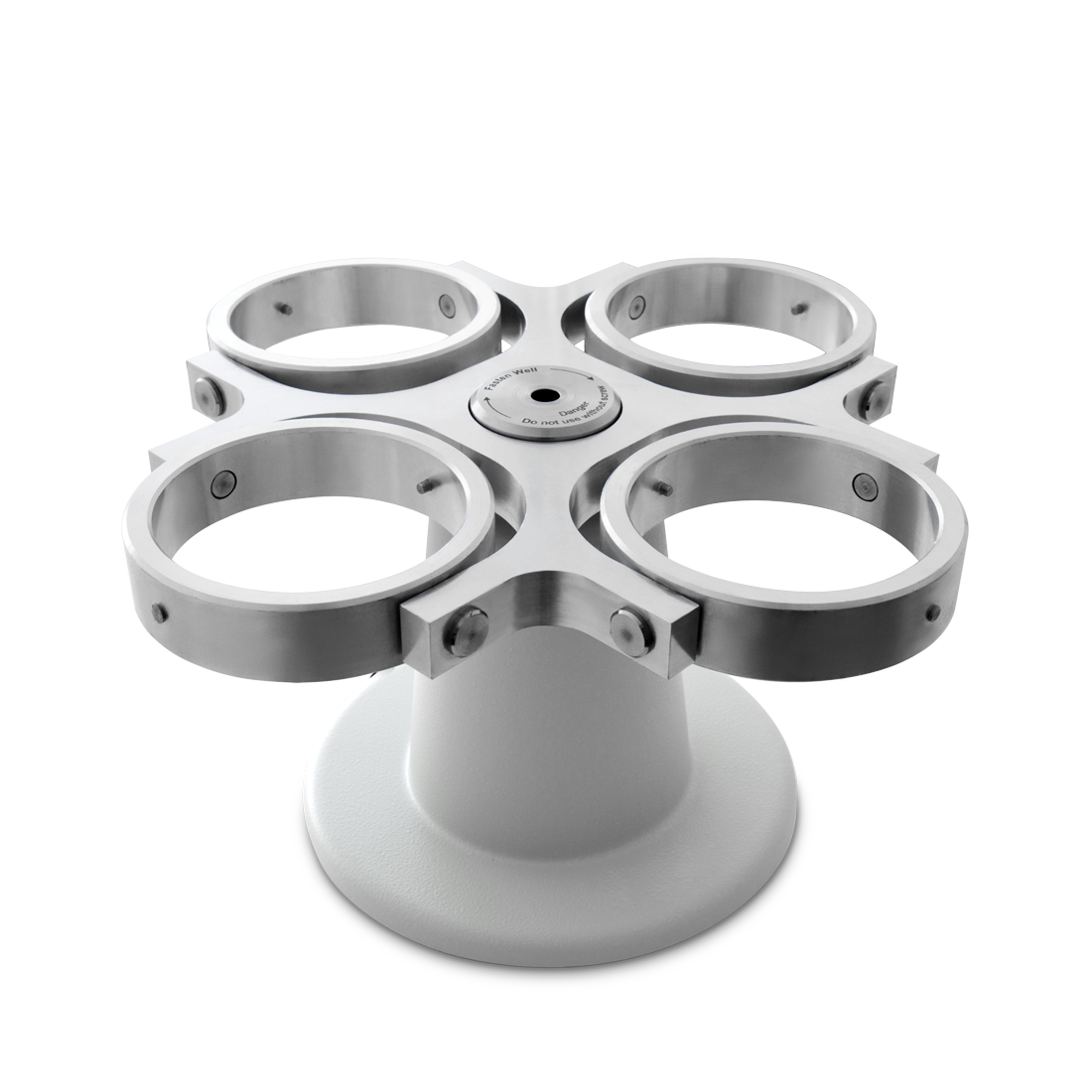

BR-4U

Bucket rotor 4-place w/out  adapters for use with LMC-56.

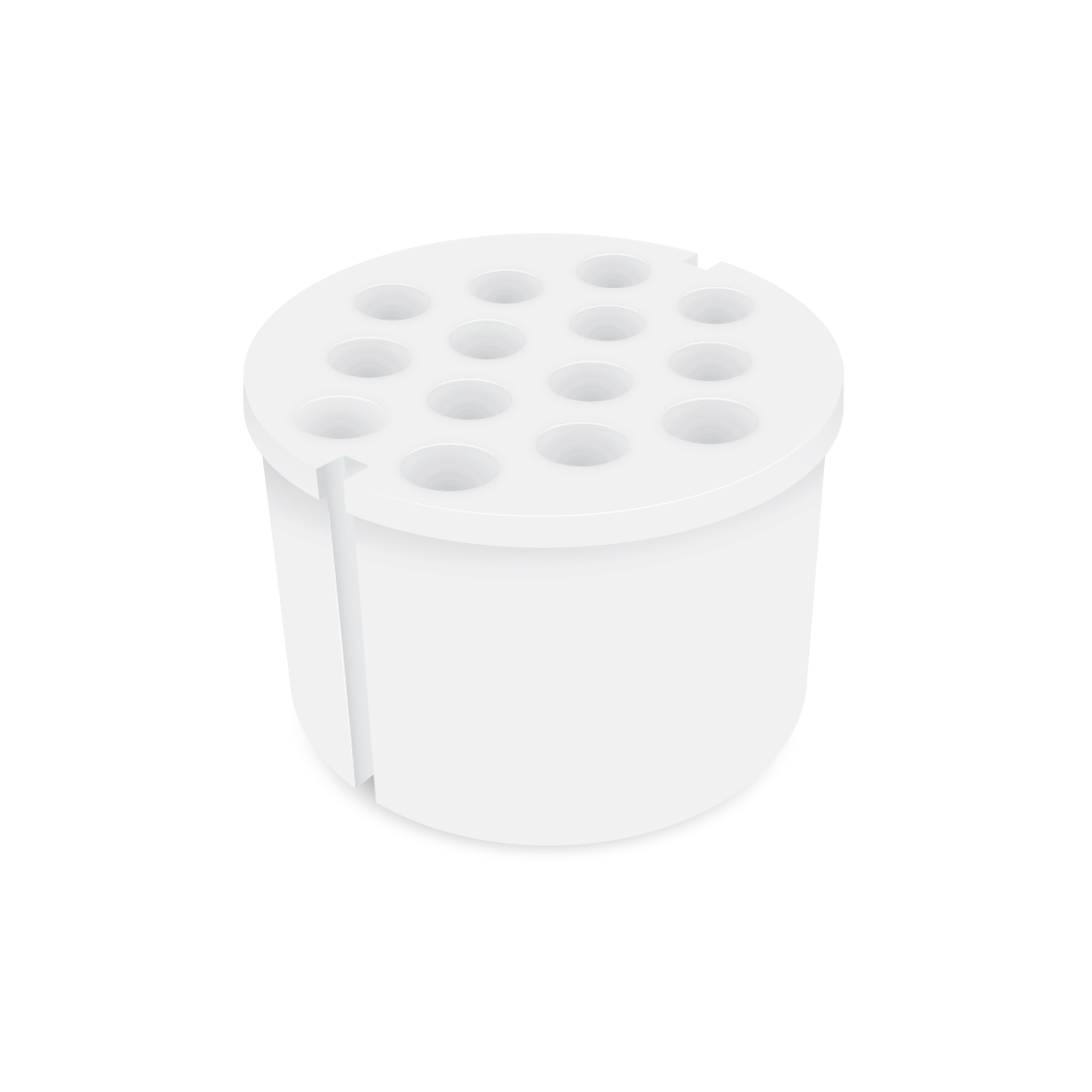

BA-14/2U

Bucket adapter for 14x2ml  microtest tubes (set of 4 pcs.). To be used with BR-4U rotor. For use with  LMC-56

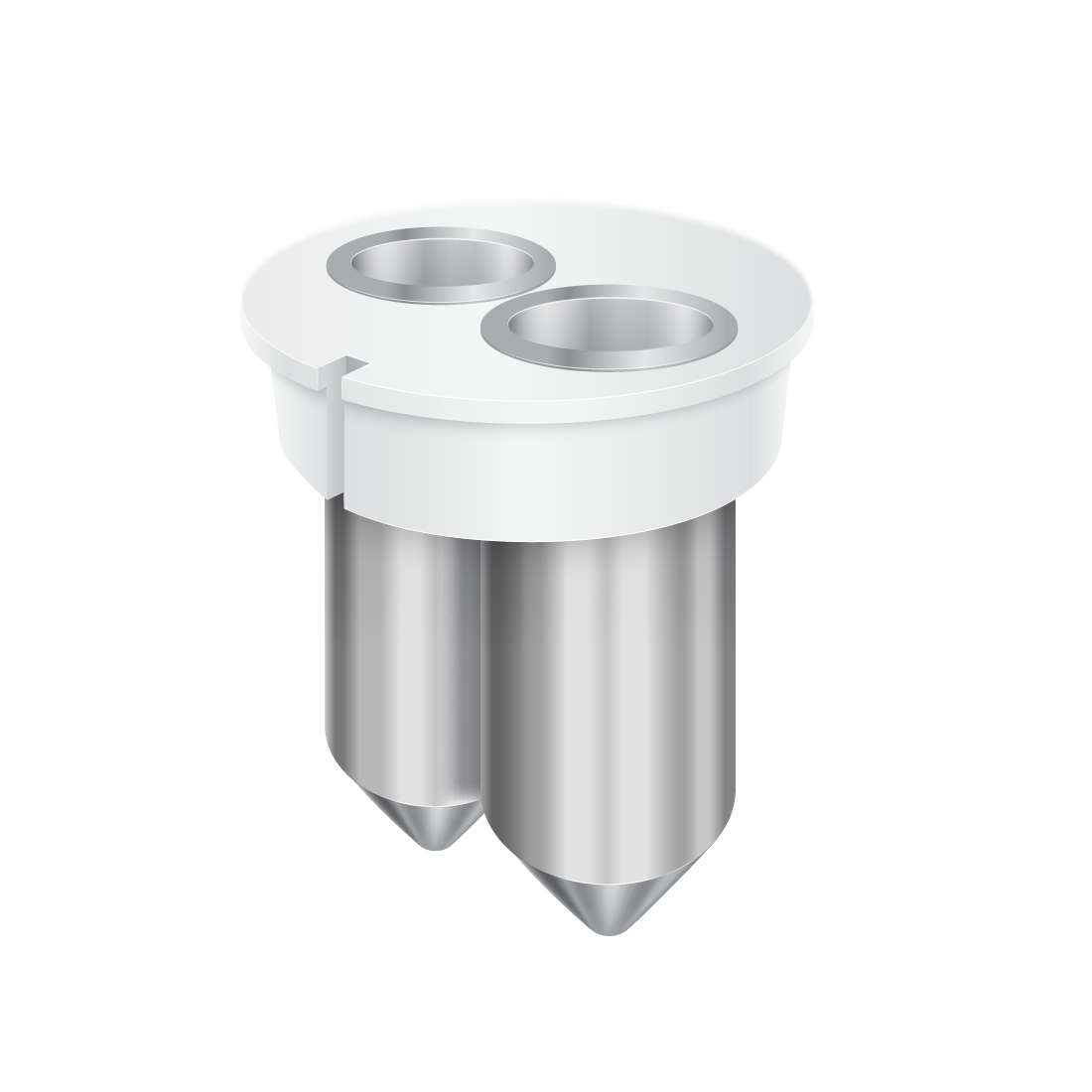

BA-2/50

Bucket adapter for 2x 50ml  tubes (set of 4 pcs.) To be used with BR-4U rotor. For use with LMC-56

BI-25-8

Insert for 25 ml conical  tubes. set of 8 pcs. To be used with BA-2/50 adapter set.  For use with LMC-56

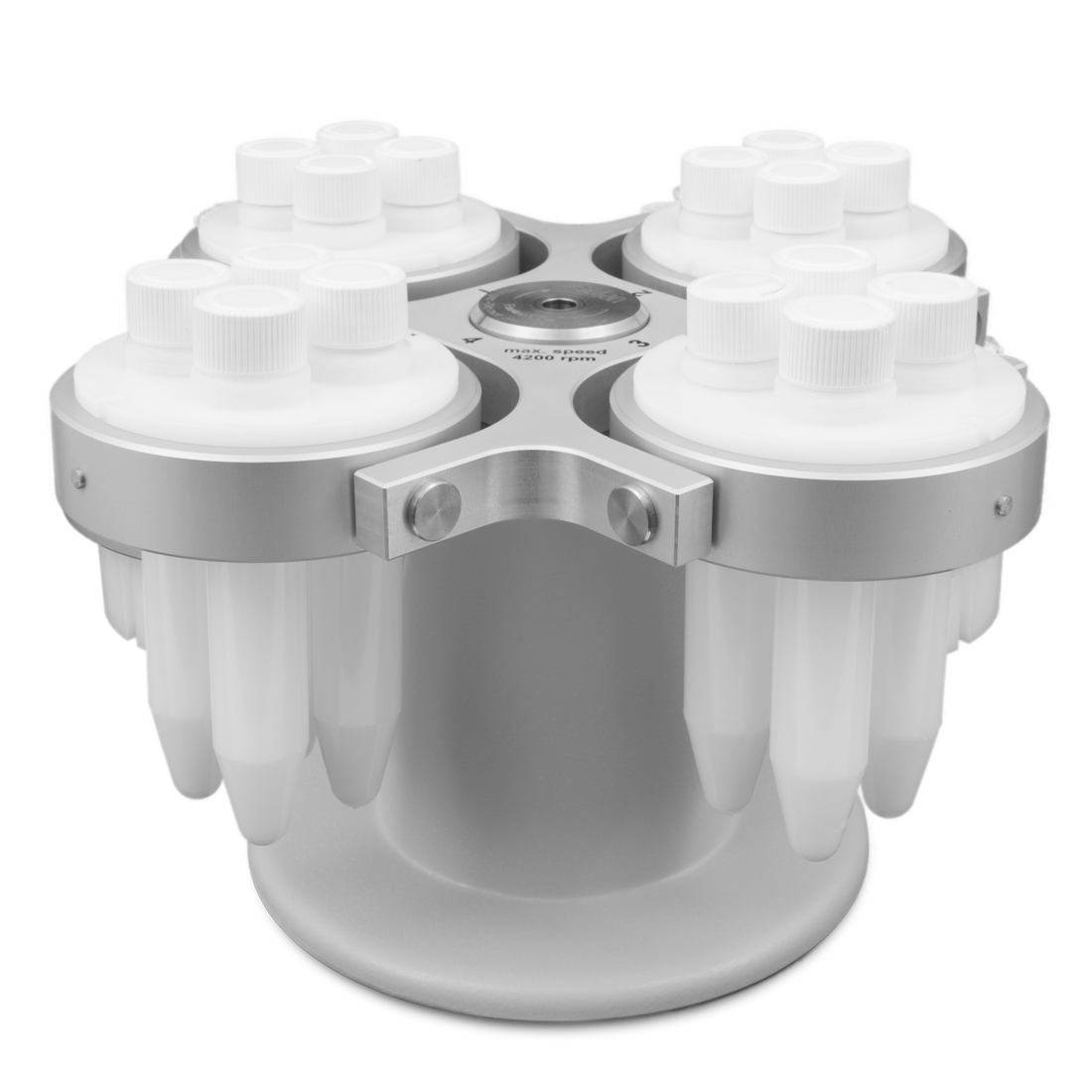

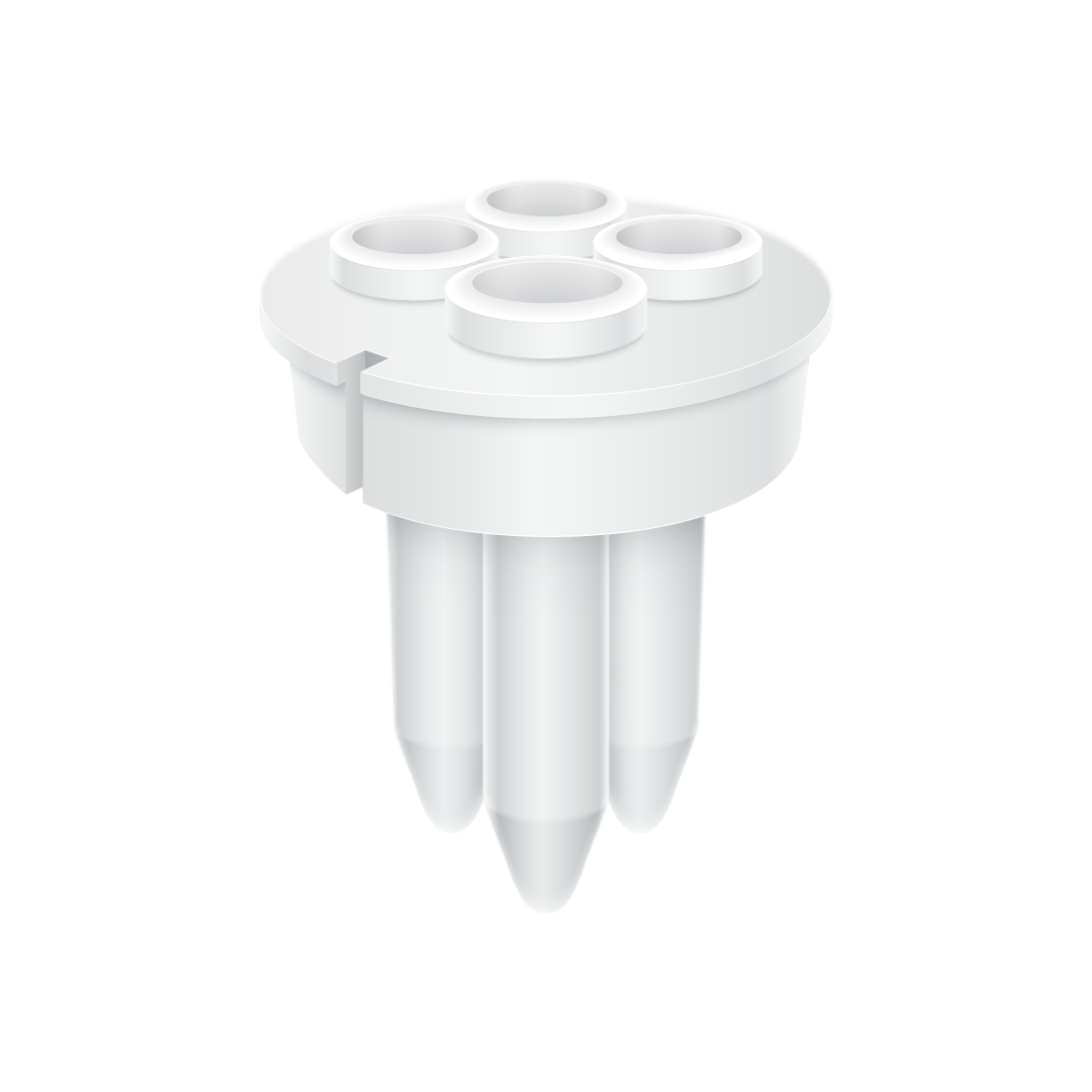

BA-4/FT

Bucket adapters for 4 conical  bottom centrifuge tubes of 15 ml (set of 4 pcs.) For use with LMC-56

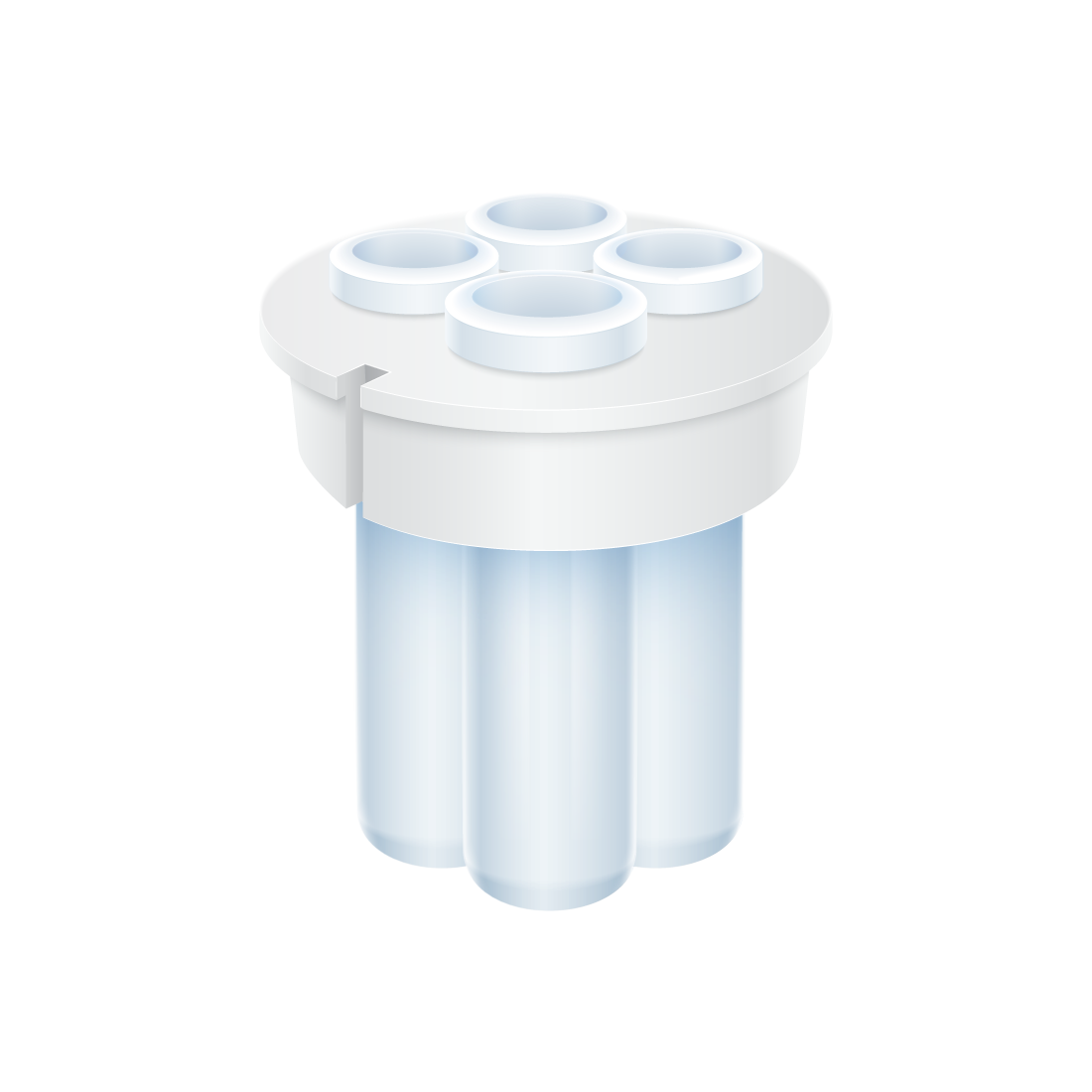

BA-4/RT

Bucket adapters for 4 round  bottom centrifuge tubes of 10 ml (set of 4 pcs.) For use with LMC-56

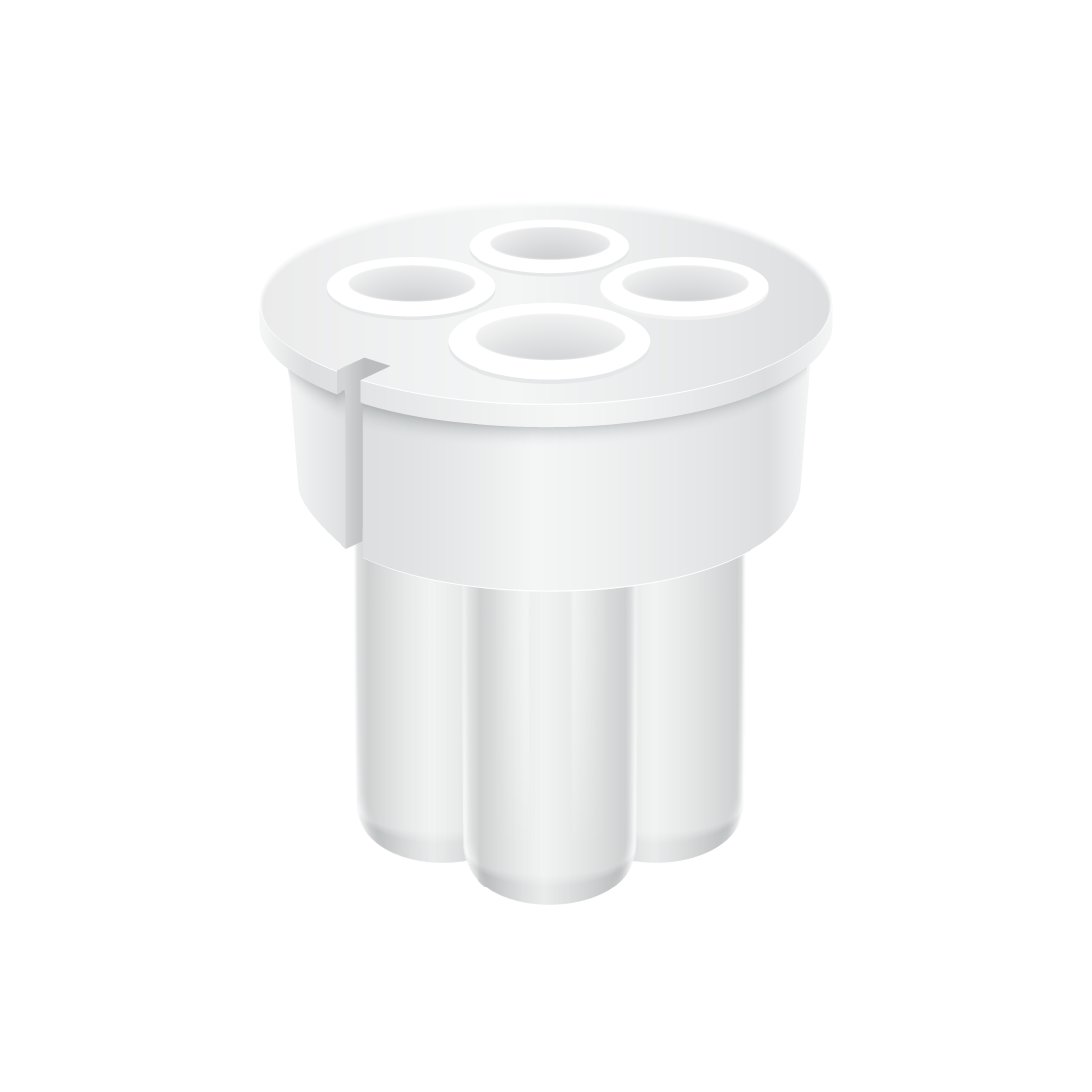

BA-4/VT

Bucket adapters for 4  vacutainer adapters of 2-9 ml (set of 4 pcs.). Included 8-9 ml [16 x 100]  vacutainer adapters, BN-16/100-16. For use with LMC-56

BN-13/100-16

Set of 16 pcs. buckets for  13x100 mm tubes (e.g.4-8 ml vacutainers) To be used with BA-4/VT adapter set.  For use with LMC-56

BN-13/75-16

Set of 16 pcs. buckets for  13x75 mm tubes (e.g.2-5ml vacutainers) To be used with BA-4/VT adapter set.  For use with LMC-56

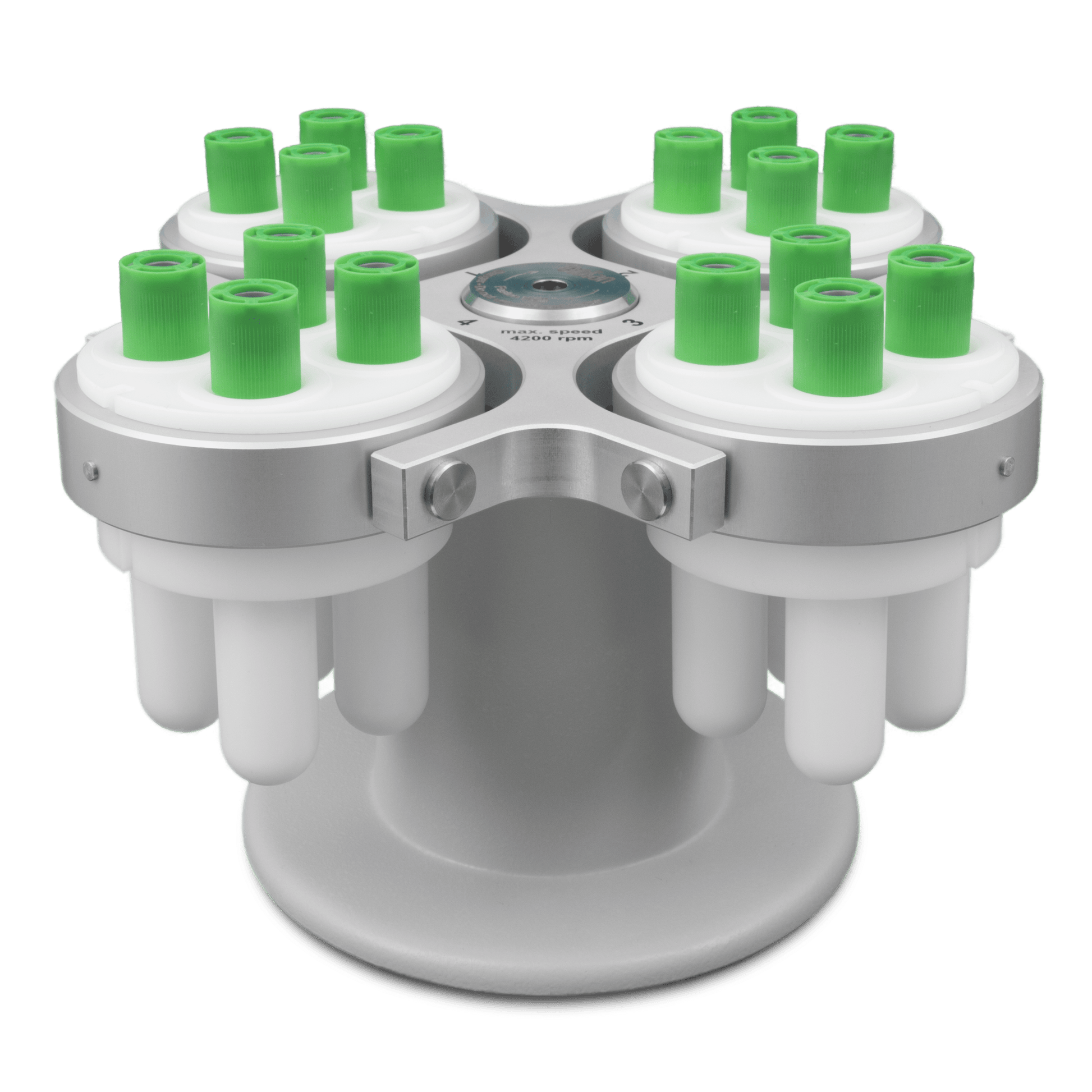

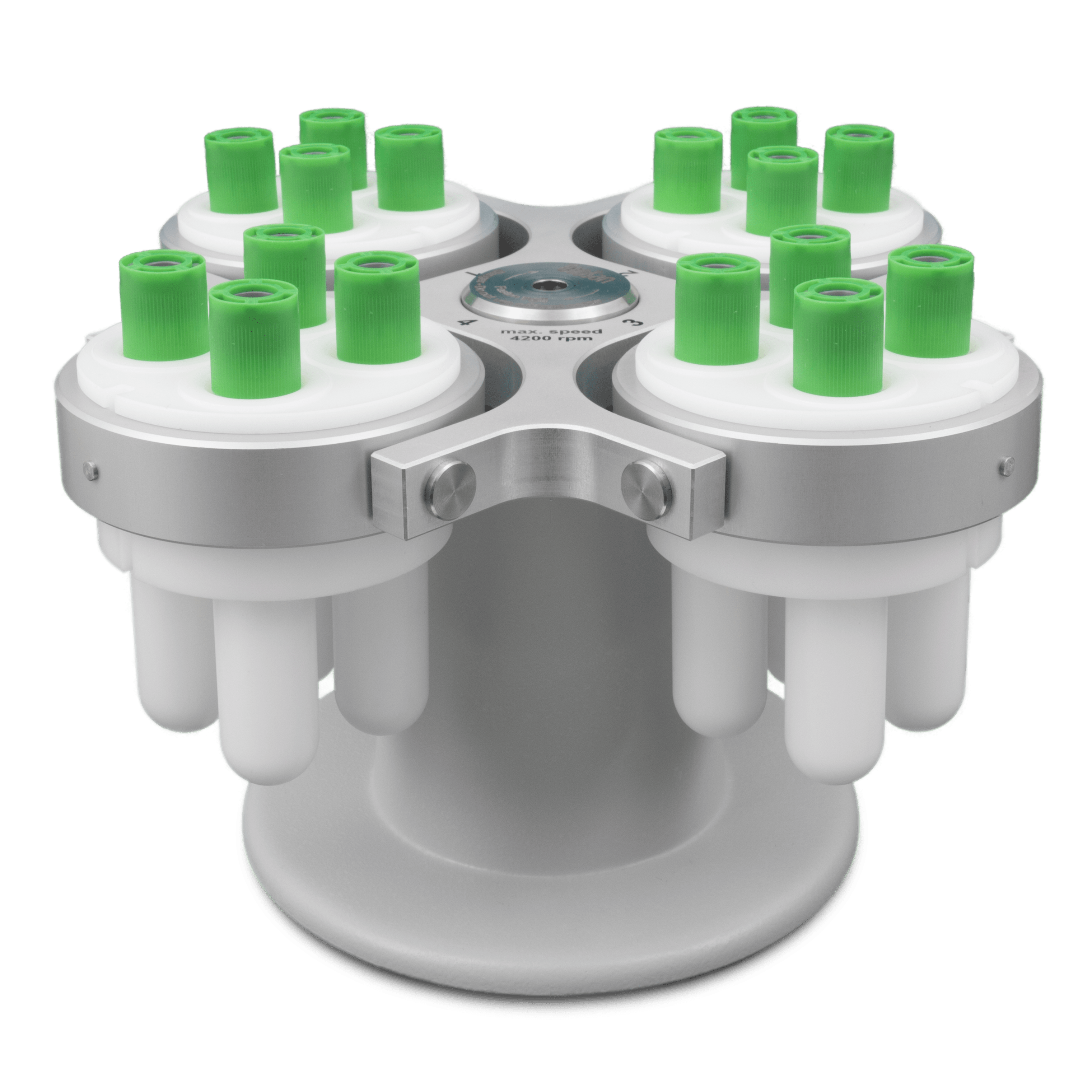

BN-16/100-16

Set of 16 pcs. buckets for  16x100 mm tubes (e.g.8-9 ml vacutainers) To be used with BA-4/VT adapter set.  For use with LMC-56

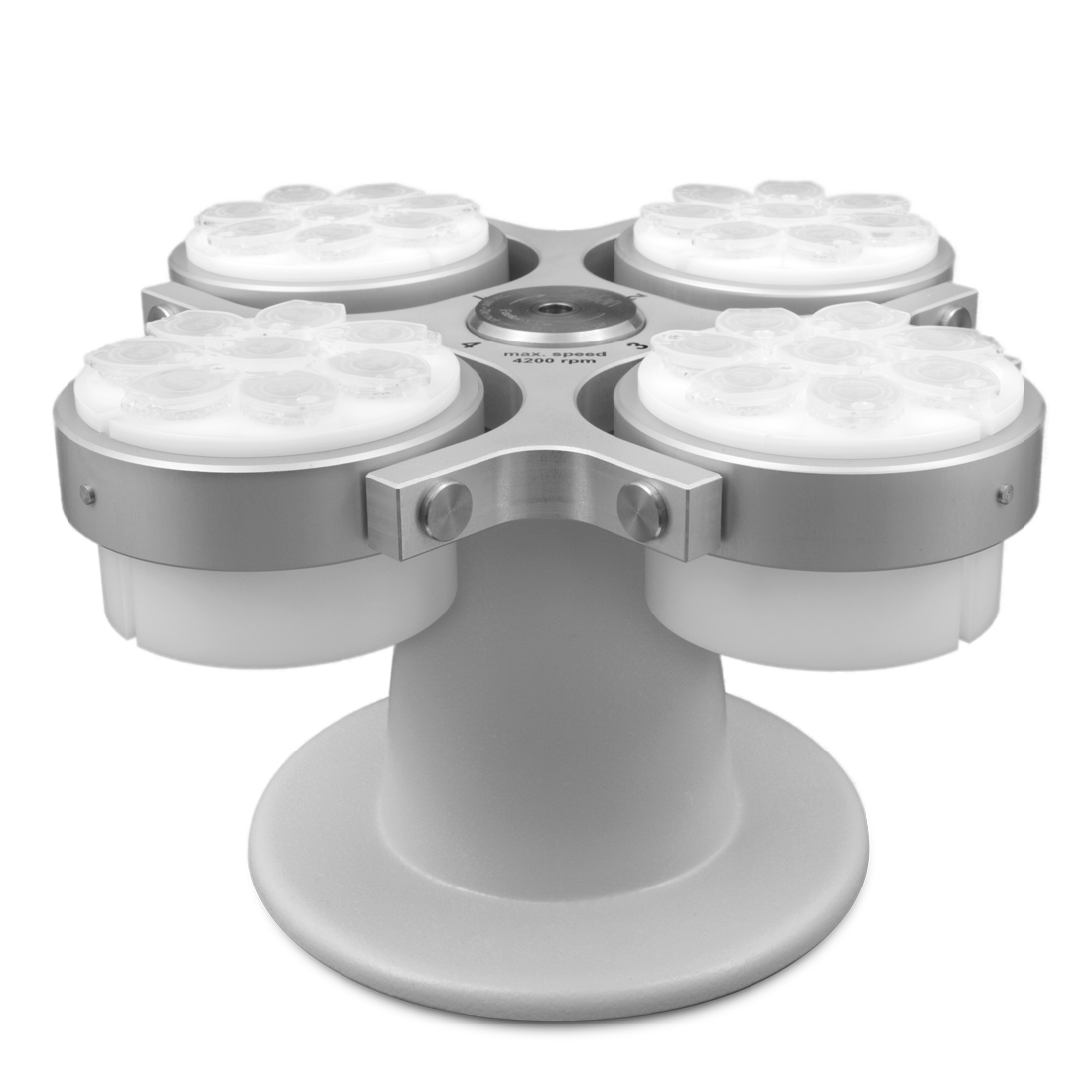

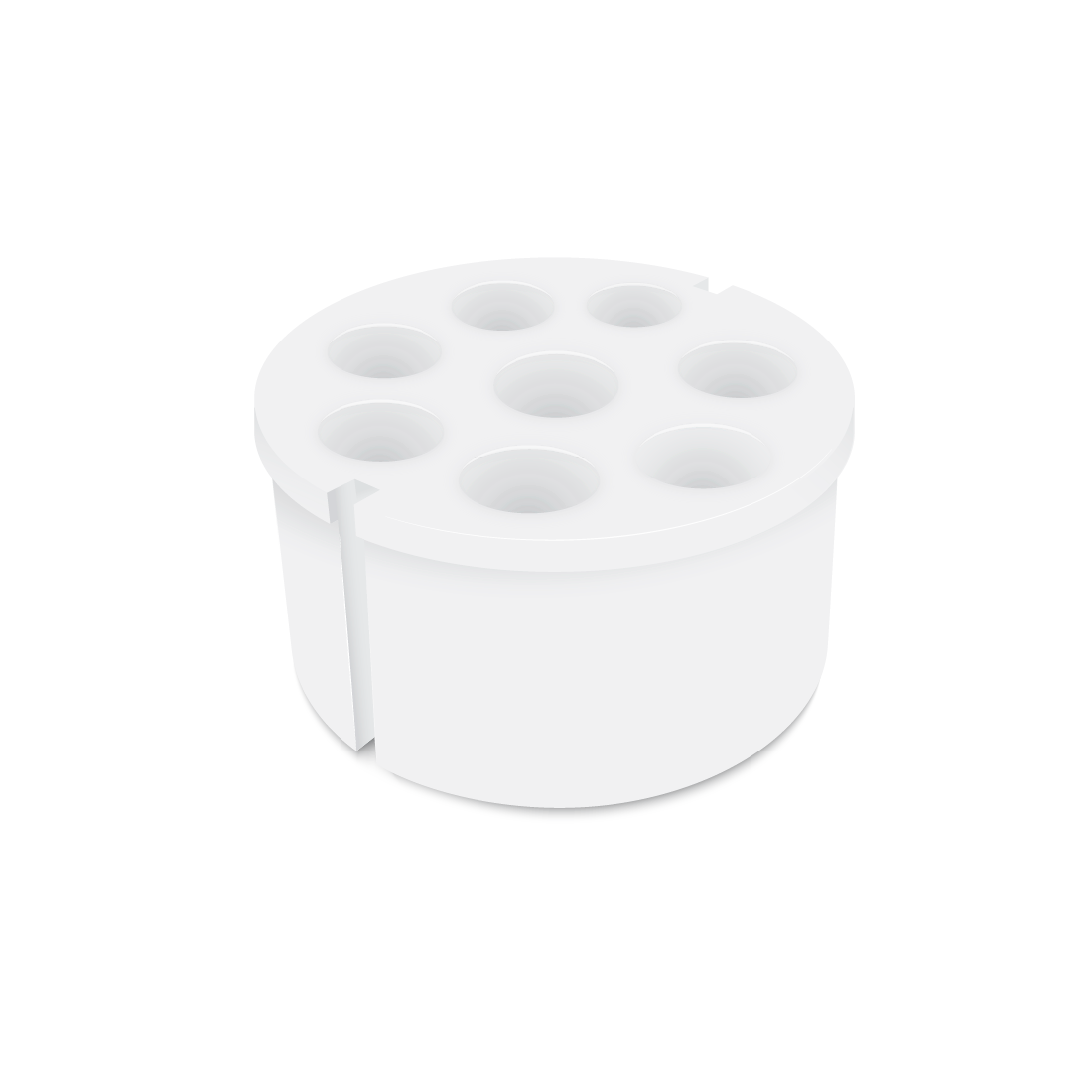

BA-8/5

Bucket adapter for 8x 5ml  tubes (set of 4 pcs.) To be used with BR-4U rotor. For use with LMC-56

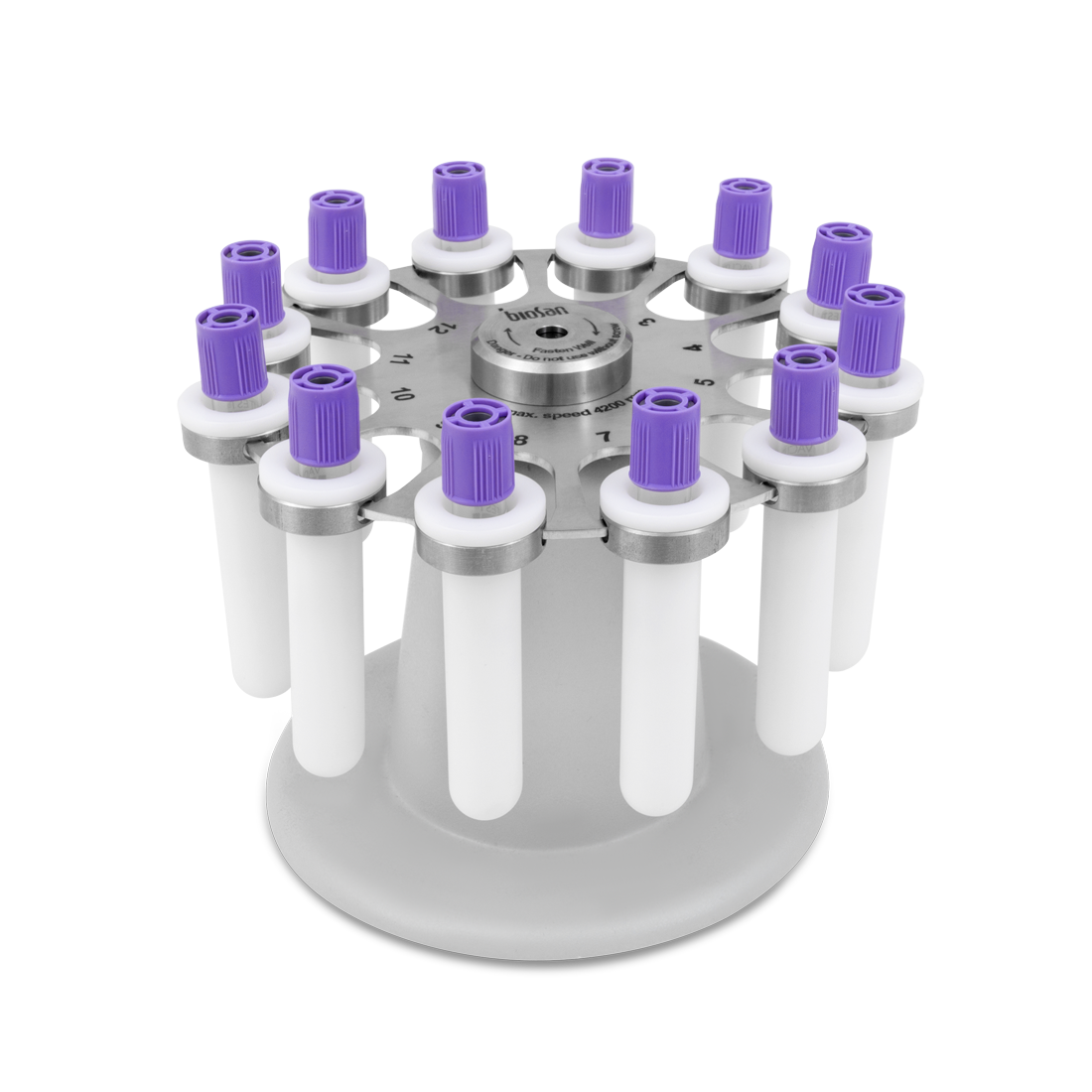

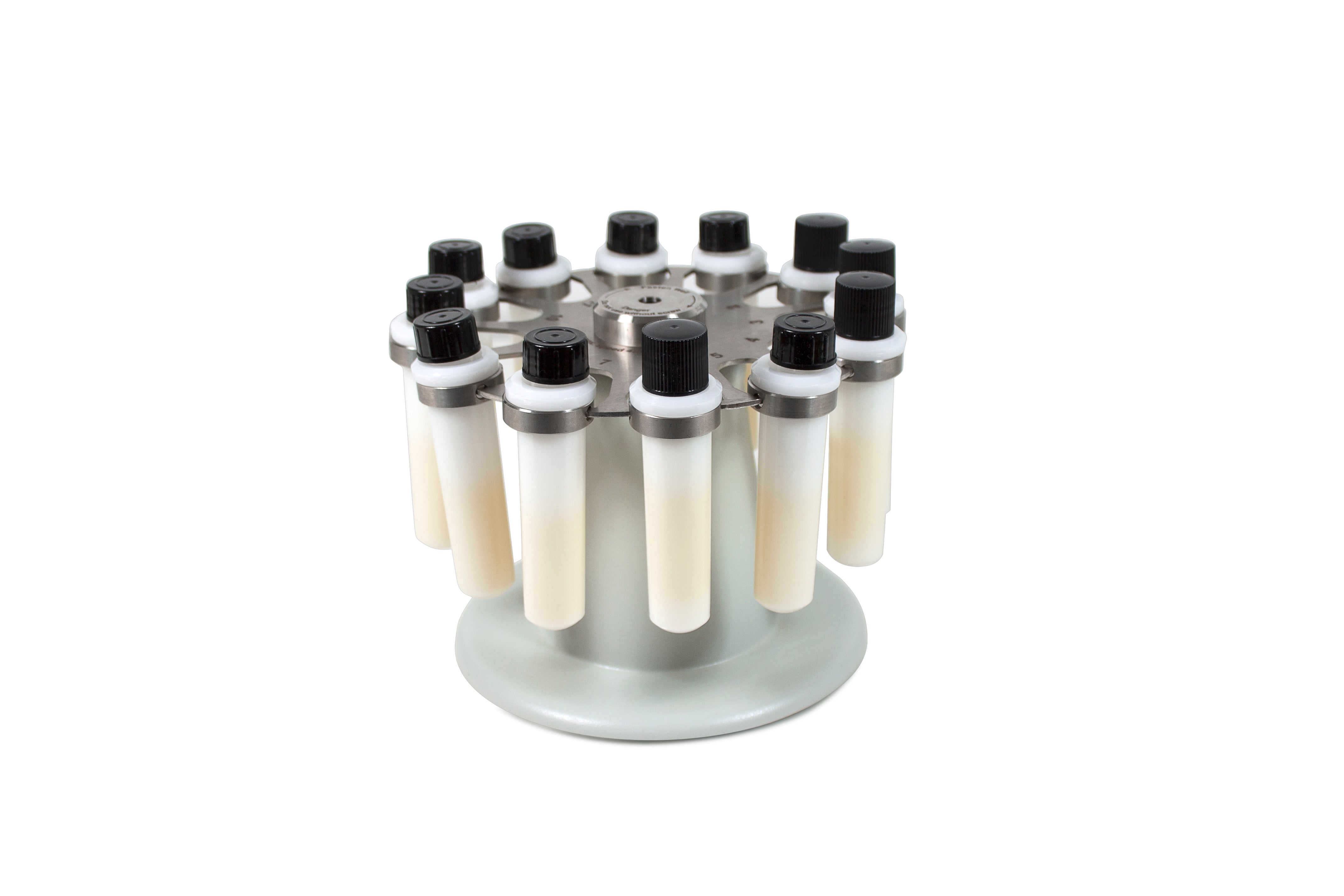

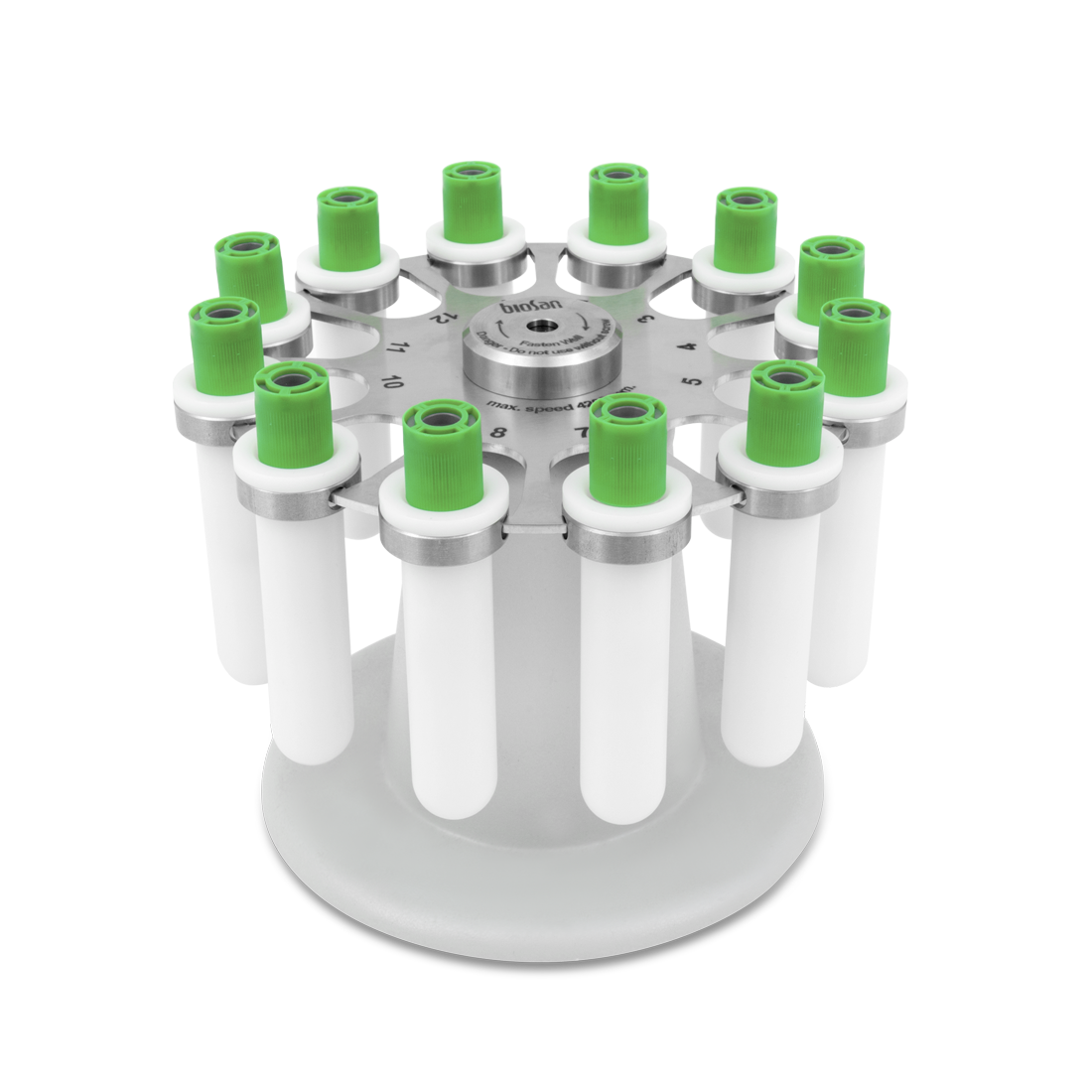

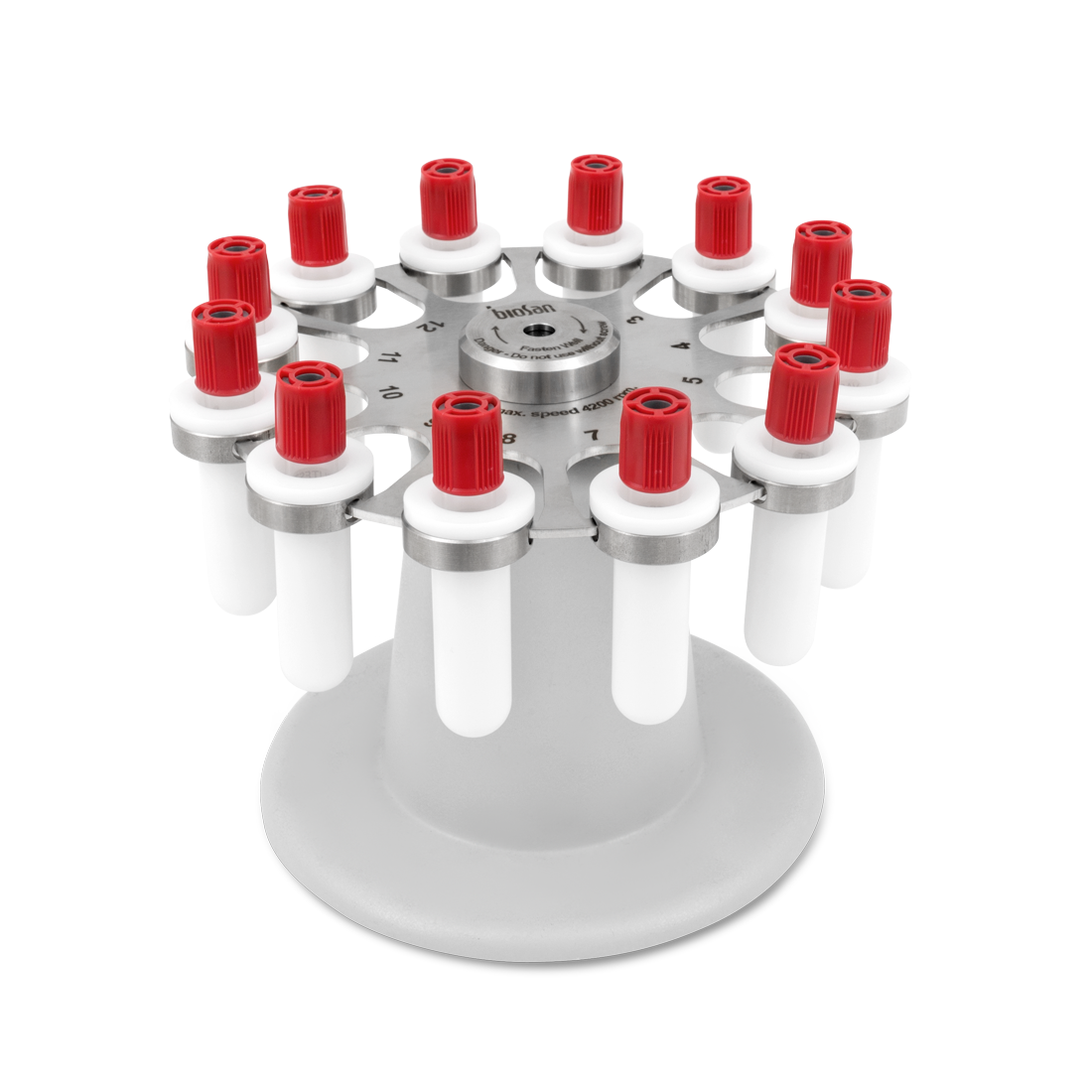

Ri-12/10

Rotor for 12 x 10-15 ml tubes.  For use with LMC-56

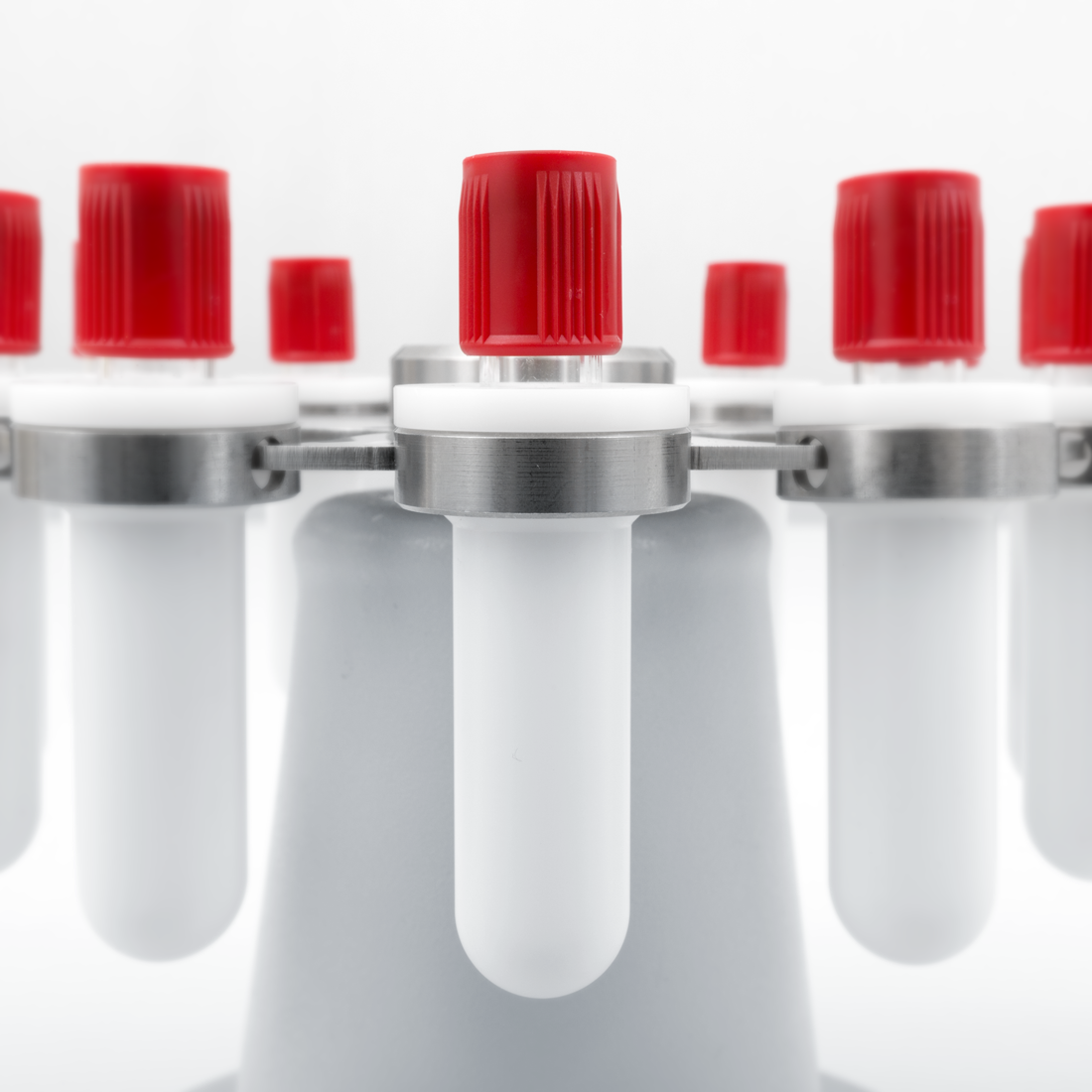

BN-13/75

Set of 12 pcs. buckets for  13x75 mm tubes (e.g.2-5ml vacutainers) To be used with Ri-12/10 rotor.  For use with LMC-56

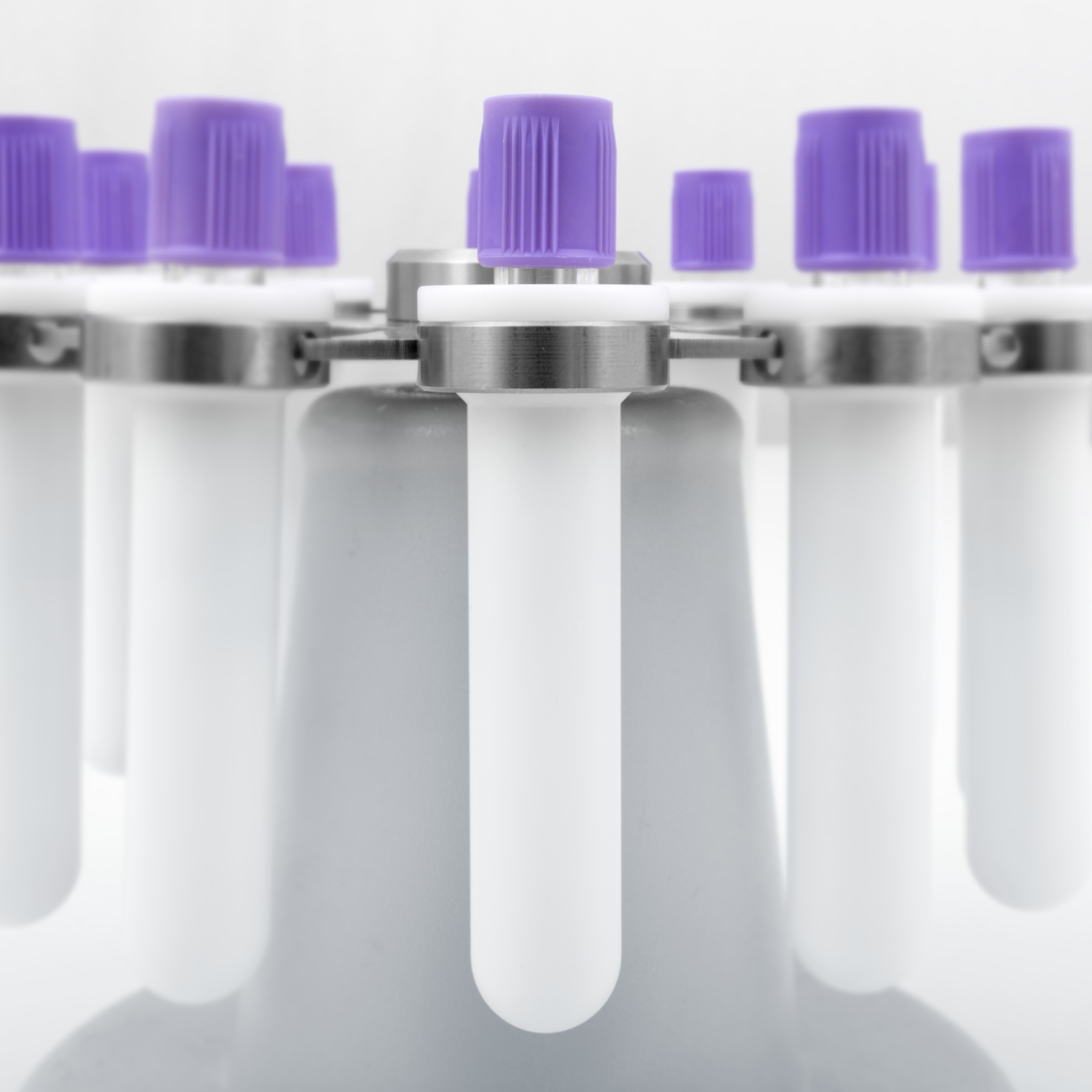

BN-13/100

Set of 12 pcs. buckets for  13x100 mm tubes (e.g.4-8 ml vacutainers) To be used with Ri-12/10 rotor.  For use with LMC-56

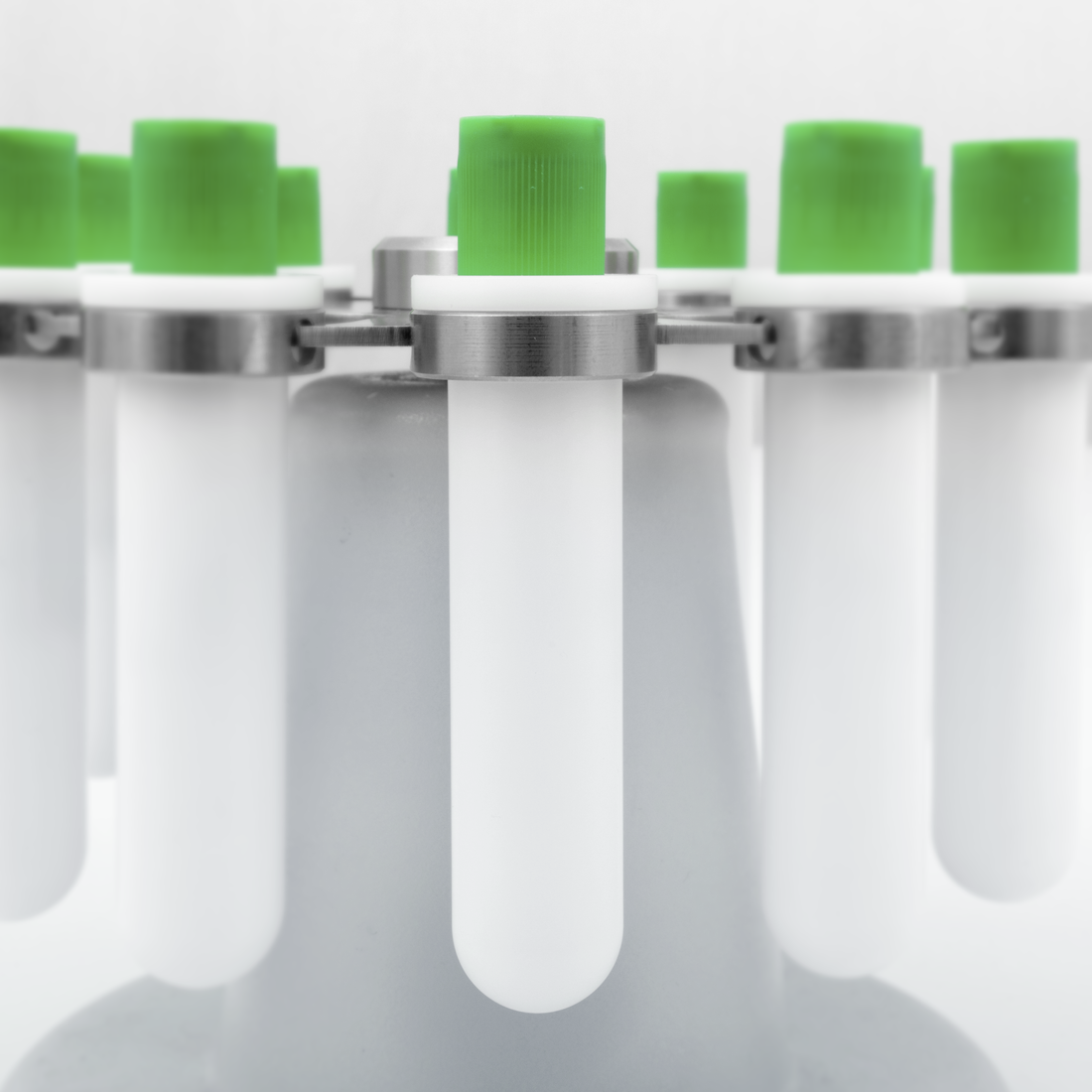

BN-16/100

Set of 12 pcs. buckets for  16x100 mm tubes (e.g.8-9 ml vacutainers) To be used with Ri-12/10 rotor.  For use with LMC-56

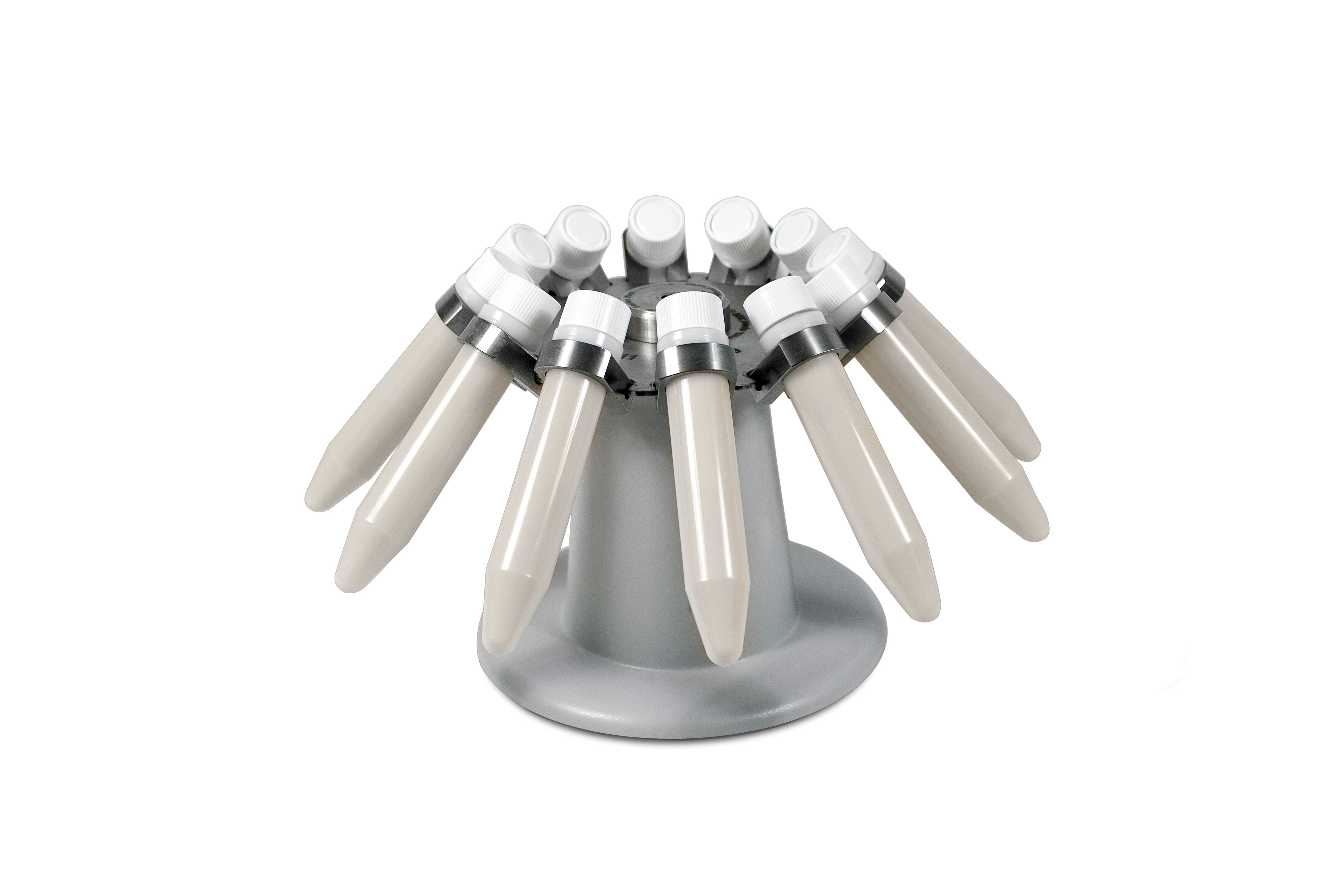

Ri-12/15

Rotor for 12 x 15 ml tubes.  For use with LMC-56

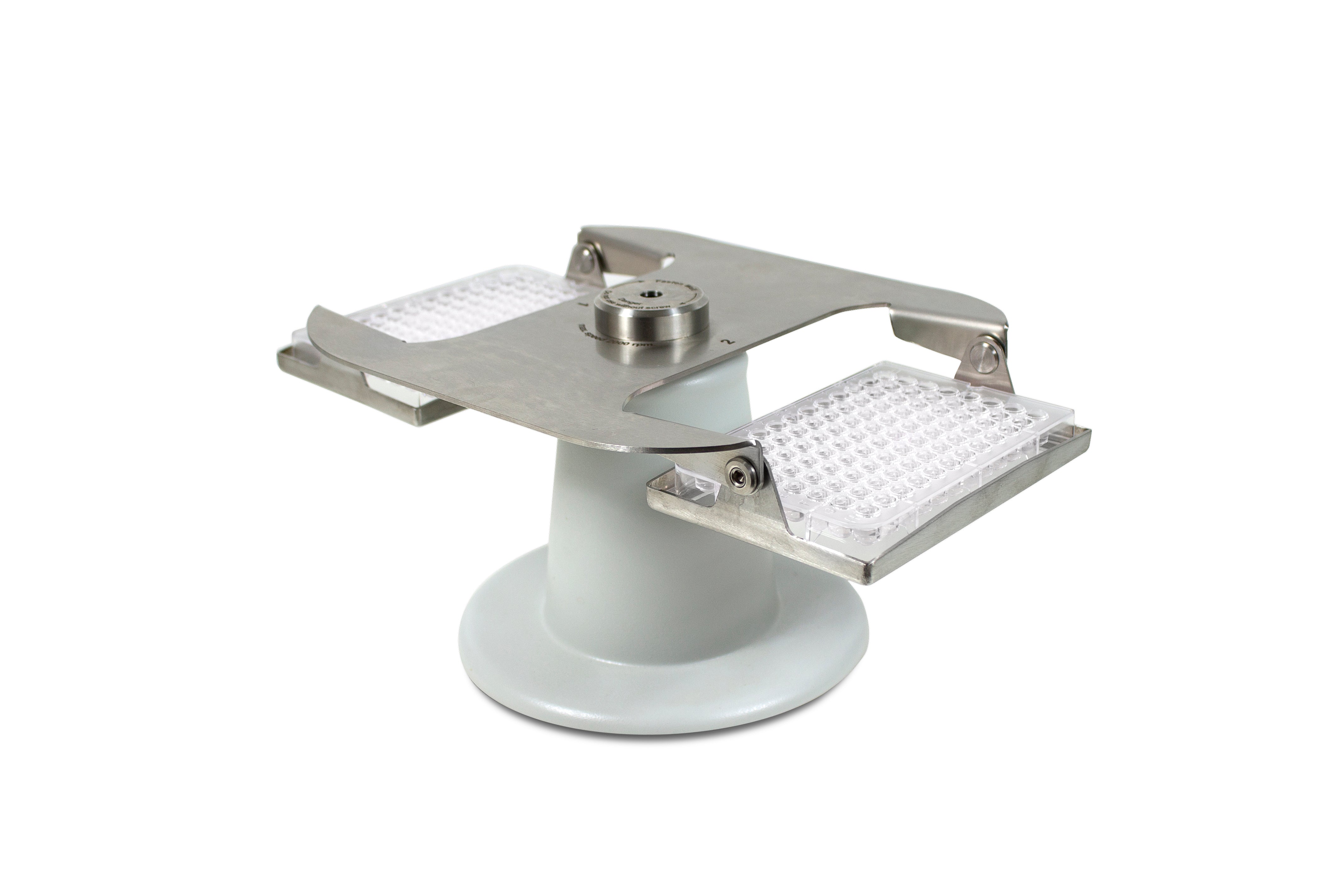

Ri-2

Rotor for 2 microtest plates.  For use with LMC-56

AP-96

Set of 2 adapters for  semi-skirted and unskirted 96-well PCR plates To be used with 2 rotor.

AP-384

Set of 2 adapters for 384-well  plates

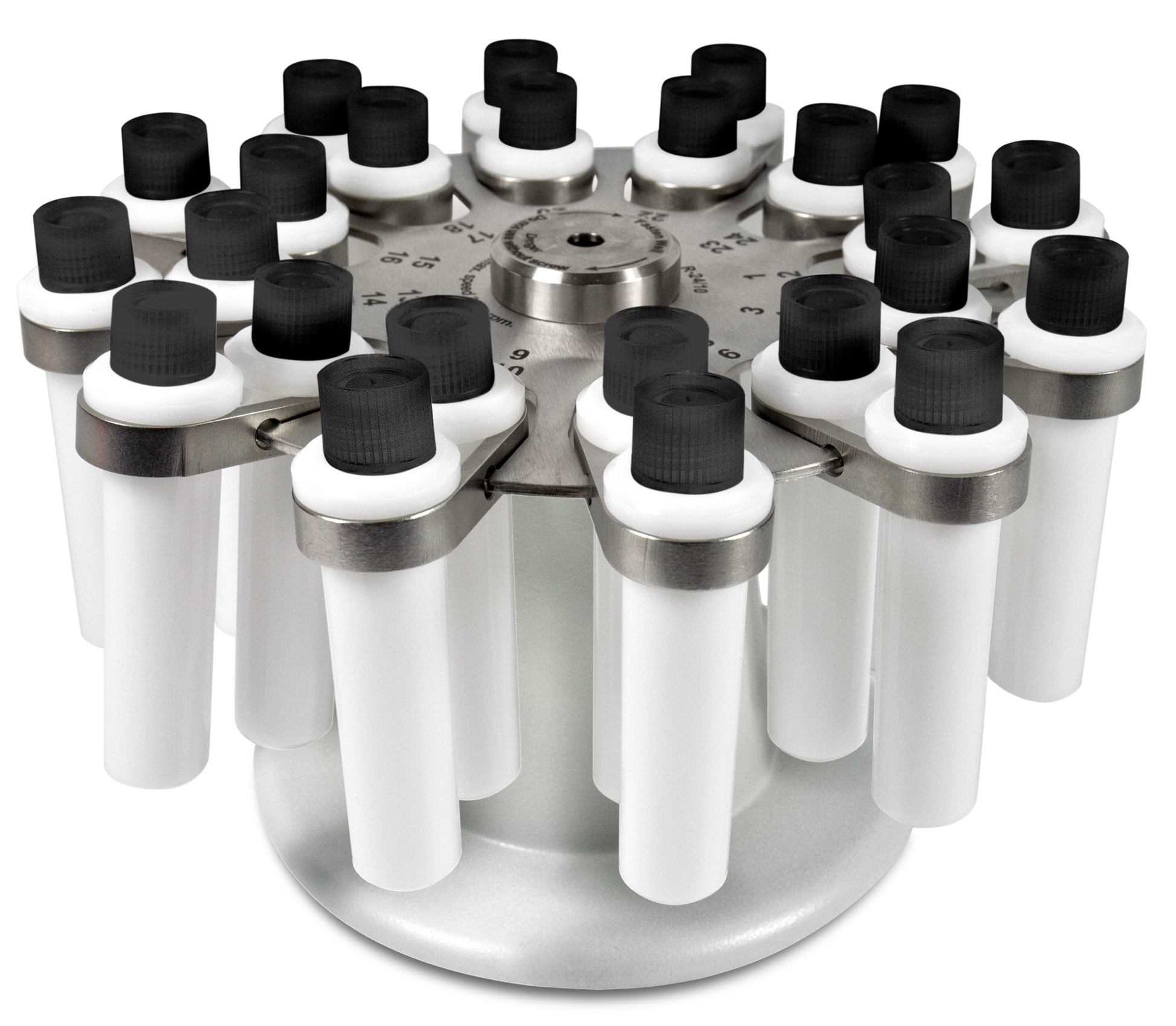

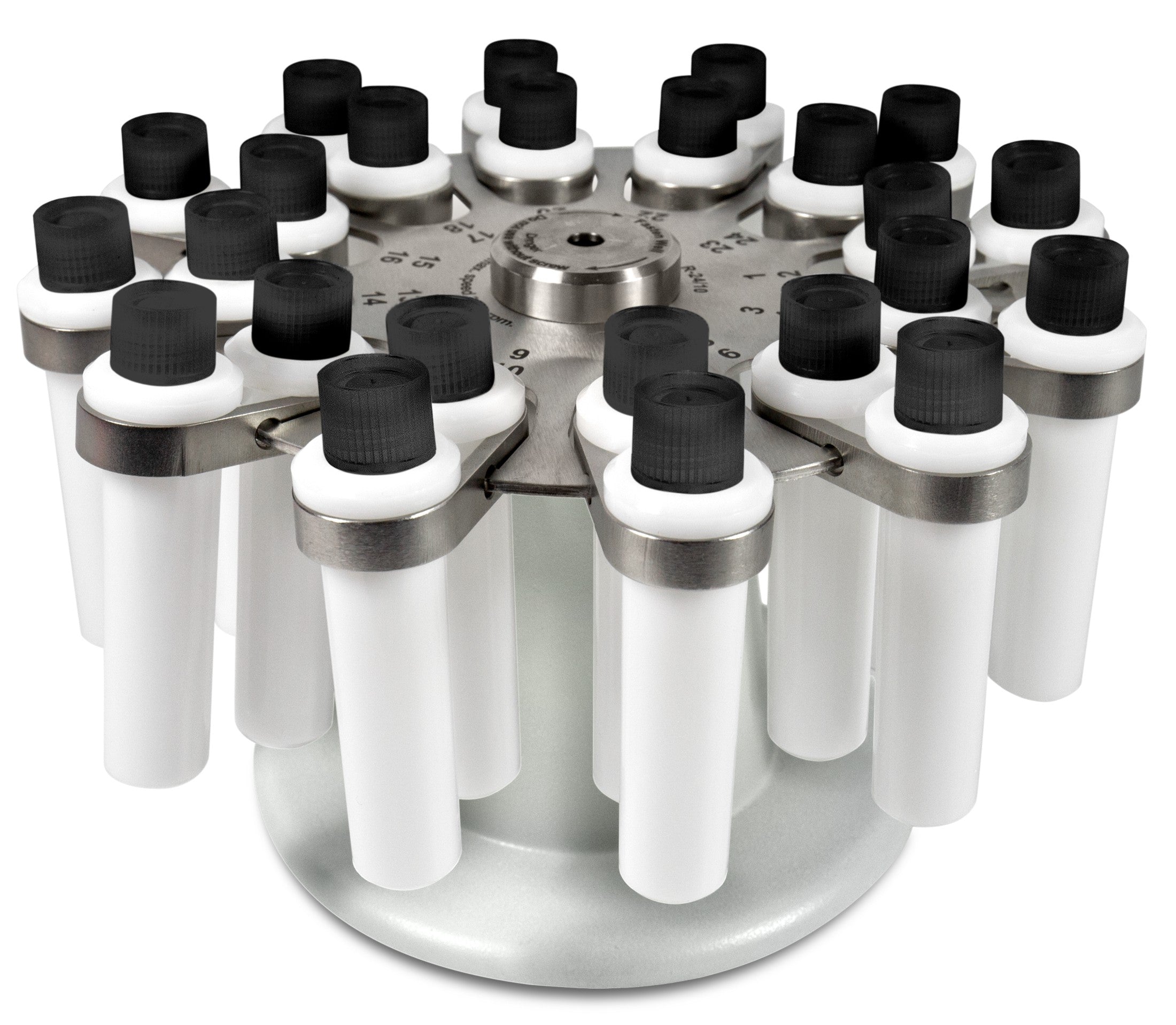

Ri-24/10

Rotor for 24 x 10-15 ml tubes.  For use with LMC-56

BN-13/100-24

Set of 24 pcs. buckets for  13x100 mm tubes (e.g.4-8 ml vacutainers) To be used with Ri-24/10 rotor. For  use with LMC-56

BN-13/75-24

Set of 24 pcs. buckets for  13x75 mm tubes (e.g.2-5ml vacutainers) To be used with Ri-24/10 rotor. For  use with LMC-56

BN-16/100-24

Set of 24 pcs. buckets for  16x100 mm tubes (e.g.8-9 ml vacutainers) To be used with Ri-24/10 rotor. For  use with LMC-56

Ri-24GC

Rotor for 24 gel-cards. For  use with LMC-56

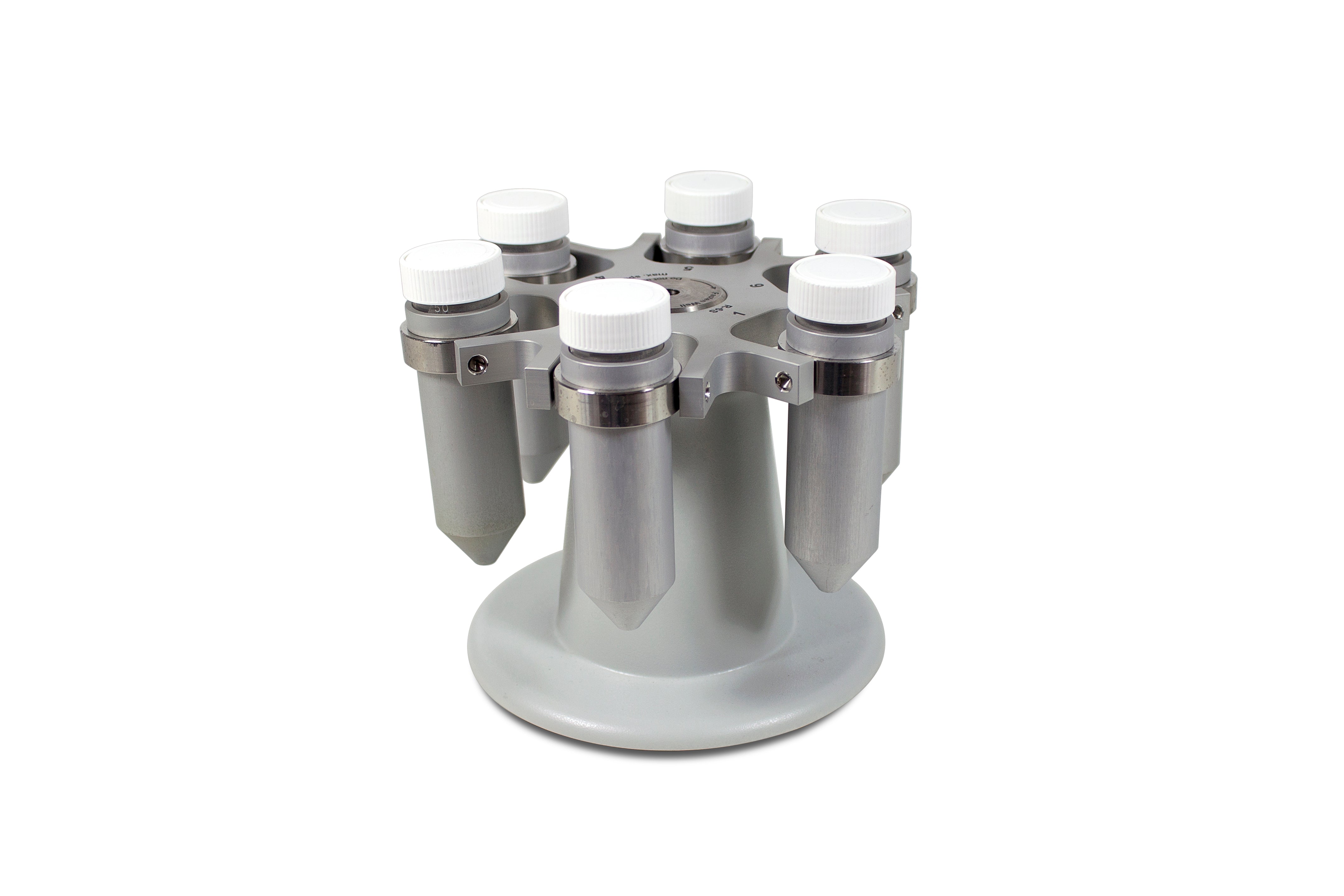

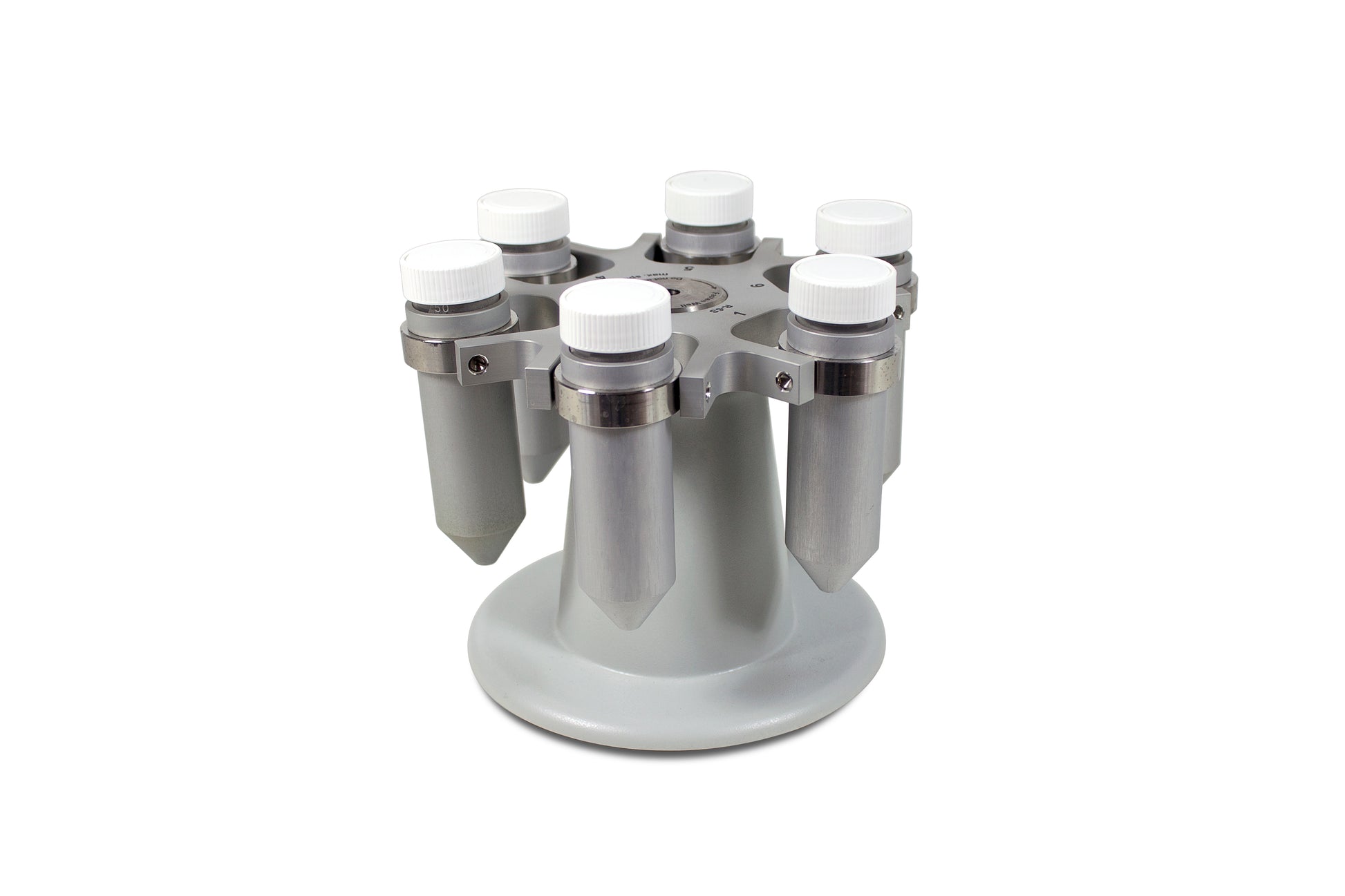

Ri-6

Rotor (metal) for 6 x 50 ml  tubes. For use with LMC-56

BI-25-6

Insert for 25 ml conical  tubes. set of 6 pcs. To be used with Ri-6 / Ri-6P rotor. For use with LMC-56

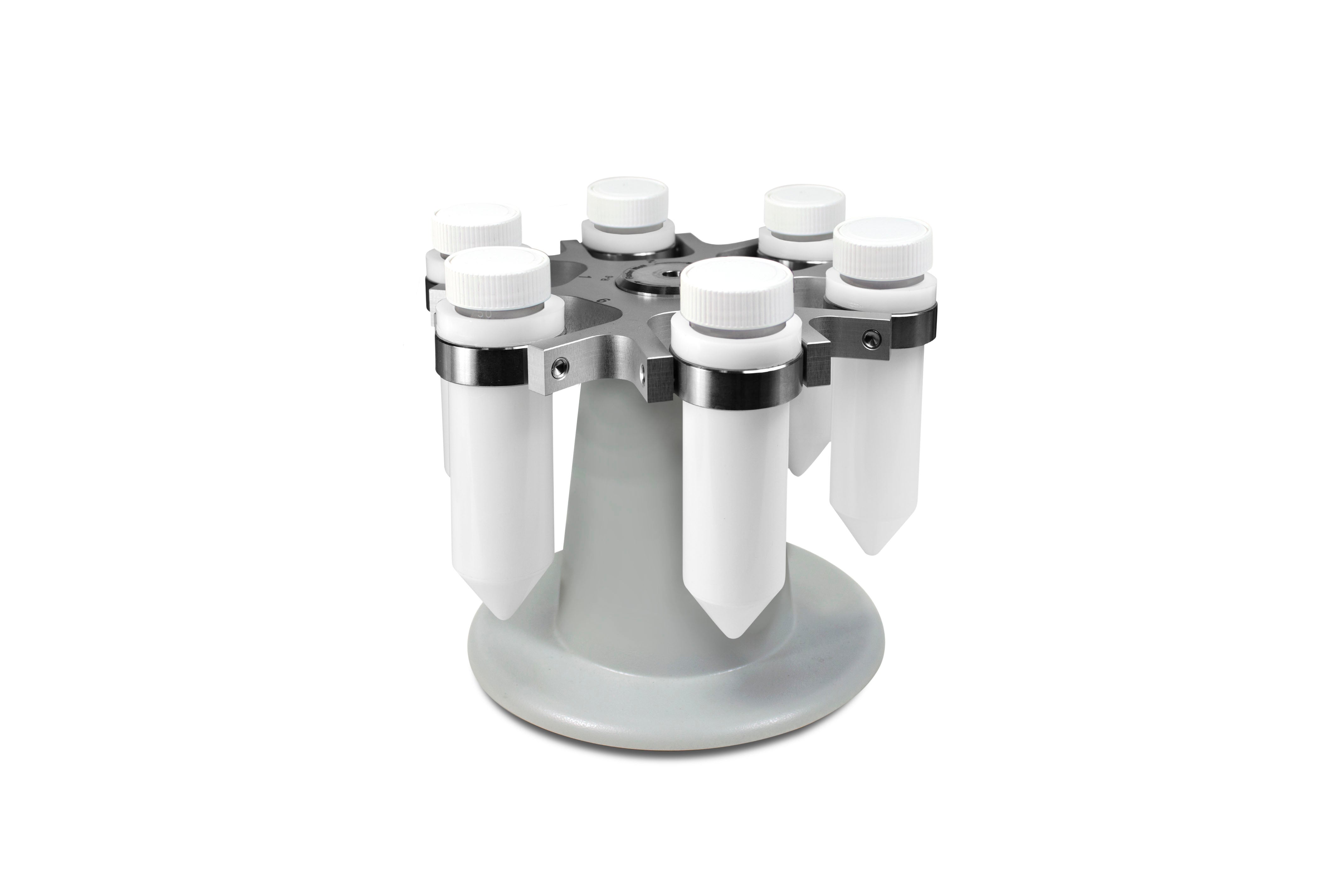

Ri-6P

Rotor (POM Kocetal) for 6 x 50  ml tubes. For use with LMC-56

RMT-24

Angle rotor for 24x 1.5/2 ml  microtest tubes. For use with LMC-56

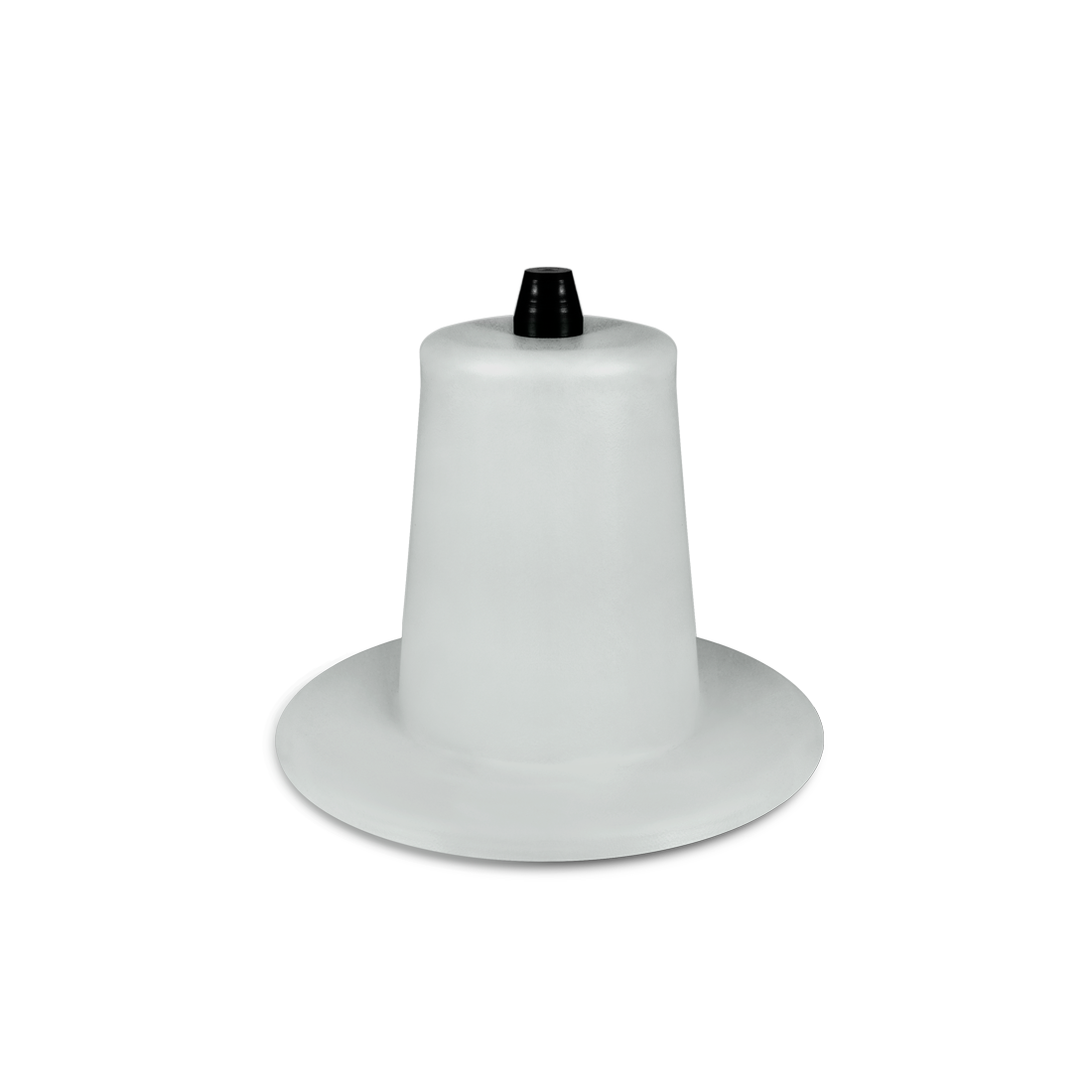

RR-U

Rotor holder
