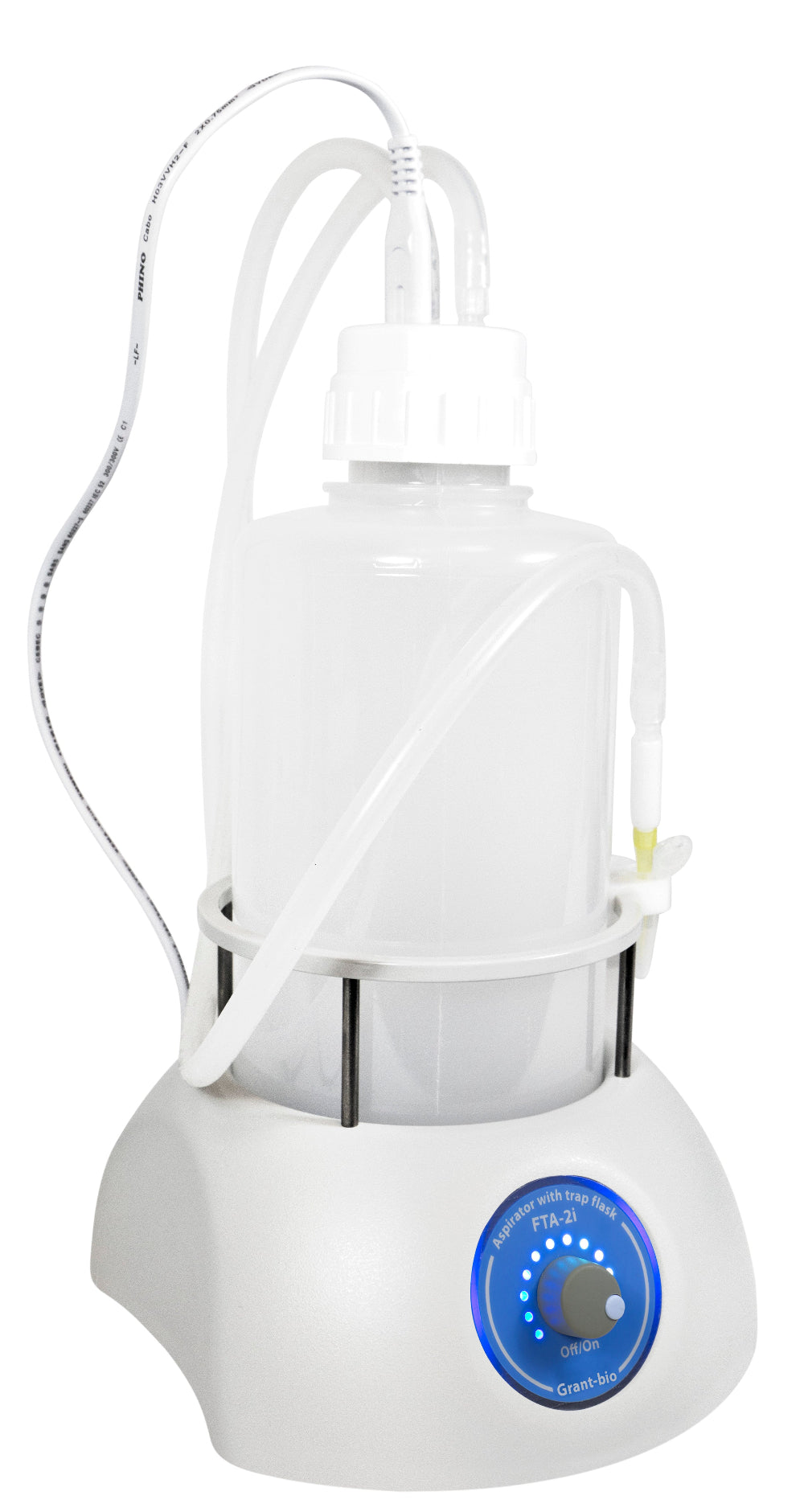

FTA-2i Advanced Aspirator with Trap Flask

$1,687.00
$1,687.00
Shipping calculated at checkout.

The FTA-2i aspirator with 2L trap flask is designed for removal of alcohol, buffer and liquid from reaction vessels eg during DNA / RNA purification and other macromolecule re-precipitation techniques.
  • All in one system with integrated pump
  • 2L autoclavable polypropylene trap flask
  • Fitted with hydrophobic microbiological filter
  • Vacuum pressure: -200 to -800mbar (adjustable)
  • Overflow protection - liquid level sensor detects excess liquid and prevents overflow

The use of an aspirator is preferential to using a generic laboratory vacuum line as it restricts the possibility of contamination and can be used exactly where the operator is located.

Optional accessory: autoclavable hand operator for more comfortable usability of accessory adapters, featuring pressure sensitive button that controls aspiration speed.

Specification Details
Dimensions (h x d x w) 390 x 290 x 185 mm
Trap flask volume 2 L
Vacuum -200 to -800 mbar (adjustable)
Flow rate (aqueous solution) 72 ml/min with aspiration tip, 666 ml/min without aspiration tip
Aspiration speed Up to 10 (air)
Filter pore diameter 0.027 micron
Liquid level sensor type Invasive
Overflow protection Motor stops, light and sound signal
External power supply Input AC 120-230V, 50/60Hz | Output DC 12V
Power consumption 10.8 W (1A)
Input voltage 12V DC
Weight 1.85 kg

  • Aspiration/removal of alcohol/buffer from tube walls during DNA/RNA purification and other macromolecule reprecipitation techniques
  • Routine operations of cells washing from culture medium and resuspension in buffer
Product Manuals
Technical Datasheets

No downloads available

Further Information
HAS-1

Hand operator set, includes handheld vacuum controller, 1-channel adapter (with ejector) for 200 μL tips, 1-channel adapter with 125 mm stainless steel pin, 1-channel adapter with 40 mm stainless steel pin, 8-channel adapter (with ejector) for 200 μL tips, 8-channel adapter with 35 mm stainless steel pin and SH-6 stand

MA-8

8 channel adaptor kit, includes tube adaptor, 8 channel aspiration tip, 8 channel tip holder
