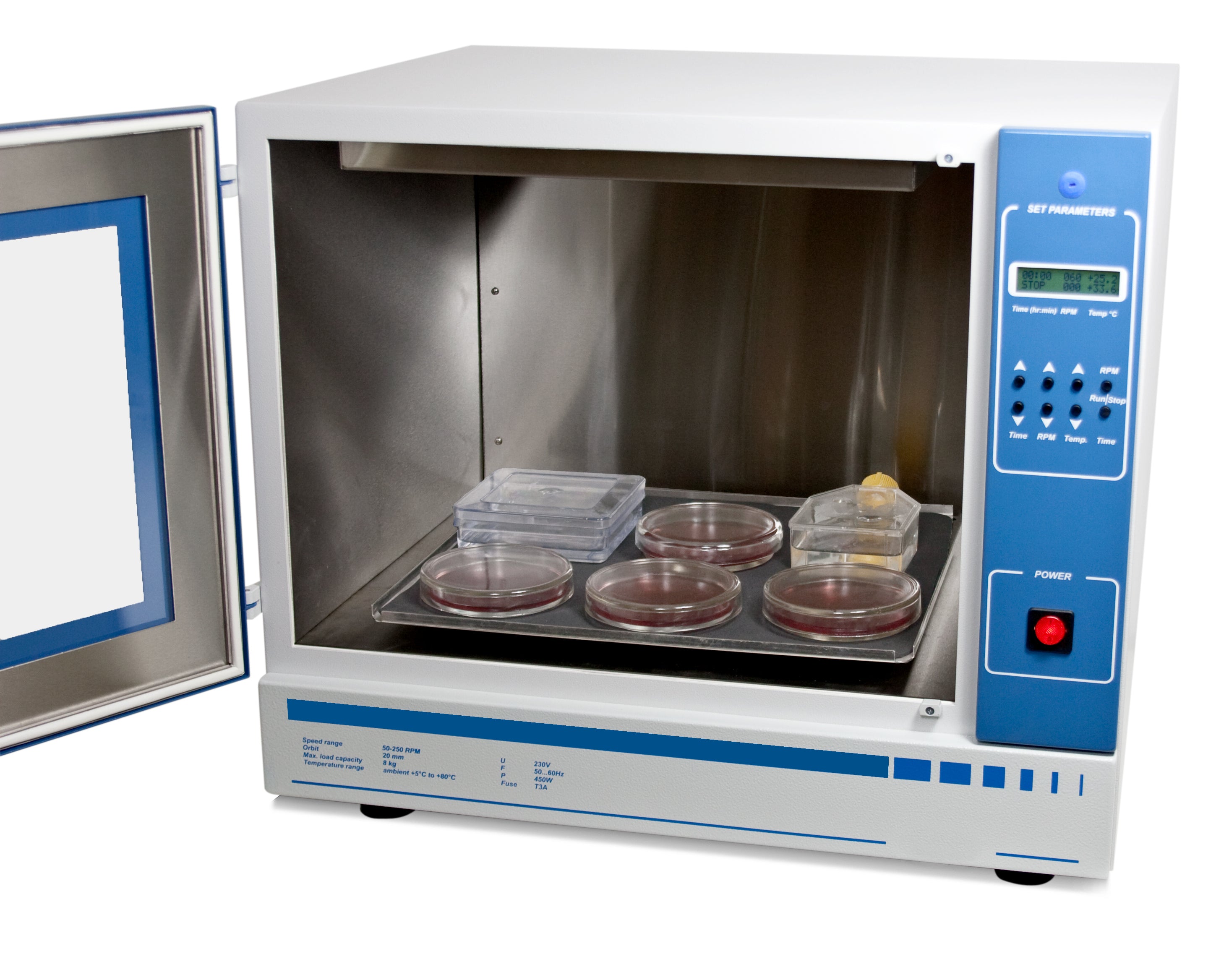

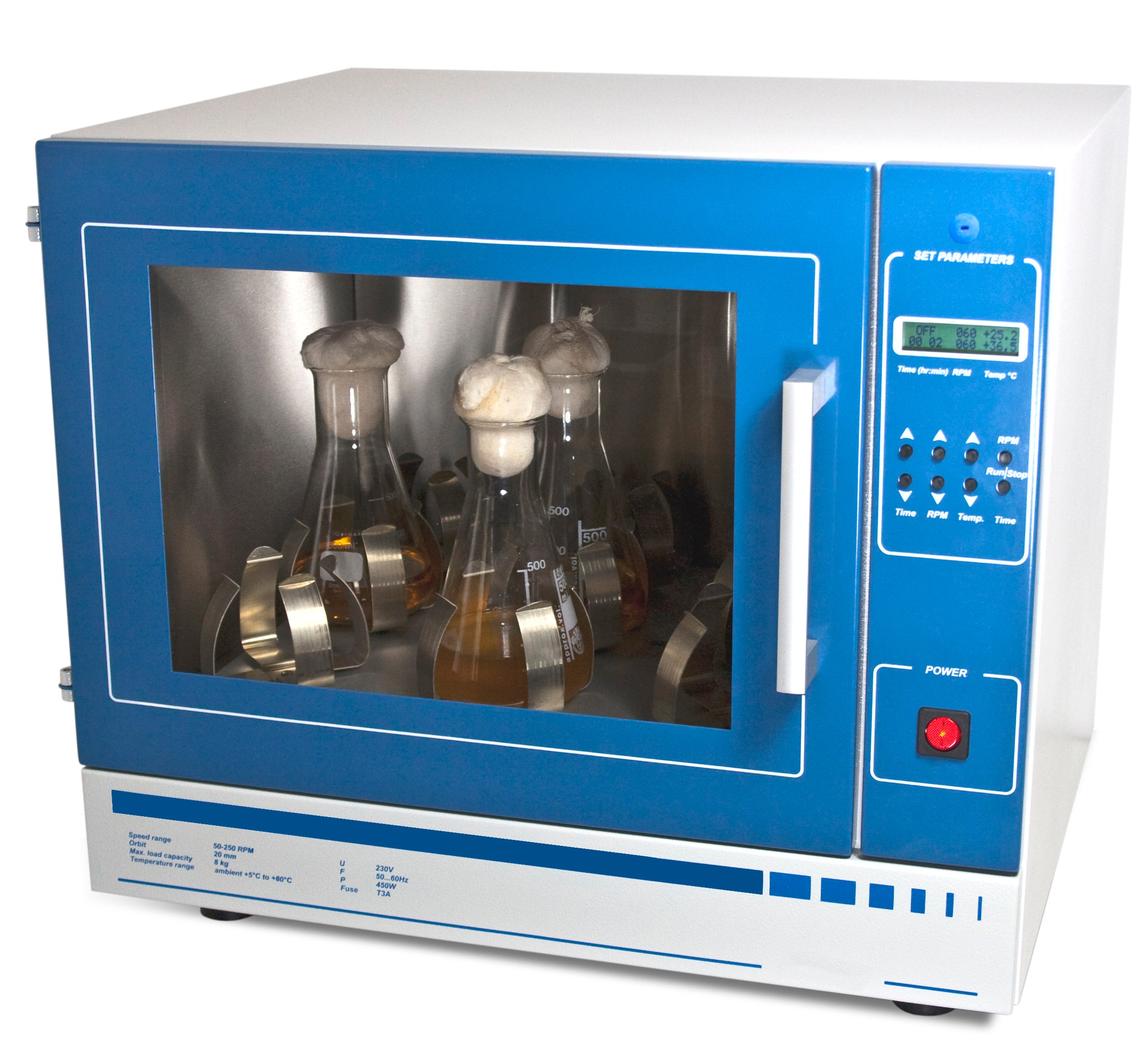

ES-80 Shaker-Incubator

$9,157.00
$9,157.00
Shipping calculated at checkout.

Orbital Shaker-Incubator ES-80 for biotechnological and pharmaceutical laboratories is a professional category equipment designed for the cultivation of micro organisms, cells and eukaryotic cells including animal, plant and insect cells.

Stable and reliable orbital shaker-incubator for vigorous or even mixing and incubation of samples in a variety of flasks and vessels.

  • Digital control of time, temperature and shaking speed for accuracy and repeatability
  • Variable speed: 50 to 250 rpm
  • Temperature range: 25 to 80°C
  • Load up to 8 kg
  • Interchangeable platforms for shaking/incubating different vessels
  • Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
  • Robust, compact construction with stainless steel inside chamber
  • Equipped with direct drive shaking system for reliable, long-term operation
  • Simple to programme time, - 1 minute to 96 hours or non-stop
  • State-of the art motor, thermal insulation materials and temperature PID-control decreases the energy consumption

‍

Specification Details
Dimensions (h x d x w) 510 x 525 x 590 mm
Temperature range +25 to 80°C
Temperature control range 0.1°C
Stability 0.5°C
Temperature accuracy —
Mixing speed control range —
Load capacity 8 kg
Display 2 line, 16 character LCD
Orbit diameter 20 mm
Internal working dimensions (with installed platform) (d x w x h) 450 x 390 x 300 mm
Timer 1 minute to 96 hours
Power consumption - 230V 450 W (2 A)
Power consumption - 120V —
Nominal operating voltage 230 V (50–60 Hz)
Speed control range 50–250 rpm (increments of 10 rpm)

Life sciences:

  • Suitable for growing cell cultures in flasks
  • Extracting tissue samples at physiological temperatures, and sample preparation processes
  • Mixing of biological liquids as well as the incubation and cultivation of biological liquids
  • Growing e-coli
  • Bioluminescence preparation
Product Manuals
Technical Datasheets

No downloads available

Further Information
PP-400

Flat platform with non-slip rubber mat Dimensions: 360 x 400mm

P30-100

Platform with clamps for 30 x 100-150ml flasks

P16-250

Platform with clamps for 16 x 250-300ml flasks

P9-500

Platform with clamps for 9 x 500ml flasks

P6-1000

Platform with clamps for 6 x 1000ml flasks

SPML

Double-sided adhesive strips for use with the UP-168 universal platform

UP-168

Universal spring clamp platform. Spring clamps sold separately. Compatible with PSU-20i

TR-21-50

Adjustable tilt test tube rack for 21x 50ml tubes - for use with the UP-168 universal platform

TR-44-15

Adjustable tilt test tube rack for 44x 15ml tubes - for use with the UP-168 universal platform

FC-50

Clamp stainless steel for flask 50 ml for use with UP-168 universal platform

FC-100

Clamp stainless steel for flask 100 ml for use with UP-168 universal platform

FC-250

Clamp stainless steel for flask 250 ml for use with UP-168 universal platform

FC-500

Clamp stainless steel for flask 500 ml for use with UP-168 universal platform

FC-1000

Clamp stainless steel for flask 1000 ml for use with UP-168 universal platform

FC-2000

Clamp stainless steel for flask 2000 ml for use with UP-168 universal platform
