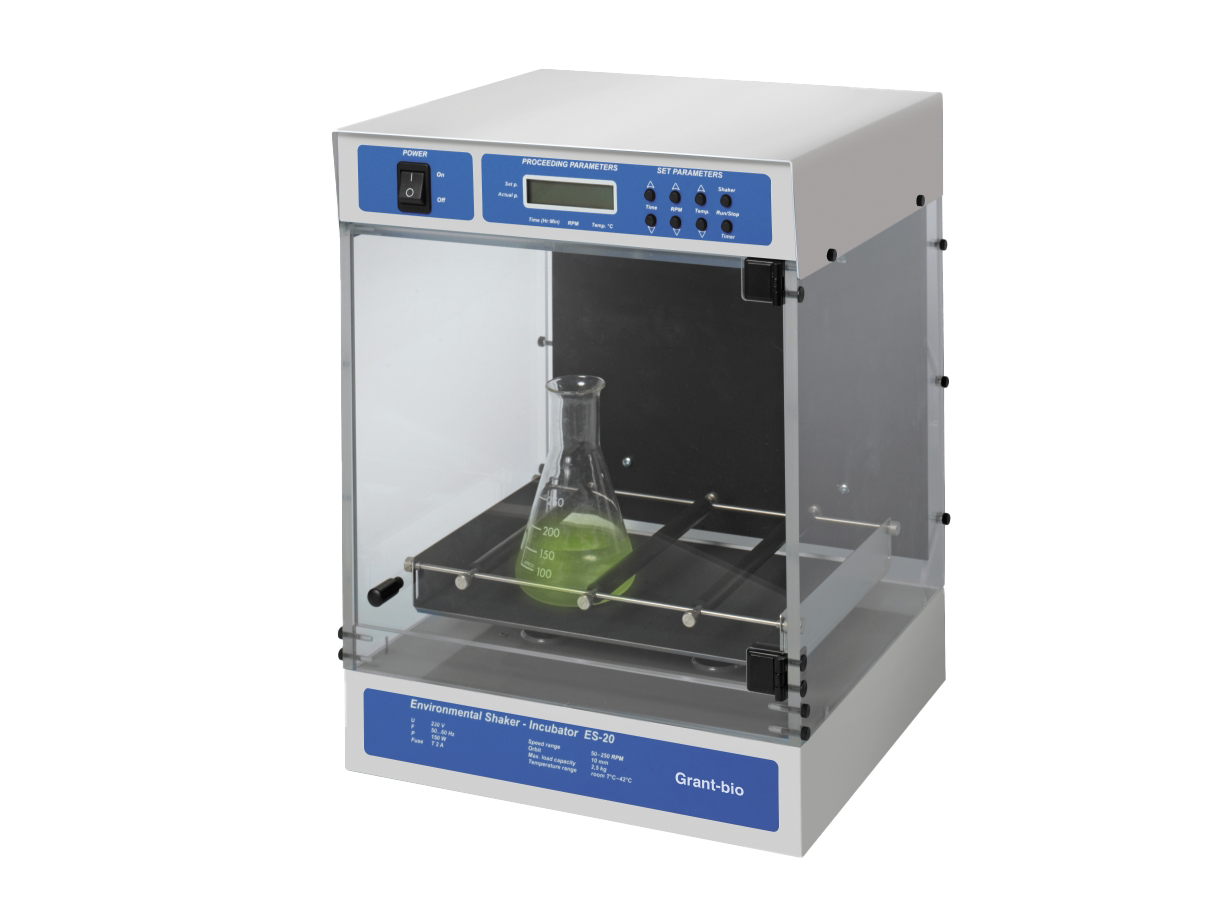

ES-20 Compact Shaker-Incubator

$4,188.00
$4,188.00
Shipping calculated at checkout.

The ES-20 is a compact desktop shaker-incubator used for mixing of biological liquids as well as incubation and cultivation of biological liquids according to the program set by the operator.

The Grant bio ES-20 is a versatile programmable bench-top shaker-incubator for mixing and incubating biological fluids, samples, cell cultures and tissues.

  • Digital control of time, temperature and shaking speed for accuracy and repeatability
  • Variable speed: 50 to 250 rpm
  • Temperature setting range: 25 to 42°C
  • Load up to 2.5 kg
  • Interchangeable platforms for shaking/incubating different vessels
  • Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
  • Equipped with direct drive shaking system for reliable, long-term operation
  • Simple to programme time, temperature and shaking speed using clear 2-line 16 character LCD
  • Option of four easily interchangeable platforms for a wide range of different
  • Robust, compact construction with clear 7mm thick Plexiglass panels for easy visibility of chamber contents
  • Designed for easy assembly / disassembly - easy to move from one location to another

‍

Specification Details
Dimensions (h x d x w) 435 x 340 x 340 mm
Temperature range +25 to 42°C
Temperature control range 0.1°C
Stability 0.5°C
Load capacity 2.5 kg
Display 10 mm
Internal working dimensions (d x w x h) 260 x 300 x 250 mm (with installed platform)
Timer 1 minute to 96 hours
Power consumption - 230V 170 W (1.6 A)
Power consumption - 120V 160 W (0.7 A)
Nominal operating voltage 120 or 230 V (50/60 Hz)
Weight 41.1 kg
Speed control range 50–250 rpm (increments of 10 rpm)

The ES-20 is a versatile shaker-incubator ideal for growing cell cultures in flasks and other vessels and for other general sample preparation applications.

Product Manuals
Technical Datasheets

No downloads available

Further Information

No downloads available

P12-100

Platform with clamps for 12 x 100-150ml flasks/beakers Dimensions: 250 x 190mm

PP4

Flat platform with non-slip rubber mat for Petri dishes and culture flasks Dimensions: 219 x 219mm

P6-250

Platform with clamps for 6 x 250-300ml flasks/beakers Dimensions: 250 x 190mm

PUP-12

Universal platform, with adjustable bars. Dimensions: 270 x 195mm HB-200 extra holding bars

P16-88

Platform with spring holders for up to 88 tubes, 30mm diameter
