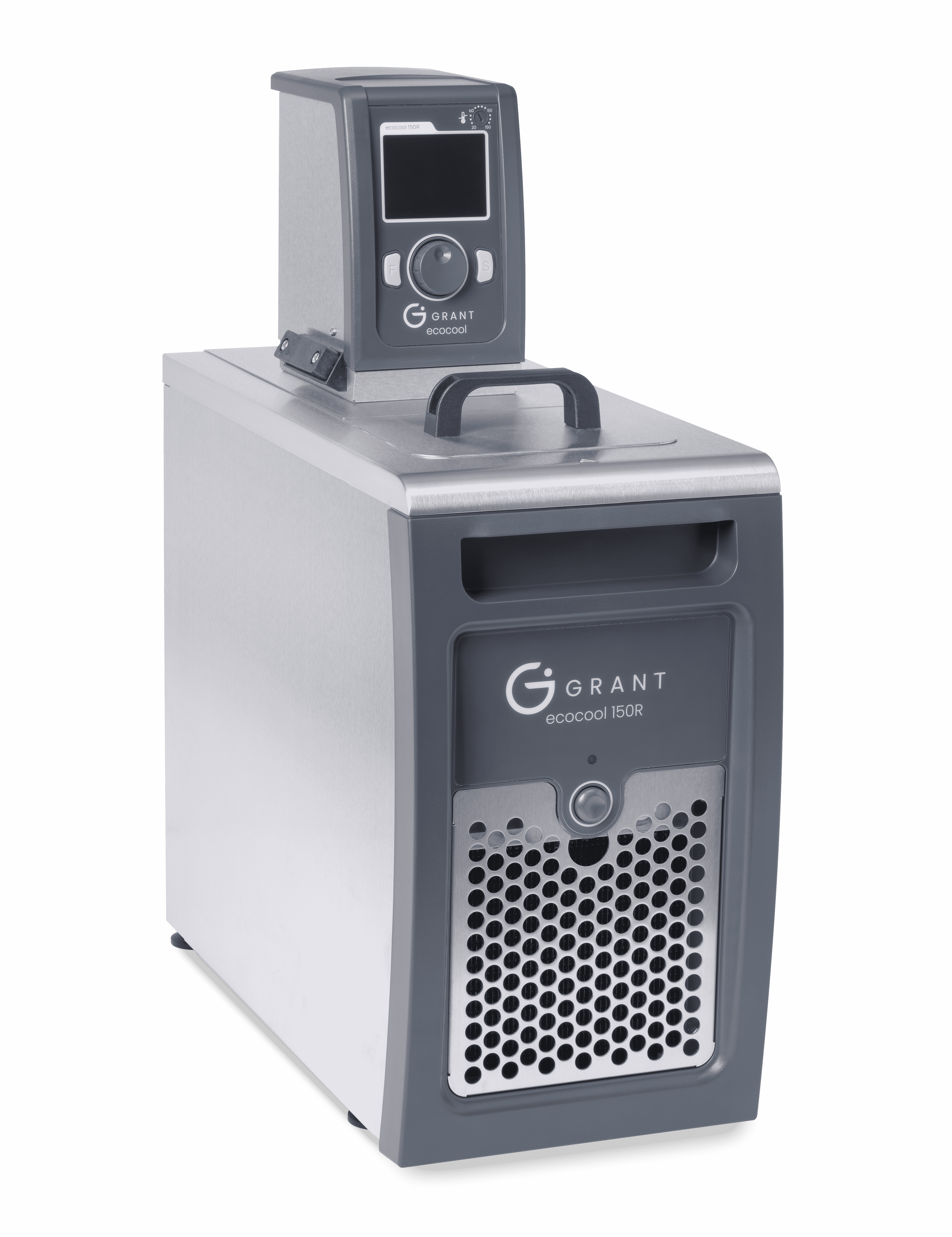

ecocool Refrigerated Circulating Baths
- Regular price
- $5,314.00
- Sale price
- $5,314.00
- Regular price
-
Shipping calculated at checkout.
A new range of innovative, eco-friendly, refrigerated and heating circulating baths offering significant running cost savings whilst delivering powerful cooling.
| Specification | Unit | Ecocool 100R | Ecocool 150R |
|---|---|---|---|
| Dimensions | h x d x w mm | 630 x 490 x 240 | 630 x 490 x 240 |
| Capacity | L | 4.5 | 5.5 |
| Weight | kg | 22 | 24 |
| Temperature range | °C | -20 to 100 | -30 to 150 |
| Temperature stability | ±°C | 0.05 | 0.02 |
| Refrigerant | R290 | R290 | |
| Flow rate (max) | L/min | 17 | 14 - 22 (adjustable) |
| Pump pressure (max) | mbar | 250 | 530 |
| Tank volume | L | 4.5 | 5.5 |
| Tank opening (h x w) | mm | 120 x 150 | 120 x 150 |
| Min/Max liquid level | mm | 105/140 | 160/190 |
| Calibration points | 2 | 5 | |
| Cooling power (typical) | @ 20°C | 250 W | 450 W |
| @ 0°C | 200 W | 350 W | |
| @ -10°C | 100 W | 300 W | |
| @ -20°C | 50 W | 200 W | |
| Programs | - | 1 x 30 segments via Labwise™ | |
| Communication interface | - | USB | |
| Temperature probe socket | - | 6 pin mini DIN | |
| Display | 4 digit LED | Full colour QVGA TFT | |
| Languages | - | 5 (EN, FR, DE, IT, ES) | |
| Timer | 1 min to 99 hrs 59 mins | 1 min to 99 hrs 59 mins | |
| Temperature presets | 3 | 3 | |
| Alarms | High | High and low | |
| Electrical power (max) | 120V/230V | 2160/2070 (60/50 Hz) | 2280/2760 (60/50 Hz) |
| Safety | Adjustable over temperature cut-out | Adjustable over temperature cut-out | |
| Ready to use kits | Assembled and supplied with standard tubing, insulation, clips and connectors | Assembled and supplied with standard tubing, insulation, clips and connectors | |
| Optional software | - | • |
