DEN-1 and DEN-1B densitometers

$1,273.00
$1,273.00
Shipping calculated at checkout.

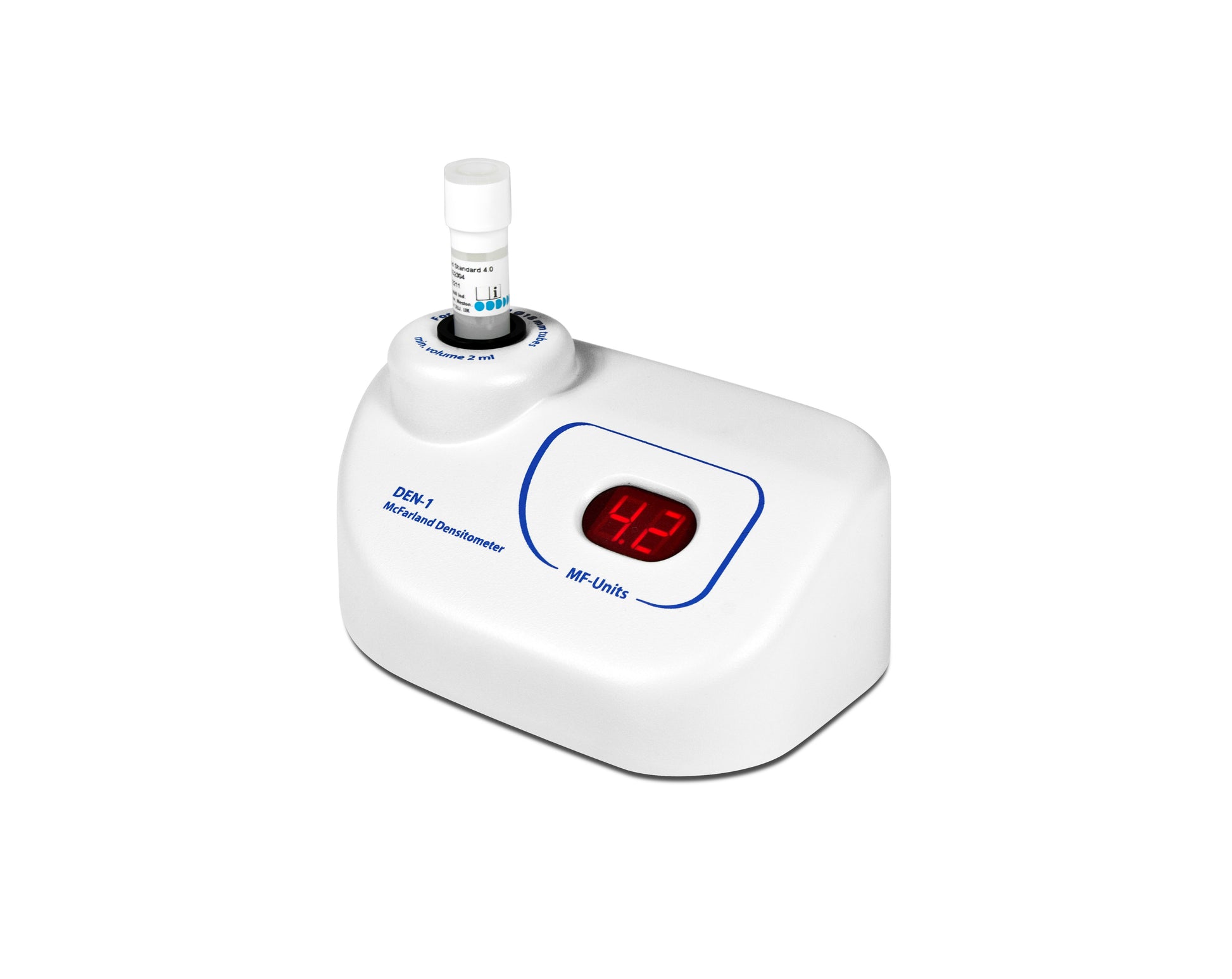

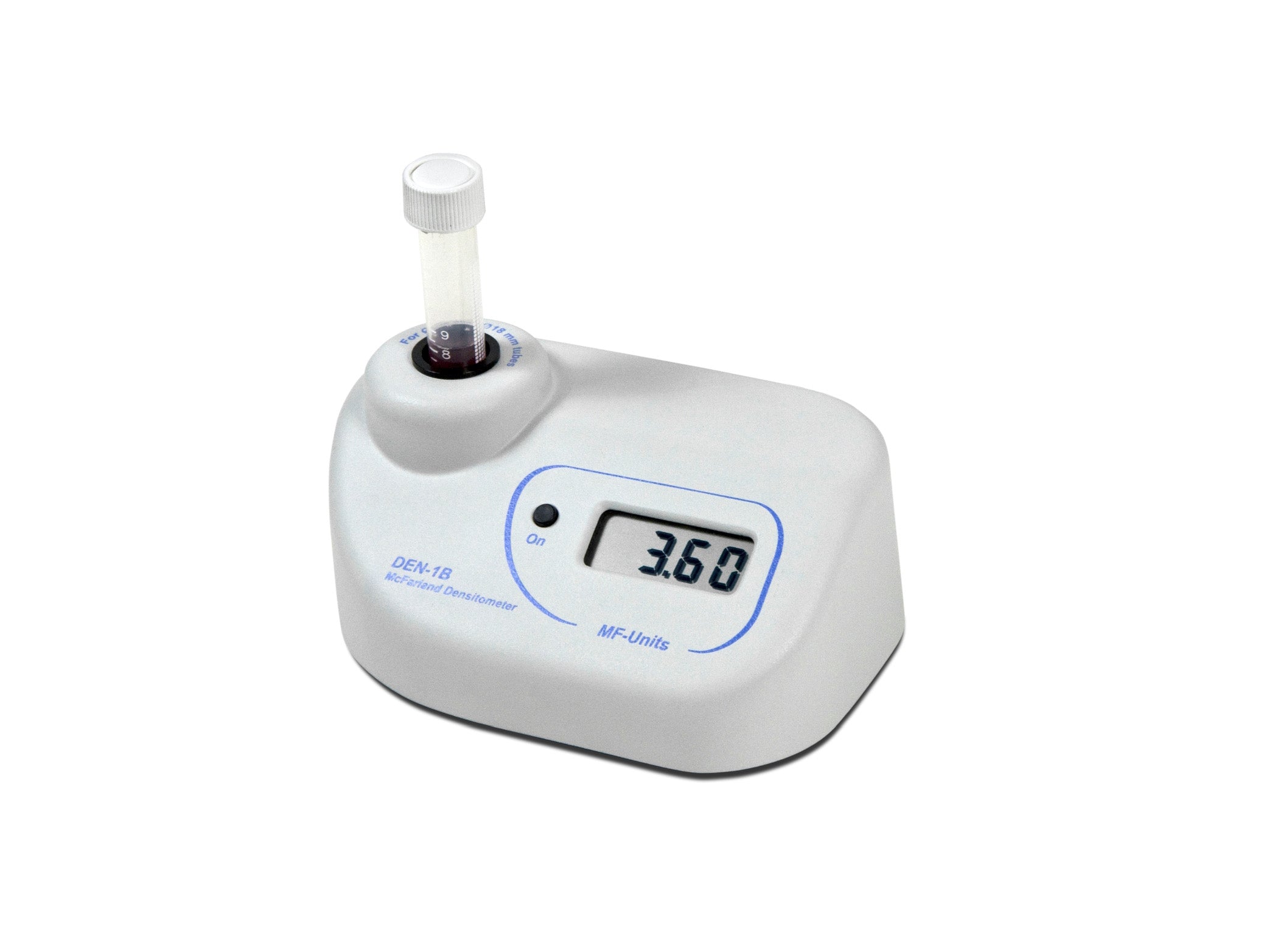

The Grant bio DEN-1 and DEN-1B are a compact benchtop densitometers (suspension turbidity meter) for measuring turbidity of cell suspensions in a variety of life science applications.

The densitometers are designed, and factory calibrated to measure turbidity in the range of McFarland units. For DEN-1 and DEN-1B it is 0.00 to >15.00 McFarland units with a small standard deviation.

  • Measurement range: McFarland units 0.00 to >15.00
  • Measurement time : 1 second
  • Precision: ±3%
  • Readings, conveniently shown in McFarland units, are clearly visible on the bright LED display
  • Factory calibrated - retains calibration without power supply
  • Can be user calibrated with commercial standards or cell suspensions prepared in the laboratory
  • Designed for tubes with an outer diameter of 18mm. 16 mm and 12mm tubes can also be accommodated by using the optional tube adaptor D-16 (included) or A-12 (sold separately)
  • Extremely compact design with small footprint and low profile - fits easily into the smallest workspace
  • DEN-1B - either battery powered by 3 x AA or via external power supply

Specification DEN-1 DEN-1B
Dimensions (h x d x w) 75 x 115 x 165 mm 75 x 115 x 165 mm
Temperature range +4 to 40ºC +4 to 40ºC
Light source LED LED
Wavelength 565 ±15 nm 565 ±15 nm
Range (McFarland units) 0.00 to >15.00 0.00 to >15.00
Precision ±3% ±3%
Measurement time 1 sec 1 sec
Tube diameter - external diameter 18 mm 18 mm
Tube diameter - with D16 adapter 16 mm 16 mm
Sample volume >2 ml >2 ml
Display / display resolution LED / 0.1 McF LED / 0.1 McF
Independent power supply – 3 x AA batteries
External power supply Input AC 120-230V, 50/60Hz | Output DC 12V Input AC 120-230V, 50/60Hz | Output DC 12V
Power consumption - 230V 1 W (0.08 A) 0.1 W (0.007 A)
Power consumption - 120V – –
Weight 0.7 kg 0.7 kg

Life science - typical applications include determining concentration of cells (bacterial and yeast cells) in the fermentation process, detecting the susceptibility of micro-organisms to antibiotics, identifying micro-organisms with various test systems, and measuring optical density at fixed wavelength.

Product Manuals
Technical Datasheets

No downloads available

Further Information

No downloads available

DEN MCF STDS

Set of liquid McFarland standards in 16mm ø glass tubes (0.5/1.0/2.0/3.0/4.0). Can be decanted into an alternative tube. Requires D16 adaptor.

DEN MCF STDS 12

Set of liquid McFarland standards in 12mm ø glass tubes (0.0/0.5/2.0/3.0). Requires A12 adaptor.

DEN MCF STDS 18

Set of liquid McFarland standards in 18mm ø glass tubes (0.5/1.0/2.0/3.0/4.0). No adaptor required.

DEN TUBE  16

Glass Test Tube 16x100mm. High borosilicate, PP Cap with silicone pad - 100pcs/box for use with DEN-1, DEN-1B & DEN-600

DEN TUBE 18

Glass Test Tube 18x100mm. High borosilicate, PP Cap with silicone pad- 100pcs/box for use with DEN-1 & DEN-1B

A12

12mm adapter for use with 12mm diameter tubes

D16

Spare tube adaptor for tubes with 16mm outer diameter

‍
