Controlled Rate Freeze Thaw - CRFT

Regular price: $32,000.00
Sale price: $32,000.00
Regular price

Shipping calculated at checkout.

Inquire at - orderenquiries@usa.grantinstruments.com

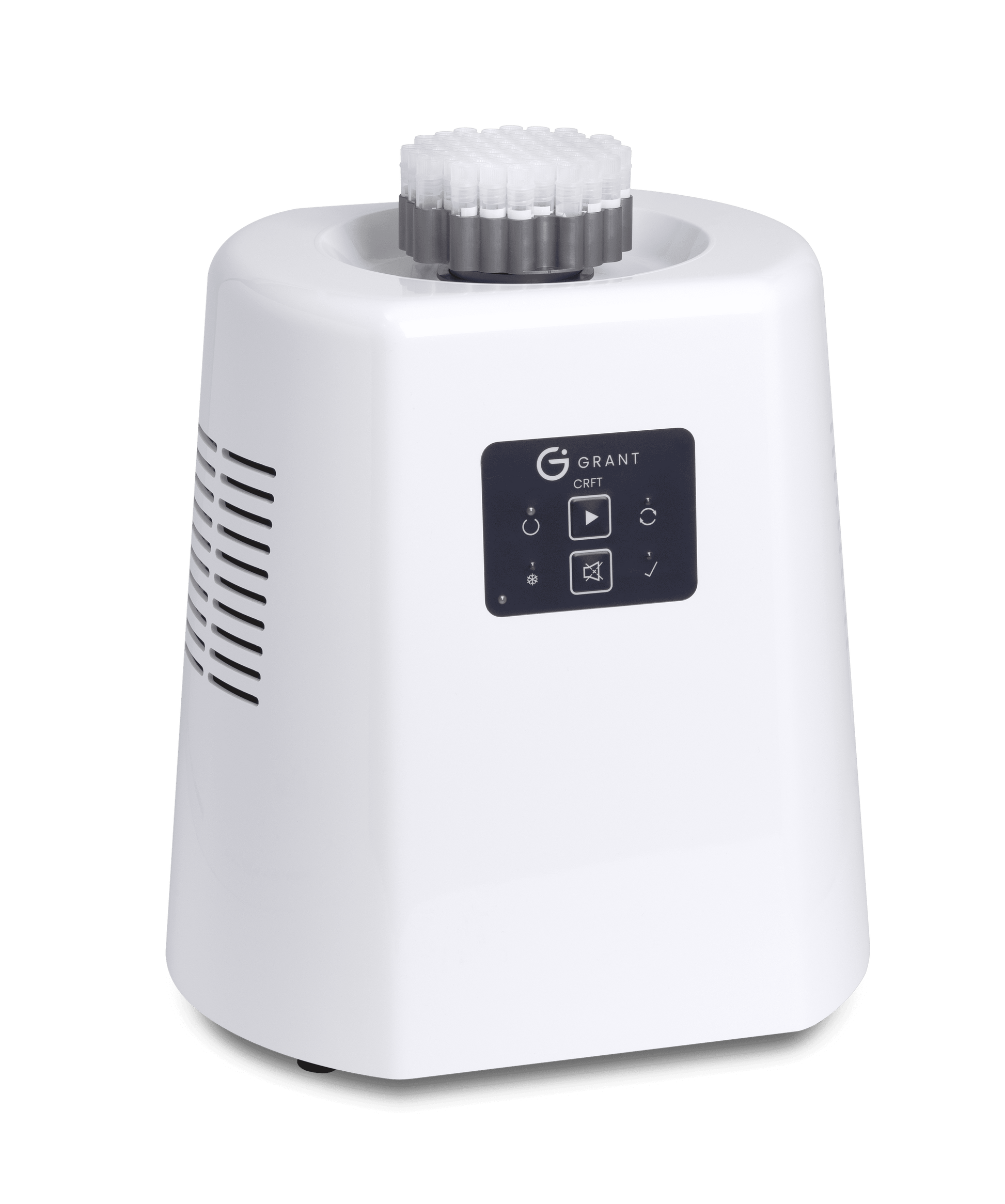

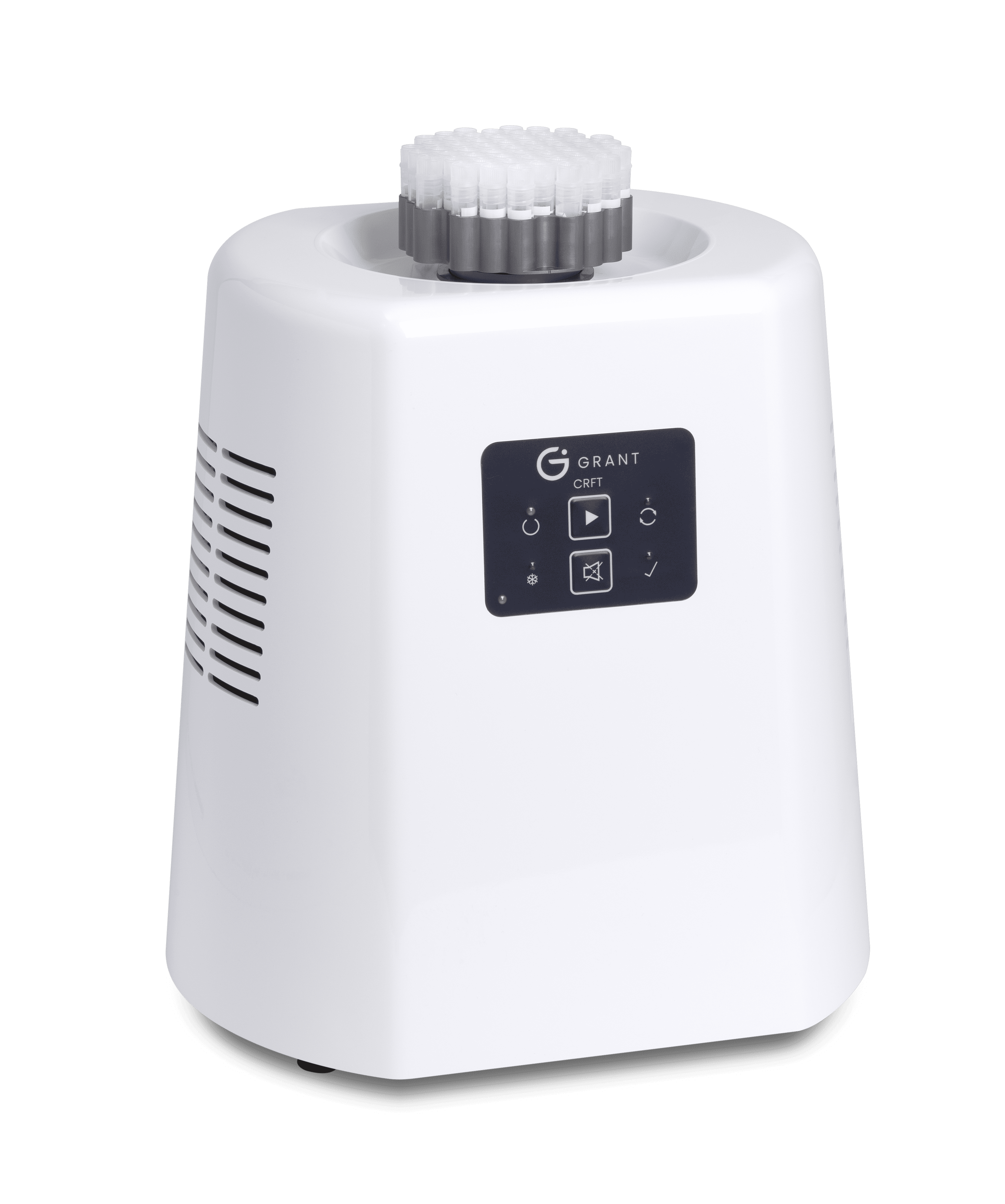

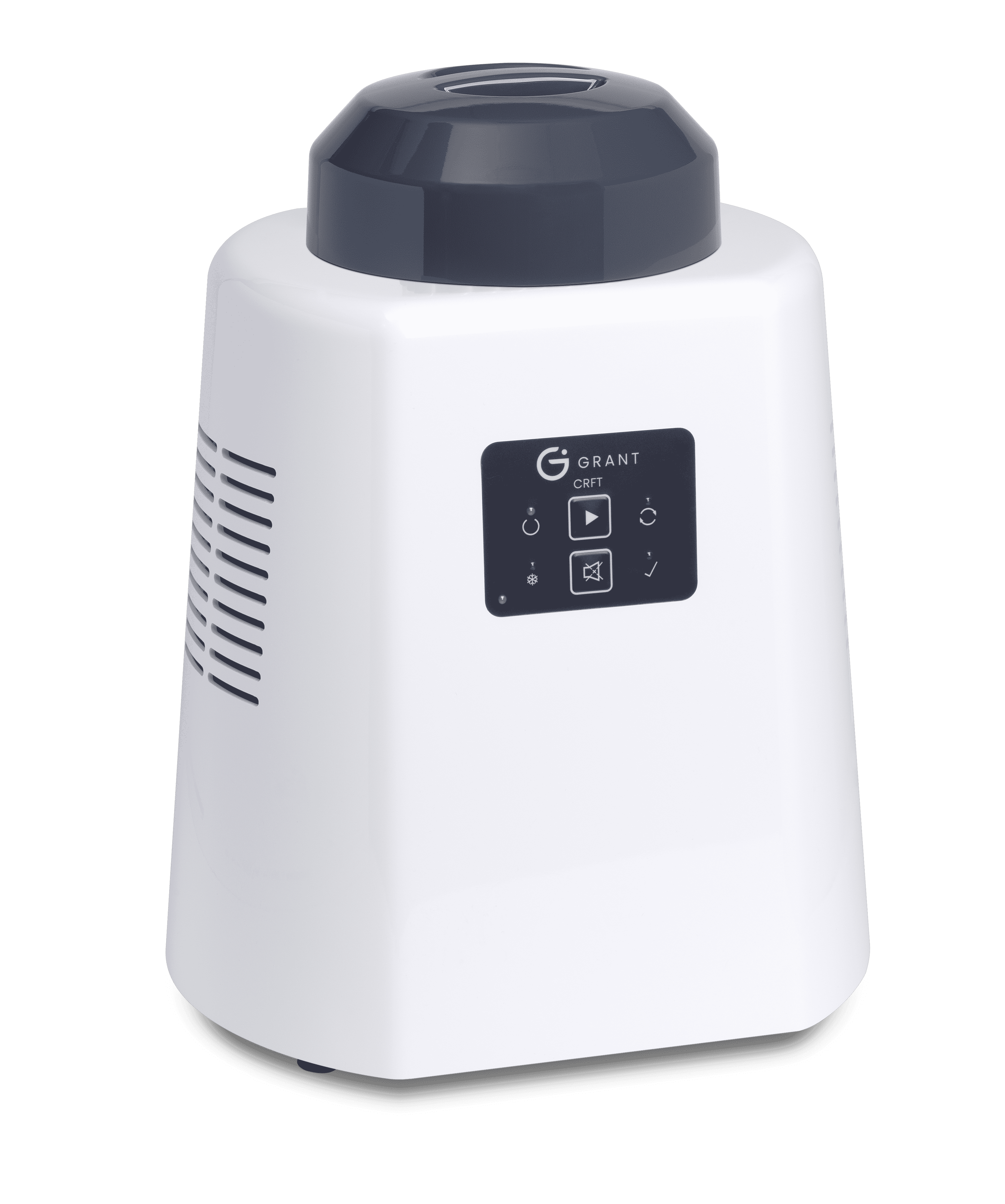

The Grant Controlled Rate Freeze Thaw (CRFT) is a liquid nitrogen free system offering precise, reliable temperature control for freezing and thawing applications.

It is ideal for applications including gamete cryopreservation, tissue culture, and stem cell research, biopharmaceuticals, vaccines, and cell therapies.

With its user defined programming, real-time data logging, and robust design, this system ensures consistent and repeatable results, minimising sample loss while maximising efficiency.

Key benefits include liquid nitrogen-free operation, low running costs, interchangeable heads for various sample types, and easy integration into automated systems, offering full flexibility for research or production environments.

Trusted by leading laboratories, the CRFT enhances productivity, reduces risk, and ensures optimal sample integrity.

Model:

Product variants:

Key features and benefits

Liquid nitrogen free for a safer cryopreservation approach, focussing on maximising cell survival rates.
Plug and go, no topping up required
Free of charge software allows you to design, track, export and report temperature profiles
Command protocols available for integration into automated setup
Programmability of profiles for fine tuning and control of heads. Offers accurate and repeatable control of freezing and thawing rates

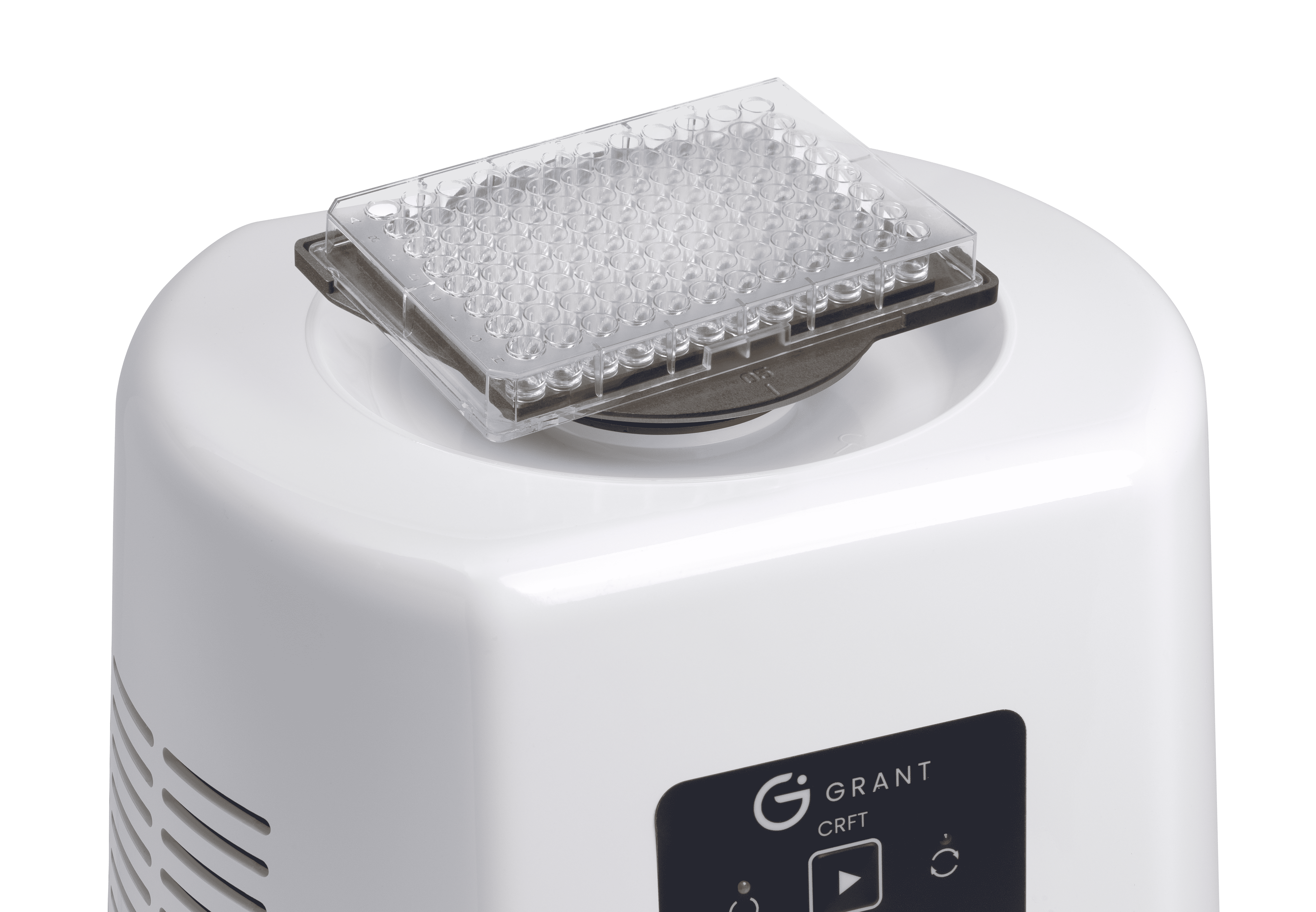

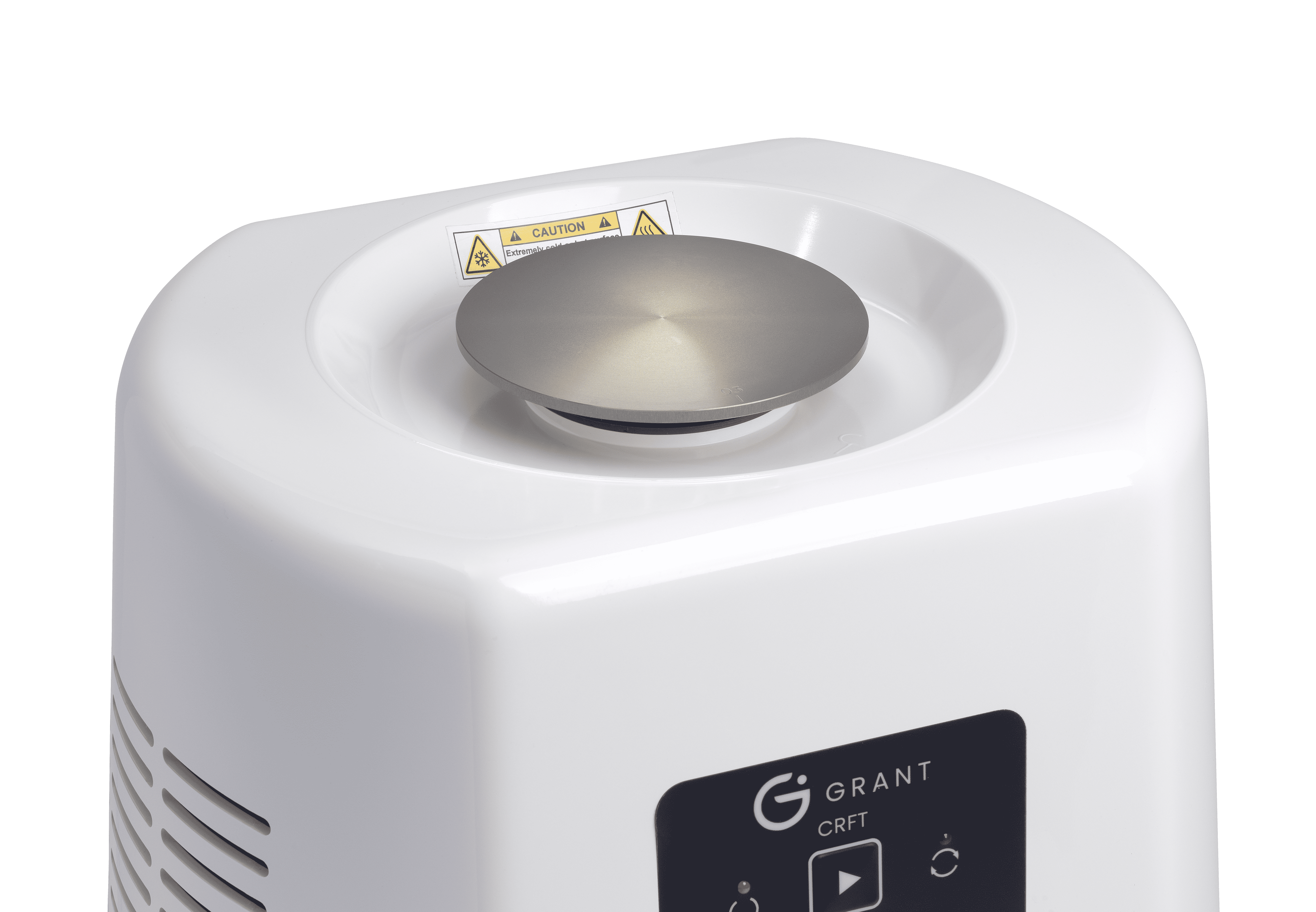

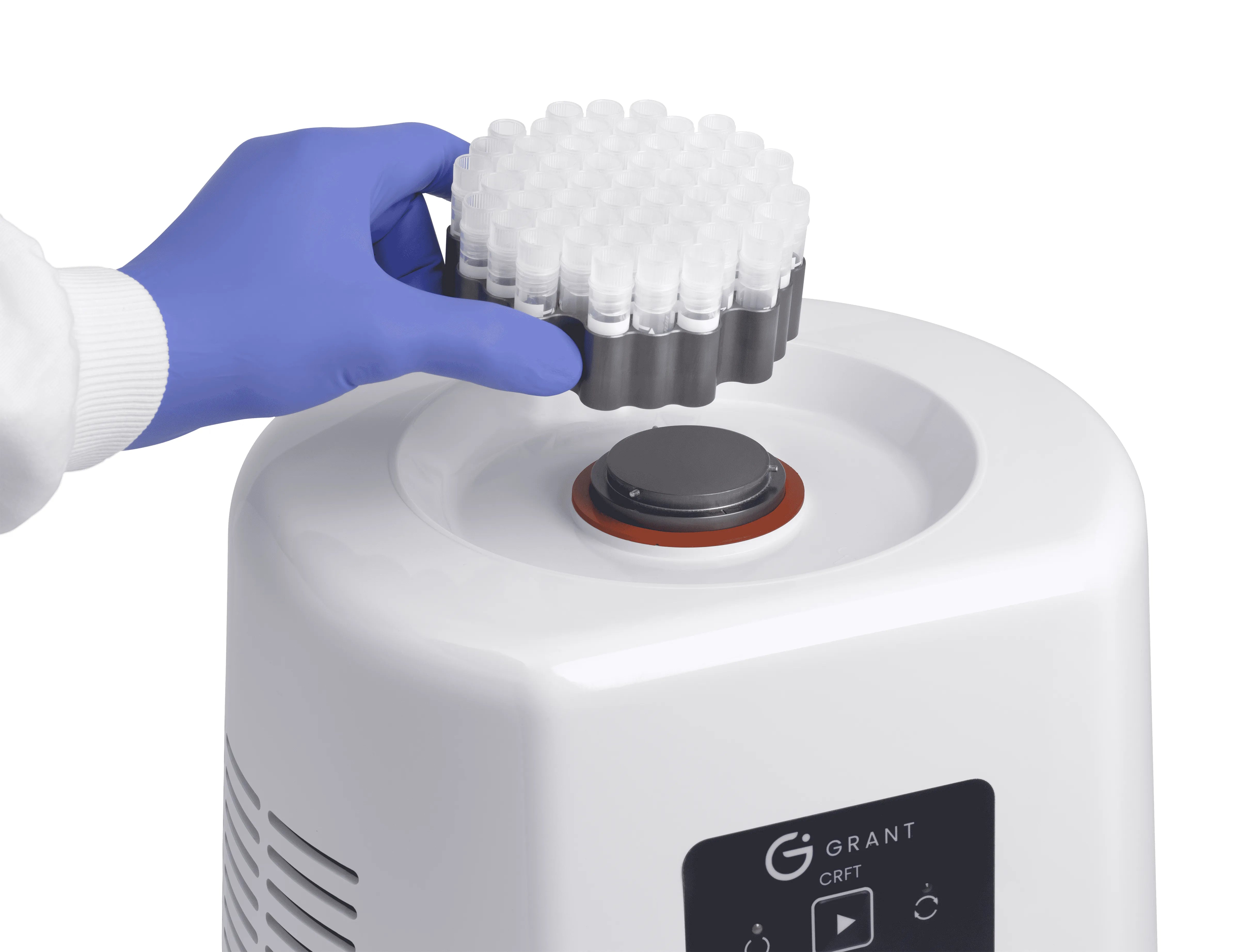

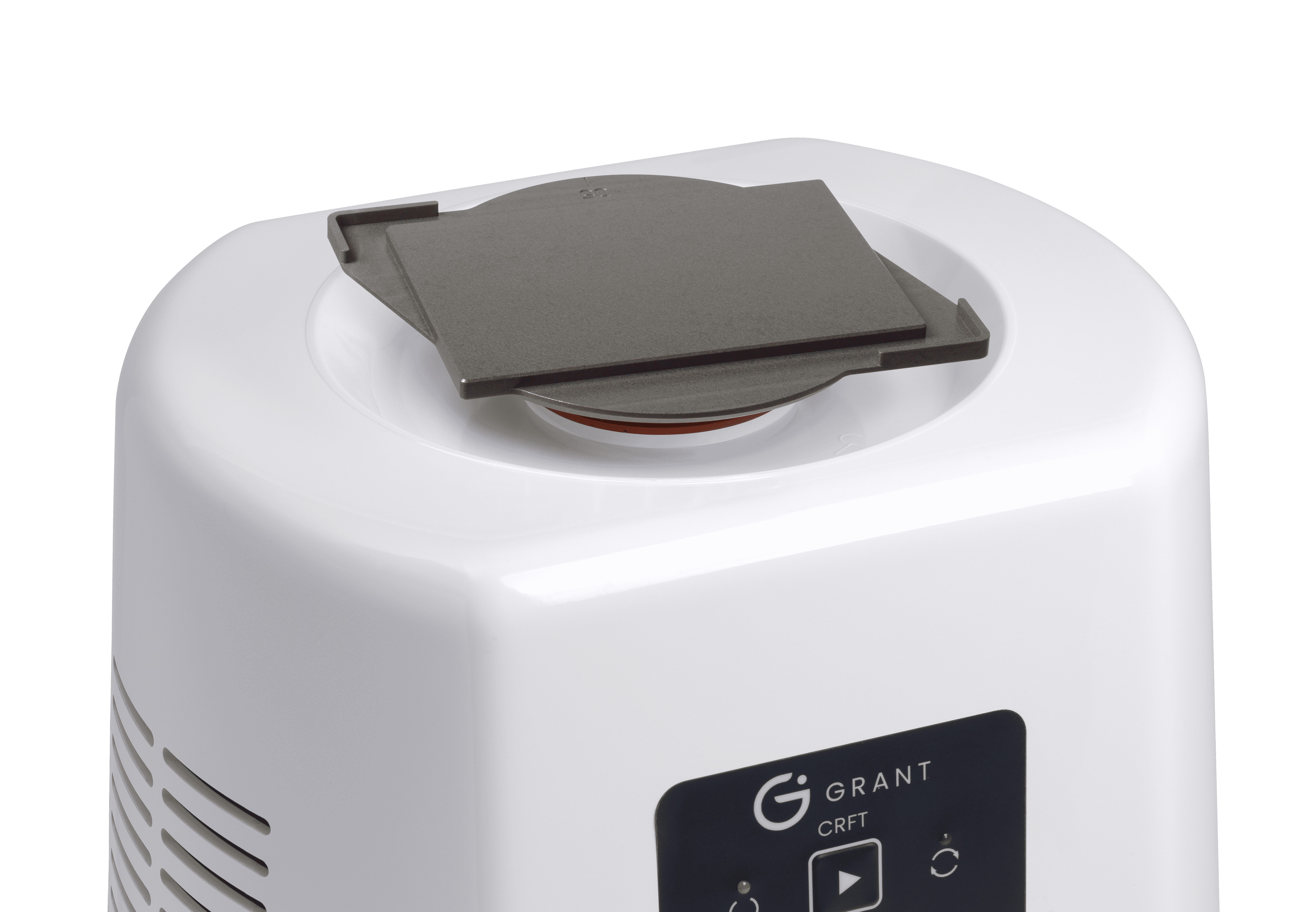

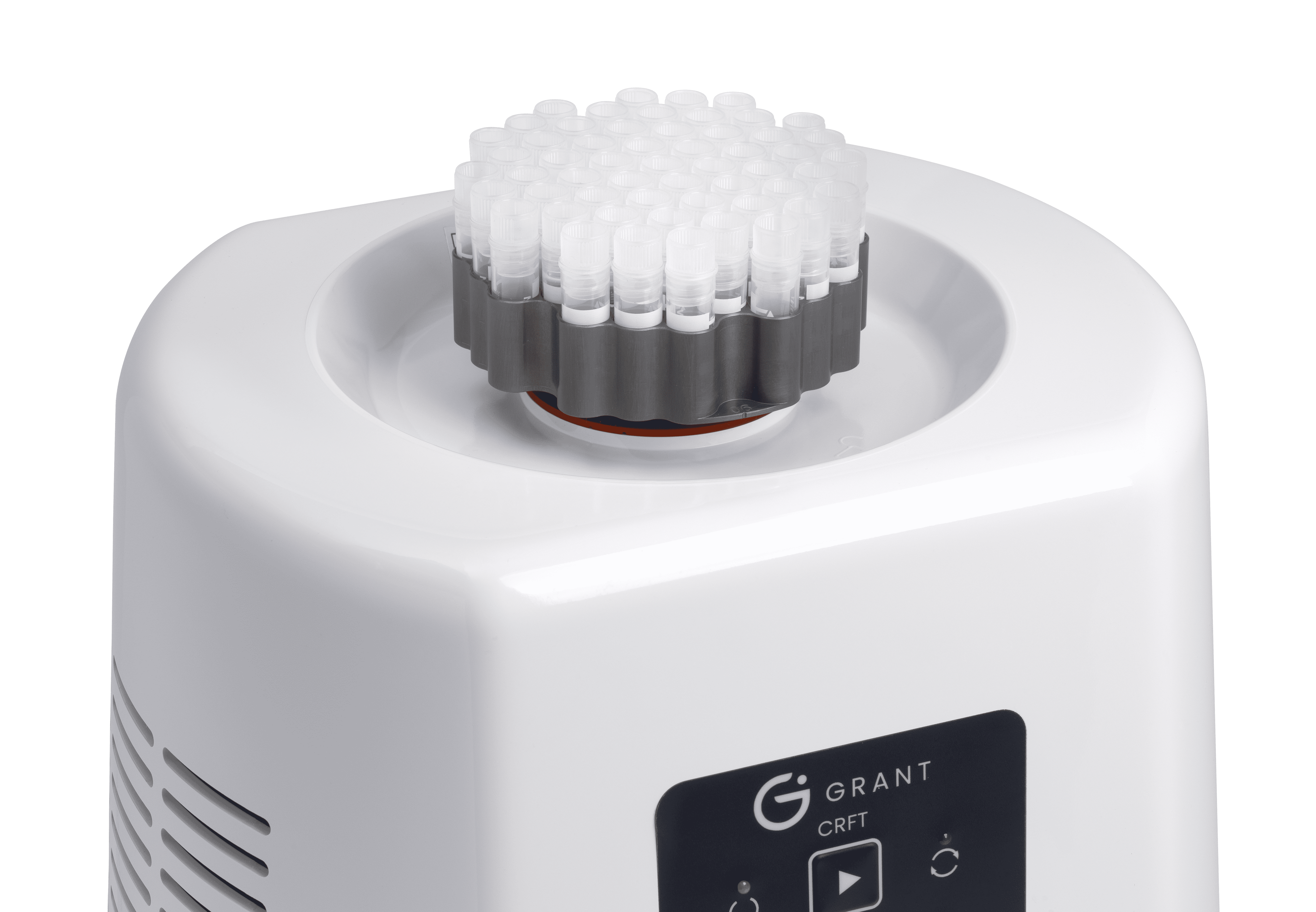

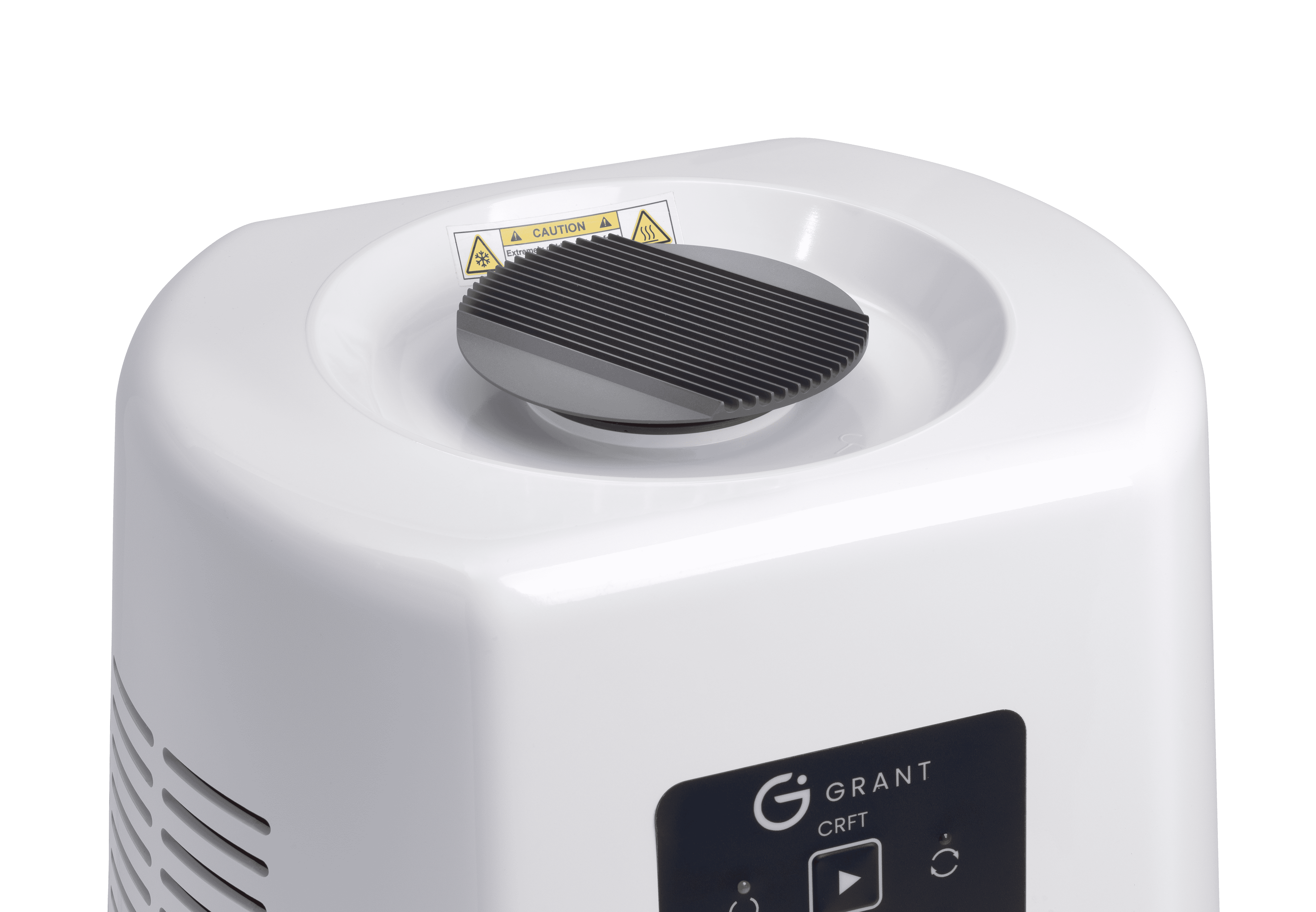

Interchangable heads for a wide range of consumables incl. Cryovials, straws, 96 well plates, flat plate
Custom heads options available upon request
Low running costs: estimated at 1% of liquid nitrogen-controlled rate freezing and runs on a 24V supply
Maximum temperature range of -100°C to 30°C*
Servicing and calibration options available

Specification	Details
Dimensions (mm) – wdh	345 x 290 x 380 (lid off) / 460 (lid on)
Weight (kg)	5kg
Max plate temp (°C)	30°C
Min plate temp (°C)	-100°C*
Temp accuracy	+/- 0.5°C
Temp stability	+/- 0.1°C
Temp uniformity	+/- 1.0°C Ref
Max cooling rate	10°C min/min
Max thawing rate	10°C/min from -100°C
Max temp stabilisation time	5 mins
Plug type	UK, EU or US

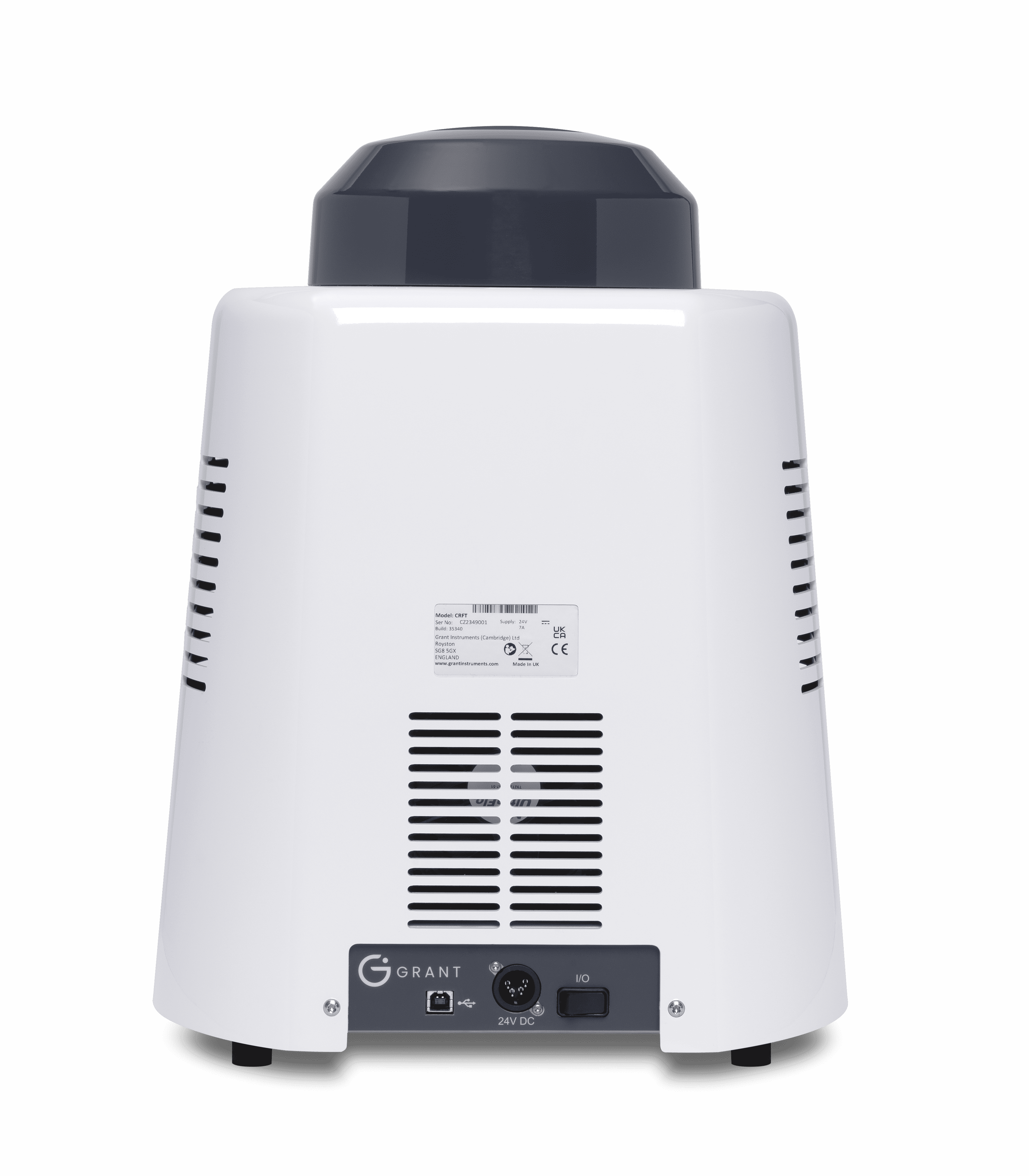

Power supply	100-240V, 50-60Hz (24V DC unit supply)
Warranty	2 years
