Grant block heating system with fixed block is designed for rapid and precise heating of microtubes up to 100ºC.
Digital temperature control for optimum precision
Heating range ambient + 5ºC to 100ºC
Powerful heater for rapid heat-up times - 25ºC to 100ºC in just 15 minutes, 25ºC to 37ºC in just 4 minutes
Stability ± 0.1ºC, uniformity ± 0.2°C
Heating block holds combinations of four microtube sizes simultaneously - up to a total of 49 tubes: 24 x 1.5/2.0 ml, 15 x 0.5 ml, 10 x 0.2 ml
Flexible tube sizes and rapid heat-up time enables swift change of application
Convenient integral timer for time-sensitive incubations
Sturdy, durable, easy-to-clean plastic construction; compact design with small footprint
2-line display for simple and precise setting of temperature/time and for monitoring current status during operation

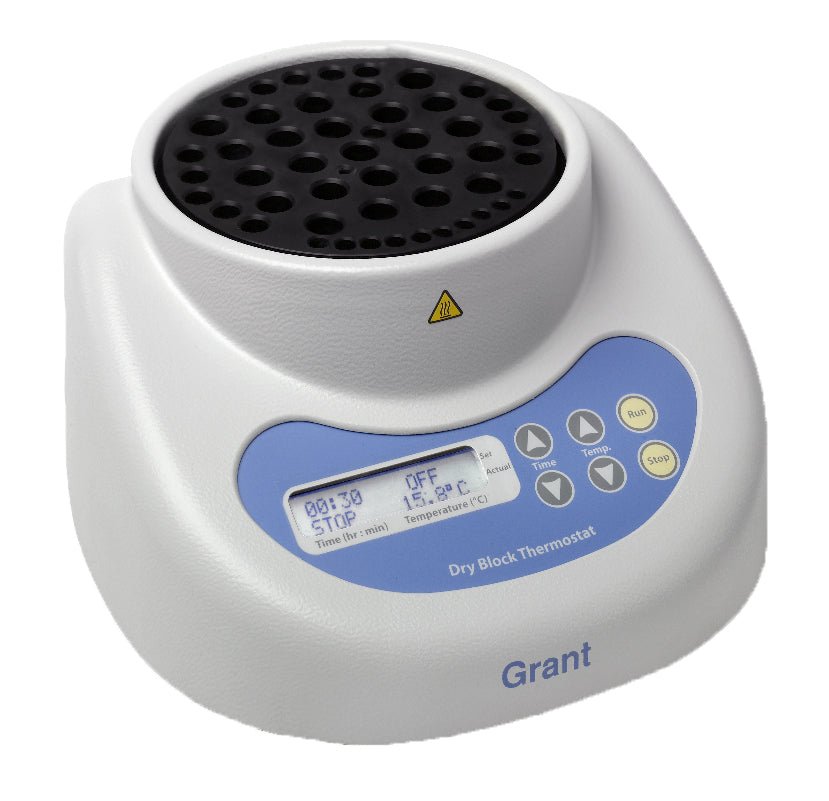

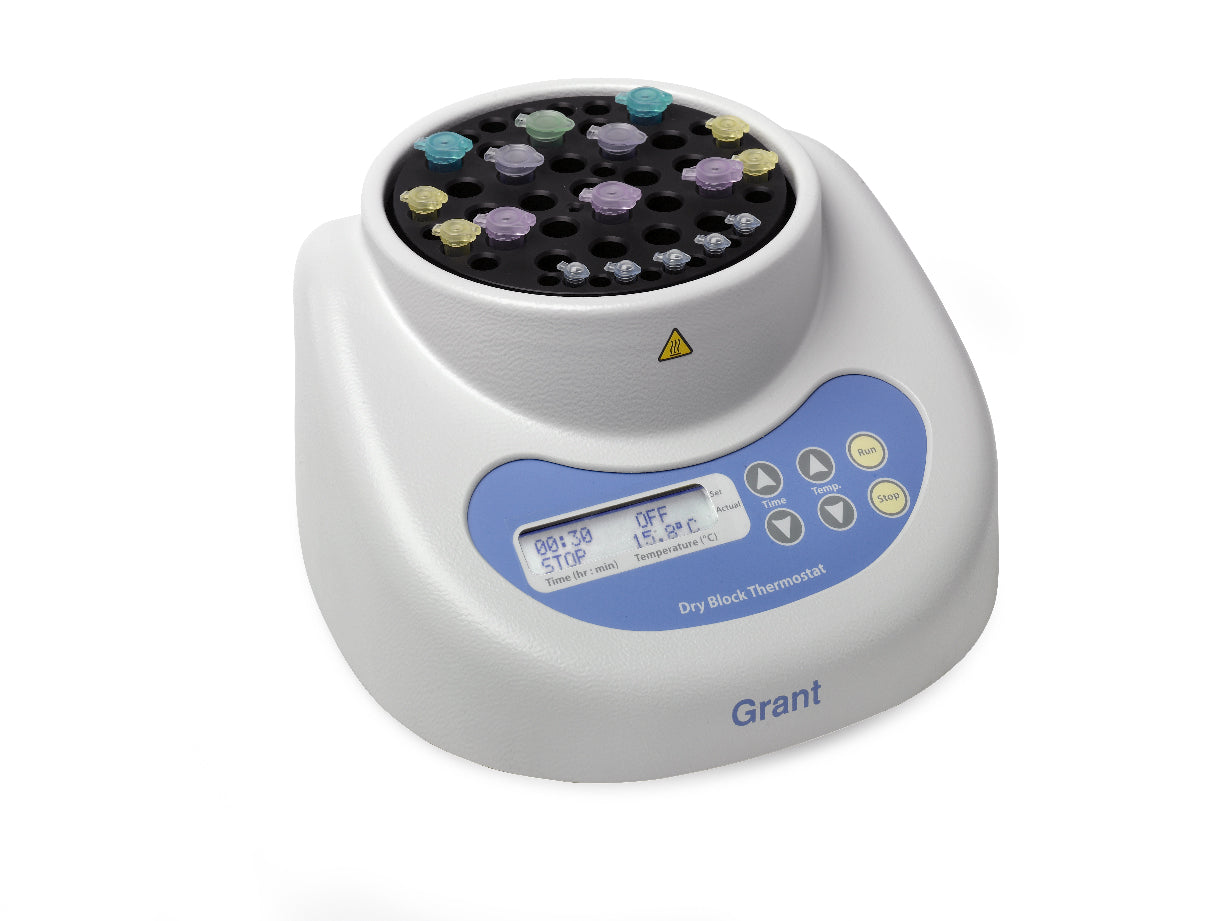

The Grant BTD is a compact and flexible digital dry block heating system ideal for the rapid and precise heating of microtubes up to 100ºC. The distinctive circular block holds a combination of four microtube sizes simultaneously, and rapid heat up enables swift change of application - for maximum flexibility. The aluminium block is housed in a compact, stylish plastic moulding, which is durable, sturdy and easy to clean.
Specification
Value
Dimensions (h x d x w)
115 x 230 x 210 mm
Temperature range
Ambient +5 to 100°C
Temperature setting range
25 to 100°C
Stability
0.1 ± ºC
Uniformity
0.1 ± ºC @ 37°C
Temperature display
2 line x 16 character LCD
Setting resolution
0.1°C
Heat up time
4 minutes
Heat up time
15 minutes
Timer
1 minute to 96 hours (increments of 1 minute)
Safety
Thermal fuse
Power consumption (230V)
200 W (0.87A)
Power consumption (120V)
200 W (0.87A)
Nominal operating voltage
120 or 230V (50/60Hz)
Weight
2.8 kg
Life-science/cancer research - DNA extraction incubations, DNA denaturation, PCR, ELISA and Western blotting, molecular biology
