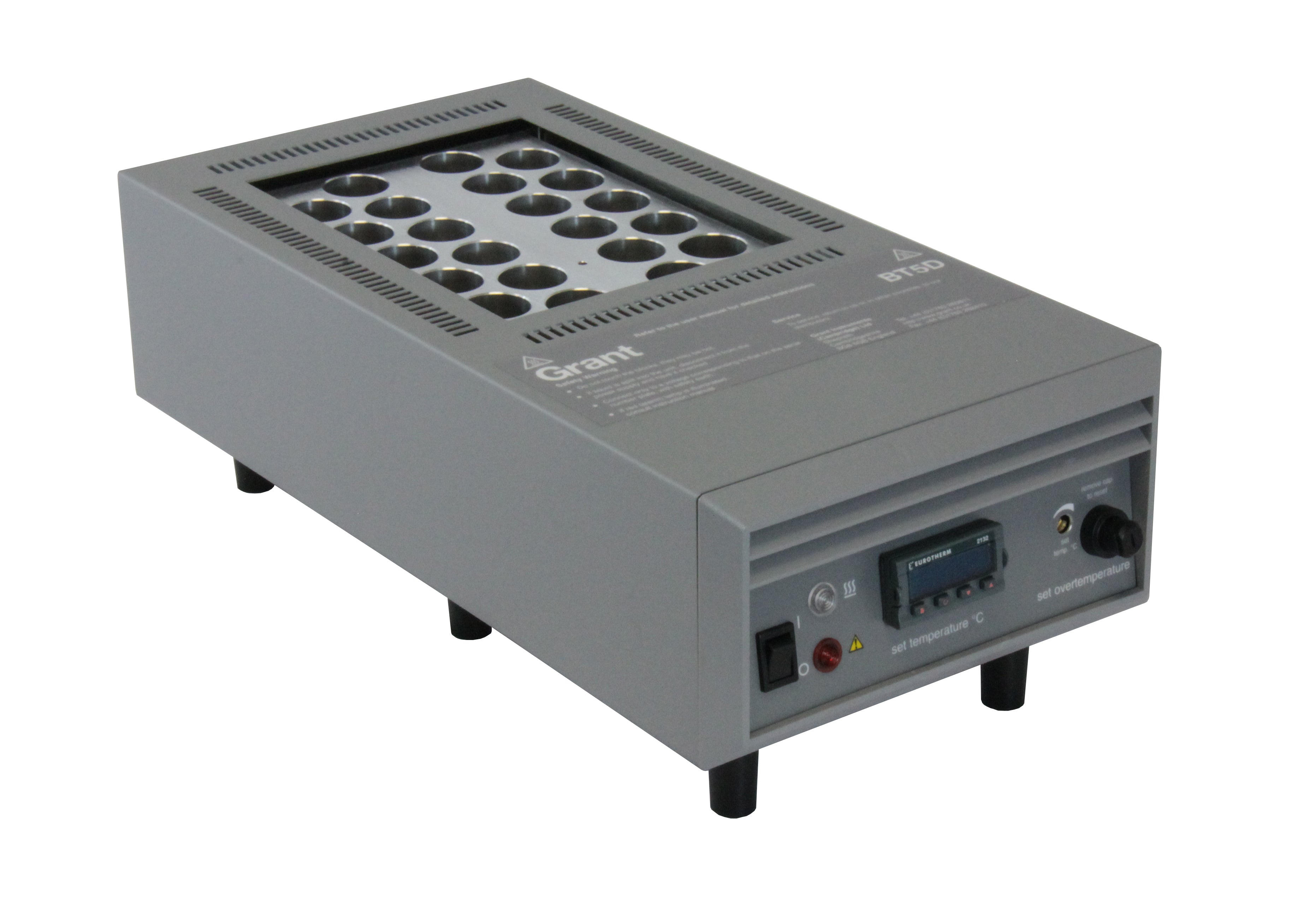

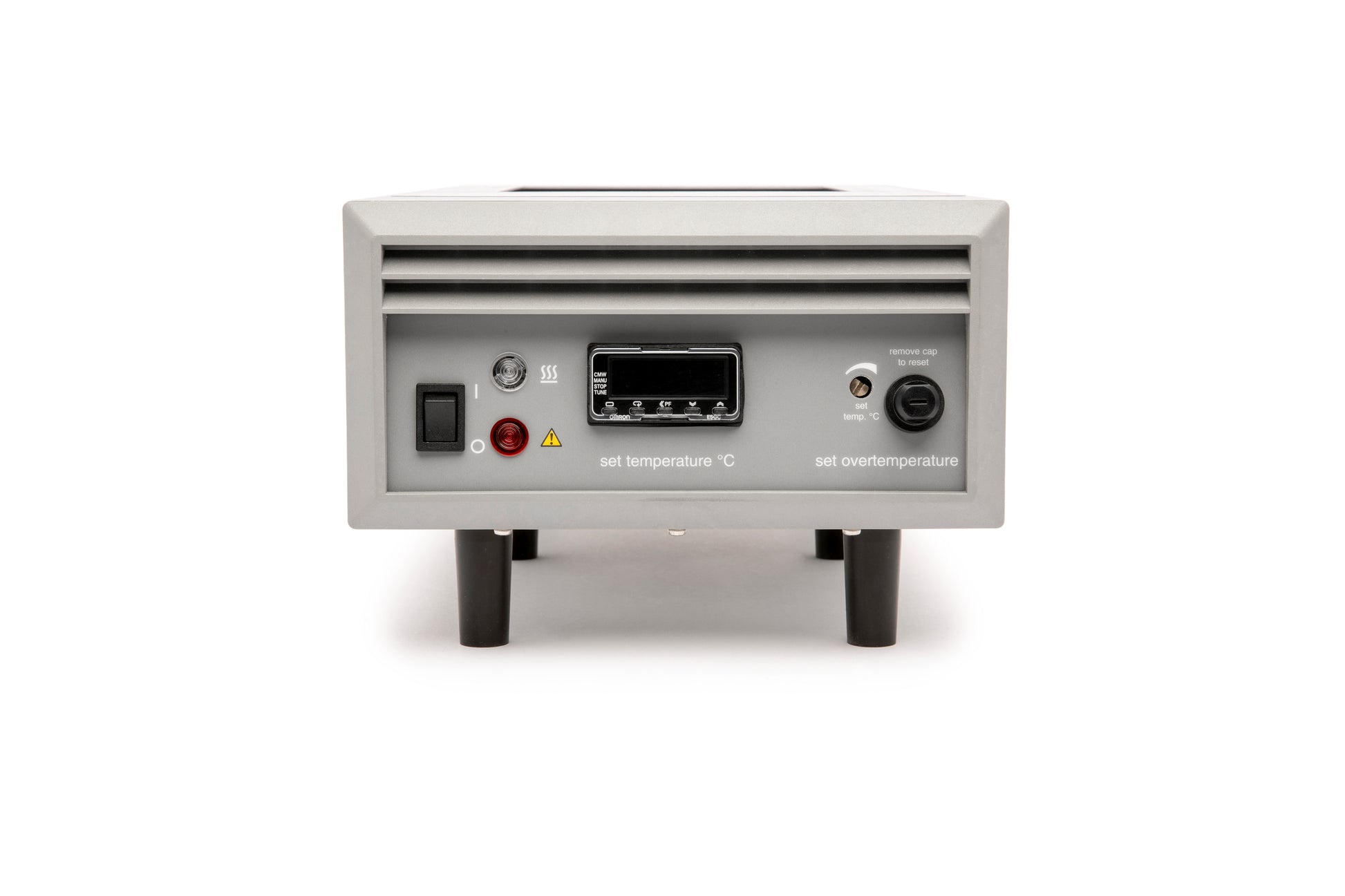

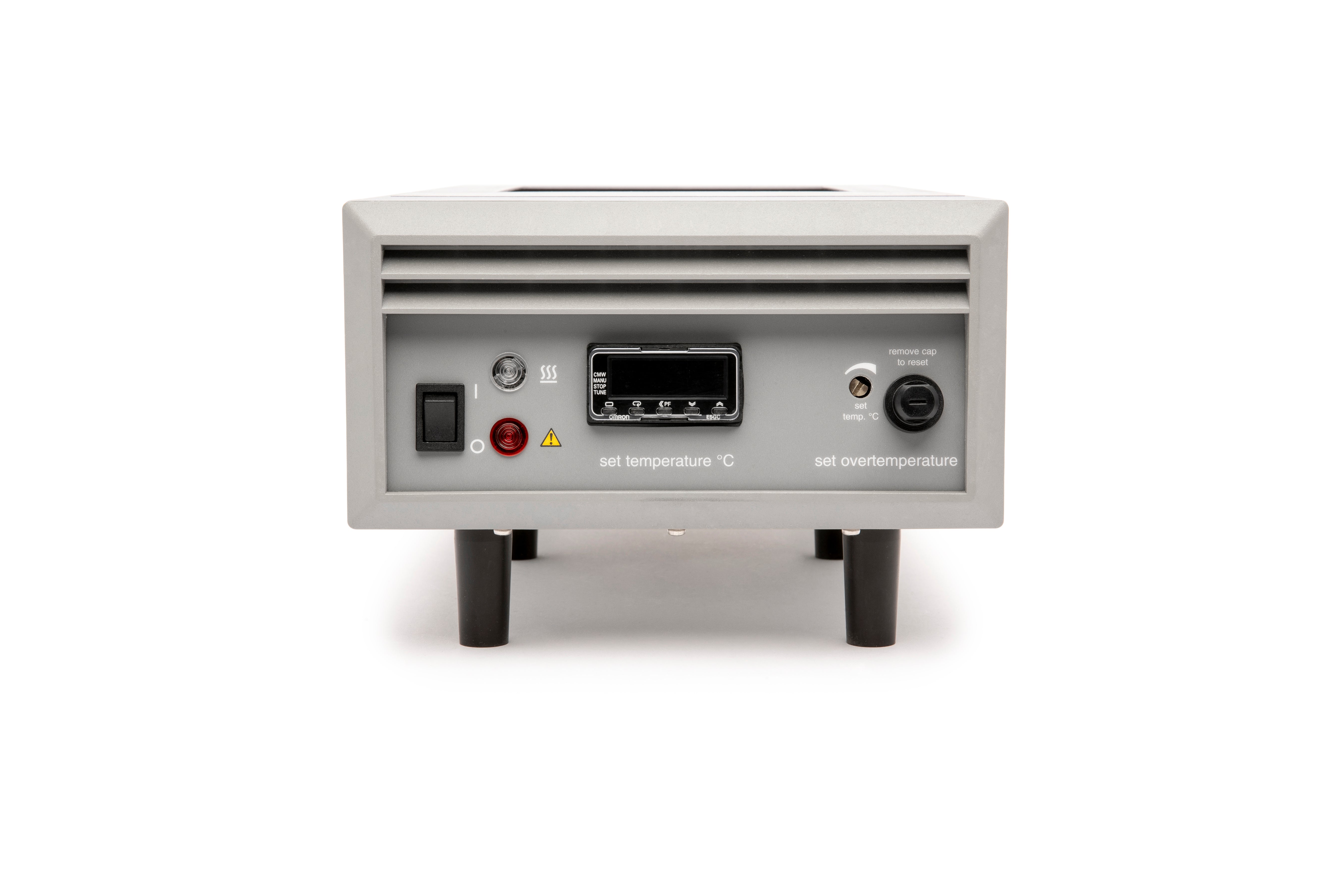

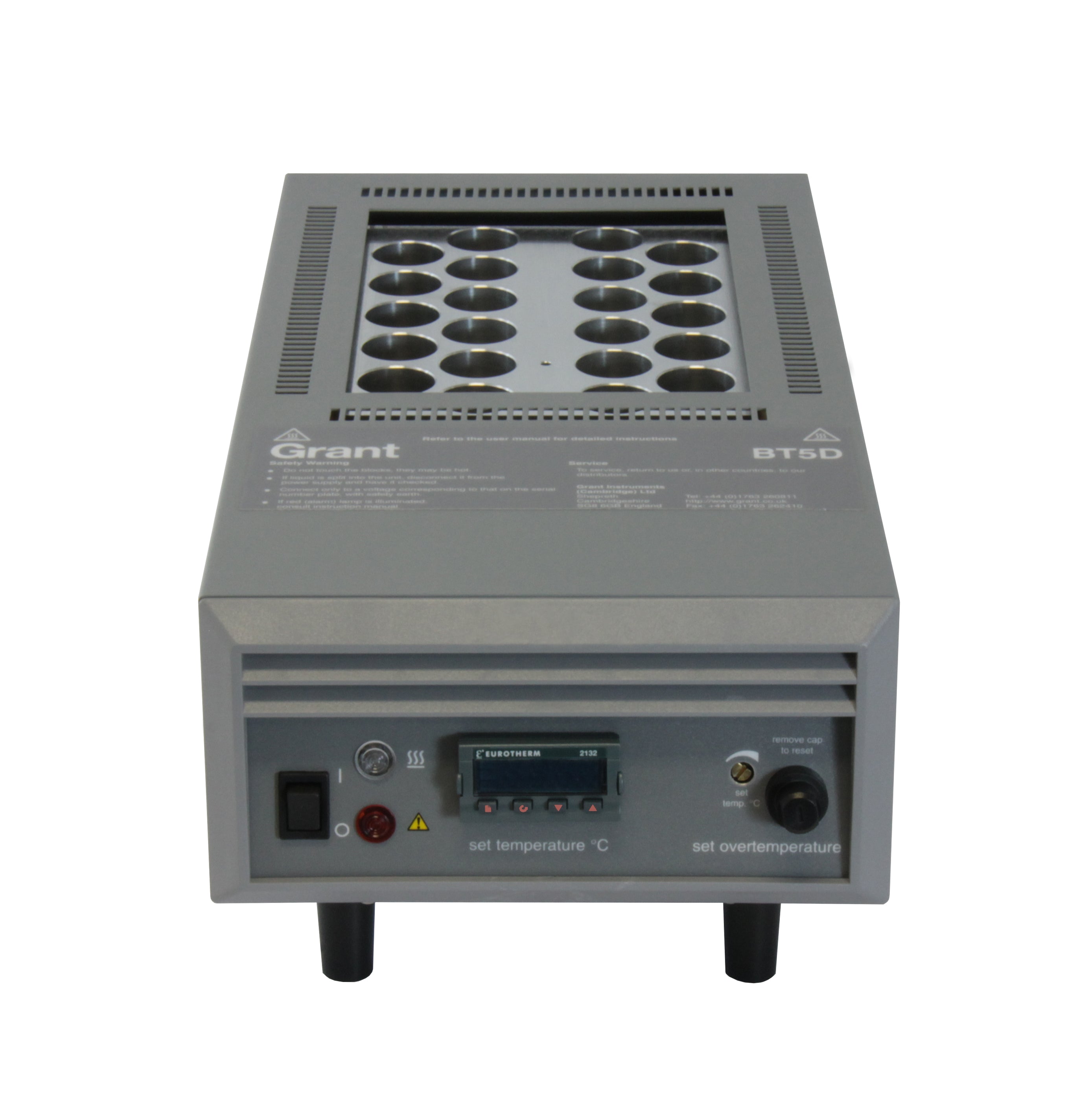

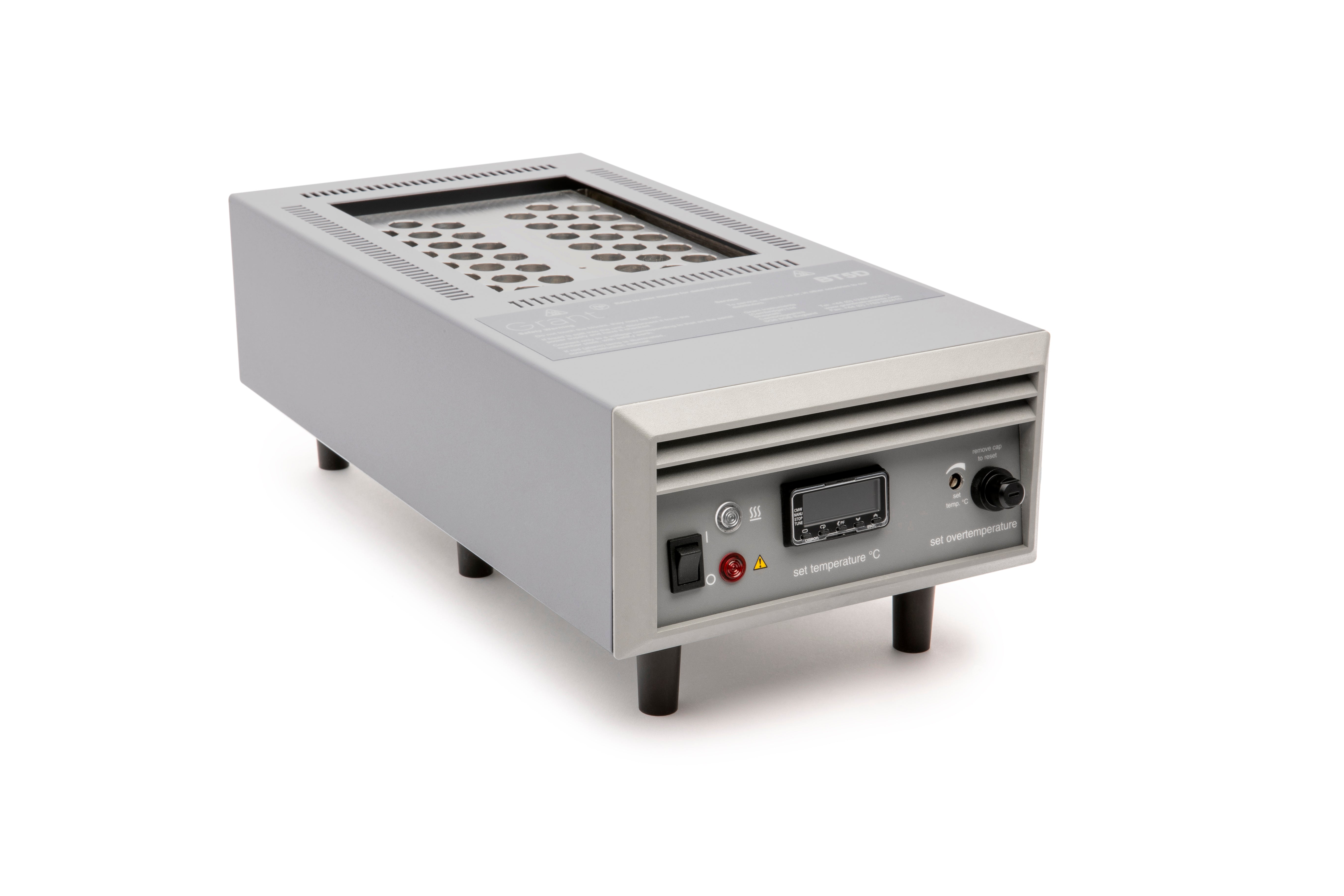

BT5D High Temperature Dry Block Heater

$5,890.00
$5,890.00
Shipping calculated at checkout.

The Grant BT5D is a convenient digitally controlled dry block heating system for high temperature applications where the use of a bath is not desirable.

It provides temperature control without the need for fluids and reduces the risk of contamination.

  • Temperature range ambient plus 10 to 400ºC
  • Stability ±0.5ºC, uniformity 1%
  • Timed or continuous operation
  • Choice of two models with different block capacities
  • Custom size blocks available

Specification BT5D-16 BT5D-26
Dimensions (h x d x w) 145 x 420 x 205 mm 145 x 420 x 205 mm
Capacity 38 x ø16 x 60 mm (depth) tube 22 x ø26 x 60 mm (depth) tube
Temperature range Ambient +10 to 400ºC Ambient +10 to 400ºC
Stability (DIN 58966) 0.5 ± ºC (up to 300ºC) 0.5 ± ºC (up to 300ºC)
Uniformity ±1% ±1%
Display LED LED
Display resolution 1ºC 1ºC
Alarms High and low High and low
Heat up time (ambient +10 to 400ºC) 1 hour 40 minutes 1 hour 40 minutes
Timer 1 to 9999 minutes 1 to 9999 minutes
Safety Adjustable cut-out Adjustable cut-out
Electrical power (230V) 750 W 750 W
Electrical power (120V) 750 W 750 W
Supply voltage 120 or 230V (50/60 Hz) 120 or 230V (50/60 Hz)
Weight 7.5 kg 7.5 kg

  • Veterinary laboratories - digestion of tissue samples for lead analyses
  • Chemical laboratories - organic synthesis
  • Technology and research - materials (explosives) testing
  • Any application requiring heating in a dry block up to 400ºC
Product Manuals
Technical Datasheets

No downloads available


Further Information
External Temperature Probe QBEP

Standard probe for in-sample or in-block temperature control; encased in stainless steel sheath, ø3mm x 30mm long, with 350mm of cable.

External Temperature Probe QBEP-WM

Short-form probe for in-sample or in-block temperature control; encased in stainless steel sheath, ø3mm x 14mm long, with 350mm of cable.

‍
